Summary of Contents for Mindsets PAC-1403

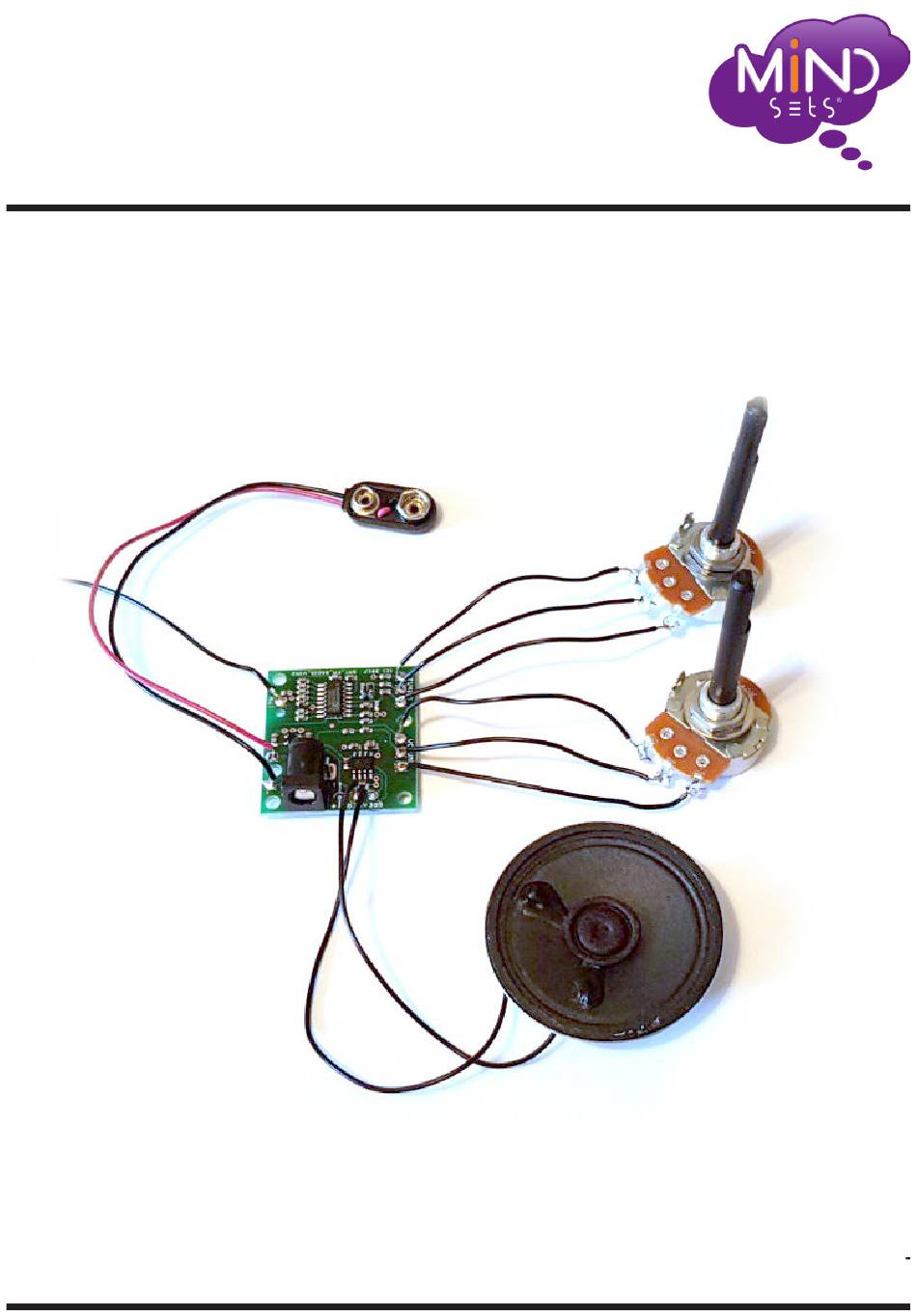

- Page 1 FM Radio PAC-1403...

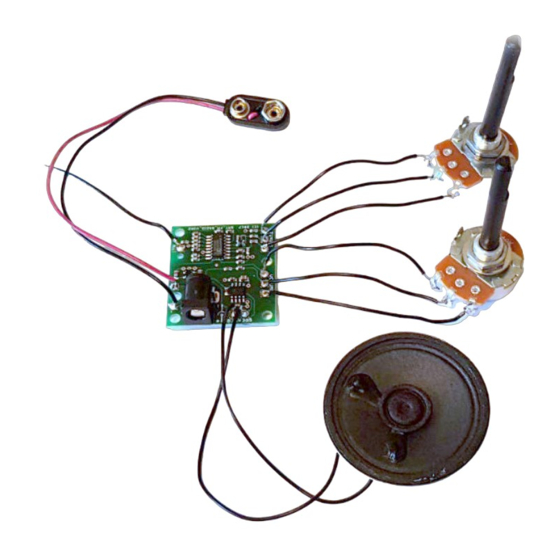

- Page 2 Introduction The radio is supplied as a completely populated printed circuit board (PCB) that requires only the addition of five external components: battery, loudspeaker, tuning control, volume control and small aerial supplied within the pack. A working radio can be assembled from the parts provided in this pack, but other external components can be substituted to provide a choice of control functions - and improved sound quality.
- Page 3 Step 1 Solder on the battery snap leads - ensuring that the red lead is connected to +ve on the PCB. Optionally pass wires through strain relief holes before soldering. strain relief Step 2 holes Solder on the loudspeaker using two lengths of stranded wire.
- Page 4 Periodically clean the tip on a damp component leg and pad for about one sponge. second. Optional components available from Mindsets: Re-tin the tip before powering off your soldering iron. • Telescopic aerial While keeping the soldering iron in place ...
