Operations Manual

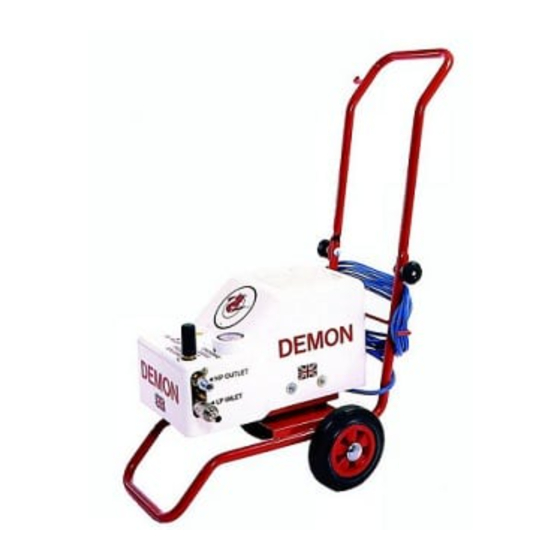

Demon Storm Range
We, Demon International Limited of Abbots Close, Lee Mill Industrial Estate, Ivybridge,
Devon, PL21 9GA Declare this machine must be operated in accordance with the
operation and safety instructions as supplied with this machine. This machine is
manufactured in accordance with the following standards.
HSE PVB PM - BS415 Part 1 - BS5415 Section 2.4 1986
This instruction manual is relevant only to the following machine and will not be kept
updated unless specifically requested by the customer. However any changes to the
operating procedure or changes which might affect the safety of this machine will be
notified to the registered owner of this machine only.
Machine Type
Serial Number
Voltage
Working Pressure
Date of Supply
STORM 1
STORM 2
Storm 1 with Hose Reel
Storm 2 with Hose reel
Storm Wall Mounted 1
Storm Wall Mounted 4
Storm Twin Cabinet 1
Storm Twin Cabinet 4
Declaration of Conformity
(E.H.S.R)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Demon Storm Series
Summary of Contents for Demon Storm Series
- Page 1 Declaration of Conformity (E.H.S.R) We, Demon International Limited of Abbots Close, Lee Mill Industrial Estate, Ivybridge, Devon, PL21 9GA Declare this machine must be operated in accordance with the operation and safety instructions as supplied with this machine. This machine is manufactured in accordance with the following standards.
-
Page 2: Technical Specifications
Technical Specifications Storm 1 Pump ARXT 11.14 Motor MTR00100 Pump pressure 100 bar 1500psi Motor output 2.2KW Flow rate 11 lpm 2.45gpm Motor input 3.0KW Max by pass setting 120 bar 1750psi Max current 12.5 amps H.P Nozzle 2504 Voltage 230V + or - 10V Pump oil 10W40... - Page 3 Storm Twin Cabinet 1 Pump ARXT 11.14 Motor MTR00100 Pump pressure 100 bar 1500psi Motor output 2.2KW Flow rate 11 lpm 2.45gpm Motor input 3.0KW Max by pass setting 120 bar 1750psi Max current 12.5 amps H.P Nozzle 2504 Voltage 230V + or - 10V Pump oil 10W40...
-
Page 4: Repair Kit
Valve Kit Piston Kit Oil Seal Kit Water Seal Kit MINIMATIC REPAIR KIT STORM 1 1864 2629 1872 1874 2812 STORM 2 1864 2629 1872 1874 2812 WM 1 1864 2629 1872 1857 2223 1828 2757 1856 1857 2223 FS 1 1864 2629 1872... -
Page 5: Operation
Preparation Water Supply: Ensure there is an adequate water supply either from the mains or a reservoir. NOTE: ONLY CLEAN FILTERED WATER SHOULD BE USED. Hoses: Attach the high pressure hose to the pump connection. Attach the spray gun to opposite end of the high pressure hose. Ensure that the regulator nozzle on the end of the spray lance is CLOSED. -
Page 6: Operating Hints
OPERATING HINTS During very cold weather it is most important to protect the machine against freezing. DO NOT operate machine should it become frozen. Move it to a warm area and allow to thaw naturally. Check all hoses and couplings for leaks, tighten where necessary. WHEN USING CLEANING AGENTS Set machine up for water only. - Page 7 CHECK that your supply voltage agrees with that shown on the machine. Demon do not recommend the use of an extension lead using an extension lead will result in switch failure or motor damage. Demon strongly recommend the use of extension hoses as opposed to extension leads.
-
Page 9: Fault Finder
Fault Finder FAULT CAUSE REMEDY Check mains power supply, re- Machine stops suddenly Blown fuse. place fuse. Wait until unit cools Or will not start. down before resetting switch. Sudden pressure loss. Water supply failed. Check water supply. HP nozzle worn or Replace HP nozzle. - Page 10 Storm Cold Water Range General Arrangement Handle Frame DEM10226 13.5amp switch DEM10176 Switch cover & seal DEM10174 Protection Cover DEM10173 Storm switch Bracket DEM101741 Knob Kit DEM102255 Chemical Filter MTM86010 Pressure Gauge DEM20621 Wheel Cap Wheel25 Cover Rubber Mounts Wheel DEM20181 WHEEL200 On Storm hose reel...
- Page 11 Storm 1 Easy Start Valve Blead off Part 1 MTM00100 Blead off Part 2 MTM00101 Easy Start Valve MTM39001 1/8 Hose Barb x 5/16 (9mm) DEM20401 Storm Easy Start to Water Inlet Pipe DEM10321...
- Page 12 Storm Wall Mounted General Arrangement Cold Water Button Pressure Gauge H6442B DEM20620 Electrics Box DEM101111 Electric Motor MTR00100 (WM1) MTR00200 (WM4) Unloader Valve ARGM3 Pump ARXT11-14 (WM1) ARXR15-20H (WM4)
- Page 14 Demon Storm Twin Cabinet Washer...
- Page 15 Demon Storm Twin Cabinet Washer ON/OFF SWITCH N.B. If there is no water in the machine a light will still indicate LED To indicate pow- power but will not be operational. CHECK WATER in the machine Rotary Switch 13 Amp MCB...
-
Page 16: Warranty
Demon International’s decision in warranty matters is final and binding. Demon International Ltd undertake to repair or replace, any component which may fail due to a manufacturing fault within a period of 12 months from the date of purchase, provided that any fault or damage was not sustained by;... -
Page 17: Warranty Procedure
5. If required Demon will arrange for a carrier to collect a damaged machine, if the warranty claim is valid we will pay this cost, if not it will be charged to the customer. - Page 18 I can’t get the pressure to where it used to be — where do I start?
- Page 20 1450 Code No Description Code No Description AR680570 Screw AR1320020 Pump Head AR620301 Plug AR180101 O Ring AR1260162 Plug AR820361 Plug AR960160 O Ring AR1260200 Crankshaft AR1269050 Complete Valve AR1320260 Crankshaft AR880830 O Ring AR1380520 AR1320340 Support Ring AR1320370 Bearing AR1260220 Gasket AR1260750...
- Page 21 Pump for Storm Wallmounted 4 & Free Standing 4 RK 13-17 / RK 15-20H / RK21-15...
- Page 22 RK MODEL: RK 13-17 / RK 15-20H / RK21-15 Part No Description Part No Description AR960160 O Ring AR1343510 Screw AR960090 Plug AR1380120 0.10mm shim 1÷3 AR1380740 Plug AR1380130 0.20mm shim 1÷3 AR1389051 Complete Valve AR1380530 0.25mm shim 1÷3 AR880830 O Ring AR1382810 0.05mm shim...
- Page 23 Storm 1 & 2...
- Page 24 MINIMATIC 4/B Part No Description Part No Description AR1981780 Handle AR1540180 Adaptor AR1540560 Grub AR1540500 Adaptor AR1980300 AR1540280 By pass housing AR1980390 Knob Insert AR1540480 By pass housing AR1980220 Spring Plate AR1540630 O Ring AR1271070 Spring AR880270 O Ring AR1080041 Upper Piston AR1540260 Thread Screw...
- Page 25 Wallmount & Freestanding pre 2013 models...
- Page 26 MINIMATIC 4/B Part No Description Part No Description AR1981780 Knob extension AR1540180 Adaptor AR392840 Grub screw AR1540500 Adaptor AR1980300 AR1540280 By pass housing AR2500400 Knob insert AR1540630 O RING AR1980220 Spring plate AR880270 O RING AR1271070 Spring AR1540260 Screw AR1080041 Upper piston AR480440 O ring...
- Page 27 ARGM3...
- Page 40 Storm Range Inlet Fittings Position Part No Description DEM10041 100 Mesh Suction Filter MTM86010 Chemical Filter MTM73001 QR Nipple Female MTM73020 QR Nipple Male HH0053 Yellow Hose DEM20500 Jubilee Clip DEM10042 Suction filter with INC (1-4-5-6) Hose and fittings DEM10115 Detergent Pipe (Chemical Pipe) 3mtr MTM73K991 Plastic washer for N0 3...
-
Page 44: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY Demon International Ltd Abbots Close, Lee Mill Industrial Estate, Ivybridge, Devon PL21 9GA Declare that: Equipment High Pressure Water Jet Machines Model name/number Serial number Conforms to the relevant safety and health related requirements of the appropriate EC Directives. This declaration shall cease to be valid if modifications are made to the machine without our approval.
