Summary of Contents for Kärcher HDS 945

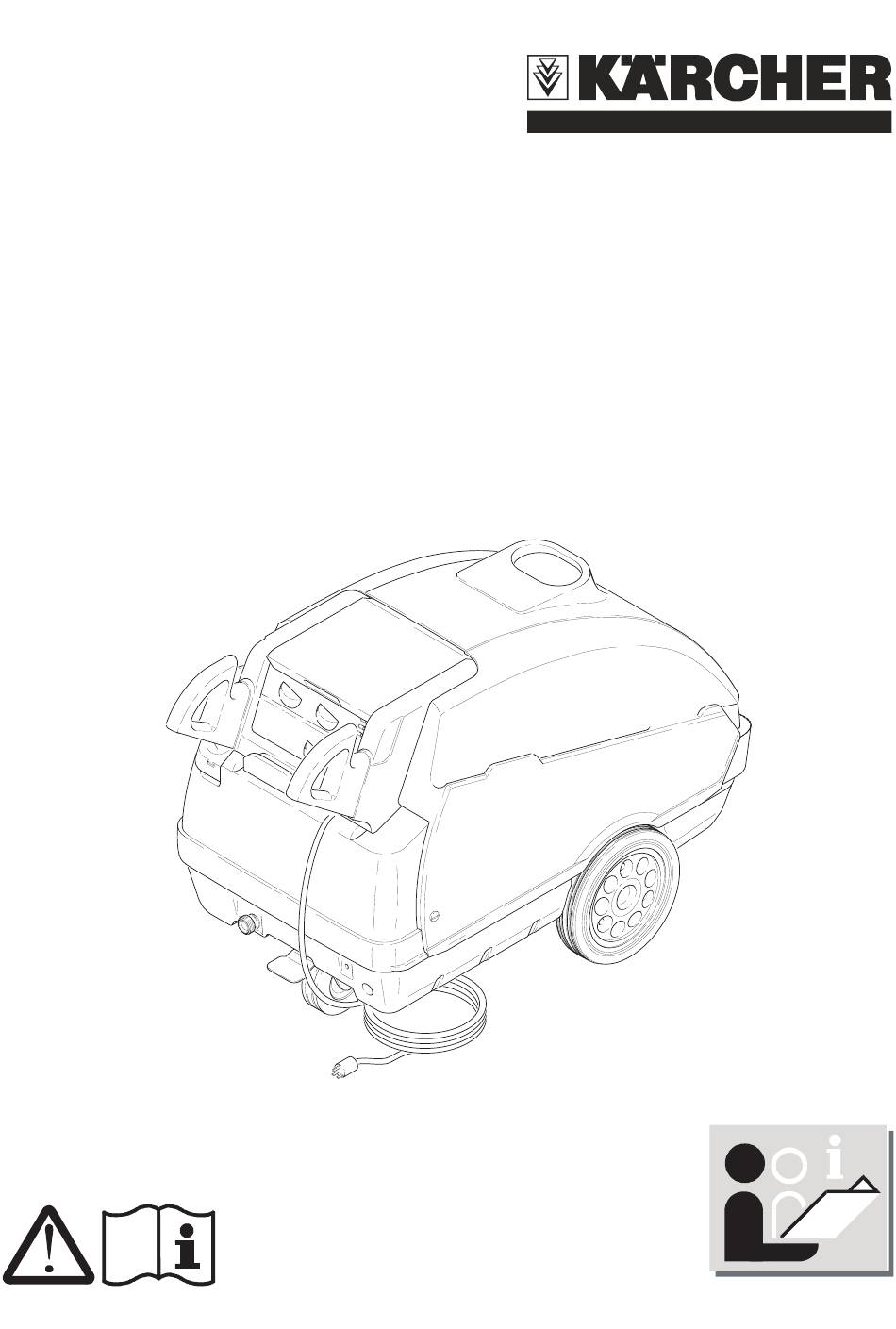

- Page 1 HDS 945 HDS 1000 HDS 1055 www.karcher.com 5.956-780 A 2005729 (06/03)
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING When using this product basic precautions should always be followed, including the following: • Read all the instructions before using the product. • To reduce the risk of injury, close supervision is necessary when a product is used near children. - Page 3 IMPORTANT SAFETY INSTRUCTIONS GROUNDING INSTRUCTIONS EXTENSION CORDS This product must be grounded. If it should Use only 3-wire extension cords that have malfunction or breakdown, grounding provides a 3-prong grounding-type plugs and 3-pole cord path of least resistance for electric current to connectors that accept the plug from the product.
- Page 4 1. Diagram of the appliance 2. Controls Elec. connecting cables Filling orifice for fuel Water connection with strainer Handle High-pressure connection Instrument panel Hand-held spray gun with Button for overcurrent protective relay high-pressure hose Compartment for accessories Spray lance Short-time operation instructions High-pressure nozzle Cover flap for compartment Appliance switch...
-
Page 5: Technical Data
3. Technical Data 1000 1055 Power connection Voltage Type of current 1~ 60 1~ 60 1~ 60 Connected load Mains fuse (slow) Water connection Supply temperature (max.) °F Supply rate (min.) Suction height fom open tank at a water temp. of 86 °F Performance data Operating pressure 460–2000... - Page 6 4. Start-up 4.1 Environmental protection 4.4 Checking the oil level of the high-pressure pump · Before the initial start-up, open the appliance · hood and cut the tip off the oil tank cover (venting Please dispose of packaging environmentally the oil housing). responsibly.
- Page 7 4. Start-up 4.7 Connecting the water 4.9 Intended use · · See technical data, chap. 3 for connected Use the appliance to clean machines, vehicles, loads. buildings, tools, etc. · · Attach the supply hose to the appliance and to Clean facades, patios, garden implements, etc.
-
Page 8: Operation
5. Operation 5.1 Venting the appliance 5.3 Adjusting the operating pressure and flow rate · Open the water intake. · You can adjust the operating pressure and · Allow the appliance to run without the high- flow rate steplessly with the pressure and pressure hose until the water emerges without volume control on the pump head: bubbles. - Page 9 5. Operation 5.6 Operating with detergent 5.7 Interrupting operation · · Fill the detergent tank. If you release the trigger of the hand-held spray gun, the appliance switches off. If the · Set the detergent metering valve to the desired trigger is pulled again, the appliance switches concentration.
-
Page 10: Care And Maintenance
6. Care and maintenance 6.4 Decarbonizing the heating element Always disconnect the appliance from · the electric mains supply before carrying If the heating element becomes sooted within out any maintenance work. a short time, you should have the burner setting checked by the authorized customer ·... - Page 11 6. Care and maintenance 6.7 High-pressure hose · The high-pressure must not be damaged (danger of bursting). A damaged high- pressure hose must be replaced immediately. Only use a Kärcher high-pressure hose replacement. 6.8 Connecting cable · The connecting cable must not be damaged (danger of electric shock).
-
Page 12: Troubleshooting
7. Troubleshooting 7.3 The appliance does not come up to Always disconnect the appliance from pressure the electric mains supply before carrying out any repair work. · Rotate the pressure and volume control to the The electrical components must only be maximum value. - Page 13 7. Troubleshooting 7.7 The appliance switches on and off continuously · Clean the high-pressure nozzle. · Check whether the heating element is calcified (see chap. 6). · Attach a larger nozzle when using high- pressure extension hoses. 7.8 Burner does not ignite ·...
-
Page 14: General Information
8. General Information 8.1 Safety equipment 8.3 Spare parts Pressure switch Please note that the use of other than Kärcher spare When the operating pressure is exceeded, e.g. parts can result in damage and even serious when the gun is closed, when the nozzle is dirty or accidents if these parts have not been correctly when the heating element is calcified, the pressure manufactured, if they do not replace the Kärcher... - Page 15 HDS 1055 6.388-225.0 5.063-448.0 1.027-681.0 USA 5.363-300.0 6.388-559.0 5.042-463.0 5.030-834.0 6.414-028.0 6.313-014.0 5.321-378.0 6.313-014.0 5.321-377.0 5.063-447.0 5.363-290.0 5.731-039.0 5.337-021.0 5.321-379.0 5.392-017.0 5.321-403.0 5.305-204.0 7.312-004.0 6.647-904.0 4.775-026.0 7.306-049.0 6.362-496.0 4.760-101.0 6.303-025.0 6.390-010.0 6.303-025.0 2.880-296.0 5.321-150.0 4.760-101.0 5.321-150.0 6.303-025.0 2.880-296.0 6.390-010.0 5.401-210.0 04/97 6.303-025.0 4.760-101.0...
- Page 16 HDS 1000 6.388-225.0 5.063-448.0 1.027-851.0 USA 5.363-300.0 6.388-559.0 5.042-463.0 5.030-834.0 6.414-028.0 6.313-014.0 5.321-378.0 6.313-014.0 5.321-377.0 5.063-447.0 5.363-290.0 5.731-039.0 5.337-021.0 5.321-379.0 5.392-017.0 5.321-403.0 5.305-204.0 7.312-004.0 6.647-904.0 7.306-049.0 4.775-026.0 6.362-496.0 4.760-101.0 6.303-025.0 6.390-010.0 6.303-025.0 2.880-296.0 5.321-150.0 4.760-101.0 5.321-150.0 6.303-025.0 2.880-296.0 6.390-010.0 5.401-210.0 09/98 6.303-025.0 4.760-101.0...
