Main Board; Led-1 Board, Led-2 Board - Sony KSM-213CDP Service Manual

Hide thumbs
Table of Contents

Advertisement

CFD-F10/F10L

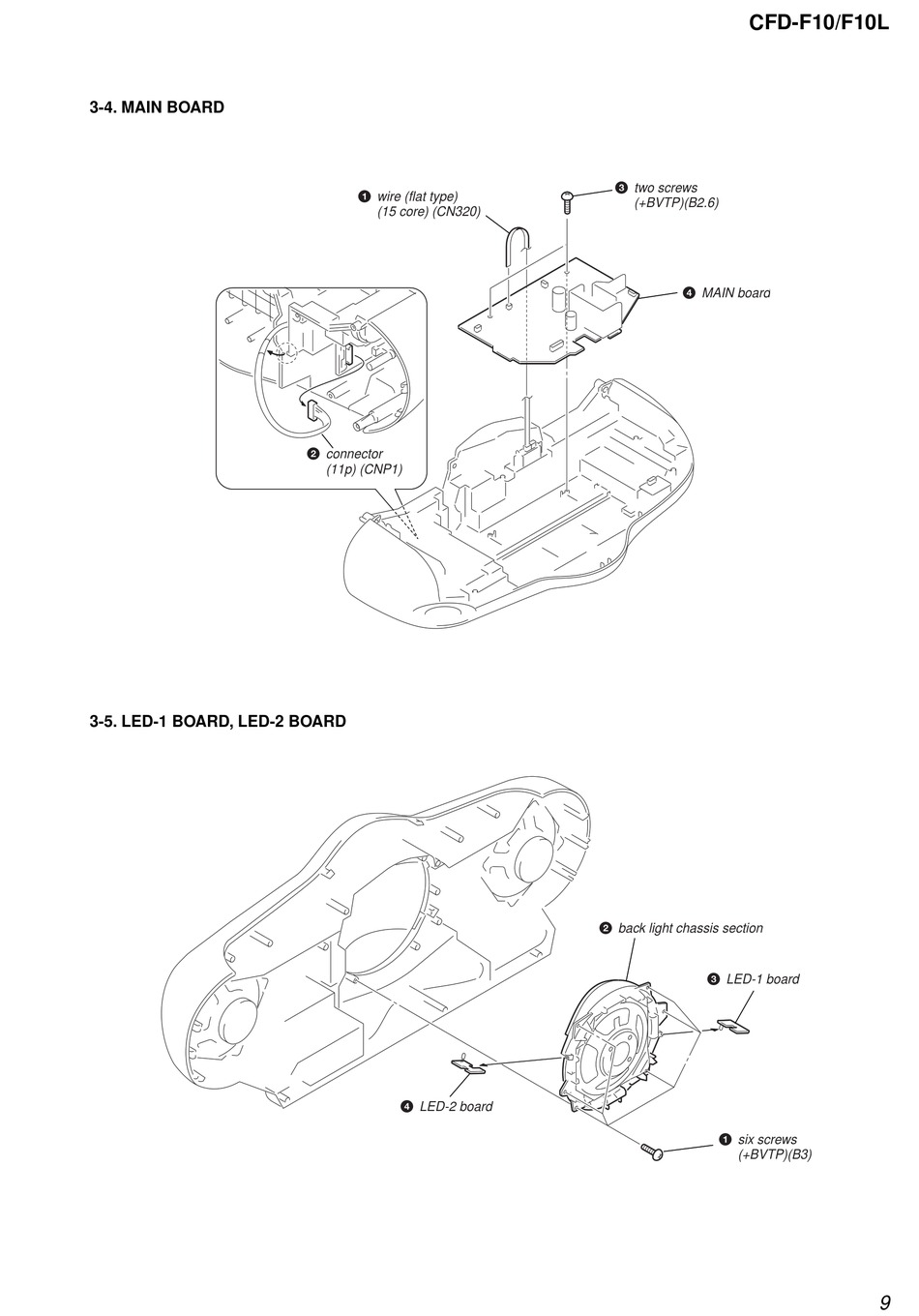

3-4. MAIN BOARD

3 two screws
1 wire (flat type)
(+BVTP)(B2.6)
(15 core) (CN320)
4 MAIN board
2 connector
(11p) (CNP1)

3-5. LED-1 BOARD, LED-2 BOARD

2 back light chassis section
3 LED-1 board
4 LED-2 board
1 six screws
(+BVTP)(B3)
9
