Note : Follow the disassembly procedure in the numerical order given.

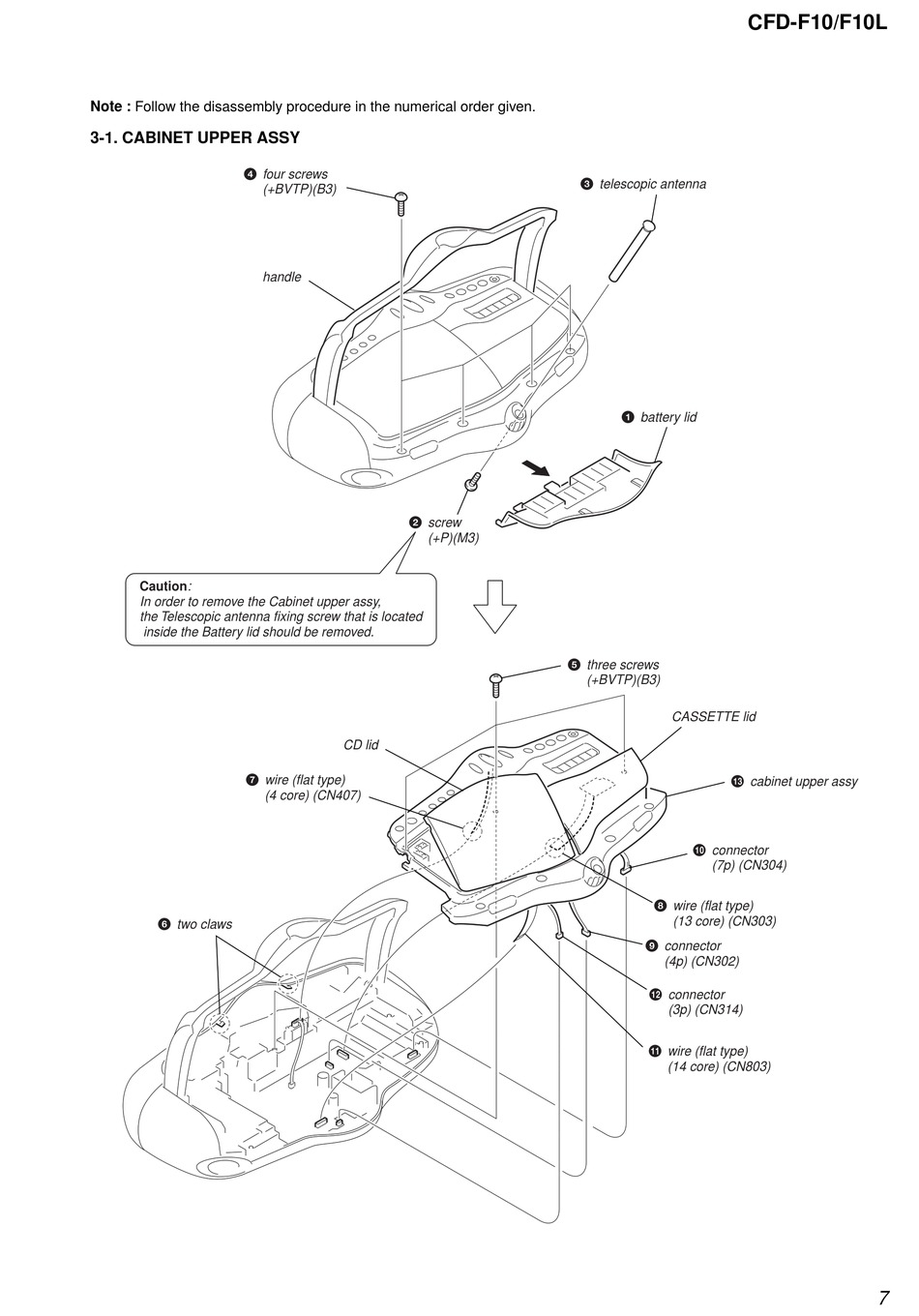

3-1. CABINET UPPER ASSY

4 four screws
(+BVTP)(B3)
handle
Caution :
In order to remove the Cabinet upper assy,
the Telescopic antenna fixing screw that is located
inside the Battery lid should be removed.
7 wire (flat type)
6 two claws
2 screw
(+P)(M3)
CD lid
(4 core) (CN407)
3 telescopic antenna
1 battery lid
5 three screws
(+BVTP)(B3)
CASSETTE lid
qd cabinet upper assy
q; connector
(7p) (CN304)
8 wire (flat type)
(13 core) (CN303)
9 connector
(4p) (CN302)
qs connector
(3p) (CN314)
qa wire (flat type)
(14 core) (CN803)
CFD-F10/F10L
7
