Exploded Views; Main Section - Sony KSM-213CDP Service Manual

CFD-F10/F10L
Ver 1.2
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked "*" are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.

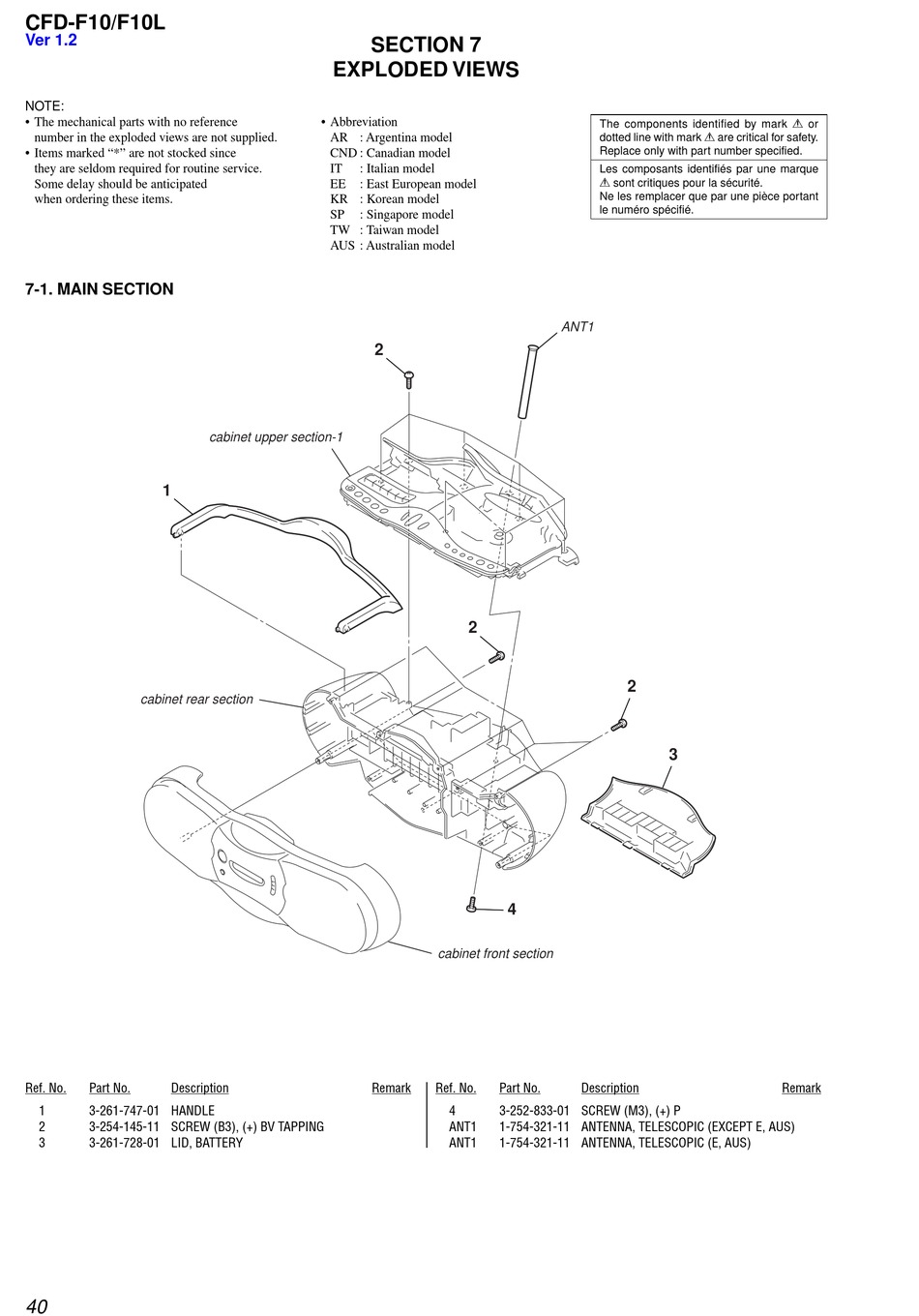

7-1. MAIN SECTION

1
cabinet rear section
Ref. No. Part No. Description
1 3-261-747-01 HANDLE
2 3-254-145-11 SCREW (B3), (+) BV TAPPING
3 3-261-728-01 LID, BATTERY
40
SECTION 7

EXPLODED VIEWS

• Abbreviation
AR : Argentina model
CND : Canadian model
IT : Italian model
EE : East European model
KR : Korean model
SP : Singapore model
TW : Taiwan model
AUS : Australian model
2
cabinet upper section-1
Remark
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
ANT1
2
4
cabinet front section
Ref. No. Part No. Description
4 3-252-833-01 SCREW (M3), (+) P
ANT1 1-754-321-11 ANTENNA, TELESCOPIC (EXCEPT E, AUS)
ANT1 1-754-321-11 ANTENNA, TELESCOPIC (E, AUS)
2
3
Remark
