CFD-F10/F10L

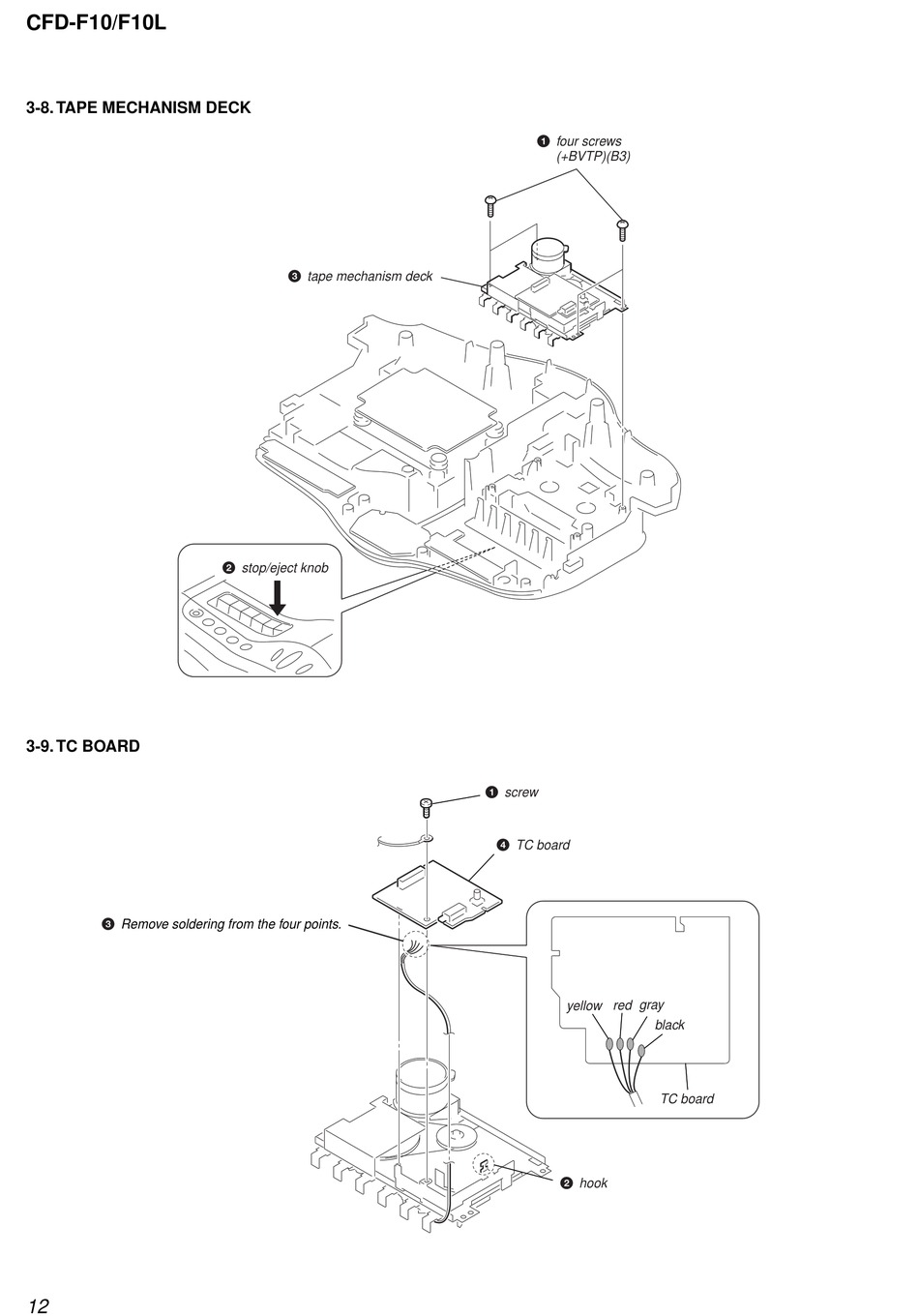

3-8. TAPE MECHANISM DECK
1 four screws
(+BVTP)(B3)
3 tape mechanism deck
2 stop/eject knob
3-9. TC BOARD
1 screw
4 TC board
3
Remove soldering from the four points.
yellow red gray
black
TC board
2 hook
12
