Ross RAAC1.5/15 Manual

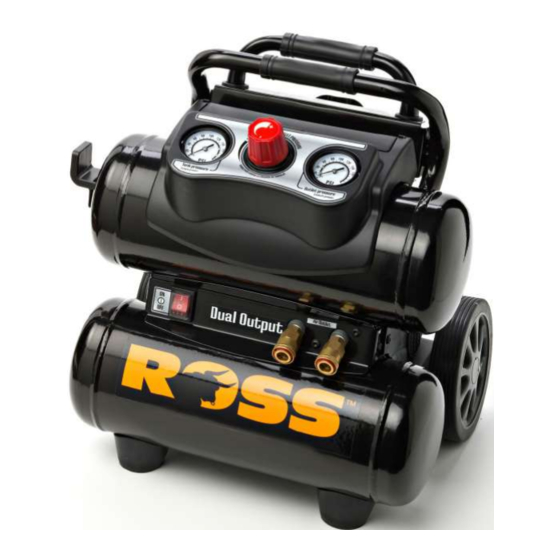

High pressure twin tank compressor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Protect yourself and others by observing all safety information, warnings, and cautions. Failure to
comply with instructions could result in personal injury and/or damage to product or property.
Please retain instructions for future reference!
RAAC1.5/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAAC1.5/15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ross RAAC1.5/15

Summary of Contents for Ross RAAC1.5/15

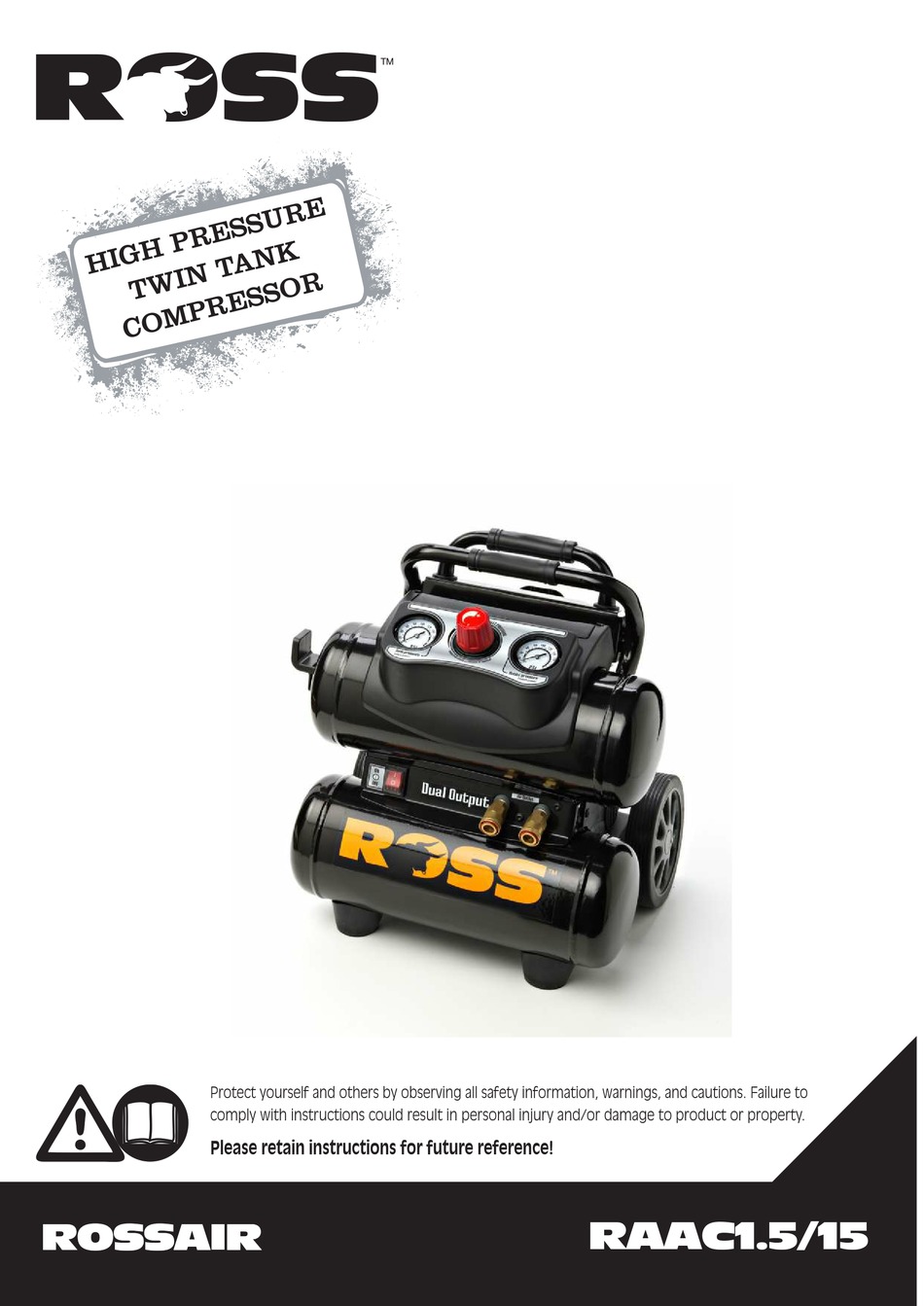

  • Page 1 Protect yourself and others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property. Please retain instructions for future reference! RAAC1.5/15...

  • Page 2: Specifications

    SPECIFICATIONS RAAC1.5/15 Input: 240V ~ 50Hz Motor: 1.5Hp Tank: 15 Litre Max Pressure: 10.7bar (155psi) Free Air Delivery 76L/Min 2 x Nitto Style Quick Couplers...

  • Page 3: General Safety Instructions

    COMPRESSOR INTRODUCTION This tool has many features for making its use more pleasant and enjoyable. Safety, performance and dependability have been given top priority in the design of this product making it easy to maintain and operate. GENERAL SAFETY INSTRUCTIONS Before attempting to operate this compressor the following basic safety precautions should always be taken to reduce the risk of fire, electric shock and personal injury.

  • Page 4: Breathable Air Warning

    FOR ADDITIONAL PROTECTION FROM ELECTRIC SHOCK It is recommended that this tool be used in conjunction with a residual current device (RCD) with a rated residual current of 30mA or less. GENERAL WARNINGS FOR COMPRESSORS • Do not attempt to modify the compressor in any way. •...

  • Page 5: Parts Identification

    PARTS IDENTIFICATION Outlet Regulator Pressure Tank Pressure Air Outlets ON/OFF SWITCH Safety valve Drain Valves...

  • Page 6: Compressor Operation

    Starting The compressor. 1. Ensure the Drain valve is closed. 2. Plug the power cord into the mains power outlet and switch it on 3. Set the compressor On/OFF switch to the ON Position When finished 1. Set the compressor ON/OFF switch to the OFF position 2.

  • Page 8: Warranty

    Should service become necessary during the warranty period, the purchaser should contact an Authorised Service Centre or J W Ross. In order to obtain warranty service, the purchaser must present the store receipt showing the name of the retailer and the date of purchase.
