- Page 1 PRECISIONARY INSTRUMENTS ROTARY MICROTOME RF-800 For Research & Clinical Studies User Manual...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..........................2 Thank You! ................................. 3 Safety .................................. 3 Instrument Type & Use .............................. 4 Intended Use of the Instrument .......................... 4 Safety Devices .................................. 4 Model Description ..........................5 RF-800 Rotary Microtome General Information ................... 5 Technical Specifications .............................. 5 RF-800 Rotary Microtome Components .................... 6 RF-800 Rotary Microtome Anatomy ........................ 7 RF-800 Specimen Head Clamp Anatomy ....................... 8 RF-800 Knife Holder Base Anatomy ........................ 8 Installation ............................. 9 Installation General Information ....................... 9 Delivery of the Rotary Microtome RF-800 .................... 9... -
Page 3: Thank You
Caution! Follow the accompanying documentation. This user manual is a key part of the Precisionary Rotary Microtome RF-800, therefore make sure to keep it on hand and as close as possible to the instrument itself for future reference. -
Page 4: Instrument Type & Use
Please only refer to this user manual when handling the Precisionary RF-800 rotary microtome. The Precisionary RF-800 is meant to be used by trained laboratory personnel only, and is intended only for professional use. Please read this manual thoroughly and understand all instructions BEFORE operating this instrument. -
Page 5: Model Description

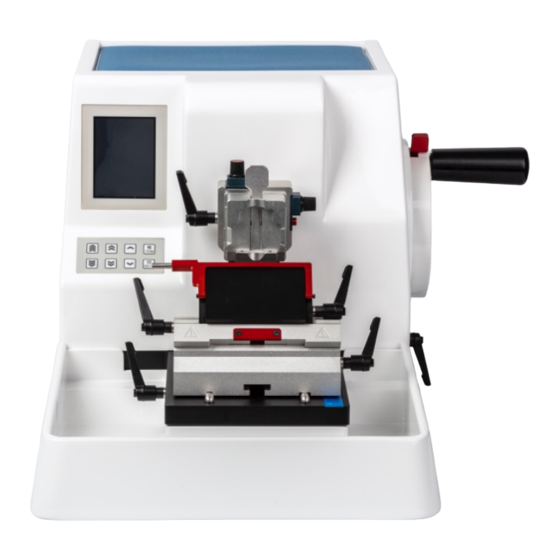

Model Description RF-800 Rotary Microtome General Information The Precisionary RF-800 rotary microtome is a semi-automatic model that is ideal for routine histology tissue sectioning. This microtome provides high precision cutting and stability, which gives you reproducible, high-quality wax-embedded and fixed tissue sections. -
Page 6: Rf-800 Rotary Microtome Components
RF-800 Rotary Microtome Components The Precisionary RF-800 is delivered with everything you need to get started right away to use your new rotary microtome for cutting experiments. The following items are included with your RF-800 rotary microtome: Item Name Quantity Part Number (Catalog Number) -
Page 7: Rf-800 Rotary Microtome Anatomy
RF-800 Rotary Microtome Anatomy Name Function Operation Panel Allows for adjusting cutting parameters and cutting modes displayed on the touchscreen. Microtome Storage Surface Flat surface with rubber pad for easy storage of accessories and consumables while cutting. LCD Touchscreen Panel Displays cutting parameters, numbers, and controls. -
Page 8: Rf-800 Specimen Head Clamp Anatomy
RF-800 Specimen Head Clamp Anatomy Name Function Specimen Head Rotation When loosened, allows for X- and Y- axis rotation Locking Handle adjustments of the specimen head. Specimen Head Y-Axis Allows for changing the specimen head angle in the Y-axis. Adjustment Knob Specimen Head X-Axis Allows for changing the specimen head angle in the X-axis. -
Page 9: Installation
Delivery of the Rotary Microtome RF-800 The Precisionary Rotary Microtome RF-800 is delivered with all safety precautions using freight shipment. Your rotary microtome will be delivered in a secure wooden crate that will require disassembly before installation of the instrument. Upon receipt of your rotary microtome delivery, please complete the following steps: •... -
Page 10: Unpacking & Installing The Rotary Microtome Rf-800
Unpacking & Installing the Rotary Microtome RF-800 We’re here to help provide instructions on how to unpack your new RF-800 carefully and safely! 1. Begin by unpacking the wooden crate containing the rotary microtome. • There will be metal “tabs” around the edges of the wooden crate. • Use a screwdriver to help pull each tab up. 2. After all tabs are pulled up, remove the top cover of the wooden crate. 3. When you receive the rotary microtome, the handwheel will already be installed for you! • There are two ways to lock the handwheel: 1) The lever at the top of the handwheel allows you to lock and unlock the wheel’s movement. -
Page 11: Operation
Step 1. Install the removeable waste tray After unpacking the removable waste tray, slide it onto the base of the RF-800 rotary microtome from the front. The grooves in the removable waste tray will fit perfectly into the underside of the microtome base. -
Page 12: Step 2. Learn The Different Components Of The Knife Holder Base
Step 2. Learn the different components of the knife holder base The knife holder base is composed of three (3) separate components that interlock together: Starting from the bottom-most piece, here is what each component does: Knife Holder Base Component Movement &... -
Page 13: Step 3. Install The Knife Holder Base Onto The Microtome Base Unit
(1). Cutting Sections with the Rotary Microtome This section covers the operational procedures of the Precisionary Rotary Microtome RF-800. Always remember to wear safety gloves while operating the instrument. Step 1. Insert a cassette or tissue block into the specimen head clamp Begin by pushing the specimen clamp lever towards you, then insert the cassette block. -
Page 14: Step 2. Adjust The Orientation Angles Of The Specimen Head
First, loosen the clamping knob (green arrow) for the top component of the knife block set to insert a microtome cutting blade. Then tighten the clamping knob. You can choose to use either low-profile or high-profile cutting blades with the RF-800 rotary microtome. We include two cutting blade safety features on the top component: 1. -
Page 15: Using The Operation Panel
Always remember to wear safety gloves while operating the instrument. Using the Operation Panel The Precisionary Rotary Microtome RF-800 has an operation panel that looks like this: Here are the specific functions of the Operation Panel buttons: Specific Operation Panel Button... -
Page 16: Using The Lcd Touchscreen Panel
Modes for Trimming & Sectioning Using the LCD Touchscreen Panel The Precisionary Rotary Microtome RF-800 is unique in that it has a state-of-the-art LCD touchscreen control panel for all functionalities. To help explain the functions of each panel in the Main Control Panel, here are the specific buttons and selections: Main Control Screen Date &... - Page 17 To change the slice thickness for trimming or sectioning, touch “Trim Thickness” or “Sect Thickness” and enter your desired thickness. This section tracks the cumulative slice count as you cut through your sample. To clear the cumulative count, touch the “Clean Section” button. Touching the “Back Limit”...
- Page 18 “Click interval” sets the speed of each click for Single Click Forward & Single Click Retraction Buttons Pressing this button will change all parameters and settings back to factory settings. Typically, users will not need to activate this feature. Users will not need this feature, which is used during quality control and testing during rotary microtome production.
-
Page 19: Cleaning & Maintenance
Cleaning & Maintenance Cleaning & Disinfecting The RF-800 has been designed to facilitate easy cleaning. Upkeeping the proper maintenance and cleaning of your instrument is essential in reducing machine degradation. Personal protective wear such as gloves and mask should be worn throughout this process. -
Page 20: Troubleshooting
Troubleshooting Are you the proud owner of a Precisionary Instruments Rotary Microtome RF-800, but are having problems? This is our “Troubleshooting Guide,” which we wrote to help you troubleshoot the most commonly encountered issues. Jump right in! Problem Solution Thick & thin alternating tissue... -
Page 21: Warranty & Services
Shipping fees incurred from repairs for under-warranty service in the first year under warranty will be paid by Precisionary Instruments. All shipping fees both to and from Precisionary Instruments following this one year period must be paid by the customer.
