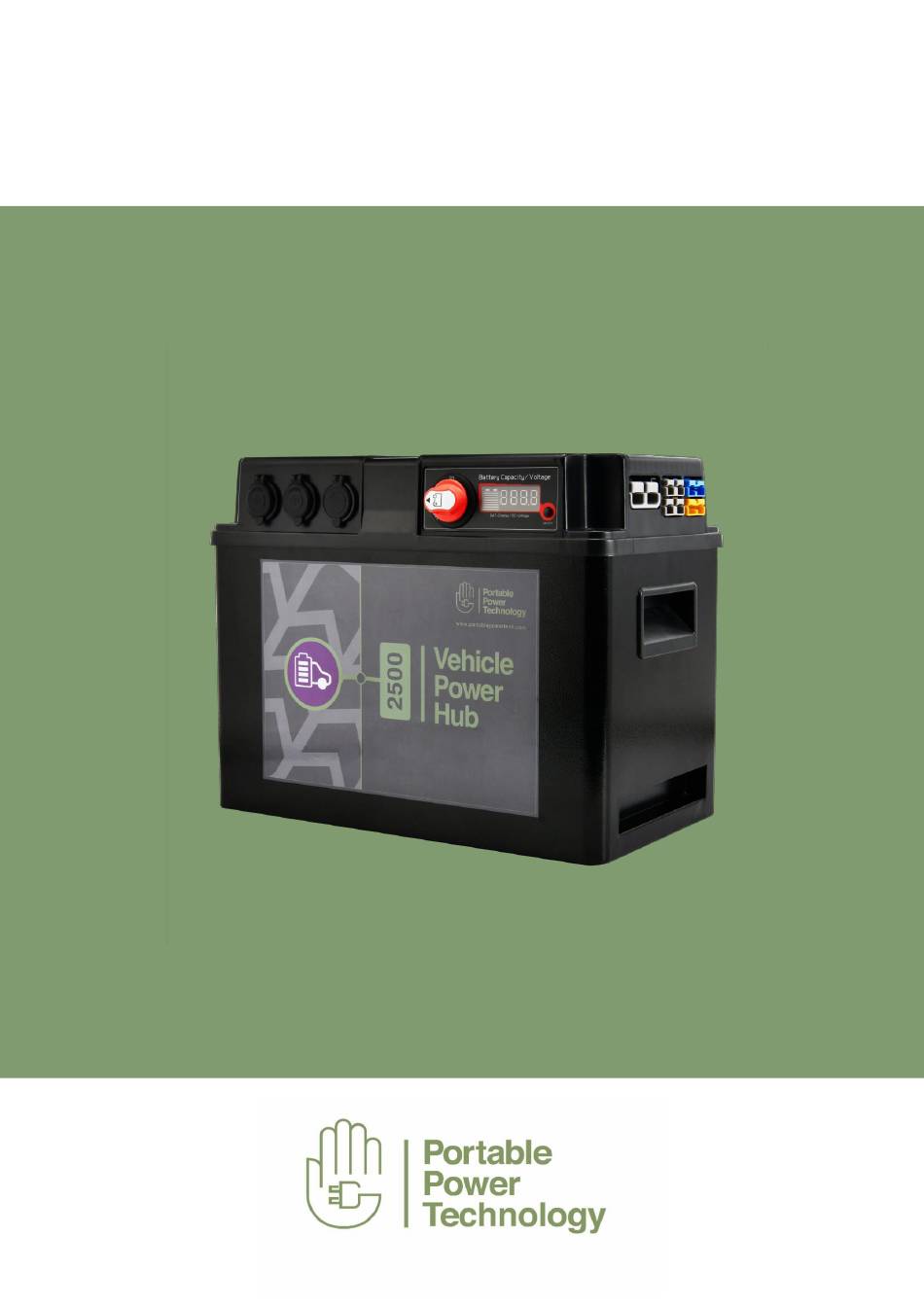

- Page 1 VEHICLE POWER HUB Lithium Power Supply with in-built DC-DC charger and solar controller USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS General Introduction Product Overview General Safety Instructions General Precaution Charging the Vehicle Power Hub Operating Instructions Multi-Function Display Troubleshooting Specifications In the Box Maintenance Warranty PLEASE READ THIS MANUAL BEFORE USE Please note- this manual is relevant for models VPH1300, VPH2500 and VPH3800 01474 761 051 www.portablepowertech.com... -
Page 3: General Introduction
GENERAL INTRODUCTION Thank you for purchasing the Vehicle Power Hub. The Vehicle Power Hub is a fully integrated solution combining lithium battery, in vehicle DC-DC battery charger, integrated MPPT solar controller, 12VDC and USB outputs in a single portable and movable box - Plug and play input and output Anderson connectors make install safe and easy and with supplied cables enable fast connection and removal from the vehicle when required. - Page 4 CHARGE THE VEHICLE POWER HUB NOW Built-in ultra-high capacity lithium-ion battery pack. Before using or storing, please charge the Vehicle Power Hub by the lithium-ion AC charger (supplied) until it’s fully charged. Don’t leave the Vehicle Power Hub stored for extended periods of time without being charged. For long cycle life the best thing for any battery is to use it and charge it 01474 761 051 www.portablepowertech.com...
-
Page 5: Product Overview

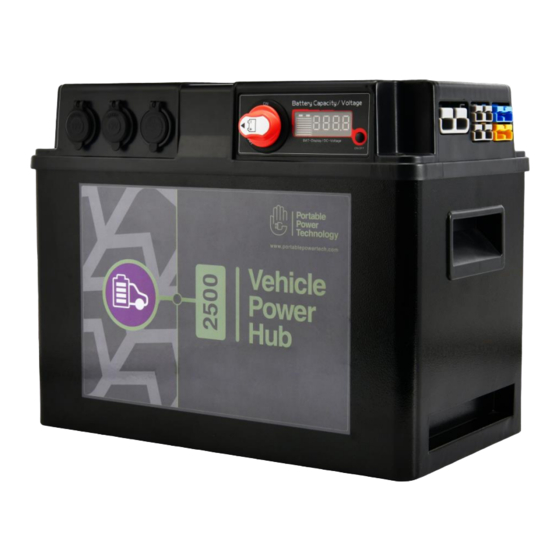

PRODUCT OVERVIEW USB 5V 2 X 2.1A DC ISOLATOR SWITCH DC 12V 10A SOCKET MULTI FUNCTION DISPLAY IGN SIGNAL CONNECTION EXTERNAL DC12V INVERTER OUTLET CARRY HANDLES 50A INPUT/OUTPUT STRAPPING POINT IN-VEHICLE CHARGE INPUT (BLUE) DISPLAY ON/OFF 12V SOLAR INPUT (YELLOW) 01474 761 051 www.portablepowertech.com... -
Page 6: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS Safety Instruction As dangerous voltage and high temperature exist within the Vehicle Power Hub, only qualified and authorized maintenance personnel are permitted to open and repair. This is a maintenance free product – Removal of the lid may only be required to change a fuse – seek approval from PPT Technical Team if required Please make sure the Vehicle Power Hub (DC isolator) is turned off before opening and servicing. -
Page 7: General Precaution
GENERAL PRECAUTION Energized Equipment – Electrical Shock and Explosion Hazards ➢ Do not submerge in liquid or operate in wet environments. Device is not waterproof or water resistant. Operate in dry environments only. ➢ Do not operate in flammable or explosive environments. ➢... -
Page 8: Charging The Vehicle Power Hub
IN VEHICLE DC-DC CHARGING SOLAR Charging from AC Charger Vehicle Power Hub 1300/2500/3800 – Supplied with an AC 40A Charger 80A option available on request (connected via special cable) 1. Please make sure the DC isolator switch is always turned ON during charging;... - Page 9 Charging In-vehicle: (from Alternator) The Vehicle Power Hub has a highly efficient, fanless and integrated battery to battery charger allowing for charging of the lithium battery directly from your vehicles’ alternator. The battery to battery charger (DC-DC) is a sophisticated buck-boost convertor that accepts a wide range input (12-16V) converting it into a charging profile programmed specifically for this Lithium ion battery (LiFePo4).
- Page 10 IMPORTANT NOTE : The black wire must be terminated to chassis for the in vehicle charging to work. NOTE : In vehicle charging from either alternator or solar is independent of the isolator switch position – both the DC-DC charger and MPPT solar controller are directly connected to the Vehicle Power Hub battery.
-
Page 11: Operating Instructions
5. Short circuit is forbidden. Any short circuit caused by improper use, will trigger breaker protection or damage the Vehicle Power Hub. Failure by improper use will terminate warranty. If in doubt or require service contact Portable Power Technology engineer. 01474 761 051... - Page 12 DC loads through these connectors to <50A CAUTION: One internal 30A in-line fuse protect 12V DC sockets & dual USB socket. If power is lost to these sockets please call Portable Power Technology before trying to open the case. Power Inverter Connection The Vehicle Power Hub is designed to allow connection of a 12VDC inverter to power 230V AC loads.
-
Page 13: Multi-Function Display
MULTI FUNCTION DISPLAY The Multi-function Display is designed to help the user to know the capacity of the battery inside the power hub and easily estimate the amount of usable charge left in the battery. 1. Please turn the Battery Main Switch isolator to ON, to power the multi-function display 2. -
Page 14: Troubleshooting
TROUBLESHOOTING If the Vehicle Power Hub fails to operate as specified, follow these troubleshooting steps below to correct the issue. Charging issues 1. Ensure DC isolator switch is turned “ON” (Not required for In vehicle or solar charging) 2. Please ensure all outlets and cords are connected securely. 3. -
Page 15: Specifications
SPECIFICATIONS Vehicle Power Hub Vehicle Power Hub Vehicle Power Hub Model Type 1300 2500 3800 VPH1300 VPH2500 VPH3800 Battery Specification Battery Type LiFePO4 (Lithium Iron phosphate) Battery Voltage (Nominal) 12.8V Capacity 100Ah (1300Wh) 200Ah (2500Wh) 300Ah (3800Wh) Max Charging Current 100 amps Battery Lifespan 2000+ Life Cycles... -
Page 16: In The Box
IN THE BOX The Vehicle Power Hub including:- AC battery charger 40A with fused UK plug and terminated with Anderson connector x1 IGN cable (ignition): 3 metres and connector for smart alternator program (EU6 vehicles) x1 Inverter connection cable :1 metre 35mm² cable (red/black) terminated with large Anderson connector, M8 ring terminals x1 and inline 225A circuit breaker Starter battery connection cable for in vehicle charging: 1 metre 10mm²... -
Page 17: Maintenance
MAINTENANCE 1. Keep your Vehicle Power Hub in a cool and dry place 2. Please fully recharge the Vehicle Power Hub every 3 months especially when not in use 3. Turn the main battery isolator to OFF when the Vehicle Hub is not in use 4. -
Page 18: Warranty
WARRANTY The Vehicle Power Hub is supplied with a 2 year warranty from the date of purchase against defects in material and workmanship under normal use and service. Should your Vehicle Power Hub prove defective within 2 years from the date of purchase, please contact us for a returns number quoting the serial number and return the product, along with a copy of the proof of purchase and an explanation of the fault. - Page 19 Portable Power Technology Ltd Unit 2 Meadow House Business Centre Meadow House London Road West Kingsdown Kent TN15 6ER United Kingdom +44 (0)1474 761 051 Email sales@portablepowertech.com www.portablepowertech.com 01474 761 051 www.portablepowertech.com...
