I N S T R U C T I O N S M A N U A L
GLHAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GLHAL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tatu Marchesan GLHAL

Summary of Contents for Tatu Marchesan GLHAL

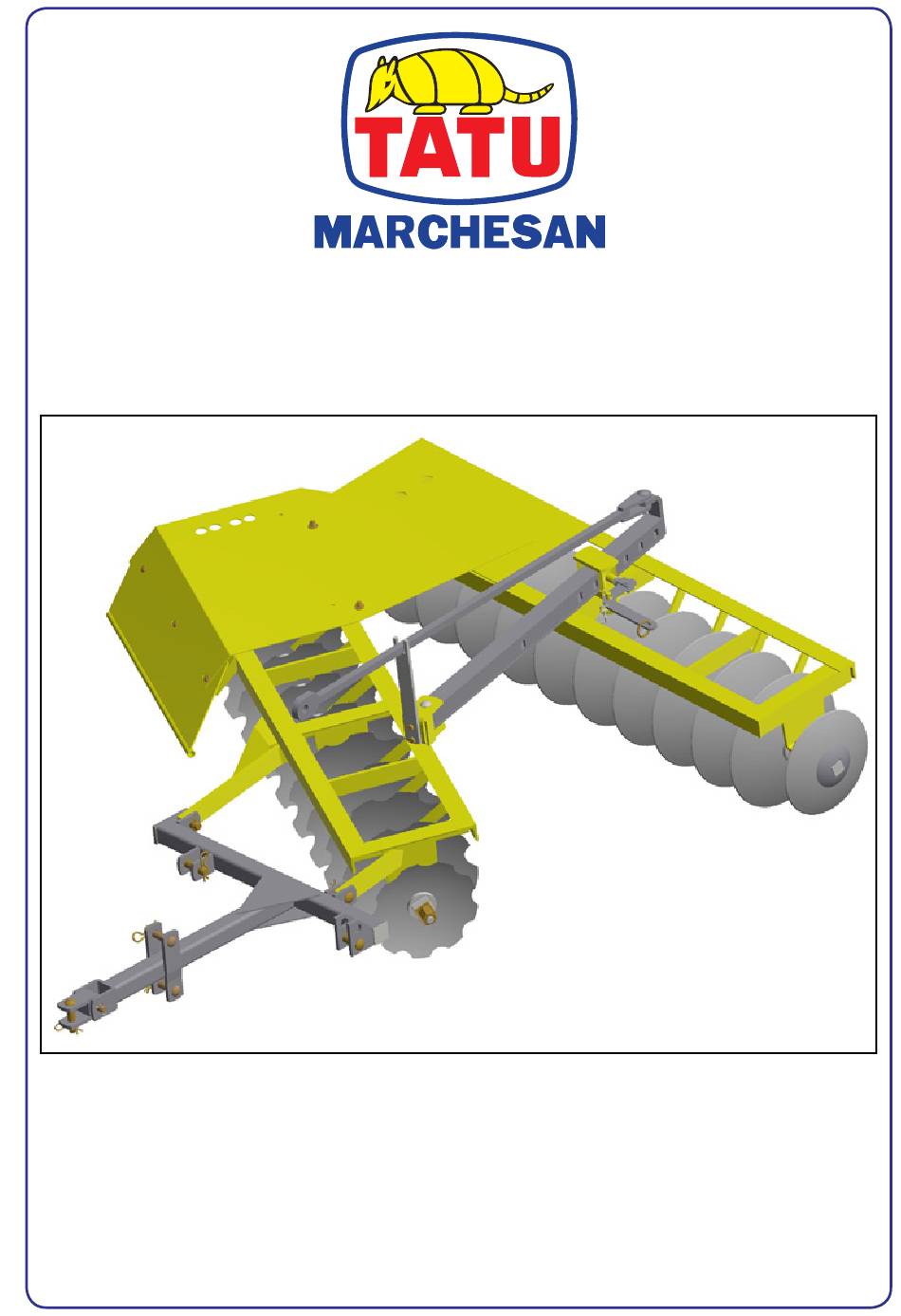

  • Page 1 I N S T R U C T I O N S M A N U A L GLHAL...
  • Page 2 IDENTIFICATION Dealer: Owner: Firm / Farm: City: State: No. of the Certificate of Guarantee: Serial / No.: Date: Invoice No.: Product: Notes:...
  • Page 3 Introduction The model GLHAL - Light Mounted Orchard Disk Harrow - is specially designed to work with even penetration, hoeing weeds without damaging roots, branches and fruits. Excellent application hoeing citrus orchards or similars. It has a great versatility, allowing the operation both on drawn and hydraulic lift types.

  • Page 4: Table Of Contents

    Direction of the maneuvers Operations - Important points 8. Maintenance Lubrication / Lubrication points Harrow maintenance 9. Important data 24 to 26 Calculation of hourly income Average income table Torque table 10. Important 11. Notes GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 5: To The Owner

    NOTE which the original purchaser thereof at retail has used or allowed to be used parts, not made or supplied by Marchesan S/A. GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 6: To The Operator

    • The instructions under this symbol refers to the safety of the operator or third parties, therefore it should be carefully read and observed. The GLHAL disk harrow is simple to operate, requiring however the basic and essential cautions to its handling. Always keep in mind that safety requires constant attention, observation and prudence during the harrowing, transportation, maintenance and storage.
  • Page 7 Any contact may result in severe shocks, injuries or death. For your protection and safety, always wear adequate clothes and footwear while operating the equipment. Always use the safety locks to transport the equipment. GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
  • Page 8 • Whenever you unhitch the equipment, either in the field or shed, do it on a flat and firm surface and use the parking stands. Make sure the equipment is properly supported. • Please check the general safety instructions on the back of this manual. GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
  • Page 9 • Check all laws and regulations regarding the height limits and load width while transporting the equipment on truck or trailer. If necessary use banners, lights and other devices in order to give adequate warning to the other drivers. GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
  • Page 10 L U B R I C AT E A N D T I G H T E N D A I LY LUBRICAR Y REAPRETAR DIARIAMENTE 05.03.03.1827 Adhesive label Model Serial number 05.03.03.4235 GLHAL TATU logo 05.03.03.4022 GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 11: Technical Specifications

    Technical specifications Type: ............... Light Mounted Orchard Disk Harrow Model: ......................... GLHAL Number of disc blades: ................20, 22 and 24 Spacing between disc blades: ................185 mm Disc blades dimension: ............16" x 3,0 mm or 18" x 3,0 mm Disc blade type: ................... Concave notched ..................

  • Page 12: Components

    Components GLHAL 01 - Front chassis 02 - Rear chassis 03 - Drawbar 04 - Adjusting bar 05 - Angle bar 06 - Front cover 07 - Protection cover 08 - Front disc gang 09 - Rear disc gang 10 - Tractor hitch GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU”...

  • Page 13: Assembly

    • Use the box wrench (A) to tighten the disc gangs nuts. • Use the wrench (B) to tighten the bearings. We recommend wearing gloves, especially while assembling the disc gangs. NOTE GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 14: Assembly Of Bearings And Spacer Spools

    Assembly Assembly of bearings and spacer spools Before starting to assemble the disc gangs, check the correct position of the bearings and spacer spools: GLHAL - 20 discs 06 bearings 12 spacer spools GLHAL - 22 discs 06 bearings 14 spacer spools...

  • Page 15: Disc Gangs Assembly

    • To tighten, the gangs must remain underpinned with a piece of wood or another object, preventing it from moving. (Figure on page 14). Check the correct side of the bearings and spacer spools according IMPORTANT to the concavity of the disc blades. GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
  • Page 16 Assembly Torque table Axis diameter Ft. - lbs. 1.1/2" 1600 1.5/8" 1900 2.1/8" 2100 2.1/2" 2300 Consult torque table on page 26. NOTE GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 17: Assembly Of Disc Gangs On The Chassis

    Bearing in detail Chassis junction Couple the front chassis (A) to the (B) chassis using a junction axis (C) and cotter pin. GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 18: Drawbar Assembly

    Couple the adjusting lever (E) to the rear chassis (B) fastening it with a torsion spring and cotter pin. Fasten the angle bar support (F) to the front chassis using a bolt (G), spring washer and nut. GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 19: Front Cover Assembly

    T h e n , a t t a c h t h e protection cover (C) to the front cover, fastening it to the front chassis using a bolt (B), flat washer, spring washer and nut. GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 20: Working Preparation

    Lubricate all grease fittings appropriately. (See lubrication instructions on page 23). Hitching to the tractor Couple the hitch (A) to the traction bar and fasten it using the axis (B) and r-clip. The traction bar must remain fixed during working. GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 21: Adjustments And Operations

    • Try to make a good finish between passes. Avoid the formation of furrows or untilled strips. • The tractor and harrow drawbar should be as aligned as possible to the work direction. GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 22: Ways To Start The Harrowing

    It is necessary to perform the maneuvers on the left hand side to avoid ATTENTION overloading the equipment and allow it to operate normally. Following these instructions to also avoid the formation of undesirable furrows on the maneuver spots. GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 23: Direction Of The Maneuvers

    Adjustments and operations Direction of the maneuvers As described in the foregoing adjustments, the GLHAL disk harrow provide several working angles to operate properly in all types of soil. However, the harrow requires certain care during operations, like never make maneuvers to the right hand side, because the angle formed by the "V"...

  • Page 24: Operations - Important Points

    • The traction bar must remain loose during transportation and fixed during working. • As previously mentioned the GLHAL harrow has several settings. However, only the local conditions can determine the best adjustment thereof. GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 25: Maintenance

    Make sure all moving parts have no wear. If necessary, make the replacement thereof. GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 26: Important Data

    V = Average speed of the tractor (in meters per hour); E = Efficiency: 0,90; X = Hectare value = 10.000 m Example with a GLHAL harrow of 22 disc blades: R = ? L = 1,9 m V = 7.000 m/h E = 0,90 X = 10.000 m...

  • Page 27: Average Income Table

    To know how many hours will be spent to work a certain previously known area, it is necessary to divide the value of the area by the hourly income. Example: An area of 100 hectares to be worked with a GLHAL harrow of 22 disc blades (Hourly income = 1,20 hectares).

  • Page 28: Torque Table

    GRADE 8 No Marks. 3 Marks. 6 Marks. For metric conversion: NOTE • Multiply inch-pounds by 0,113 to convert to newton-meters (Nm). • Multiply foot-pounds by 1,356 to convert to newton-meters (Nm). GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 29: Important

    Av. Marchesan, 1979 - P.O. Box 131 - Zip Code 15994-900 - Matão - SP - Brazil Telephone 55.16.3382.8282 - Fax 55.16.3382.3316 Sales 55.16.3382.1009 - Parts 55.16.3382.8297 - Exportation 55.16.3382.1003 e-mail: tatu@marchesan.com.br www.marchesan.com.br GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.

  • Page 30: Notes

    Notes GLHAL Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
