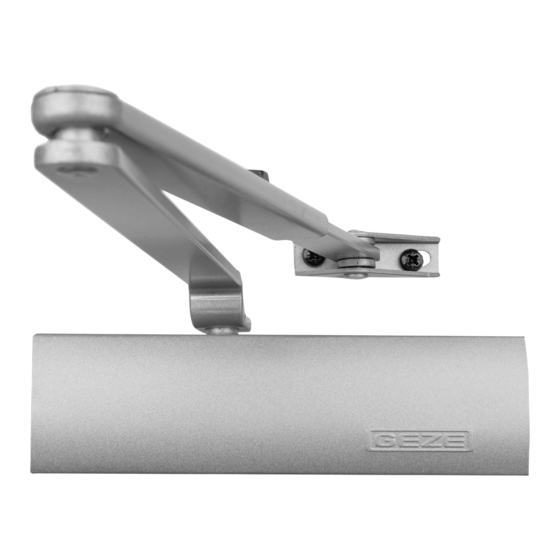

GEZE TS1200 Installation Instructions

GEZE TS1200 Overhead
Installation Instructions

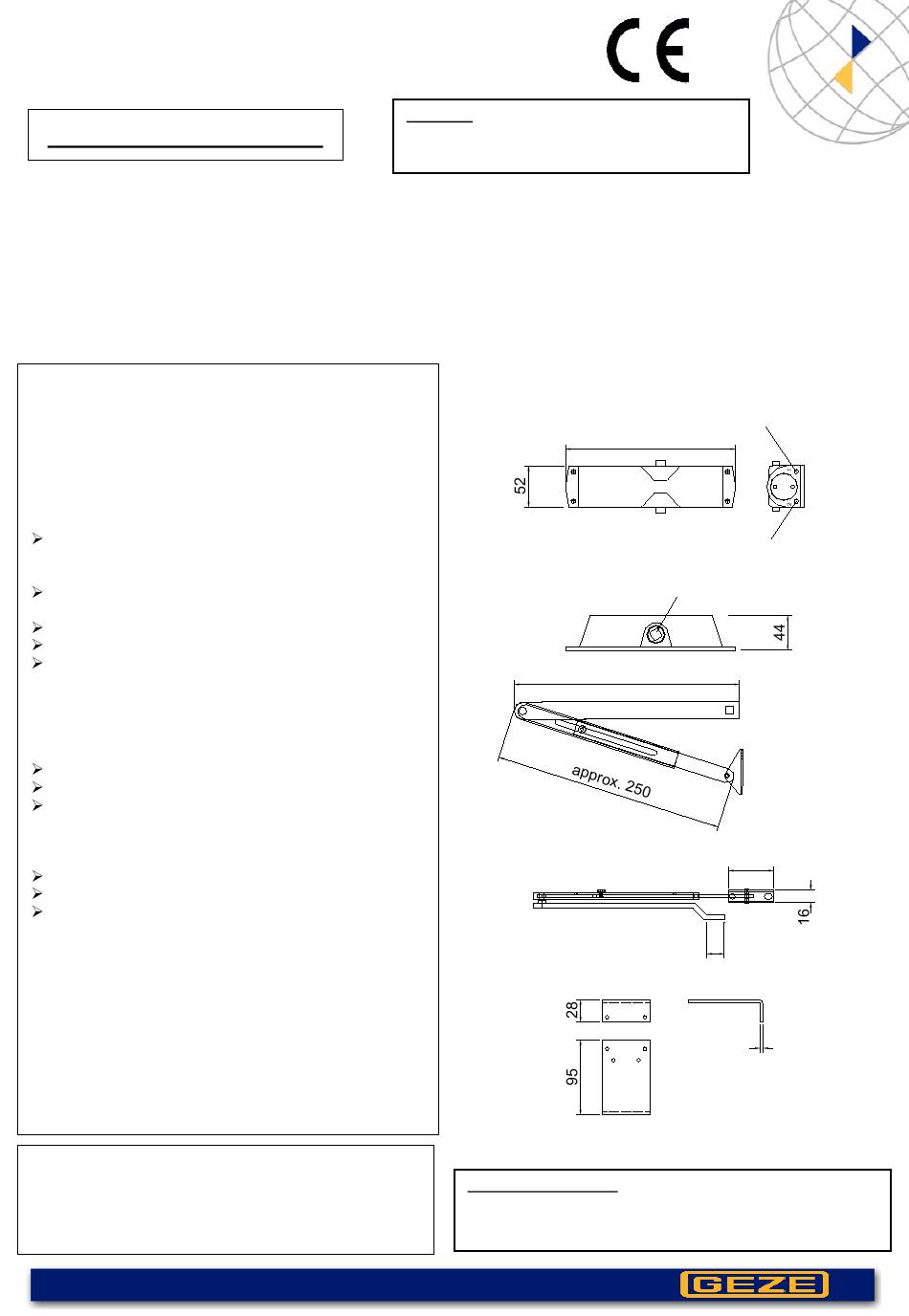

Components Checklist:

1x Closer body & cover
1x Guide Rail Assembly
2x M6 Allen Bolts
2x Plastic end caps
1x Plastic spindle cover

User Information for Door Closers

This information must be observed. Non compliance
will absolve the manufacture from any liability. The
door closer must only be used in accordance with its
intended use; i.e. closing of side hung doors
following manual opening.
Incorrect use may cause injury
Obstruction of closing process (e.g. dragging
doors, sticking weather strips/sealing rubbers, rough-
running locks)
Incorrect installation
slamming doors)
Danger of finger trap between frame and door leaf.
Wrong size door closer.
Closer used for other purpose than to close side
hung doors.

Maintenance:

NOTE:
Maintenance to be carried out by a specialist only.
Check assembly for tolerance and undue wear.
Tighten any screws that may have become loose.
At least once a year:
Grease moveable parts.
Check operation of doors and adjust if necessary.
For door closers subject to release by Electro
Mechanical and Electro Hydraulic means ensure that
local regulation are adhered to.
Installation and adjustment by specialist only
Where necessary, an additional doorstop or buffer
must be fitted to limit the maximum opening of the
door. This is of particular relevance for slide rail
closers where the opening angle may be limited by
frame. For further explanations see catalogue
preface and product information.

Door handing - DIN left / right

Stand facing the door on the hinge side / pull side. If the hinge or
pivot is to your right hand side the door is considered to be DIN
right. If the hinge or pivot is to your left hand side the door is
considered to be DIN left.
Door Closer
4x 5x55mm Self-tapping countersunk screws
2x M5x40mm Countersunk screws
4x M5x55mm Countersunk screws
2x 5x50 Self-tapping countersunk screws
and adjustment
WARNING: DOOR CLOSERS WITH A POWER
RATING LOWER THAN 3 OR WITH MECHANICAL
HOLD OPEN DEVICES ARE NOT SUITABLE FOR
USE WITH FIRE DOORS.

Tools Required For Installation:

Flat head screwdriver
Posidrive screwdriver
Power drill
4.2mm drill bit
Template (supplied)
Pencil
TS1200 BODY
(e.g.
TS1000 PARALLEL ARM BRACKET
IMPORTANT WARNING:
HIGH INTERNAL PRESSURES, UNDER NO CIRCUMSTANCES
ATTEMPT TO DISMANTLE THE CLOSER.
10mm Spanner
5mm Allen key (supplied)
M5 Tap and Tap wrench
(steel door mounting)
Latch action valve
215
Closing speed valve
Spindle
135
PRIMARY ARM
SECONDARY ARM
58
20
4
1
