ASSEMBLY INSTRUCTIONS
6 DRAWER CHEST
IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING 6 DRAWER CHEST.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
HEALTH & SAFETY:
DO NOT use this item if any parts are missing, damaged or worn.
DO NOT use this item unless all fixings are secured.
Please keep small parts out of reach of children.
Always use on a level, even surface.
It is recommended that two people handle and assemble the item
CARE & MAINTENANCE:
Assemble in the room of use.
To avoid damages assemble the item on a soft, clean surface
Periodically check all screws & fixings to ensure they are secure.
DO NOT push the item as this will damage the base.
Always lift the item with two people to reposition.
Keep any sharp objects away from the item.
This product is manufactured in pine which is a wood with natural characteristics including knots, grains,
clusters or indentations
On unpacking the item you may notice an odour due to production processes but this will disappear after a
period of time.
DO NOT place the item next to a radiator or direct sunlight – this item is susceptible to temperature change.
It is recommended an even room temperature be maintained with no sudden fluctuations.
DO NOT place hot or cold items directly onto the surface of the item as marking will occur
For general cleaning use a duster or damp cloth (almost dry) not wet – do not use soap and water,
detergents, aerosol sprays or any polish as use of these materials would invalidate any claims.
DO NOT place the item onto wet or damp flooring as staining may occur to the floor
Page 1 of 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the Santiago 6 Drawer Chest and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

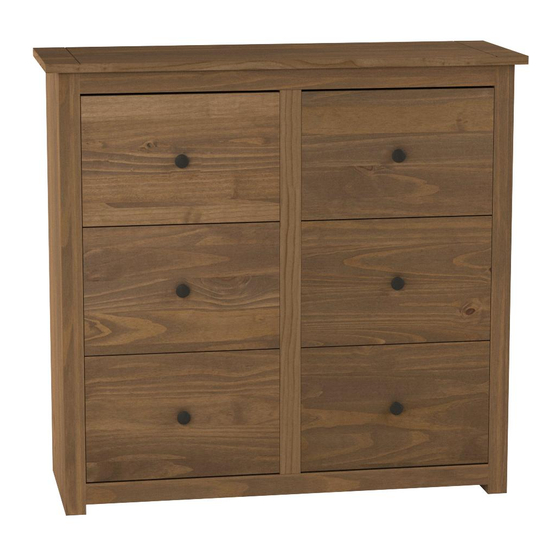

Summary of Contents for Birlea Santiago 6 Drawer Chest

  • Page 1 ASSEMBLY INSTRUCTIONS 6 DRAWER CHEST IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING 6 DRAWER CHEST. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. HEALTH & SAFETY: DO NOT use this item if any parts are missing, damaged or worn. DO NOT use this item unless all fixings are secured.
  • Page 2 Parts List Hardware List Part Description Part Description Top Panel Wooden Dowel Right Panel 14 mm Screw Left Panel 30 mm Screw Right Front Frame 35 mm Screw Left Front Frame 19 mm Bolt Front Frame Handle Middle Front Frame Tack Rear Base Plinth ** You will need a small mallet and a screwdriver.
  • Page 3 Step 1: Insert the right panel (2) to the right front frame (4) making sure the parts are pushed together and lined up. Place the cleats (16) between the marks shown and secure using hardware part D and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 4 Step 2: Insert the left panel (3) to the left front frame (5) making sure the parts are pushed together and lined up. Place the cleats (16) between the marks shown and secure using hardware part D and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 5 Step 4: Attach the middle drawer runners (18) to the back column (9) using hardware part D and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 5: Connect the front frames (6) to the middle front frame (7). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 6 Step 7: Attach the rear base plinth (8) using hardware part D and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 8: Join together the two assembled sections using hardware part D and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 7 Step 9: Attach the top panel (1) using hardware part D and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 10: Attach the side drawer runners (17) using hardware part D and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim.
  • Page 8 Step 11: Join the back panels (10) together with the spines (11) and secure in position on the frame using hardware part G and a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 12: Assemble the drawer components using hardware parts C, E and F with a screwdriver (not provided).
  • Page 9 Step 13: Insert the assembled drawers and secure using hardware part A and a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Page 9 of 9...
