SIGNAL WIRING AND PRO-BUS INSTALLATION INSTRUCTIONS

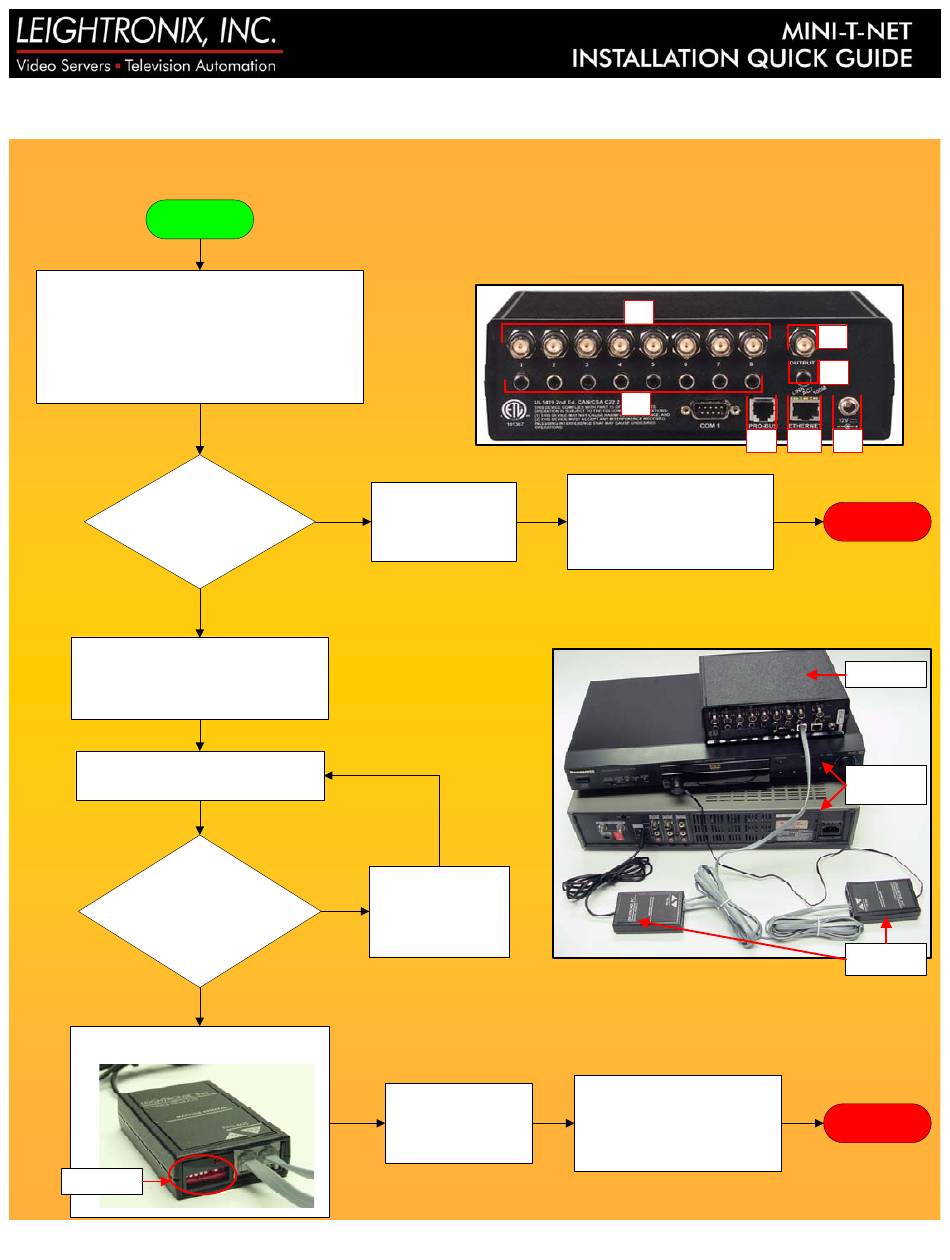

NOTE: Refer to "Illustration 1, MINI-T-NET Typical Playback System Diagram," in the "Overview of MINI-T-NET Wiring
Connections" section of this quick guide and the illustrations on this page.
Start
Connect the following to your MINI-T-NET:
● Input (source) equipment video cables (A)
● Input (source) equipment audio cables (B)
NOTE: If using, connect fallback source audio/
video cables to MINI-T-NET input 8.
● Output (destination) equipment video cable (C)
● Output (destination) equipment audio cable (D)
Will MINI-T-NET be used for
device control?
Connect one end of an RJ-11 cable to
Event Controller's PRO-BUS output (E)
and the other cable end into the input of a
PRO-BUS interface.
Using attached device cable, connect
PRO-BUS interface to VCR/DVD player.
Is there another VCR/DVD player
connected to MINI-T-NET?
Set the DIP switches on each PRO-BUS
(see instructions included with PRO-BUS).
DIP Switches
Page 4 of 7
Connect power supply
No
(F) to MINI-T-NET and
plug Event Controller
Yes
Connect an RJ-11
cable from the output
Yes
of the first PRO-BUS
to input of another
No
Configuration Instructions" section
into AC outlet.
PRO-BUS.
Connect power supply
(F) to MINI-T-NET and
plug Event Controller
into AC outlet.
Rear View of MINI-T-NET
A
B
E
Configure MINI-T-NET for
Ethernet network access (G).
See the "Ethernet Network
of this quick guide.
PRO-BUS Interface Connections
Configure MINI-T-NET for
Ethernet network access (G).
See the "Ethernet Network
Configuration Instructions" section
of this quick guide.
C
D
G F
End
MINI-T-NET
Source
Equipment
PRO-BUS
Interfaces
End
