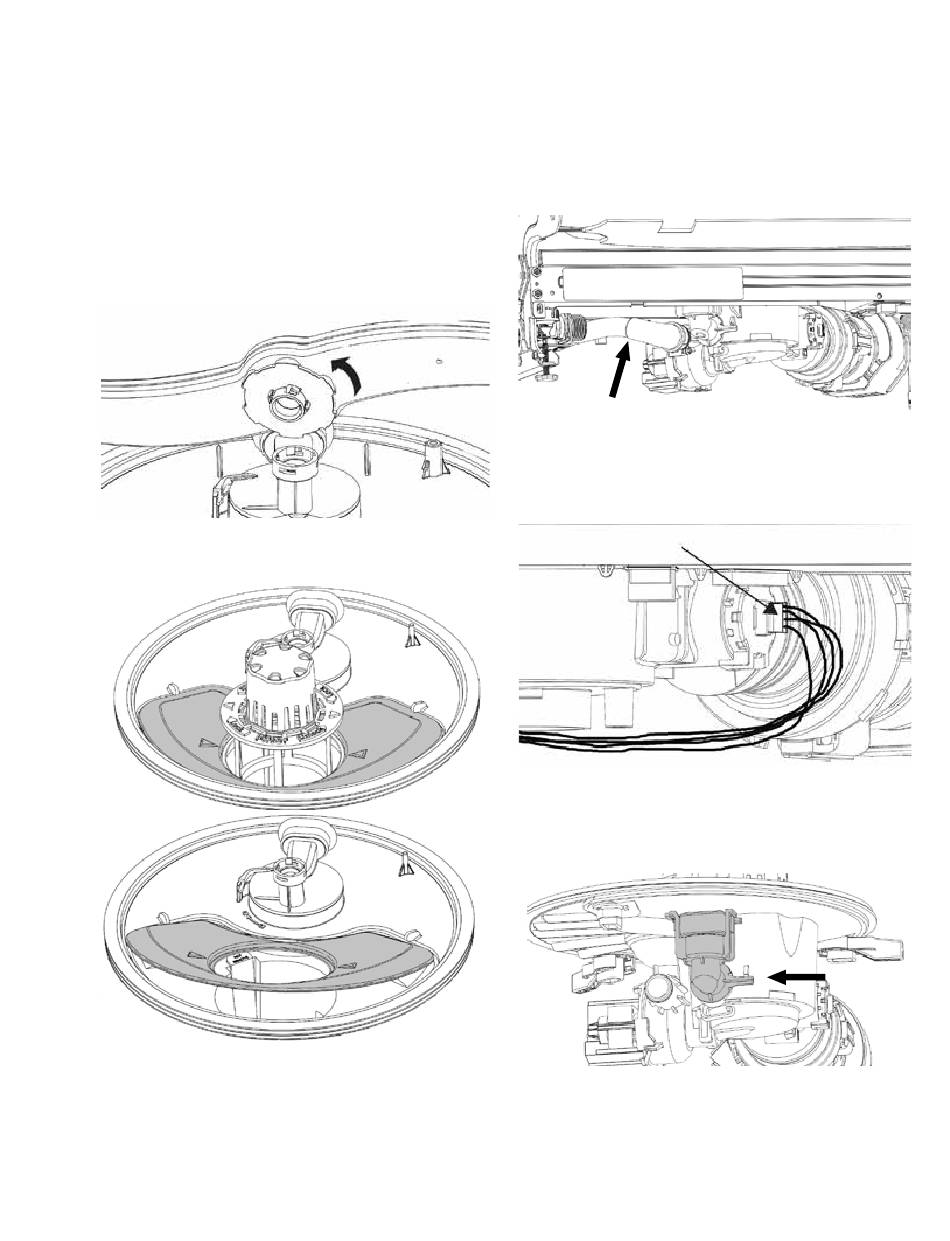

Sump Module Removal
1. Remove power to the dishwasher.
2. Remove the upper and lower racks.
3. Remove the toe kick.
4. Remove the door (see Door Removal, under
Door, in the Tub and Structure section of this
service guide).
5. Remove the lower spray arm (turn the locking
nut counter-clockwise).
6. Remove the fine filter and coarse filter (turn
counter-clockwise to remove).
7. Remove the main conduit (see the
Circulation System section of this service
guide).
8. Loosen the high drain loop hose clamp (1/4-
in. hex-head) and remove the hose from the
drain pump (there will be a small amount of
water in the sump, pump and hose).
High Drain Loop Hose
9. Disconnect the turbidity sensor harness
(some models).
Disconnect Turbidity Sensor Harness
10. Remove the pressure switch (refer to the
pressure switch portion of the fill section of
this guide).
