Sump Latch Cams

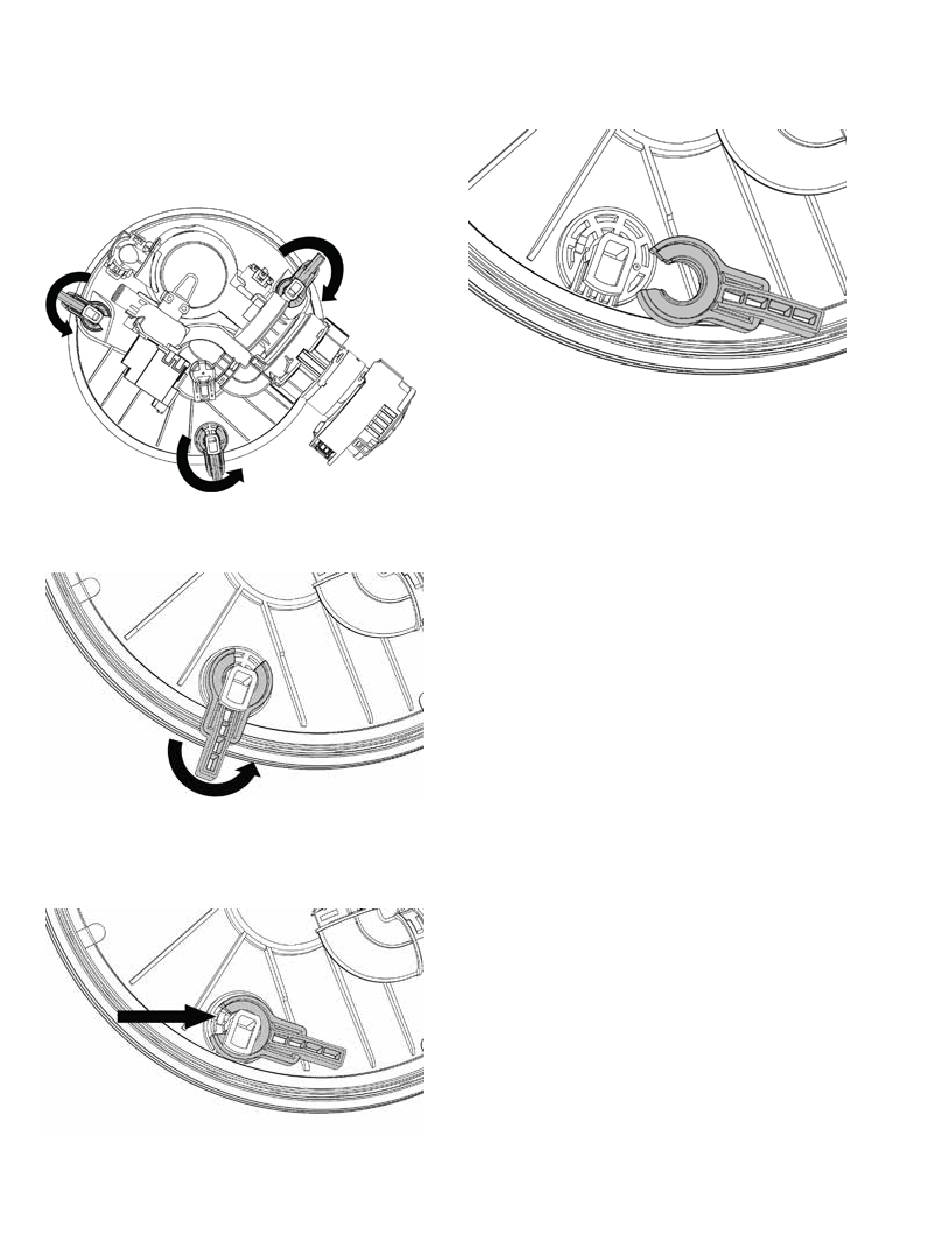

Sump latch cams twist and lock the sump into
place, they are cammed for easy removal. The
below illustrations show rotation and the stops
built into the sump. The top of the illustration
represents sump position as located to the front
of the dishwasher.
This image is the rear latch cam.
The below illustration shows the cam rotated to
remove the sump. The arrow is pointing to the
stop feature molded into the sump.
With the cam in the unlatched position and the
lock tab exposed, the cam can be removed or
replaced as needed by sliding it away from the
post.
