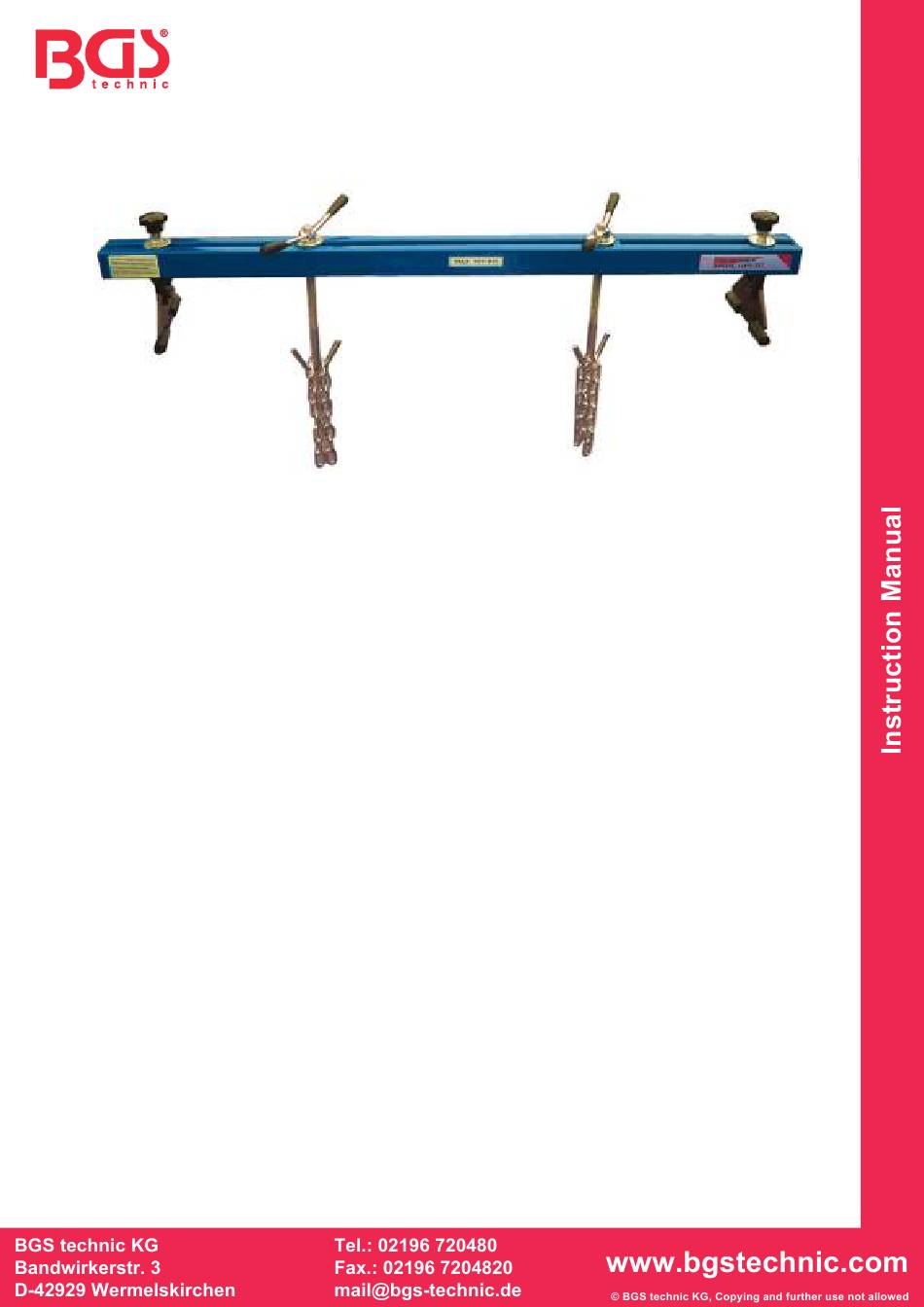

BGS technic 9235 Instruction Manual

GENERAL

The engine support allows the dismantling of front axle at front- and rear-wheel drive vehicles without
removing the drive unit. The engine support is also needed for gear repair and replacing the clutch on
front-wheel drive vehicles. By movable brackets and a hook, the engine support is suitable for
different vehicle types.

TECHNICAL DATA

Maximum load: 500 Kg
Width: 750 to 1450 mm
CAUTION
Never exceed the recommended maximum carrying capacity of the engine support.
•
Mount the safety chain only at points which can safely lift the load. (Check vehicle-specific
•
service literature for further information)
Any additional shackles or other carrying/holding facilities need to match the engine support's
•
dimensions and specifications. Oversizing is better!
Before you hang a load on the engine support, check all components of the engine support for
•
proper working condition and secure that all screws are tight.
Do not mount the chain in a twisted position. Make sure that the chain links are not jammed.
•
There is risk of bruising, as the jammed chain links may be released abruptly and the load will
be suddenly lowered several inches.
Make sure that you align the tilt adjustment accurate and tighten the screw well.
•
SW-Stahl und Werkzeugvertriebs GmbH
L e v e k r u s r e t S a r s s e 6 5
D 4 - 2 8 9 7 R e m s c h e d i

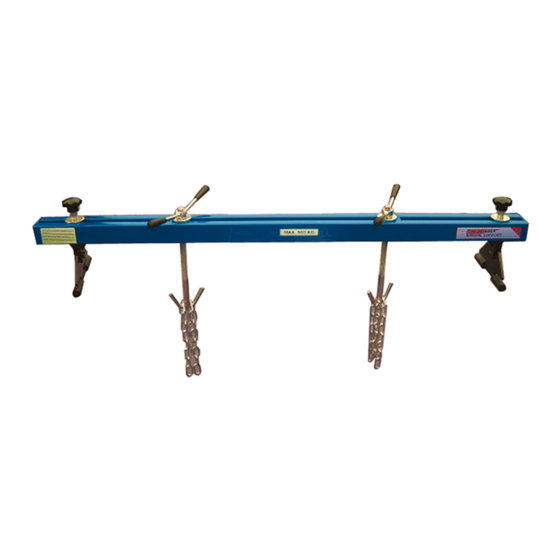

500 Kg Engine Support
Tel. +49 (0) 2191 / 46438-0
F ax +49 (0) 2191 / 46438-40
- E M a : l i n i o f @ s w s a t l h d . e
Art. 9235
