Installation and
Maintenance
Manual
Air Handler
with DX-Kit
Air Handler
Standard PSC
Single Piece, Multi-Position
Compatibility
DX-Kit and Air Handler
Combined Model
(H, Y) MAHP18B21S
(H, Y) MAHP24B21S
(H, Y) MAHP30B21S
(H, Y) MAHP36B21S
(H, Y) MAHP36C21S
(H, Y) MAHP48C21S
(H, Y) MAHP48D21S
(H, Y) MAHP60C21S
(H, Y) MAHP60D21S
IMPORTANT:
READ AND UNDERSTAND
THIS MANUAL BEFORE
USING THIS DX-KIT.
KEEP THIS MANUAL FOR
FUTURE REFERENCE.
(Ins)DX-Kit̲4e-rev1.indd   C-1
(Ins)DX-Kit̲4e-rev1.indd   C-1

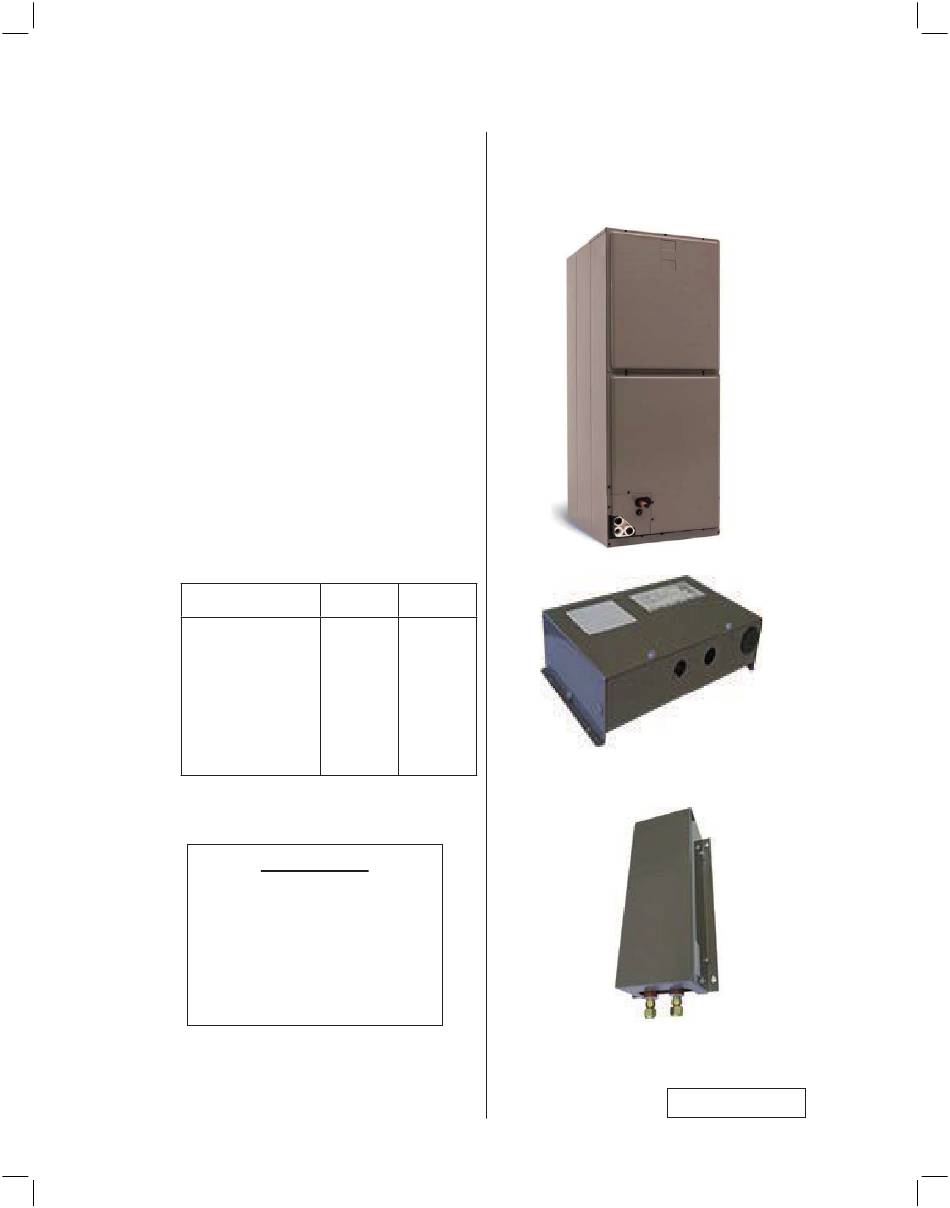

DX-Kit
Air Handler
Model
EXV-018E
AP18BX21
EXV-024E
AP24BX21
EXV-030E
AP30BX21
EXV-036E
AP36BX21
EXV-036E
AP36CX21
EXV-048E
AP48CX21
EXV-048E
AP48DX21
EXV-060E
AP60CX21
EXV-060E
AP60DX21
PMGB0406B
2016/11/25   15:32:00
2016/11/25   15:32:00
