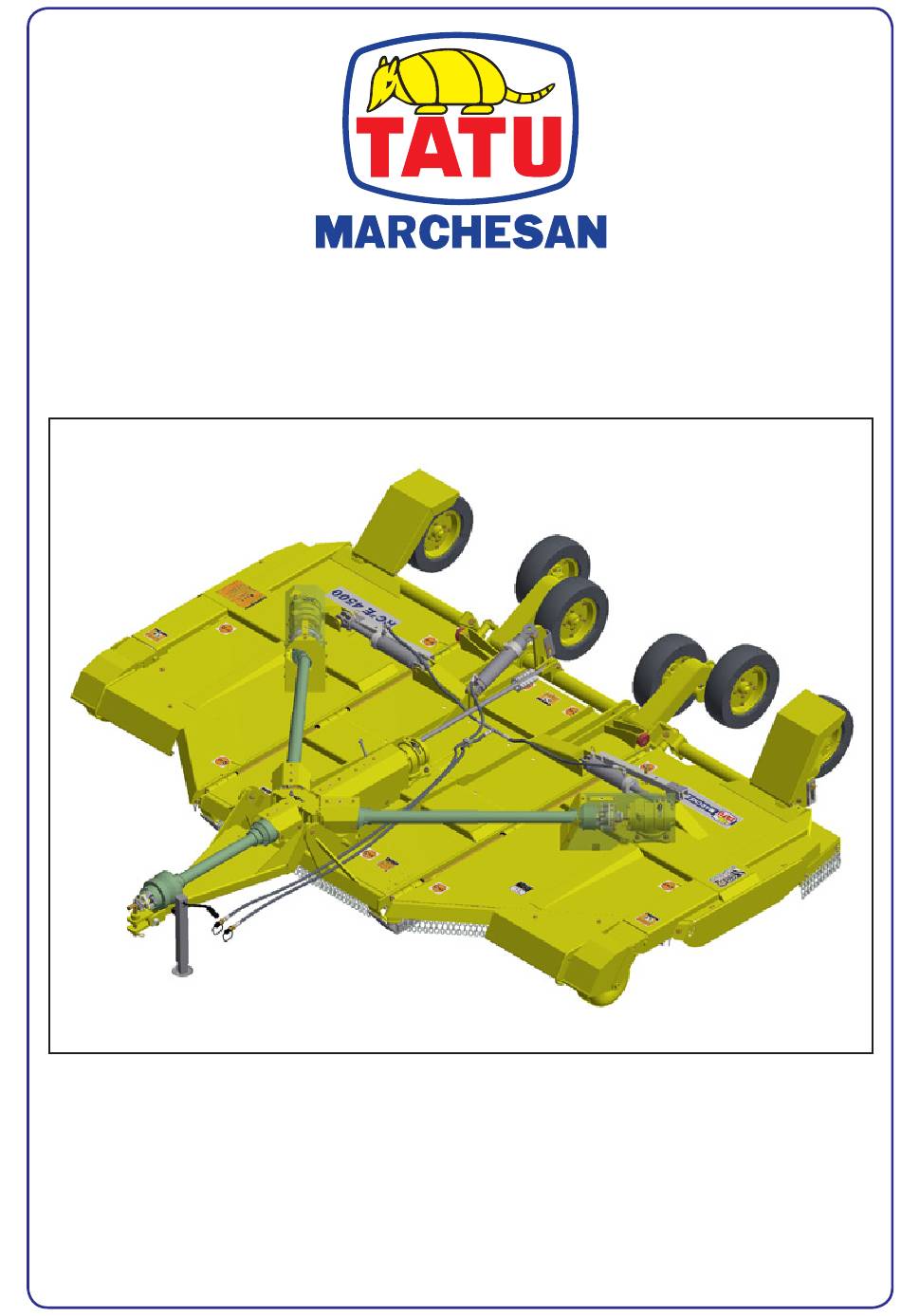

- Page 1 I N S T R U C T I O N S M A N U A L RC²E 4500...
- Page 2 IDENTIFICATION Dealer: Owner: Firm / Farm: City: State: No. of the Certificate of Guarantee: Serial / No.: Date: Invoice No.: Product: Notes:...
- Page 3 Introduction The RC²E 4500 rotary cutter makes the mowing operations with better efficiency and high quality. The advanced design and the great working width allow a reduction around fifty percent in the operational cost; especially in the cleaning of citric and similar orchards, in the elimination of crop remains and services that demand quickness in its accomplishment.
-
Page 4: Table Of Contents
Table of contents 1. To the owner 2. To the operator 4 to 10 Working safely 4 to 6 Truck or trailer transportation / Lifting points Safety stickers 8 to 10 3. Data sheet 4. Components 5. Working preparation 13 to 19 Hitching to the tractor 13 to 15 Transporting position / Working position... -
Page 5: To The Owner
To the owner The acquisition of any Tatu product assures to the original purchaser the following rights: • Warranty certificate; • Instructions manual; • Technical assistance by the dealer on equipment delivery. However, the owner must check the condition of the equipment on delivery, as well as knowing the warranty terms. -
Page 6: To The Operator
To the operator Be careful with the environment Dear user! Respect the ecology. Do not throw trash away. This gesture of goodwill helps to protect our environment. Products such as oil, fuel, filters, batteries and others are spilled to the soil and can penetrate to the underground layers, compromising nature. - Page 7 To the operator Never use your bare hands to check hydraulic leaks, the high pressure can cause several injuries. Never attempt to change the adjustments, clean or lubricate the equipment when the same is switched on or in movement. Be careful while driving on slopes. Risk of overturn. Prevent that chemical products (i.e.: fertilizers, treated seeds) make any contact with your skin or clothes.
- Page 8 To the operator • Only trained and qualified personnel is allowed to operate the equipment. • While working or during transportation, only the presence of the operator is allowed on the tractor. • Do not allow children to play near or over the equipment while it is operating, during transportation or storage.
- Page 9 To the operator Truck or trailer transportation Marchesan does not advise the equipment traffic on highways, because this practice involves serious security risks in addition to being prohibited by the current existing traffic law. The transportation for long distances should be done on truck, trailer or others by following these safety guidelines: •...
-
Page 10: Safety Stickers
To the operator Safety stickers The safety stickers warn about the equipment points that require more attention and they should be kept in good repair. If these stickers become damaged or illegible, replace them. Marchesan provides stickers, upon request and indication of the respective serial number. - Page 11 To the operator Safety stickers P E R I G O / D A N G E R / P E L I G R O MANTENHA -SE DISTANTE - FACAS ROTATIVAS Ferimentos graves ou morte podem resultar de fragmentos ou contato com as facas. Não fique sobre ou próximo a roçadeira quando em operação.
- Page 12 To the operator Stickers location on the rotary cutter Item Serial number Description 05.03.03.4333 Marchesan logo sticker 05.03.03.4427 RC²E 4500 sticker 05.03.03.1932 Lubricate and tighten daily sticker 05.03.03.1929 Equipped with special blades sticker 05.03.03.2060 Keep a minimum distance of 50 m sticker 05.03.03.4078 Lifting points sticker 05.03.03.1428...
-
Page 13: Data Sheet
Data sheet RC²E 4500 RC²E 4500 Model: ......................Cutting width (mm):....................4500 Number of blades: ...................... 06 Cutting height (adjustable) minimum: ..............50 mm maximum: ..............310 mm Hitching: ...................... Traction bar ........................PTO ....................Hydraulic output Tractor required (cv): ....................70 Width (mm): ...................... -
Page 14: Components
Components RC²E 4500 01 - Frame 08 - Guards 02 - Drawbar 09 - Cylinders 03 - Jack 10 - Front wheels 04 - Cardan shaft 11 - Laminated tires 05 - Slip clutch 12 - Safety chains 06 - Triple divider gearbox 13 - Hoses 07 - Multipliers RC²E 4500... -
Page 15: Working Preparation
Working preparation Hitching to the tractor For hitching, choose a place as flat as possible. 1º) Traction bar If it is possible, keep the traction bar in the shortest position during working. • Couple the rotary cutter to the traction bar using a hitch pin and cotter pin. If necessary, use the hydraulic jack (A), which has an adjustment to lift or descend the drawbar in order to facilitate the hitching. - Page 16 Working preparation 2º) Power take-off First of all, verify the length of the cardan shaft in the following way: • Separate the cardan shaft and couple the 'female' part to the PTO. • Steer the tractor wheel until it touches the rotary cutter drawbar. •...
- Page 17 Working preparation • It is important to give finish working in the cut parts. For this purpose, use a filer. Soon after, remove the filing and lubricate the 'male' with a fine layer of grease. • Decrease the length of both protective covers, using the cut tubes as a measure and clean the cut residues.
- Page 18 Working preparation Transporting position When it is time to transport the rotary cutter, activate the articulation cylinders and place the locks (A). Activate the hydraulic cylinders of the wheelset and place the transporting lock (B). NOTE Never activate the tractor PTO when the rotary cutter is in transporting position.
-
Page 19: Assembly Of The Oil Level Marker With Vent
Working preparation Assembly of the oil level marker with vent • Triple divider: Place the valve with vent (A) to replace the plug (B) from the upper part of the divider. Check the oil level in the divider, keep the cutter leveled and remove the lateral plug (C). -
Page 20: Transversal Leveling
Working preparation Transversal leveling Level the equipment in a flat place. • Totally activate the hydraulic cylinder from the wheelsets to lift the cutter. • Observe the equipment from behind and check the correct leveling of the laterals and central frame. •... -
Page 21: Longitudinal Leveling
Working preparation Longitudinal leveling Adjust the cutter in a flat place, being it properly hitched to the tractor. • Activate the hydraulic cylinder (A) a couple times. Stop it in the cutting height that will be used during the job. Example: Having the blades 60 mm away from the soil. •... -
Page 22: Adjustments And Operations
Adjustments and operations Inversion of the lateral wheelsets The lateral wheelsets can be used in two positions: Position "A" - For citric and similar orchards. Position "B" - For operation in wide fields, stubble cultivation and others. Lateral articulation The cutter has a lateral articulation of 15 degrees (downwards). The recommended maximum angle for operation is 20 degrees (upwards). -
Page 23: Cutting Height Adjustment
Adjustments and operations Cutting height adjustment The cutting height adjustment is determined by the different rod stops (A) used in the hydraulic cylinder rod. These rod stops limit the cylinder rod course, keeping the cutting height uniform during the whole job. Two rod stops of different sizes are included with the cutter. -
Page 24: Direction Of Blades Rotation And Serial Number
Adjustments and operations Direction of blades rotation and serial number This cutter have blades that turn in different directions (clockwise and counterclockwise), so the blades can lift and cut the vegetation that is inclinated or lying on the ground. Bottom view Counterclockwise Clockwise Counterclockwise... -
Page 25: Main Cardan Shaft
Adjustments and operations Main cardan shaft The cardan shaft with constant velocity should not work in an angle wider than 70 degrees. The cardan is designed to work in conditions where the maximum swinging angle can reach 70 degrees. In sharp maneuvers, the PTO must be turned off. -
Page 26: Slip Clutch
Adjustments and operations Slip clutch The slip clutches are factory preset, requiring no adjustment in order to start the cutter operation. When facing overload the slip clutch will start to work. It is necessary to raise the equipment immediately to relief from the overloading. •... -
Page 27: Operations - Important Points
Adjustments and operations OPERATIONS - Important points • Before starting the job it is advisable to do a complete check on the cutter. Grease the universal joints, check the oil level for all the gearboxes and tighten nuts and bolts. •... -
Page 28: Adjustments And Quick Inspections
Adjustments and operations Adjustments and quick inspections PROBLEM CAUSES POSSIBLE SOLUTIONS Replace them (only in pairs - pages 28 Worn out or broken blades. and 29). Incorrect PTO rotation speed. Correct rotation speed: 540 rpm. Excessive speed. Reduce the speed. Blades do not Blades do not work when the PTO C h e c k t h e c o n n e c t i o n o f t h e... -
Page 29: Maintenance
Maintenance Lubrication The maintenance of multipliers and divider should be done in the following way: • When starting to work and everyday of the first working week, verify the oil level through the indicators of level and fill up if necessary. •... -
Page 30: Reversion Or Replacement Of The Blades
Maintenance Reversion or replacement of the blades Inspect blades before each use to determine that they are properly installed and in good conditions. Replace any blade that is bent, excessively nicked, worn or has any other damage. Besides that, the blades must be reversed or replaced as soon as some cutting imperfection is being noticed. - Page 31 Maintenance When replacing the blades, observe that ATTENTION they are supplied in pairs, which should be kept together until assembled on the cutter spindle. Unbalanced blades may cause excessive vibration and can damage bearings, retainers and the transmission box. The discrepancy in weight of these blades is within the tolerance specified in the project.
-
Page 32: Slip Clutch
Maintenance Slip clutch The slip clutch is assembled both in the multiplier and in the cardan shaft, being also assembled in the metering box shaft. It is designed to slip, absorb operation loads and to protect the drive shaft. The slip clutch is factory fitted with a specified torque, in order to protect the tractor and equipment. - Page 33 Maintenance • Check the average length of the compression springs (D) before disassembling them. • Disassemble and sand the metallic parts that are attached to the discs. • Being the clutch disassembled, the discs must swing freely between the metallic parts.
-
Page 34: Multipliers And Triple Divider
Maintenance Multipliers and triple divider • The multipliers and the triple divider must be inspect every time the rotary cutter is about to operate. If the oil level is low, fill up the cutter. • The oil level verification must be done in a flat place and adjusted according to the indications of the marker. -
Page 35: Important
Important MARCHESAN S/A reserves the right at any time to make improvements ATTENTION in the design, material or specifications of machinery, equipment or parts without thereby becoming liable to make similar changes in machinery, equipment or parts previously sold. Images are for illustration purposes only. Some illustrations in this manual appear without the safety devices, removed to allow a better view and detailed instructions. -
Page 36: Notes
Notes RC²E 4500 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
