PRECAUTIONS FOR PROPER USE

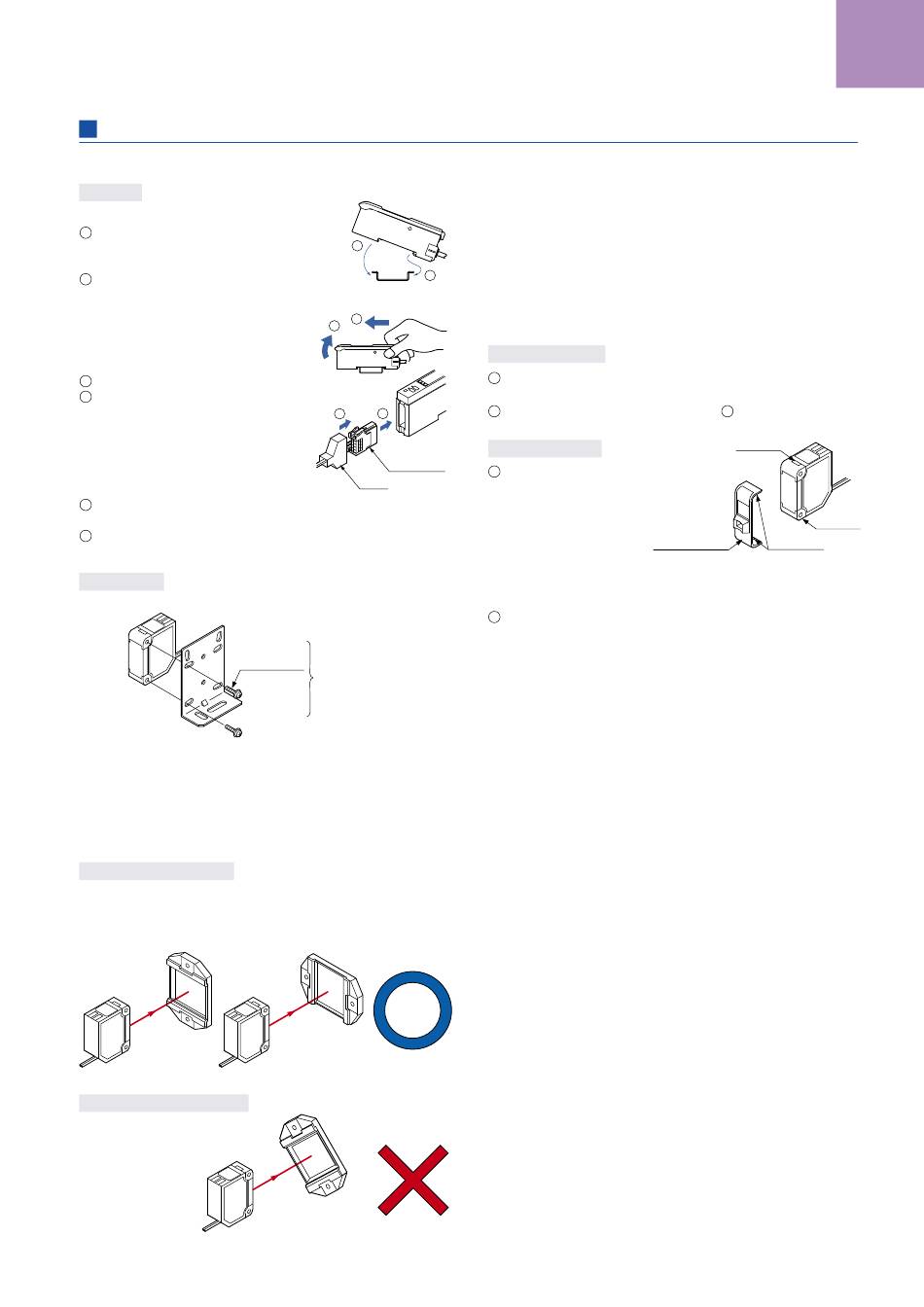

Mounting
Amplifier
<How to mount the amplifier>
Fit the rear part of the mounting
1
section of the amplifier on a 35 mm
1.378 in width DIN rail.
Press down the rear part of the
2
mounting section of the unit on the
35 mm 1.378 in width DIN rail and
fit the front part of the mounting
section to the DIN rail.
<How to remove the amplifier>
Push the amplifier forward.
1
Lift up the front part of the amplifier
2
to remove it.
Note: Be careful. If the front part is lifted without
pushing the amplifier forward, the hook on
the rear portion of the mounting section is
likely to break.
<How to mount the sensor head>
Insert the sensor head connector
1
into the inlet until it clicks.
Fit the cover to the connector.
2
Sensor head
• The tightening torque should be 0.5 N·m or less.
M3 (length 12 mm
0.472
with washers
• When placing the sensor head horizontally or vertically, the
reflector must also be positioned horizontally or vertically as
shown in Fig. 1 below.
If the sensor head is placed horizontally or vertically but the
reflector is leaned as shown in Fig. 2 below, the reflection
amount will decrease, which may cause unstable detection.
Fig. 1 Proper positioning
When placing the sensor head horizontally or vertically, the
reflector shall also be positioned horizontally or vertically.
Fig. 2 Improper positioning
When placing
the sensor head
horizontally or
vertically, but the
reflector is leaned.
2
1
35mm 1.378 in width
DIN rail
1
2
2 1
Sensor head
connector
Cover
in) screw
Sensor head mounting
bracket (optional)
<Correct>
<Incorrect>
Digital Laser Sensor
Lens attachment for line reflective type (LS-MR1)
• The lens attachment for line reflective type LS-MR1 mounted in
the long sensing range line reflective type LS-H22□ is removable.
When LS-H22□ is used without LS-MR1, it will provide the
equivalent performance to the long sensing range spot reflective
type LS-H21□. In addition, the optional LS-MR1 can be attached
to LS-H21□ to obtain the performance equivalent to LS-H22□.
• Keep the lens clean of dust, dirt, water, oil, grease, etc.
• Do not apply any excessive force to LS-MR1.
Such force may cause damage.
Removing method
Insert a screwdriver into the fixing slot located at the top of
1
sensor head.
Tilt the screwdriver inserted in Step
2
Mounting method
The size of upper fixing
1
hook of LS-MR1 is not
same as the lower fixing
hook. After identifying
Lens attachment for
the upper and lower
line reflective type
LS-MR1
fixing hooks, insert
LS-MR1 upper fixing hook into the fixing slot at the top of
sensor head and then insert LS-MR1 lower fixing hook into
the fixing slot at the bottom of sensor head.
After mounting, check that LS-MR1 is properly fixed to
2
the sensor head.
Wiring
• Make sure that the power supply is off while wiring.
• Verify that the supply voltage variation is within the rating.
• Take care that if a voltage exceeding the rated range is
applied, or if an AC power supply is directly connected, the
sensor may get burnt or damaged.
• Take care that short-circuit or wrong wiring of the load may
burn or damage the sensor.
• Do not run the wires together with high-voltage lines or
power lines or put them in the same raceway. This can
cause malfunction due to induction.
• Ensure that an isolation transformer is utilized for the DC
power supply. If an auto transformer is utilized, the main
amplifier or power supply may be damaged.
• Make sure to use the optional quick-connection cable for
the connection of the amplifier [connector type LS-401(P) /
LS-403]. Extension up to total 100 m
with 0.3 mm , or more,cable. However, in order to reduce
2
noise, make the wiring as short as possible.
Others
• Do not use during the initial transient time (0.5 sec. approx.)
after the power supply is switched on.
• Because the sensitivity is higher in U-LG mode than in other
modes, it can be more easily affected by extraneous noise.
Check the operating environment before use.
• These sensors are only for indoor use.
• Avoid dust, dirt, and steam.
• Take care that the product does not come in direct contact
with water, oil, grease, or organic solvents, such as, thinner,
etc.
• This sensor cannot be used in an environment containing
inflammable or explosive gasses.
• Never disassemble or modify the sensor.
13
LS-400
SERIES
to remove LS-MR1.
1
Fixing slot
Fixing slot
Fixing hooks
328.084 ft is possible
