Printing Maintenance
1.
Click Chooser Chooser Chooser on the Apple Chooser
2.
Ensure the S520 is the selected printer.
3.
Set Background Background to On Background Background

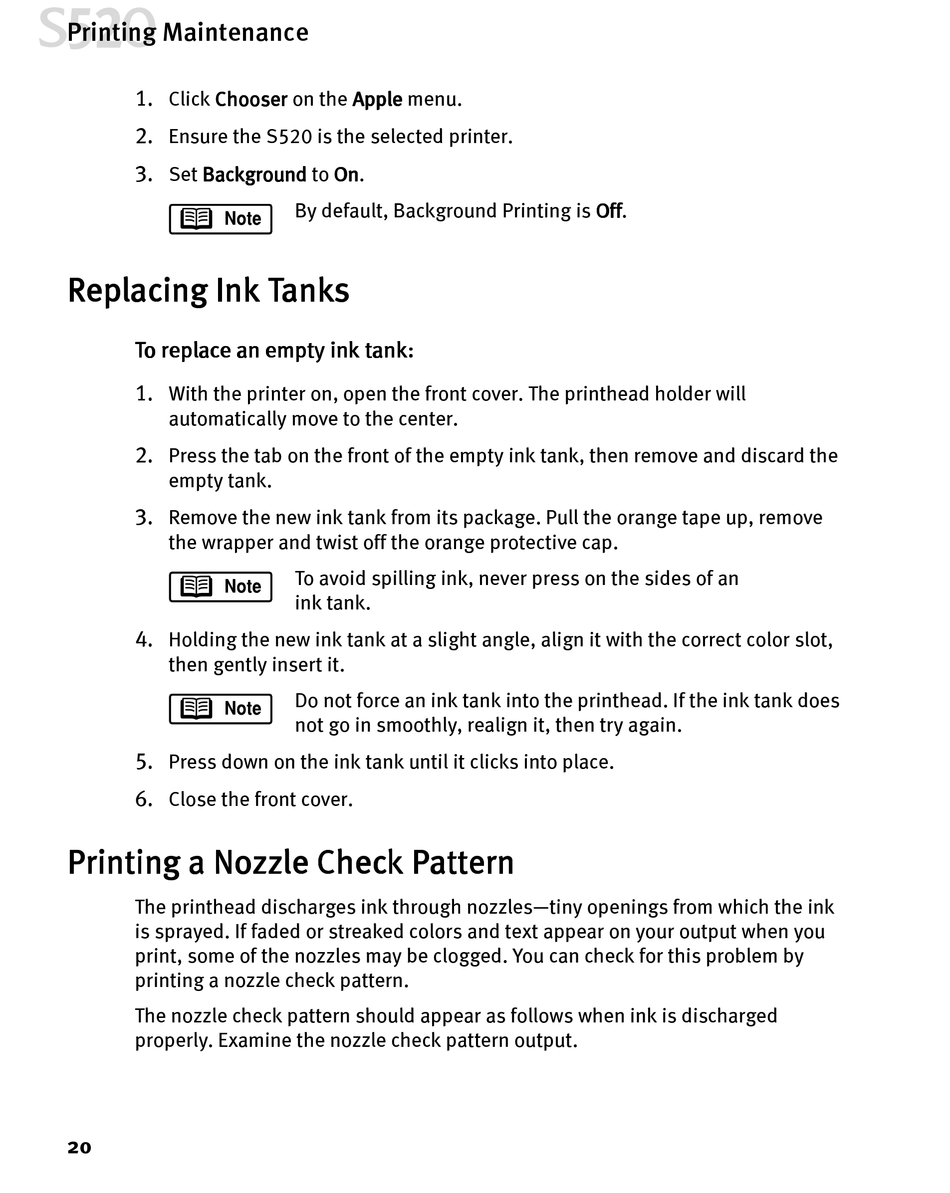

Replacing Ink Tanks

Replacing Ink Tanks Replacing Ink Tanks Replacing Ink Tanks
To replace an empty ink tank: To replace an empty ink tank: To replace an empty ink tank: To replace an empty ink tank:
1.
With the printer on, open the front cover. The printhead holder will
automatically move to the center.
2.
Press the tab on the front of the empty ink tank, then remove and discard the
empty tank.
3.
Remove the new ink tank from its package. Pull the orange tape up, remove
the wrapper and twist off the orange protective cap.
4.
Holding the new ink tank at a slight angle, align it with the correct color slot,
then gently insert it.
5.
Press down on the ink tank until it clicks into place.
6.
Close the front cover.

Printing a Nozzle Check Pattern

Printing a Nozzle Check Pattern
Printing a Nozzle Check Pattern Printing a Nozzle Check Pattern
The printhead discharges ink through nozzles—tiny openings from which the ink
is sprayed. If faded or streaked colors and text appear on your output when you
print, some of the nozzles may be clogged. You can check for this problem by
printing a nozzle check pattern.
The nozzle check pattern should appear as follows when ink is discharged
properly. Examine the nozzle check pattern output.
20
Apple menu. Apple Apple
On On. On
By default, Background Printing is Off
To avoid spilling ink, never press on the sides of an
ink tank.
Do not force an ink tank into the printhead. If the ink tank does
not go in smoothly, realign it, then try again.
Off Off. Off
