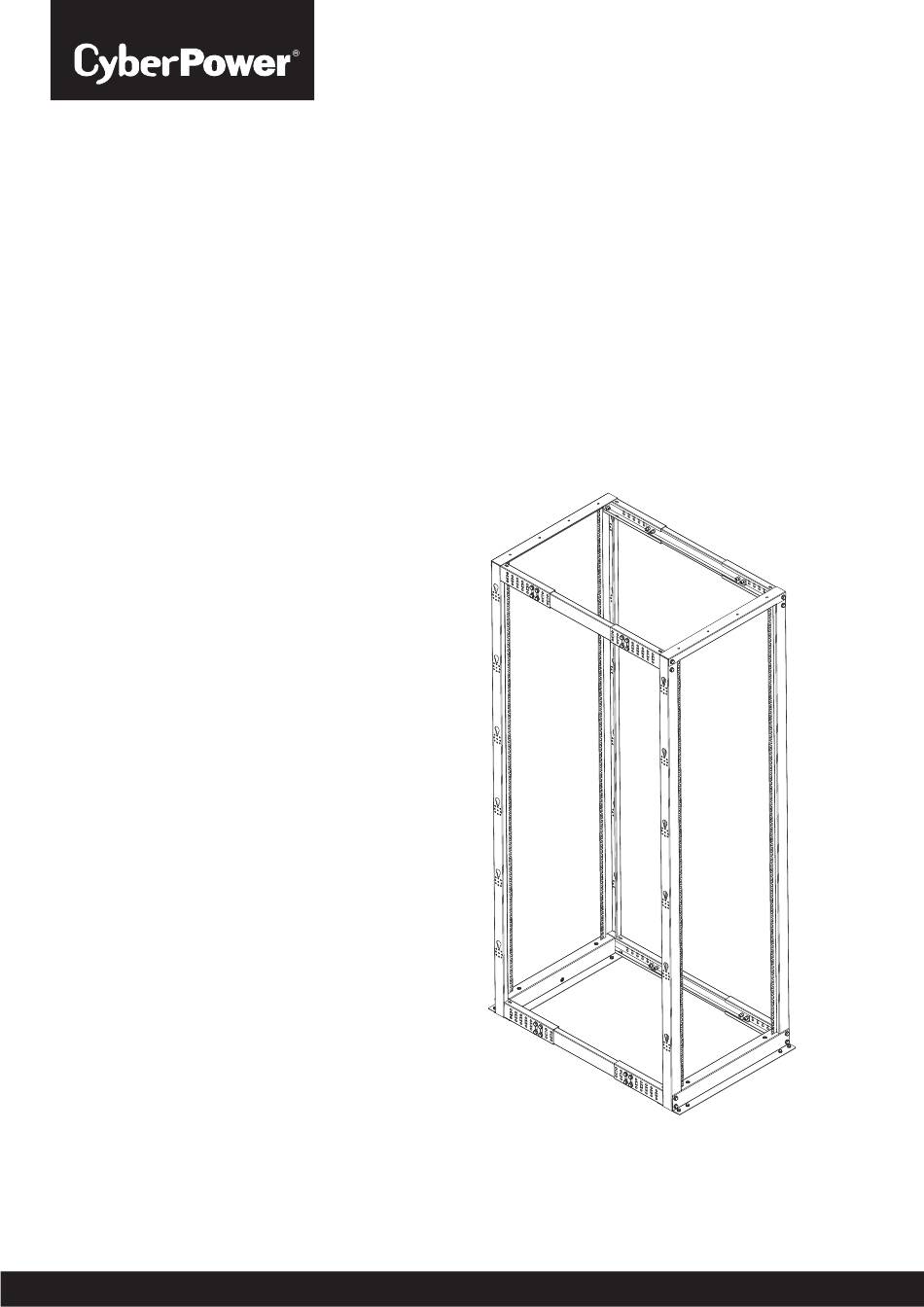

- Page 1 USER’S MANUAL 4-Post Open Frame Rack 4-Post Open Frame Rack SAVE THESE INSTRUCTIONS Please read this manual and follow the instructions for installation and use. Copyright © 2016 CyberPower Systems, Inc. All rights reserved. K01-0000547-00...
- Page 2 Table of Contents Parts List Rack Assembly Accessory Installation Leveling Feet Cable Management Rings Grounding Cable...
- Page 3 Parts List Part Rack Components Left Vertical Rail Right Vertical Rail Base Bracket Corner Section Center Section Top Bracket Rack Assembly Hardware M8 Bolt M8 Washer Rack Assembly Tool M8 (13mm) Wrench Phillips Screwdriver Equipment Mounting Hardware M6 Cage Nut PVC Cup Washer M6 Phillips-Head Screw Other Hardware and Accessories...
- Page 4 Rack Assembly Please check packaging contents before starting to assemble. 1. Assemble the top and bottom beams (4-total) as shown below. Refer to the table below to identify the desired mounting depth (22” to 40” available) and assemble corner and center sections at the corresponding index numbers on each side.
- Page 5 2. Using two of the beams assembled in step 1, line up one left and one right vertical rails, followed by a base and top bracket and bolt together using M8 bolts with washers as shown below. NOTE: To facilitate final assembly, it is recommended to hand-tighten the bolts first. After all parts have been bolted together then tighten them firmly.
- Page 6 Accessory Installation (Optional) Leveling Feet Bolt the included leveling feet (4pcs) to the bottom of the base bracket as shown below. NOTE: Optional caster kit shown is available. Please contact your sales representative for ordering information. Cable Management Rings Screw the included cable management rings onto the assembled rack as shown below.
- Page 7 Grounding Cable To tie the assembled rack to the facility’s ground, use the grounding wire with the included M6 screw and toothed lock washer. Screw the grounding wire to the pre-installed rivet nut on the inside of the base bracket as shown below.
- Page 8 CyberPower Systems, Inc. www.cyberpower.com For USA and Canada: 4241 12th Ave East, Suite 400 Shakopee, MN 55379 Toll-free: (877) 297-6937 For all other regions: Please visit our website for local contact information. Copyright © 2016 CyberPower Systems, Inc. All rights reserved. K01-0000547-00...
