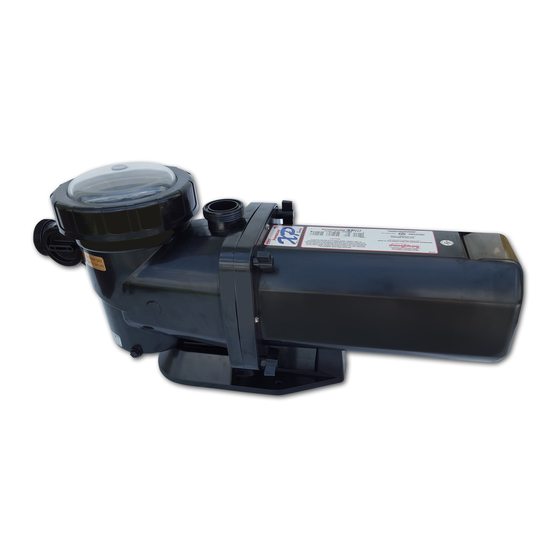

- Page 1 PowerLine XP III Swimming Pool Pump (Black color model) UL Models w/GFCI 0-3496-200 (1 HP), 0-3497-200 (1-1/2 HP) NEC Models 0-3496-206 (1 HP), 0-3497-206 (1-1/2 HP) Owner's Guide 365-2074...
- Page 2 PREPARATION SAVE THESE INSTRUCTIONS. IMPORTANT SAFETY INSTRUCTIONS ELECTRICAL SOURCE FOR ALL MODELS: FOR UL MODELS: (25 Ft. cord) Your pump is supplied with a 25 foot, 3-wire electrical When installing and using this electrical equipment, cord and a 3-pronged plug. The pump is double insu- basic safety precautions should always be fol- lated and grounded.
- Page 3 A.B.S. and Lexan plastics. Consult your of the joints. pool dealer for lubricant selections. If you have any questions or require assistance, contact your Doughboy pool dealer. CAUTION Fingers can become wedged where Strainer Lid and Union Fitting intersect. Please use caution when removing the Strainer Lid.
- Page 4 EXPLODED VIEW UL Models: 0-3496-200 (1 HP), 0-3497-200 (1-1/2 HP) w/GFCI NEC Models: 0-3496-206 (1 HP), 0-3497-206 (1-1/2 HP) OWNER'S GUIDE WARRANTY CARD ITEM DESCRIPTION ITEM DESCRIPTION 308-1227 O-Ring - 2.609 I.D. 1121-2038 Strainer Housing w/Suction Tube 308-1228 O-Ring - 6.975 I.D. 1121-1980 Pump Base 308-1229...
- Page 5 Change of Design: Doughboy Recreational expressly reserves the right to change or modify the design and construction of any product in due course of our manufacturing procedures, without incurring any obligation or liability to furnish or install such changes or modifications on products previously or subsequently sold.
