AES Corporation 7705ii-C User Manual

Multinet receiver system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

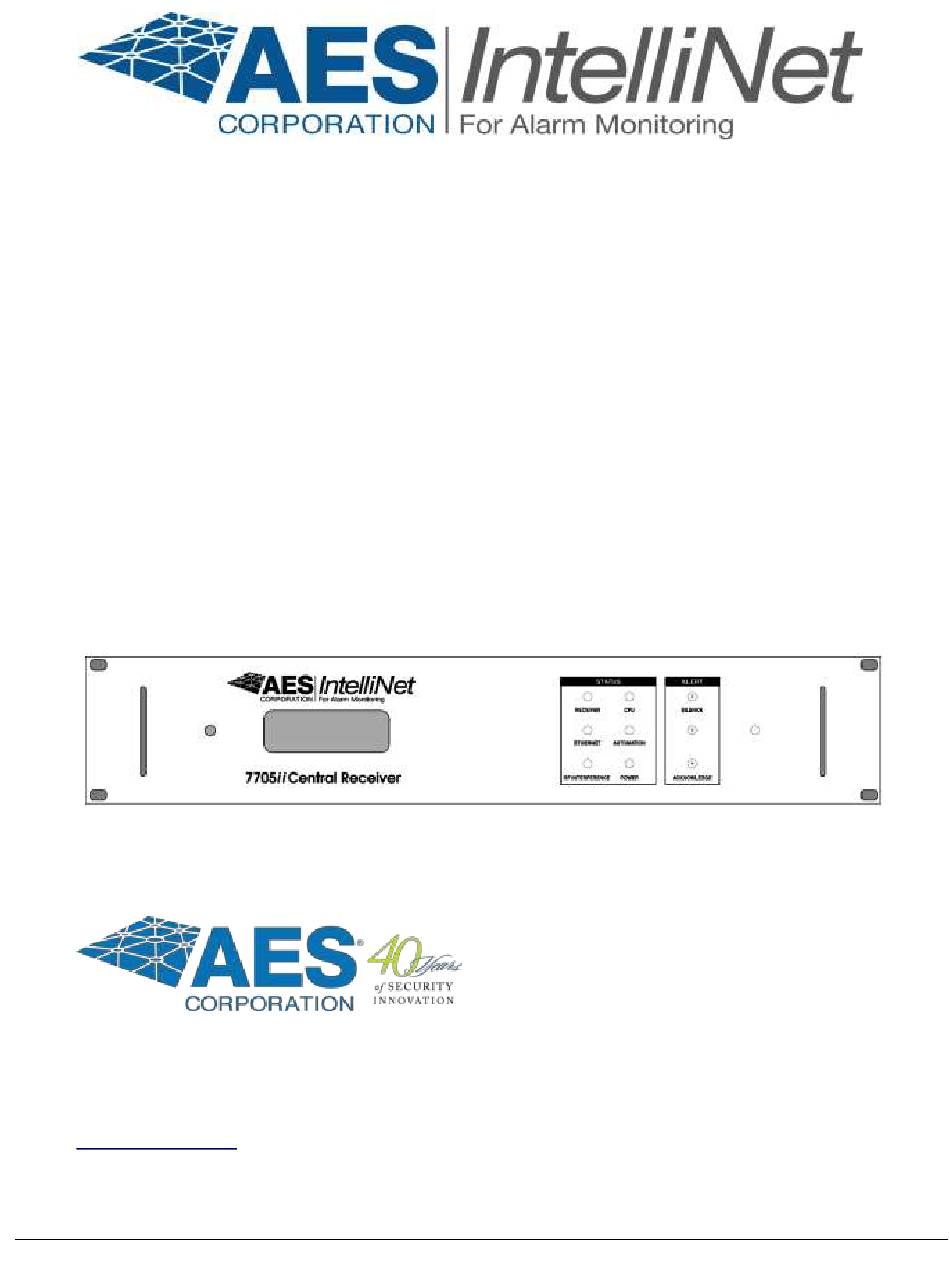

AES 7705ii-C
MultiNet Receiver System
User Manual
AES Corporation
285 Newbury Street
Peabody, MA 01960-1315 USA
Tel (978) 535-7310 • Fax (978) 535-7313
www.aes-corp.com
Copyright © 2018 AES Corp. All Rights Reserved
40-7705ii-C-UM Rev. 1 June 6, 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7705ii-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AES Corporation 7705ii-C

Summary of Contents for AES Corporation 7705ii-C

  • Page 1 AES 7705ii-C MultiNet Receiver System User Manual AES Corporation 285 Newbury Street Peabody, MA 01960-1315 USA Tel (978) 535-7310 • Fax (978) 535-7313 www.aes-corp.com Copyright © 2018 AES Corp. All Rights Reserved 40-7705ii-C-UM Rev. 1 June 6, 2018...
  • Page 2 1. For Alarm Automation references throughout this manual: Alarm Automation output must be connected to a Listed Alarm Automation System 2. This product shall be installed in accordance with Canadian Electrical Code and applicable local codes Page 2 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 3: Table Of Contents

    AES 7705ii-C MultiNet Receiver Table of Contents Product Description: ....................6 About AES IntelliNet: ................... 6 MultiNet Receiver: ....................6 1.2.1 CAN/ULC-S304 Communication Requirements: ..........7 7170-C IP-Link Transceivers: ................7 Document Conventions: ..................7 Safety Considerations: ....................9 Technical Specifications: ................... 9 Front Panel:......................
  • Page 4 10.2 Routing Table Screen: ..................63 10.3 IP-Link Status Screen: ..................64 10.4 Get Signal History: ....................64 10.5 Close Your Browser When Finished With Admin GUI: ........65 11.0 IPLinkCtrl (ipctrl) Network Management Software: ........66 Page 4 40-7705ii-C-UM Rev. 1 June 6, 2018...
  • Page 5 Appendix D Sharing the Serial Port with additional Business Units ......99 Appendix E Alarm Output Codes Produced by the MultiNet receiver ...... 101 Appendix F Printer Messages Produced by the MultiNet receiver ......111 Page 5 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 6: Product Description

    1.2 MultiNet Receiver: The AES 7705ii-C MultiNet Receiver with integrated PC, Linux operating system and IP-Link programs is housed in a 19” rack mountable enclosure. This device acts as the central receiver. It is a specialized Linux based server with specific programs running that acquire data packets from one or more IP-Link Transceiver(s).

  • Page 7: Can/Ulc-S304 Communication Requirements

    LAN, WAN or Internet. 1.2.1 CAN/ULC-S304 Communication Requirements: The 7705ii-C MultiNet meets the requirements for Level 3 Passive Control Unit. 1.3 7170-C IP-Link Transceivers: These units communicate to the MultiNet Receiver via a direct Ethernet connection, LAN, WAN or the Internet.
  • Page 8 It is highly recommended and required for ULC systems that a redundant MultiNet Receiver be operational at the head end and that any location of 7170-C IP-Link Transceivers have at least two for the purpose of redundancy. Page 8 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 9: Safety Considerations

    Standards CAN/ULC-S561 and CAN/ULC-S301, and local building codes. No user serviceable parts. Do not open enclosure. Unplug power before installing or removing unit. 3.0 Technical Specifications: The 7705ii-C is in a standard 2U 19” rack enclosure configuration. Operating voltage: 120 VAC, 60 Hz. +/- 10% Operating current: 0.6 Amps...

  • Page 10: Front Panel

    3.1.1 LCD Display and Software Version: The LCD is a 4-line display with 20 characters per line. It shows messages for the 7705ii-C. Use this in conjunction with the Alert panel to interpret and acknowledge messages. There is also a tactile response sounder to provide audible confirmation of a successful button activation.
  • Page 11 This LED will turn off if CD turns off for 100 milliseconds.  Power: Green Led - Indicates that proper power is detected at the monitored points within the 7705ii-C. 3.1.3 Alert Panel: This section of the front panel contains an LED and two Push Button Switches.

  • Page 12: Rear Panel

    Modem connection for IP-Link Transceivers that cannot communicate via the Internet or TCP/IP. When connecting the 7705ii-C MultiNet Receiver’s modem to a telephone line, use only 26 AWG or larger wire. A cUL/CSA Listed Secondary Protector is required to be installed on the incoming lines.
  • Page 13 Line printer is connected to a USB port. Printer must be ULC Listed for “Signaling Use”. Appendix F for a listing of generated messages. Note:  These are to be used for initial setup only and are not to remain connected. Page 13 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 14: Installation And Setup

    They may also be needed later for occasional configuration modifications. The 7705ii-C, monitor and any network related equipment shall be connected to a suitable Listed UPS to maintain power during power outages. In a Dual system, each 7705ii-C and the 7170-C IP-Link Transceiver shipped, is configured exactly the same.

  • Page 15: Software Installation

    AES equipment resides.  7705ii-C must be installed in a Listed metal rack-mounting cabinet that complies with UL/CSA-60950 standard for IT equipment. The rack mount cabinet must be provided with integral outlets and the ability to connect AC input via conduit.
  • Page 16 Figure 4-1 Single MultiNet Receiver Connections to a 7170-C for Initial Setup Page 16 40-7705ii-C-UM Rev. 1 June 6, 2018...
  • Page 17 Figure 4-2 Dual MultiNet Receiver Connections to Remote 7170-C IP-Link by Local Network Page 17 40-7705ii-C-UM Rev. 1 June 6, 2018...
  • Page 18 Figure 4-3 Dual MultiNet Receiver Connections to Remote 7170-C IP-Links by Internet Page 18 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 19: System Startup And Access

    Switch the power of the 7705ii-C to the on position. The main switch for the power supply is on the back panel. This must be switched to on first.

  • Page 20: Power Down - Information

    Power Down - Information: The power to the 7705ii-C should not just be removed without going through the proper shut down procedure. DO NOT REMOVE POWER OR TURN OFF POWER of the 7705ii-C MultiNet Receiver WITHOUT USING THE PROPER SHUT DOWN...

  • Page 21: Linux Command Line

    Connect to the 7705ii-C using VNC Viewer or your workstation program as instructed by the person or persons responsible for your configuration.

  • Page 22: The Gui Desktop And The Aes Menu

    The menu available from the right click is also shown. This view is also a representation of what the screen would look like if you were to access it using VNC Viewer as your workstation program. Figure 5-2 GUI Desktop Page 22 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 23: Start The Terminal Program

    The terminal window in the GUI desktop screen is shown below in Figure 5-3. This is also a view using VNC Viewer from a remote PC that has access to the MultiNet receiver. Figure 5-3 Terminal window on the MWM Desktop Page 23 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 24: Setting Time

    Follow instructions and answer the questions presented on the screen. Contact AES Technical Support for additional information on adjusting the Time Zone on your MultiNet receiver. Page 24 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 25: Review Your Tcp/Ip Configuration

    MultiNet devices, then these new devices need unique settings. Failure to do so will result in conflicts. 7705ii-C Default Ethernet Port Settings Parameter Ethernet Port 1 / eth0 Ethernet Port 2 / eth1...

  • Page 26: Suggested Tcp/Ip Settings For Second Multinet Receiver

    Failure to get the proper values could prevent proper operation of the MultiNet devices or other existing devices on the network. Second 7705ii-C/ Suggested Ethernet Port Settings Parameter Ethernet Port 1 / eth0...
  • Page 27 For a simple installation where a crossover Ethernet cable is used to connect the 7170-C IP-Link Transceiver directly to Ethernet Port 1 (J10), eth0 of a single or the first 7705ii-C MultiNet Receiver, the following settings in this receiver along with the recommended settings in the 7170-C manual should allow communication: Figure 4-1.
  • Page 28 Once the editor is closed the script will continue by initializing the new settings and running a few tests. Watch the screen for errors. Page 28 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 29: Testing Tcp/Ip Configuration

    You should receive responses indicating how long the response took, if it failed or timed out. The example screen below shows the “ping –help” response, a successful ping and a failed ping. Figure 5-6 Example of a ping to a gateway PC Page 29 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 30: User Logout From Directly Attached Keyboard & Monitor

    For example: If using VNC Viewer, close the program by clicking on the X in the upper right corner of the VNC window. The password will be required the next time you attempt access. Page 30 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 31: Admin Gui For Configuration And Administration

    This will significantly reduce security, as anyone who gets access to the workstation may be able to modify your MultiNet Receiver Server settings. Page 31 40-7705ii-C-UM Rev. 1 June 6, 2018...
  • Page 32 Below is a sample screen from the Admin GUI. The following sections describe the functions of the Administration program. Figure 6-2 Admin GUI program home screen Page 32 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 33: Server Configuration

    Linux and the hardware of this receiver, do not enter anything else here unless directed by AES Technical or Engineering Support.  LCD Device Path: Unix path used by the LCD in your IP-Link Transceiver. Default is “/dev/ttyS2”. Page 33 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 34: Define Business Units: (You Must Have At Least One)

    Do not select this checkbox if this is an additional Business Unit that will use the Serial Port already configured for use by another Business Unit. Figure 6-4 Add Business Unit Screen Page 34 40-7705ii-C-UM Rev. 1 June 6, 2018...
  • Page 35 USDI – This data type is expecting data from a USDI Subscriber. Also creates Alarm data. o GPS – Do not select data type. o Vending – Do not select data type. o Pump – Do not select data type. Page 35 40-7705ii-C-UM Rev. 1 June 6, 2018...
  • Page 36 Once you have entered data in all the required fields, click If you have checked “Alarm Automation System?” you will see the screen shown on the next page. If you did not, this screen will be skipped. Page 36 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 37: Add A Business Unit - Alarm Automation Settings

    “Alarm Automation System?” checkbox. You will be presented with a data entry screen shown above. You can connect to the alarm monitoring system via serial connection and or TCP/IP connections. The following fields are available to edit. Page 37 40-7705ii-C-UM Rev. 1 June 6, 2018...
  • Page 38 C Receiver. This shall be configured by UL 1981 Central-Station Automation Systems Requirements.  Entering a value of 0 disables the feature and the 7705ii-C will not be looking for the heartbeat. The MultiNet Receiver will not annunciate a fault due to no heartbeat being sent.
  • Page 39 40. This allows the Alarm Automation an additional widows of 20 seconds and two attempts to send the heartbeat before a fault message is generated by the 7705ii-C Receiver. Default is 0 or disabled. This shall be configured by UL 1981 Central-Station Automation Systems Requirements.
  • Page 40 Subscribers for this Business Unit. When complete click… The following screen, or one similar if Alarm Automation System were not checked should be presented. After reviewing the information, Click Add Business Unit to complete the process Page 40 40-7705ii-C-UM Rev. 1 June 6, 2018...
  • Page 41 Figure 6-7 Add a Business Unit - continued A partial view of the final screen indicating a successful add, is shown below. Figure 6-8 Add a Business Unit – completed Page 41 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 42: Business Unit Overview

    Business Units. You can select an underlined link, to view details. Figure 6-9 Business Unit Overview Below is a sample compressed screen that shows the details for the underlined link MySecurityOne. Figure 6-10 Business Unit Details Page 42 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 43: Modify A Business Unit

    BU will produce a unique alarm message for each. This affects the receiver number in the string of characters sent to alarm automation. Figure 6-11 Modify Business Unit: Page 43 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 44: Subscriber Database Setup

    You will first be prompted to select the Business Unit to assign the added Subscriber.  Business Unit: Select from the pull down list. A different list from another example system is shown in this example. Page 44 40-7705ii-C-UM Rev. 1 June 6, 2018...
  • Page 45  Unit Type: Select the unit type from the pull down list provided. If the unit type is not properly selected, certain operational functions, such as Zone Programming, may not work correctly. You may not be presented with the correct zone-programming window. Page 45 40-7705ii-C-UM Rev. 1 June 6, 2018...
  • Page 46 Figure 6-15 Add Subscriber Confirmation Screen When you successfully add a subscriber, you are given the option to add alarm data after adding the subscriber. Click to perform this step next. Page 46 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 47: Alarm Data

    Figure 6-16  accountAlias: If a non-zero number is entered into this field, the account number in the alarm event will be replaced by this number prior to delivery to the automation system. Page 47 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 48: Close Your Browser When Finished With Admin Gui

    For the same reasons, do not leave untended, a workstation that has the Admin GUI Web pages open. Closing the browser will require the Admin GUI Password for a subsequent access attempt. Page 48 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 49: Workstation Access And Login

    7.0 Workstation Access and Login: Once properly configured, the 7705ii-C can be accessed by using programs running on a workstation. There are as usual multiple configurations and programs that will accomplish this task. As you have already experienced, password protected Web...

  • Page 50: Installing Vnc Viewer

    Right click on desktop and select new .. Shortcut … You can use the browse button to look for the file you saved Double click on the shortcut just created to run VNC Viewer. Page 50 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 51: Using Vnc Viewer

    1 is peabody2. You should now be connected and be able to run programs as needed. An example of the screen you should see is in the next section. Page 51 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 52: After Login

    If you are connecting for a user associated with a Business Unit you will have the Ipctrl program on the screen. Ipctrl is the interface you will use for managing Subscribers assigned to you. Page 52 40-7705ii-C-UM Rev. 1 June 6, 2018...

  • Page 53: Multinet Receiver Programs And Utilities

    It restarts any program that is not running. 5- LCD is the program that controls the messages displayed on the LCD display located on the front panel on the 7705ii-C MultiNet Receiver. 6- filedaemon is the program that handles the data sent to the printer.

  • Page 54: Multinet Utility Programs And Scripts

    MultiNet Utility Programs and Scripts: Listed below are some of the more commonly used programs, utilities and script files provided by AES or your Linux installation to manage, configure and maintain your MultiNet Receiver 1- Admin GUI 4- cleanLCD 2- aesctrl 5- editnetworketh0 3- chpass 6- editnetworketh1...
  • Page 55 3. chpass is script is used to change the password of a user created by the new Business Unit function in the Admin GUI Web pages. You will be asked for the username and new password. Passwords must be exactly 8 characters made up of case sensitive letters and numbers.

  • Page 56: Special Purpose Circuits

    Special Purpose Circuits: Listed below are some of the special purpose circuits to monitor certain faults or the proper operation of the MultiNet Receiver. 1- Watchdog Timer / Hung process detection 2- Power Supply Overheating Detection 1- Watchdog Timer / Hung process detection: Many of the critical programs in the MultiNet Server suite are providing a pulse to a Watchdog circuit on the LCD Board.

  • Page 57: Aes Menu In The Gui Desktop

    AES Menu in the GUI Desktop: There are no desktop shortcuts on the MultiNet Receiver’s GUI Desktop. Use the AES Menu to access some of functions that are available. Other functions are available from the command line prompt. This menu is only available for root user access.

  • Page 58: Managing Users

    9.0 Managing Users: Generally, users are created and managed within the MultiNet system through the creation of the Business Unit. See section 6.2. Within a server environment a user would be given specific access rights to areas on a server where they could do things such as view, create, delete, modify and other actions to files while limiting access to areas where they do not need to be.

  • Page 59: Changing A User's Password

    Changing a user’s Password: AES has provided a script for use in changing the password of a user that already exists. Only the root user can change passwords using this script. Warning! This script should also successfully change the password for user root but be very careful as the VNC Server for the user is stopped and restarted during this process effectively disconnecting you if the password being changed is for the root user and you are connected via VNC Viewer.

  • Page 60: Change Admin Gui Access - Username And Password

    Change Admin GUI Access - Username and Password: The username and password used to gain access to the Admin GUI is factory set as username = Admin; Password = peabody. It is highly recommended that this password be changed. Not changing it means that anyone who knows or discovers the server could use the Admin GUI Web pages to modify and possibly disable your system.

  • Page 61: Test New User Login

    Test new user login: New user access should be tested after creating a Business Unit or changing a password. Read or confirm the new password and Display number from the file user_info as described above in Section 9.2. Log in using the new login information to verify the proper creation/modification of the user.

  • Page 62: Admin Gui Database Functions

    10.0 Admin GUI Database Functions: Once your AES MultiNet system is up and running, and has received signals from Subscribers, you can use the Admin GUI access to monitor Subscriber activity history. Admin GUI is usually accessed from your remote PC. 10.1 Subscriber Overview Following is a portion of the screen that is displayed when you select Subscriber / Overview.

  • Page 63: Routing Table Screen

    An example screen is shown below. When your system is new there may not be any information to display until signals are successfully received by an IP-Link Transceiver and passed on to the 7705ii-C MultiNet Receiver. Figure 10-4 Routing Table...

  • Page 64: Ip-Link Status Screen

    10.3 IP-Link Status Screen: You can also view the status of IP-Link transceivers as shown in this partial screen view accessed from SysOp / IPLinks: Figure 10-6 IP-link Transceiver Status Screen 10.4 Get Signal History: Alarm data that is stored can also be viewed. The following screen, accessed by selecting SysOp / Alarms, lets you select the specifics about the alarm data you wish to view.

  • Page 65: Close Your Browser When Finished With Admin Gui

    Shown in the following Figure is an example of a Signal History Screen for a Subscriber with an ID of 1010: Figure 10-8 An example Alarm Data (Signal History) Screen 10.5 Close Your Browser When Finished With Admin GUI: To help secure your MultiNet receivers configuration and help to limit unauthorized modifications to your system, you should close your browser when it is no longer needed.

  • Page 66: Iplinkctrl (Ipctrl) Network Management Software

    11.0 IPLinkCtrl (ipctrl) Network Management Software: Once your AES MultiNet system is up and running, you can use the IPCtrl program to monitor and manage your network. IPCtrl is usually accessed from the workststion PC that is connected using VNC Viewer. If the program IPCtrl is not running it can be started using the “aesctrl startall”...

  • Page 67: Ipctrl Function Groups

    11.1 IPCtrl Function Groups: There are five function groups including “Message”, “Control”, “Program”, “DataRadio” and “System” They are accessed from the menu bar in the upper part of the screen. Each of the menu bar function groups has an underlined letter. Menu function groups can be selected by holding down the <Alt>...

  • Page 68: Using The Pick List Pop Up To Select A Subscriber Id

    11.3 Using the pick list pop up to Select a Subscriber ID When a function is chosen from a function group, a “pick list pop-up” appears. You can type in the ID number of the Subscriber unit you wish to contact. Or, use the arrow key to highlight the appropriate ID number and then press <Enter>...

  • Page 69: The Message Function Group

    To manually enter a route to the subscriber unit, select the Manual Path Entry and fill out the manual routing screen as instructed below. Where the first to go thru is the ID of the IP-Link. Figure 11-5 Manual Routing Table Once you have entered your communications route, click OK to send the message to your subscriber unit using the route entered.
  • Page 70 Explanation of the Message Group Functions: Function Explanation • Sends text messages to a remote subscriber SEND TEXT MESSAGE • Press <ALT>+<A> unit. To receive the data, the remote unit must or <ALT>+<M>, then <S> have a 7041 Hand Held Programmer attached or •...

  • Page 71: Control Function Group

    • Queries a remote unit for its model number (GET) SUBSCRIBER MODEL & REV (e.g. 7750F, 7450, 7050E, etc.) and its firmware • Press <ALT>+<M>, then <8> revision number. This information is stored in or Press <ALT>+<E> the database. • Select Target Unit •...
  • Page 72 Explanation of the Control Group Functions: Function Explanation • Re-enables transmitting on a remote subscriber unit that TURN ON TX • Press <ALT> + <C> has been turned off (see Turn Off TX, next). • Press <1> • Select Target Unit •...
  • Page 73 • Enables / Disables the subscriber units ability to be a SUBSCRIBER REPEATER FUNCTION repeater. • Press <ALT> + <C> • Works with Version 2 or higher subscriber units. • Press <5> • Select Target Unit CAUTION: Disabling the repeater capability may cause •...

  • Page 74: Programming Function Group

    11.7 Programming Function Group: Figure 11-12 Program Pull Down Menu To access the Programming function menu group, hold down the <Alt> key and Press <P>. The pop-up illustrated above will appear. Use the arrow keys to highlight a function and press the <Enter> to select it. Proceed by selecting your target unit, choosing a route of communication and then editing the presented form.
  • Page 75 will be retrieved from there. If no database entry exists, the factory defaults will be used. To be sure that the pre-filled values represent the current settings in the Subscriber, it is recommended that you retrieve the current parameters from the Subscriber before you edit and send new values. “Get All Subscriber Data”...
  • Page 76 • Contact Debounce Time (Loop Response) 7050 & 7750/ULC only: Programs a debounce delay for the zone inputs of 7050 and 7750/ULC subscriber units to prevent input switches or relays from causing nuisance alarms and repeated reports of the same alarm. The default setting is 0.12 seconds.
  • Page 77 Function Explanation RADIO PACKET LIFE • Press <ALT> + <P> See below for details on data entry for this function: • Press <R> • Select Target Unit • Select Route • Edit form as necessary Radio Packet Life – Data Entry Screen: Figure 11-14 Radio Packet Life Version 2.1 subscribers include the “Time-To-Live”...
  • Page 78 • The timeout function works when a packet is stored for forwarding in any subscriber with TTL capability, which will decrement the TTL time for the packet it is storing. When TTL time has expired, the packet is aborted. This function does not work with non-TTL (pre-Version 2.1) subscribers.
  • Page 79 Function Explanation CONTROL RELAY OUTPUT • Press <ALT> + <P> See below for details on data entry for this function: • Press <C> • Select Target Unit • Select Route • Edit form as necessary Control Relay Output – Data Entry Screen: This feature controls optional relay outputs (part number 7065) for model 7050 Subscribers units.
  • Page 80 Function Explanation ZONE CONFIGURATION • Press <ALT> + <P> See below for details on data entry for this function: • Press <Z> • Select Target Unit • Select Route • Edit form as necessary This function configures alarm zone inputs for a premise unit. It is important to know which type of unit is being programmed.
  • Page 81 previous programming or retrieval. Next you are asked if any zones are to be programmed to respond similar to an "Inverted Fire circuit" or bugler loop. With this option you can select to reverse the logic for the fire input (refer to subscriber manual). This produces an alarm on an open and trouble on a short.
  • Page 82 Zone Configuration window for the 7050 DLR/7750 ULC Bank 1 - 8 This option row not shown or available if Bank 1 is selected Select Bank Here Use arrows to scroll then click bank number to select. Figure 11-18 The zone configuration control block offers seven options for the programming of each alarm zone: Normally Open Normally Open with Restoral...
  • Page 83 Zone Configuration window for the 7050E, 7750/F8 and 7788 Figure 11-20 In this Subscriber type, the user has the ability to select an optional Contact ID Event Code to be sent to the Alarm Monitoring System for each of the 8 zones. The former standard produced only an E140, which is typically listed as a General Alarm.
  • Page 84 Zone programming window for the 7750-F4x4 and 7744 Refer to the appropriate Subscriber Manual for details on zone writing and programming. This screen below appears if the unit zone information is in the database. Figure 11-22 The Zone configuration pop-up window offers the following options for the programming of each alarm zone.
  • Page 85 Function Explanation AUTOMATIC TEST SUPERVISION See below for details on data entry for this function: • Press <ALT> + <P> • Press <A> • Select Target Unit • Edit form as necessary Automatic Test Time Supervision – Data Entry Screen: This feature enables the IPCtrl software to monitor automatic test timer check-ins.

  • Page 86: Data Radio Function Group

    11.8 Data Radio Function Group: Figure 11-24 To access the DataRadio function group, hold down the <Alt> key and press <D>. The Pop-up screen illustrated at above will appear. Select a function. Proceed by selecting your target unit. Explanation of the DataRadio Group Functions: Function Explanation VIEW ROUTING &...
  • Page 87 Function Explanation PRINT ALL DATABASE ID’s This function sends a listing of all ID’s that are in the • Press <ALT> + <P> Database to the printer port. • Press <P> • Click function • View available data This function displays a list of Units that are “routed VIEW PATHS/THRU •...
  • Page 88 Function Explanation EDIT RADIO FORWARD Forwarding is a function that causes the IPCtrl software to TABLE transmit a data packet to a remote Subscriber upon the • Press <ALT> + <P> reception of a specific event by the same or another •...
  • Page 89  Select ALARM and/or ZREST plus desired Zones if Forwarding Alarm data is the objective.  Select as desired any other type of data or feature that you want forwarded. The following options are available: In some cases the only information forwarded is a message indicating that a packet of the selected type was sent and not the data itself, STAT →...

  • Page 90: System Function Group

    11.9 System Function Group Figure 11-28 The Systems Function group menu is accessed by holding <Alt> and pressing <Y>. This group contains functions related to the operation on the software. Explanation of the System Group Functions: Function Explanation • Quickly cancels an unacknowledged packet sent to a sub- Abort Outbound Packet scriber unit by the receiver.

  • Page 91: Interpreting Screen Messages

    11.10 Interpreting Screen Messages SAMPLE Check-In Message: The following information can be extracted from the sample message above: The message was received on September 15 at 12:57:01 The sequential packet number assigned to this packet is 6B The message originated at subscriber unit #9876, and its destination is Unit #0000 (the head end) Subscriber #1234 –...

  • Page 92: Operation

    12.0 Operation This section describes two of the modes of operation your MultiNet Receiver may be in and how to operate it. 12.1 Manual Operation The MultiNet receiver defaults to Manual Operation when Alarm Automation is not in use Manual operation of the MultiNet receiver is a mode where alarm and other messages are not being sent to an Alarm Monitoring System.

  • Page 93: Warranty And Service Procedure

    Repack equipment in original or equivalent packaging. Inside the box, please include a contact name, telephone number, address and a brief description of the reason for return. Ship items freight-prepaid to: Repair Services, RMA#__________ AES Corporation, 285 Newbury Street Peabody, MA 01960 USA (Contact AES for Return Material Authorization number.)

  • Page 94: Appendices

    APPENDICES 40-7705ii-UM Page 94 Rev 1 March 13, 2018...

  • Page 95: Appendix A Common Linux Commands

    Appendix A Common Linux Commands Below are some of the more common commands you will be using on the Linux operating system: cat: concatenate files and print on standard output. Ex: cat {filename}<Enter> cd: change directory clear: clear the screen. cp: copy files grep: find lines matching a certain pattern.

  • Page 96: Appendix B Server-Generated Lcd Display Messages

    The LCD is a 4-line display with 20 characters per line. It shows messages for the 7705ii-C. Use this in conjunction with the Alert panel to interpret and acknowledge messages. There is also a tactile response sounder to provide audible confirmation of successful button activation.
  • Page 97 #.## (C)2005-06 AES Server Fault Messages: The server will detect certain LN1 7070 18 E140 fault conditions in the system and light Status LEDs to GRP00 ZONE 0008 indicate the failure. The server will light these LEDs for faults whether alarm automation is on or off line. 07/07/06 12:19 When automation is on line and there is a fault, the Example of an Alarm...

  • Page 98: Appendix C Software Installation Instructions

    7170-C IP-Link Transceiver. Part Number: 40-7705ii-C-IS Title: AES 7705ii-C MultiNet Receiver System – Initial Installation and Setup Guide This Installation and Setup Guide provides instruction for installing and setting up the MultiNet system including the 7705ii-C / and the 7170-C IP-Link Transceiver.

  • Page 99: Appendix D Sharing The Serial Port With Additional Business Units

    Appendix D Sharing the Serial Port with additional Business Units An additional Business Unit that creates Alarm data to be sent to Automation using an already configured and assigned Serial Port must be linked to the Business Unit originally setup to use that specific serial port. When creating an additional Business Unit, do not select the Alarm Automation System checkbox in the create Business Unit screen.
  • Page 100 9. Confirm the existence of the needed files with the ls command: ls<Enter> There should be a file for each Business Unit. Each file begins with “ipctrl.” immediately followed by the case sensitive name of the Business Unit and ending with “.cfg”.

  • Page 101: Appendix E Alarm Output Codes Produced By The Multinet Receiver

    Appendix E Alarm Output Codes Produced by the MultiNet receiver Alarm Output Overview: For many events that occur in the MultiNet system, alarm messages are created and communicated to an automation system. Communicators (Subscribers) in the MultiNet system and the MultiNet Receiver itself generate these events. This appendix is a list and description of those messages.
  • Page 102 Event Code Usage for Ademco 685 Output Emulation Event  Code Universal Description AES specific Usage  Fire Subscriber Zone designated for Fire  Burglary Subscriber Zone designated for Burglary Subscriber’s Zone Input Off-Normal  Alarm  Expansion module tamper 7170 IP-Link Transceiver Enclosure Tamper (Zone/contact = 906) ...
  • Page 103 Example Message Strings Description of Event Produced by an AES Subscribers R1 ACCT 18 E602 00 C000 Automatic Supervisory Check-In. Zone/contact ID = 000 R1 ACCT 18 E140 00 C0nn Alarm Signal or input went active. Zone/contact ID = Zone Number R1 ACCT 18 P140 00 C0nn Prior Alarm.
  • Page 104 Example Message Strings Description of Event Produced by a MultiNet Receiver or IP-Link Transceiver R1 IPL# 18 E145 00 C906 7170, IP-Link Transceiver Enclosure Tamper ID = 906 R1 IPL# 18 R145 00 C906 7170, IP-Link Transceiver Enclosure Tamper Restore ID = 906 R1 REC# 18 E300 00 C902 LCD offline.
  • Page 105 Fault and Status Codes (Zone information): AES Subscribers and MultiNet Receiver (not all are used by each device): 800 = No Faults, Unit OK or Restoral of all Prior Faults. 801 = Low Battery - Voltage less than 11.0V 802 = RAM Data error or RAM corrupted - Zone activation will not be reported (Sub.
  • Page 106 Radionics 6500 compatible output format: This mode will provide the output of 3 line cards; line card 1 is for AES subscriber and receiver signals, line card 3 is for Contact ID signals from IntelliTap, and line card 4 is for 4+2 signals from IntelliTap.
  • Page 107 Event plus Zone, Status and Fault Codes, Produced for Events Created by Subscribers: 10R1 ACCT A 000 A 000 Automatic Supervisory Check-In A NNN Alarm Signal Zone NNN ‫٭‬ 10R1 ACCT A nnn SA NNN Prior Alarm zone NNN ‫ ٭‬Input still active. Reported during Status Request or Check-In 10R1 ACCTSA nnn R NNN...
  • Page 108 Event plus Status and Fault codes, AES MultiNet Receiver: Diagnostic Fault - “RAM Data error or RAM corrupted” 10R1 IPL# Y 802 Y 802 Diagnostic Fault - “U11 RAM Chip missing or Internal Battery Bad” 10R1 IPL# Y 803 Y 803 Diagnostic Fault - “Reserved”...
  • Page 109 Line Card SIC used in Optex Morse Genesys 824 Alpha Signal format: 1RRLssssssACCTEEsNNNs<0x14> Line card 2 and SIC Not Supported by MultiNet system Line Card # 3 Contact ID received from IntelliTap. Events are translated. Signal format: 1RRLssssssACCTEEsNNNs<0x14> See “Line card #1”, “Signal format” in “Radionics 6500 compatible output” for Key to codes used in signal format for Line Card #3 above.
  • Page 110 Event Codes with numbers R4XX will be reported as: C NNN where NNN is the Point ID or Contact ID number All other Contact ID Event Codes will be reported as: Y XXX where XXX is a copy of the event code. OR SY XXX when PXXX is the event and where XXX is the Point ID or Contact ID number Note: AES recommends not using Radionics 6500 emulation, when using IntelliTap to report Contact ID.

  • Page 111: Appendix F Printer Messages Produced By The Multinet Receiver

    Appendix F Printer Messages Produced by the MultiNet receiver For many events that occur in the MultiNet system, messages are created and printed on the attached printer. These events are be created by the communicators (Subscribers) in the MultiNet system, IP-Link Transceivers and by the MultiNet Receiver itself. There are also a number of reports that can be printed.
