Summary of Contents for Stephan Staxel 3.5

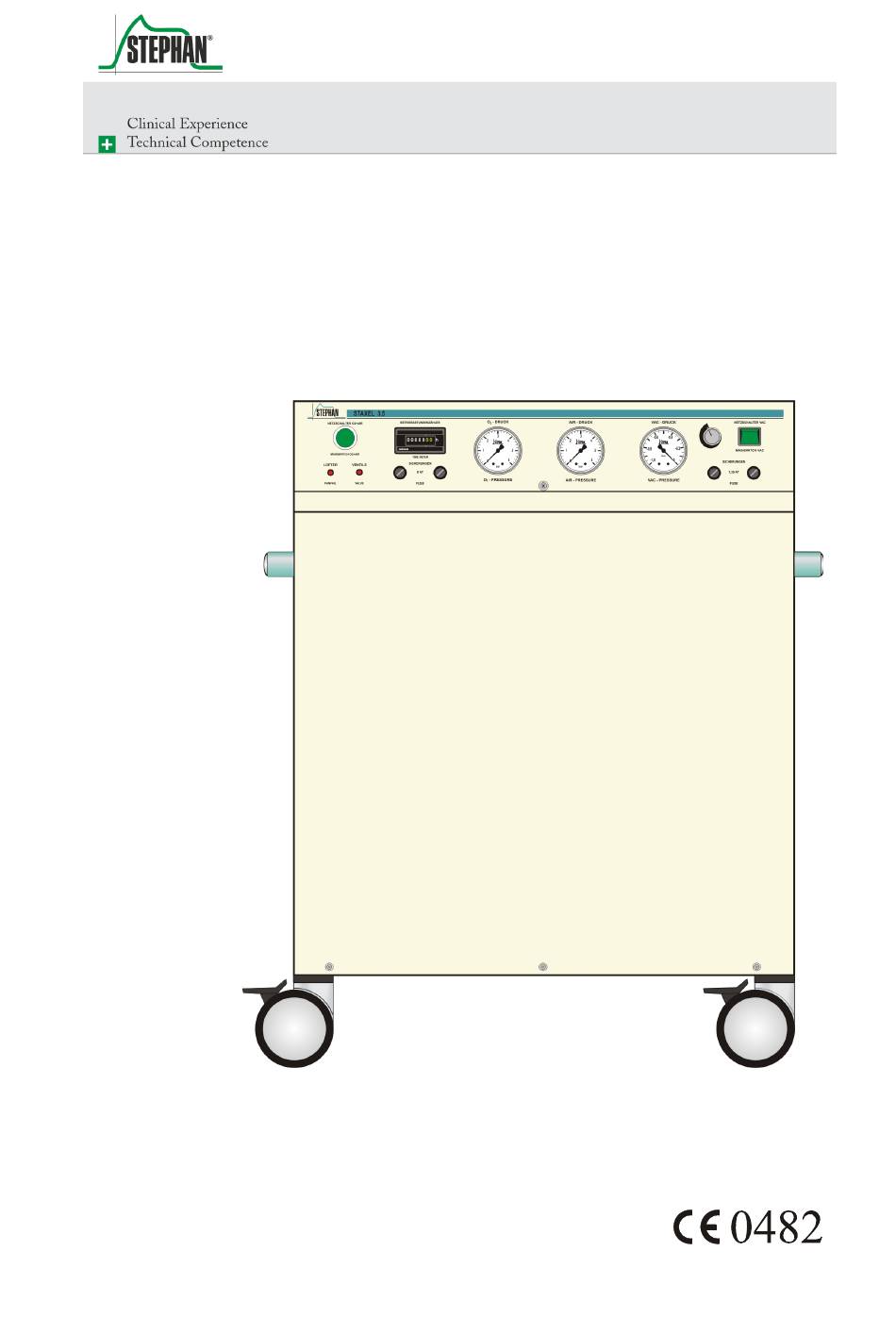

- Page 1 Staxel 3.5 AIR Energy Supply Module Operating Manual...
- Page 2 The manufacturer only warrants the safety and reliability of S 3.5, TAXEL if it is operated in conformity with the operating manual. F. Stephan GmbH - Medizintechnik - Kirchstrasse 19 56412 Gackenbach Subject to technical alterations. as of: Januar 2006 version: V1.0 © F. Stephan GmbH GA-602-0106V1.0-PAE-GB...
-
Page 3: Table Of Contents
Power supply .............20 Test list.....................23 Test before starting the device every time ......23 Test before every patient ............23 Operation ..................25 Switching on ................25 Switching off .................25 Stopping the device ...............25 Troubleshooting ................27 Care and maintenance ..............29 © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... - Page 4 Disinfection and sterilisation ..........29 8.1.1 Device housing, gas connections, mains lead ...30 Safety checks .................30 Maintenance................30 8.3.1 Filter unit ..............31 List of accessories ................33 Guarantee ..................35 List of illustrations ................37 List of tables..................39 Notes ....................41 © F. Stephan GmbH GA-602-0106V1.0-PAE-GB...
-
Page 5: General Information
Only use the accessories stated in chapter 9 on page 35. Device name and manufacturer Device name TAXEL Manufacturer F. Stephan GmbH - Medizintechnik - Kirchstrasse 19 56412 Gackenbach (+)49 (6439) 9125 – 0 (+)49 (6439) 9125 – 111 info@stephan-gmbh.com www.stephan-gmbh.com © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 6: Proper Use
(in Germany: yellow trash can). Return/disposal F. S H guarantees that used devices from our company can TEPHAN be returned free of charge and disposed of correctly, thus making a contribution to the environment. © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 7: Introduction
The manufacturer does not accept any warranty claims resulting from incorrect operation or inadequate care and maintenance. The manufacturer only guarantees the safety and reliability of the device if it is operated in compliance with the operating manual. © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 8: Abbreviations And Definitions
Unit of measurement for compressed German standardization institute European standard Flow Volume flow Light Emitting Diode minutes Unit of time Oxygen Upper limit seconds Unit of time Lower limit Vacuum Tab. 1: Abreviations and definitions © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 9: Technical Data
Specifications Absorber unit Pressure 2.2 bar Changeover cycle 11 s Flushing time System pressure 5.2 bar 5.2 bar Output pressure 3.8 bar 3.8 bar Consumption 6 l/min 8 l/min Max. consumption 7 l/min 13 l/min © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... - Page 10 Flow [l/min] concentration [%] 1 – 2 3 – 6 Tab. 2: Available O concentration at corresponding flow Monitoring Parameter Unit Pressure sensor Temperature sensor °C Pressure relief valve Tab. 3: Alarm limits Alarm visual, acoustic © F. Stephan GmbH GA-602-0106V1.0-PAE-GB...
-
Page 11: Safety Instructions
Refers to precautions which, if not heeded, can result in damage to the device and its accessories. Caution Danger warnings The device must be operated according to the instructions in this operating manual. Danger 3.5 is not certified for use in explosion-risk areas. TAXEL Danger © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 12: Warnings
This also includes replacing the bacteria filter, intake filter and intake filter mat in accordance with the Warning operating manual. Use only spare parts from F. S H for TEPHAN maintenance. © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 13: Structure And Description Of Functions
® Structure and description of functions Structure and description of functions Front view Fig. 1: Front view 1 Controls and display elements 3 Housing jacket 2 Handles 4 Rollers (4, 2 can be fixed) © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 14: Controls And Display Elements
6 Knob for regulating the vacuum 7 Mains switch "On/Off" for VAC 8 Fuse for VAC generation 9 Fuse for O and AIR generation 10 Visual alarm for failure of electronic components or switching valves 11 Visual alarm for overheating © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 15: Rear View
Structure and description of functions Rear view Fig. 3: Rear view 1 Intake filter mat 5 Membrane dryer 2 Power sockets (230 V AC) 6 Acoustic alarm 3 Connection lead 7 Water separator 4 Filter 8 Filter unit © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 16: Right-Hand Side View
Structure and description of functions Right-hand side view Fig. 4: Right-hand side view outlet 2 AIR outlet © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 17: Left-Hand Side View
® Structure and description of functions Left-hand side view Fig. 5: Left-hand side view outlet 3 VAC outlet 2 AIR outlet © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 19: Preparing For Operation
The air intake grids on the back of the device must not be covered or any objects placed on them. There should be spacing of at least 10 cm to the wall at the rear of the device. © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 20: Connecting To The Gas And Power Supply
The auxiliary power sockets are switched on with the mains switch "On/Off" for O and AIR on the front of the device. When in use, S 3.5 can only have max. 4 user-accessible auxiliary TAXEL power sockets. Warning © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... - Page 21 ® Preparing for operation No not connect any further multiple power sockets, e.g. socketa dapters, to the auxiliary power sockets. Warning Mains failure also means failure of the auxiliary power sockets, Warning © F. Stephan GmbH GA-602-0106V1.0-PAE-GB...
-
Page 23: Test List
Visually check the pressure gauge for O and AIR All pressure must be in the correct range ( > 3 bar ) The device must not be used if it fails any of the tests! Danger © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 25: Operation
2. Pressure is released from the tanks. 3. Switch off the mains switch "On/Off" for VAC on the front of the device. 4. Remove all tubes from the connections. 5. Disconnect the device from the mains. © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 27: Troubleshooting
Compressor defect Supply tube torn off concentration falls below Balance of pressure between Readjust absorber minimum value the two absorber tanks no Flow too high longer balanced Outdated absorber tanks Replace absorber tanks Tab. 4: Troubleshooting © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 29: Care And Maintenance
Caution When using effective substances other than those stated, please contact the manufacturer of the disinfectant to obtain compatibility confirmation. Caution © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 30: Device Housing, Gas Connections, Mains Lead
Maintenance is to be carried out by the authorized customer service for F. TEPHAN After 10,000 operating hours, arrange for a general overhaul to be carried out by the authorized customer service for F. S TEPHAN Only use spare parts from F. S H for maintenance. TEPHAN © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 31: Filter Unit
This can result in a rapid fall in the O concentration of S 3.5. TAXEL © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... - Page 32 4. Unscrew the intake filter and screw in a new one (in S TAXEL spare parts set). 5. Put the stainless steel fine sieve in again. 6. Insert the 3-ply bacteria filter. 7. Put the holder back in again. The intake filter cannot be cleaned! © F. Stephan GmbH GA-602-0106V1.0-PAE-GB...
-
Page 33: List Of Accessories
1 600 61 123 Intake silencer & bacteria 1 600 40 046 filter O ring 4.47 x 1.78 EPDM 1 950 60 031 Filter insert for moisture 1 925 60 362 filter Tab. 5: List of accessories © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 35: Guarantee
Any intervention in the device or repairs must only be carried out by F. H or an authorized expert. Otherwise the guarantee TEPHAN becomes null and void. The guarantee also becomes null and void if the device is handled incorrectly. © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 37: List Of Illustrations
Fig. 2: Controls and display elements ............. 14 Fig. 3: Rear view ..................15 Fig. 4: Right-hand side view ..............16 Fig. 5: Left-hand side view ..............17 Fig. 6: Exploded drawing intake filter ............ 31 © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 39: List Of Tables
Tab. 1: Abreviations and definitions ............8 Tab. 2: Available O concentration at corresponding flow ..... 10 Tab. 3: Alarm limits ................10 Tab. 4: Troubleshooting ................27 Tab. 5: List of accessories ............... 33 © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... -
Page 41: Notes
® Notes Notes © F. Stephan GmbH GA-602-0106V1.0-PAE-GB... - Page 42 F. Stephan GmbH - Medizintechnik - Kirchstrasse 19 56412 Gackenbach (+)49 (6439) 9125 – 0 (+)49 (6439) 9125 – 111 info@stephan-gmbh.com www.stephan-gmbh.com...
