Wiring Diagram - Whirlpool Wvw51Uc6Hv Installation Instructions; Use And Care Information

L N Gnd
EMI Filter
Output: 700mA (2-15 VDC)
LED
Driver
Input: 120 VAC
SEL0115572A
NOTE: *COMPONENTS AND WIRES DRAWN WITH THE DASHED LINE ARE OPTIONAL.
12

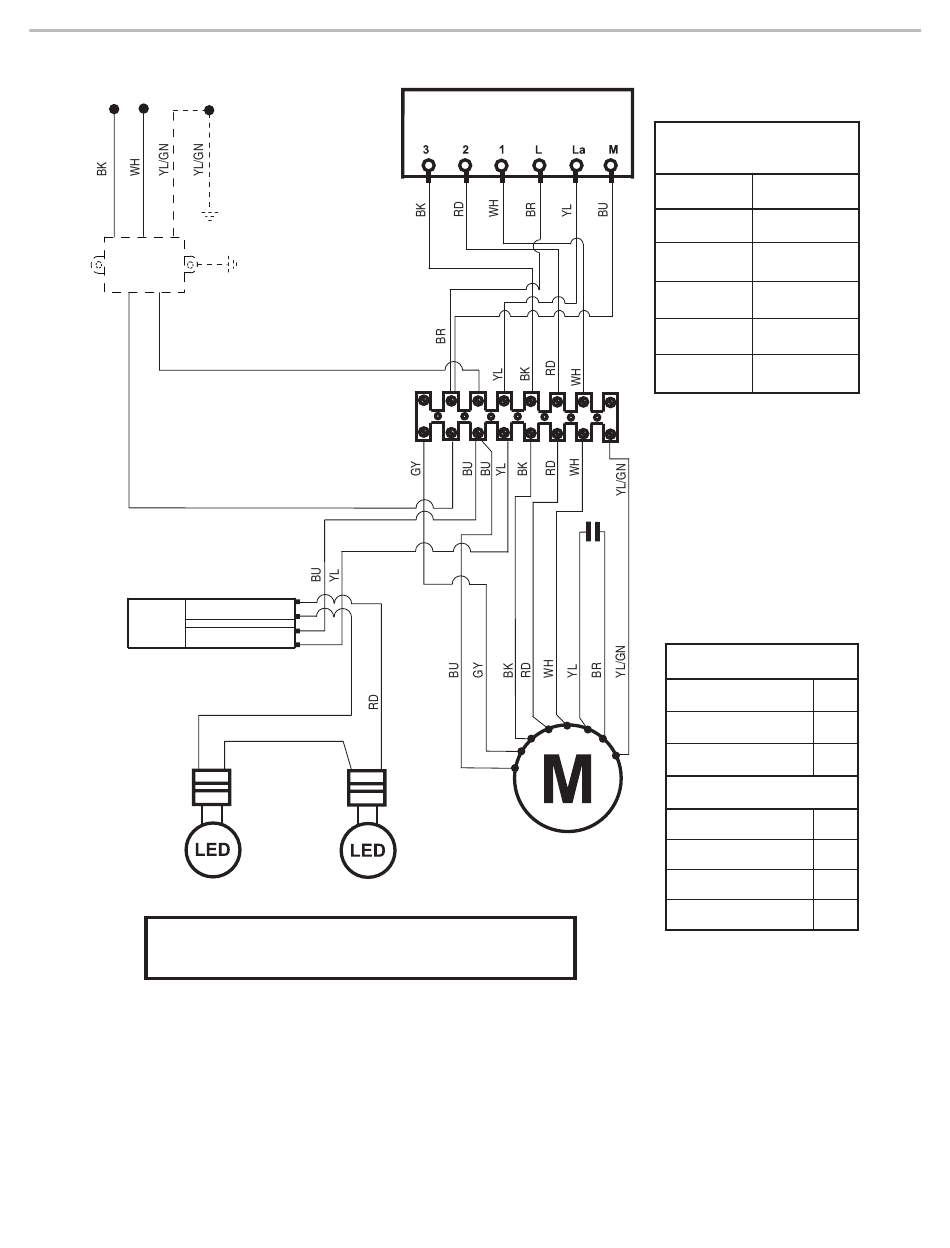

WIRING DIAGRAM

WH
BK
+
-
BK
BU
Push Button Switch
BU
Push Button
Switch Operation
FUNCTION POSITION
Off No Connection
Lamps Blue/Yellow (M-La)
Low Speed Brown/White (L-1)
Med Speed Brown/Red (L-2)
High Speed Brown/Black (L-3)
Motor Specifications
Power Supply 120 VAC
Frequency 60 Hz
Power Absorption 240 W
Motor Resistance (Ω)
Blue/Black 17.7
Blue/Gray 27.1
Blue/Red 34.6
Blue/White 41.2
