65-2643RK0504SS

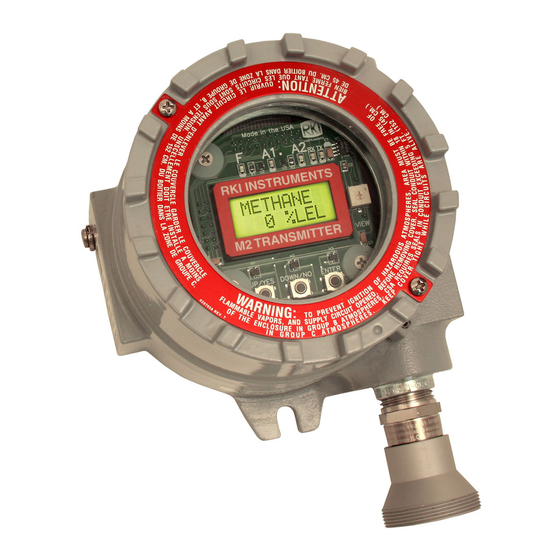

M2A Transmitter
Operator's Manual
Part Number: 71-0419
Revision: E
Released: 9/9/20
RKI Instruments, Inc.
www.rkiinstruments.com
