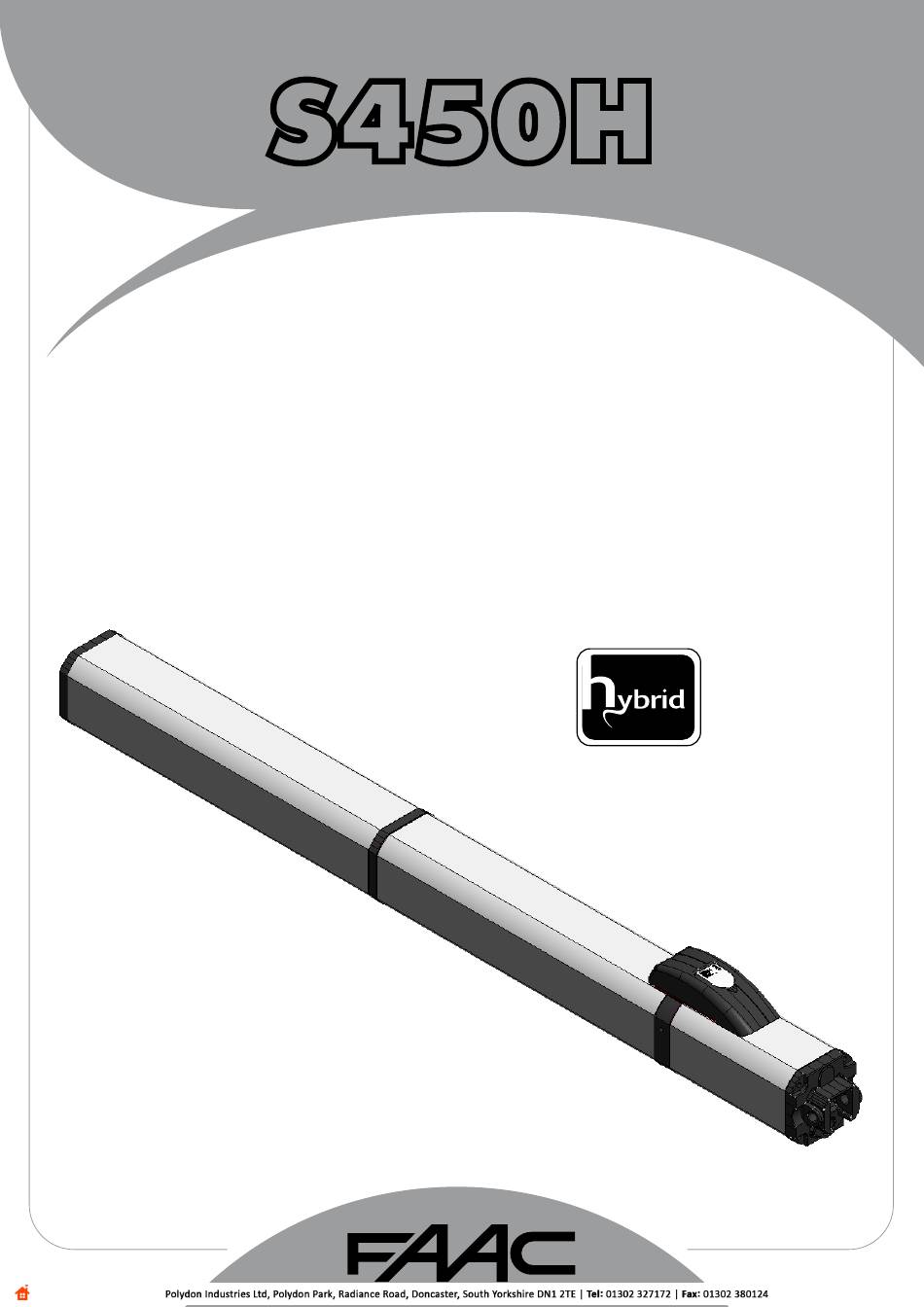

- Page 1 S450H www.metalines.com sales@metalines.com...
-
Page 2: Ce Declaration Of Conformity For Machines
4) Keep these instructions for future reference. hazards. 5) This product was designed and manufactured exclusively for the purpose 17) Each installation should be fitted with at least one flashing light (e.g. indicated in this documentation. Any other use, not expressly indicated FAACLIGHT) and a warning sign suitably secured to the frame structure, here, could compromise the good condition/operation of the product in addition to the devices described in 16 above. and/or be a source of danger. 18) FAAC declines any responsibility regarding safety and efficient operation 6) FAAC declines any responsibility for improper use or use other than that of the automated system if parts other than FAAC original parts are for which the automated system was intended. used. 7) Do not install the equipment in an explosive atmosphere: the presence 19) Use only FAAC original parts for maintenance. of inflammable gas or fumes is a serious danger to safety. 20) Do not in any way modify the automated system components. 8) Mechanical constructive elements must comply with the requirements of the EN 12604 and EN 12605 standards. 21) The installer shall provide all information concerning the manual... -
Page 3: Description And Technical Specifications
S450H 1 DESCRIPTION AND TECHNICAL SPECIFICATIONS 1.1 DIMENSIONS The FAAC S450H automated system for swing-leaf gates consists of an electrical pump and an hydraulic piston transmitting the leaf movement, assembled in a single block. The model with hydraulic lock can automate leaves up to 2 m. - Page 4 If the gate structure does not allow the stable fixing of the front fitting, create a firm bearing surface in the leaf structure. - It is advisable to grease all fixing pins - Opening and closing stops must always be installed - Play special attention not to damage the operator rod 3.2 INSTALLATION DIMENSIONS (Dimensions in millimeters) 3.2.1 APPLICATION WITH BRACKET FASTENED TO THE COLUMN ATTENTION: do not cut for any reason the rear bracket Make reference to figures 4 and 5 and to table to determine the installation position of the operator. Dimensions in millimeters Fig. 4 Fig. 5 Dimensions in millimeters INSTALLATION DIMENSION "B"...
- Page 5 3.2.2 APPLICATION WITH BRACKET FASTENED TO SIDE WALL ATTENTION: do not cut for any reason the rear bracket Make reference to figures 4 and 5 and to table 2 to determine the installation position of the operator. Dimensions in millimeters Fig.5 Fig.4 Dimensions in millimeters INSTALLATION DIMENSION " B " (SEE FIGURE 4 a°...
- Page 6 Install the encoder on the rear bracket by correctly engaging 3.3 INSTALLATION OF OPERATORS it on the pin then fix it with the screw and nut supplied (Fig. Check the perfect level then weld the rear fitting to the 8 re. a b c). pillar or fix it by means of suitable screws, dowels / threaded Slightly press the protection cover on the rear bracket to inserts.
- Page 7 Secure the operator to the front fixing (Fig. 15). Remove the bleed screw (Fig.16 ref. a) paying special attention to leave the sealing O-Ring in its seat If an external mechanical stop point at closure is pre- Install the metallic protection cover as shown in Fig. 16, insert sent, remove the rod comple- and tighten both tie-rods tely and then insert it 5 mm.
-
Page 8: Manual Operation
4 MANUAL OPERATION The models S450H SB are not equipped with a release facility since, thanks to the particular configuration of the hydraulic distributing flange, you do not need to release the operator to manually move the leaf If the gate is to be operated manually because of a power failure or an automated system fault, activate the release device. 1) Lift the protection lid (Fig. 18, re. a) and insert the key in the lock (Fig. 18, ref. b). 2) Turn the key 90°... - Page 9 Fig. 19 LEAF * LEAF 2 DL 1 DL 1 THROUGH THE BRACKET COVER OF LEAF THROUGH THE BRACKET COVER OF LEAF DL 2 DL 2 2, VERIFY THAT THE LED DL IS ON WHEN , VERIFY THAT THE LEDS DL AND DL2 DL 3 DL 3 THE MOTOR IS NOT IN OPERATION...
- Page 10 6 BLEEDING Loosen the tie-rods (Fig. 23 ref. a) and remove the metal protective housing (Fig. 23 ref. b). Remove the upper tie-rod and be careful with the O-ring that must remain it its seat. Fig.23 Remove the screw in Fig. 24 ref.d from the front fitting Remove the joint (Fig.24 ref.f) from the operator stem. (Fig.
- Page 11 Les descriptions et les illustrations du présent manuel sont fournies à titre indicatif. FAAC se réserve le droit d’apporter à tout moment les modifications qu’elle jugera utiles sur ce produit tout en conservant les caractéristiques essentielles, sans devoir pour autant mettre à...
