Item # 1002 556 281
1002 556 269
Model # FCA60401BM-2PK
FCA60401BG-2PK
USE AND CARE GUIDE

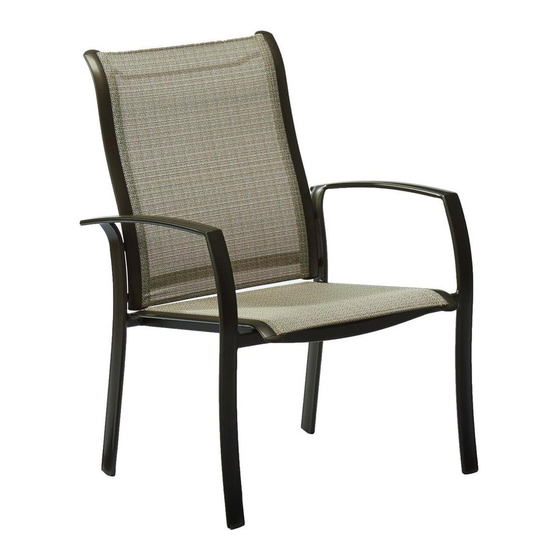

ALUMINUM OVERSIZED KD CHAIR
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY FCA60401BM-2PK
Summary of Contents for HAMPTON BAY FCA60401BM-2PK
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Safety Information ............2 Planning Assembly ..............3 Hardware Included ..............Product Caution ..............2 Package Contents ..............Safety Warnings ..............2 Assembly ................ 5 Warranty ................ 2 Care and Cleaning ............ -
Page 3: Pre-Assembly
Pre-Assembly PLANNING ASSEMBLY Read all instructions before assembly. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard. NOTE: More than one person may be required to assemble this product. HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity... -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Backrest Right arm Left arm Seat Connector bar... -
Page 5: Assembly
Assembly ATTACHING THE CONNECTOR BARS TO THE RIGHT ARM Place the right arm (B) on the soft surface. Attached the connector bars (E) to the right arm (B) using M6x20 combination bolts (AA) using the hex wrench (CC) Do not fully tighten all the bolts at this step. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON... - Page 6 Assembly (continued) ATTACHING THE CONNECTOR BAR TO THE LEFT ARM Attach the connector bars (E) to the left arm (C) using M6x20 combination bolts (AA) using the hex wrench (CC). Do not fully tighten all the bolts at this step.
- Page 7 Assembly (continued) CONNECTING THE ARMS TO THE BACKREST Attach the left arm (C) to the backrest (A) using M6x20 combination bolts (AA). Attach the right arm (B) to the backrest (A) using M6x20 combination bolts (AA). Do not fully tighten all the bolts at this step. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON...
- Page 8 Assembly (continued) CONNECTING THE SEAT TO THE ARMS Turn the chair upside down. Attach the seat (D) to the left arm (C) and the right arm (B) using M6x25 combination bolts (BB). Do not fully tighten all the bolts at this step.
-
Page 9: Care And Cleaning
Assembly (continued) CHECKING THE CHAIRS Once all of the bolts are in place, fully tighten the bolts using the hex wrench (CC). Ensure all connections are secure before use. Care and Cleaning For best results, clean the chair with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. - Page 10 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
