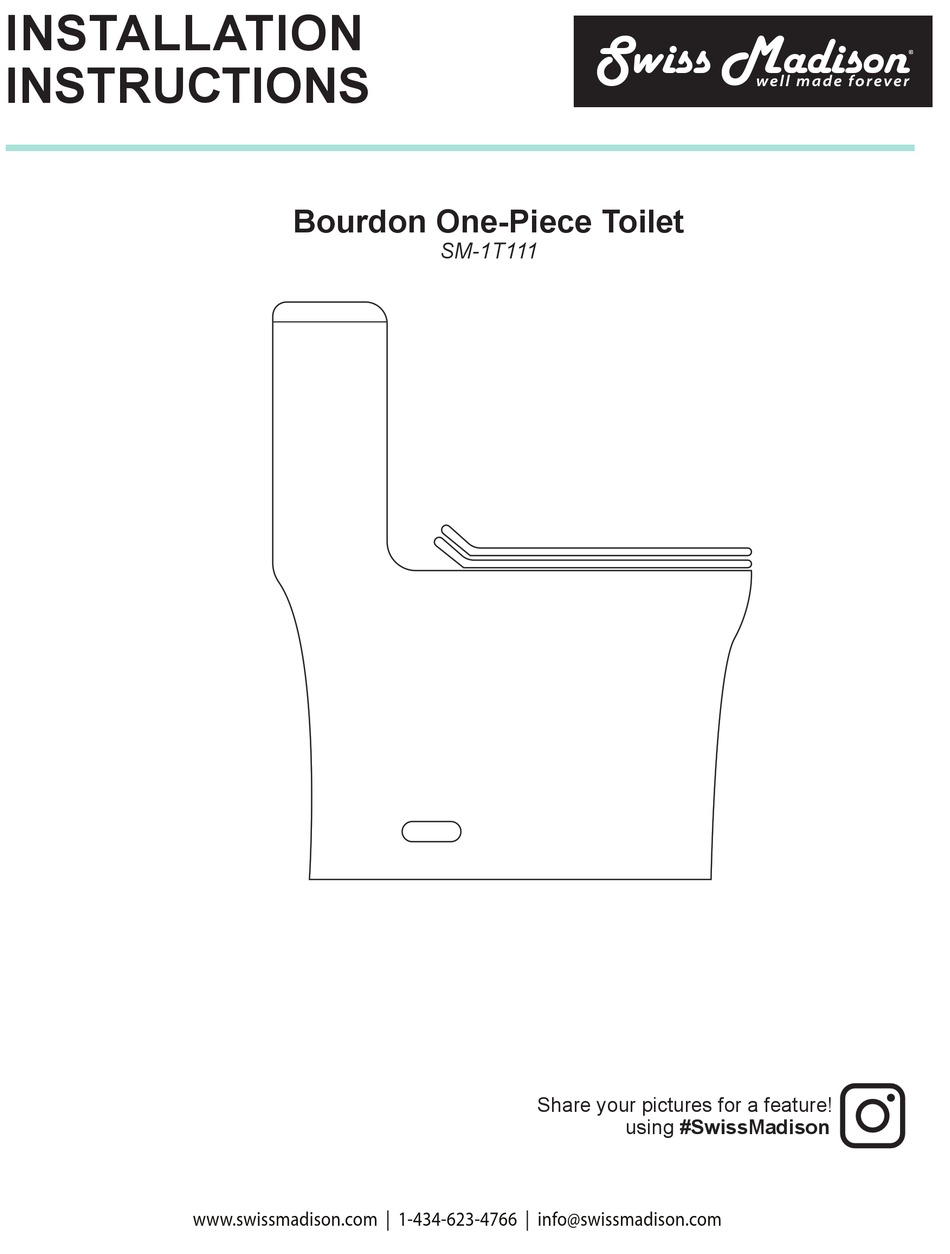

- Page 1 INSTALLATION wiss adison ® INSTRUCTIONS Bourdon One-Piece Toilet SM-1T111 Share your pictures for a feature! using #SwissMadison www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
- Page 2 Prior to Installation: Inspect toilet to ensure no damages have occurred while in shipping. Observe all plumbing and building codes in accordance with your state and local requirements. Remove old toilet. Make sure mounting surface is CLEAN and LEVEL General Recommendations: Read installation and maintenance instructions thoroughly before installing the toilet. Be sure to use proper tools and always wear proper personal safety accessories for your protection.
- Page 3 Thank you for your purchase Thank you for purchasing a Swiss Madison One-Piece Toilet. We appreciate your business and know you will enjoy your toilet for many years to come. If you have any questions or require assistance we would be happy to help, please contact us at 1-434-6234766 or info@swissmadison.com.
-
Page 4: Parts List
Level Safety Glasses Putty Knife Flexible Supply Tube Hacksaw Screwdriver PARTS LIST Wax Ring/ Gasket Bolts Side Cover Caps One-Piece Toilet NOTE: Specialized tools may be necessary to install a Swiss Madison One-Piece Toilet, plumbing not included. — 3 —... -
Page 5: Installation Instructions
ONE-PIECE TOILET INSTALLATION INSTRUCTIONS The step-by-step guidelines in the installation instructions are a general reference for installing a Swiss Madison One-Piece Toilet. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional 1. - Page 6 3. Install Closet Bolts Install closet bolts to ange channel, turn 90° and slide into place 6” (152mm) apart and parallel to wall. Closet Flange Closet Bolts 4. Install Wax Seal Invert toilet on oor (use cushion to prevent damage), and install wax ring evenly around waste ange (horn), with tapered end of ring facing toilet.
- Page 7 4. Position Toilet on Flange Unplug oor waste opening and install toilet on closet ange so bolts project through mounting holes. Loosely install retainer washers and nuts. Side of washers marked “THIS SIDE UP” must face up! Washer Bolt Closet Flange 5.
- Page 8 6. Install Toilet Seat Place seat hardware over where you inserted the Insert threaded rubber piece into threaded rubber pieces. holes on top of toilet. Place washer onto screw then thread screwthrough the seat hardware into the rubber piece. Before you fully screw in hardware, be sure to test position by placing the seat on top and making adjustments if needed.
- Page 9 The Swiss Madison® warranty is a comprehensive and explicit limit of liability, and all items outside of it are not addressable by or the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties and in those situations we remain fully compliant.
