★ Please read and follow all warnings, precautions and instructions before
installation and use.
★ Coming with UPS01 uninterrupted power supply, this series gate opener can be
powered by AC 100-240V electricity directly. It is allowed to use additional battery
(NOT incl.) and solar panel (optional) as BACK-UP or MAIN power source with this
UPS01.
★ Never connect the solar panel to the control board directly to charge the battery.
★ Periodic checks of the opener are required to ensure safe operation.
★ Save this manual.
C030617

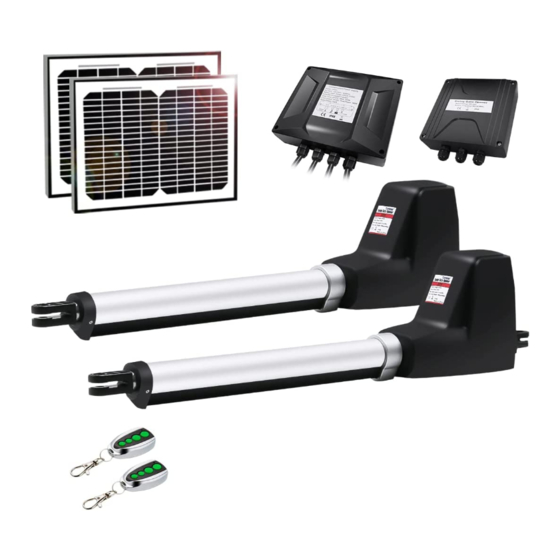

Dual Swing Gate Opener
User's Manual
AT6132 / AT12132
AT6132S / AT12132S
TOPENS Website
www.topens.com
Email: support@topens.com
Model:
VER 22a
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Topens AT6132
Summary of Contents for Topens AT6132
- Page 1 Dual Swing Gate Opener User’s Manual Model: AT6132 / AT12132 AT6132S / AT12132S TOPENS Website www.topens.com Email: support@topens.com ★ Please read and follow all warnings, precautions and instructions before installation and use. ★ Coming with UPS01 uninterrupted power supply, this series gate opener can be powered by AC 100-240V electricity directly.
- Page 2 Visit: www.topens.com Please record the product model, your email address etc. in the spaces provided below. Refer to this list when contacting TOPENS for technical service or assistance with your automatic gate opener. Where did you purchase? (Amazon.com; Amazon.ca: Amazon.co.uk, Amazon.de; Other, Please...
-
Page 3: Table Of Contents
Safety Installation Information............................1 Parts List.................................... 3 Extra Parts for AT6132S / AT12132S..........................3 Accessories Parts (Included in some models, refers to the actual package)............4 Optional Accessories Parts List (Available at TOPENS Store)..................4 Replacement Parts................................5 Tools Needed:................................... 5 Technical Specifications & Features..........................5 Installation Overview................................7... -
Page 4: Safety Installation Information
use on any pedestrian gate. Pedestrians must be Safety Installation Information supplied with a separate pedestrian access. 1. READ and FOLLOW all instruction. For an installation utilizing non-contact sensors The gate opener is intended for use with Class I (safety sensors), product manual... - Page 5 BEFORE digging. NOTE: TOPENS Gate Operator can be used for driveway gates made by steel, wood, vinyl, and shaped as panel, tube, and chain-link. While use on solid surface gates is NOT recommended. Solid surface gates have a...
-
Page 6: Parts List
Parts List Extra Parts for AT6132S / AT12132S... -
Page 7: Accessories Parts (Included In Some Models, Refers To The Actual Package)
Accessories Parts (Included in some models, refers to the actual package) JD24VY 24V Warning TC102 Photo Eye Beam 25FT Extension Light Sensor 5 Conductor Cable Optional Accessories Parts List (Available at TOPENS Store) TC186-R WiFi TC186 WiFi ERM12 External M12 Remote Control Smartphone Remote Smartphone Remote... -
Page 8: Replacement Parts
/ AT12132 / AT6132S / AT12132S Gate Opener UPS01 Uninterrupted MK01 Hardware Kit Power Supply WARNING: Changes or modifications not expressly specified by this user manual, TOPENS could void the warranty of this equipment. Tools Needed: ·Power Drill ·Tape Measure ·Open End Wrenches - 14# &17# or Adjustable Wrenches... - Page 9 These specifications are subject to change without notice. NOTE: “NR" indicates this size and weight combination is NOT recommended for one arm actuator. NOTE: Ball bearing hinges should be used on all gates weighing over 140kg (300 lbs). Features: multiple safety protection (40 seconds) ·Soft start and soft stop ·...
-
Page 10: Installation Overview
Installation Overview Important: The second gate opener cable should be put into the PVC conduit (not provided) which is buried underground .This protects the cable from lawn mowers and string trimmers. -
Page 11: Preparation For Installation
Preparation for Installation There are two installation types for the gate opener, Pull-to-Open and Push-to-Open. In the Push-to-Open installation, gate opens out from the property. A Push-To-Open Bracket (PSO part) is required to be used for each gate. NOTE: Ensure the gate does not open into public areas. One more person will help when installing. The gate opener is mounted to the gate and to the gate post. - Page 12 1. Insert the bolts through the holes of post bracket and post pivot bracket as shown. Place washers and nuts on the bottom of the bolts and hand tighten. 2. Attach the gate bracket and post bracket assy. to the opener by inserting a clevis pin.
- Page 13 6. Sign the bolt-hole point on the gate post and gate. Do this by placing a punch or a sign in the middle of each bolt slot on the post bracket and the gate bracket. It allows slight adjustments to the post bracket. Then remove the opener and brackets assy.
-
Page 14: Install The Opener On The Gate - For Push To Open
12. Insert the release key, and turn the key 90° counterclockwise. This restores normal operation. NOTE: The setting of the PULL/PUSH TO OPEN of the control board should be in accordance with the installation. Install the Opener on the Gate – for Push to Open The position of Post Bracket is very important. - Page 15 1. Insert the bolts through the holes of post bracket and PSO part (push to open bracket) as shown. Place washers and nuts on the bottom of the bolts and hand tighten. 2. Attach the gate bracket and post bracket assy. to the opener by inserting a clevis pin.
- Page 16 6. Sign the bolt-hole point on the gate post and gate. Do this by placing a punch or a sign in the middle of each bolt slot on the post bracket and the gate bracket. It allows slight adjustments to the post bracket. Then remove the opener and brackets assy.
-
Page 17: Mounting Of The Control Box
12. Insert the release key, and turn the key 90° counterclockwise. This restores normal operation. NOTE: The setting of the PULL/PUSH TO OPEN of the control board should be in accordance with the installation. Mounting of the Control Box Use 4 deck screws (not provided) to install the control box. Even though the control box is waterproof designed, for safety reason and a longer service life, it is recommended to install the control box inside a secure surface and at least 100 cm (40 inches) above the ground to avoid being flooded or buried under snow. -
Page 18: Connection Of The Power Supply
Connection of the Power Supply A 24VDC AC-DC power supply is included in the kit. You can plug it to the AC socket to use it power up the gate opener directly if the AC electricity is accessible. You can also connect a 24VDC back-up battery (2*12VDC, connected in series to become 24VDC) to the power supply if the AC electricity is not stable. - Page 19 Power Mode 2. By AC electricity and back-up batteries, only use the AC electricity to charge the batteries If the AC electricity failure happens rarely (less than 8 hours per day), then you can use minimum 5AH 2*12VDC batteries as back-up power source in case of AC power failure. In this situation, you can connect the UPS-01 to the control box refer to step 1 in this chapter.
- Page 20 wand and keypad). Please provide us with more details of the local sunshine condition and accessories needs which we can calculate the configuration of the solar panel and the batteries. Please connect the UPS-01 power supply & batteries & the solar panels refer to the following wiring diagram. You can leave the power cord Not Plugged in this situation.
-
Page 21: Connection Of The Control Board
Connection of the Control Board 1. Actuator 1 (Master gate, open first & close last) Insert the stripped cable wires into the appropriate terminals on the opener terminals block. The red wire should be inserted into the “+MOTOR1” terminal(#15), the black wire into “MOTOR1-” terminal (#16), the blue wire into “ULMT1”... - Page 22 3. UPS-01 Power Supply Before connecting this item, please refer to the chapter of “Connection of the Power Supply”. 4. Battery not included) & solar panel (optional, ONLY included in AT6132S/AT12132S) Please connect them following the chapter of “Connection of the Power Supply”. 5.
-
Page 23: How To Program The Remote To The Opener
250pcs remotes to be programmed for the opener. TOPENS ERM12 Universal External Receiver is available at TOPENS Store. TOPENS ERM12 Universal External Receiver is also compatible with other brand swing gate opener, sliding gate opener and garage door opener. -
Page 24: Wireless Keypad Programming
(refer to more details in our TOPENS sliding gate opener manual). So it is must program button A with sliding gate opener, while you may program either C button or D button with TOPENS swing gate opener. Wireless Keypad Programming You can follow the below steps to program wireless keypad to the opener. -
Page 25: Setting Of The Control Board
Note: The position of Limit Switch A was fixed in factory, do not adjust it again. 1 For Pull-to-Open Installation, adjust the limit switch B to determine the closed position: Turn on power to operate the gate opener, then the arm extends to close the gate. If the arm closes over the desired closed position, press the remote control to stop the opener. - Page 26 DIP Switch #1: Select push/pull to open If the gate opens into the property (pull to open), the DIP Switch is set to OFF (factory default setting). If your gate opens out from the property (push to open) the DIP Switch must be set to the ON position. Factory default setting is OFF.
-
Page 27: Maintenance
Potentiometer A is used to adjust the soft stop period of the gate opener. Turn the potentiometer clockwise to increase the soft stop period, and turn it counter-clockwise to decrease the soft stop period. The soft stop period can be adjusted gradually from 1 to 5 seconds. Potentiometer B is used to adjust the auto close time of the gate opener. -
Page 28: Status Of Led(S) & Trouble Shooting
Status of LED(s) & Trouble Shooting Status of LED(s) Status of gate Possible Solution(s) opener CODE LED POWER LED FULL LED Make sure connection between UPS01 and control box is correct and fastening. 2. Make sure the UPS01 power supply has been plugged into the AC main socket batteries... - Page 29 necessary. Flash(1 Blink every Normal (Output Voltage of Standby second) the UPS01 is normal) Flash(1 Blink every Flash(1 Blink every Flash(1 Blink Running Normal second ) second) every second) 1. Make sure the remote has been programmed to the control board before using.
- Page 30 second) 1. Two sequential contact Flash quickly for 10 entrapments have been Flash quickly for The gate stop when seconds and then detected. Please ensure 10 seconds and back flash there is no obstacle on the then back opening or closing slowly(1 Blink every path of opening or closing.
- Page 31 Your comments and suggestions are important to us as they help us provide the best possible service. Should you have any need to contact us, the info below will help you get in touch: TOPENS Website www.topens.com Contact Us: E-mail: support@topens.com Kindly include your Product Model, Purchasing Date &...
