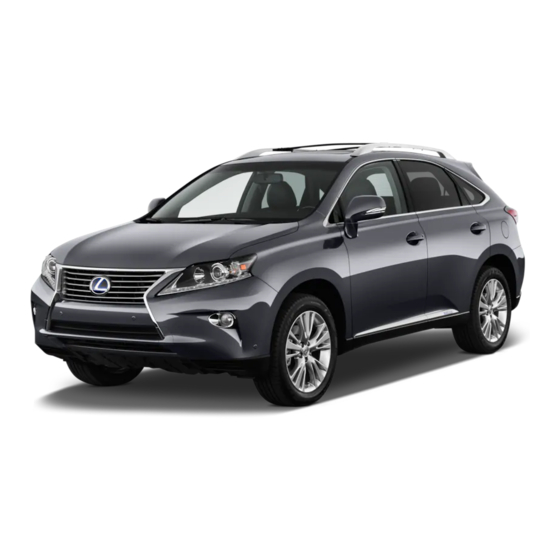

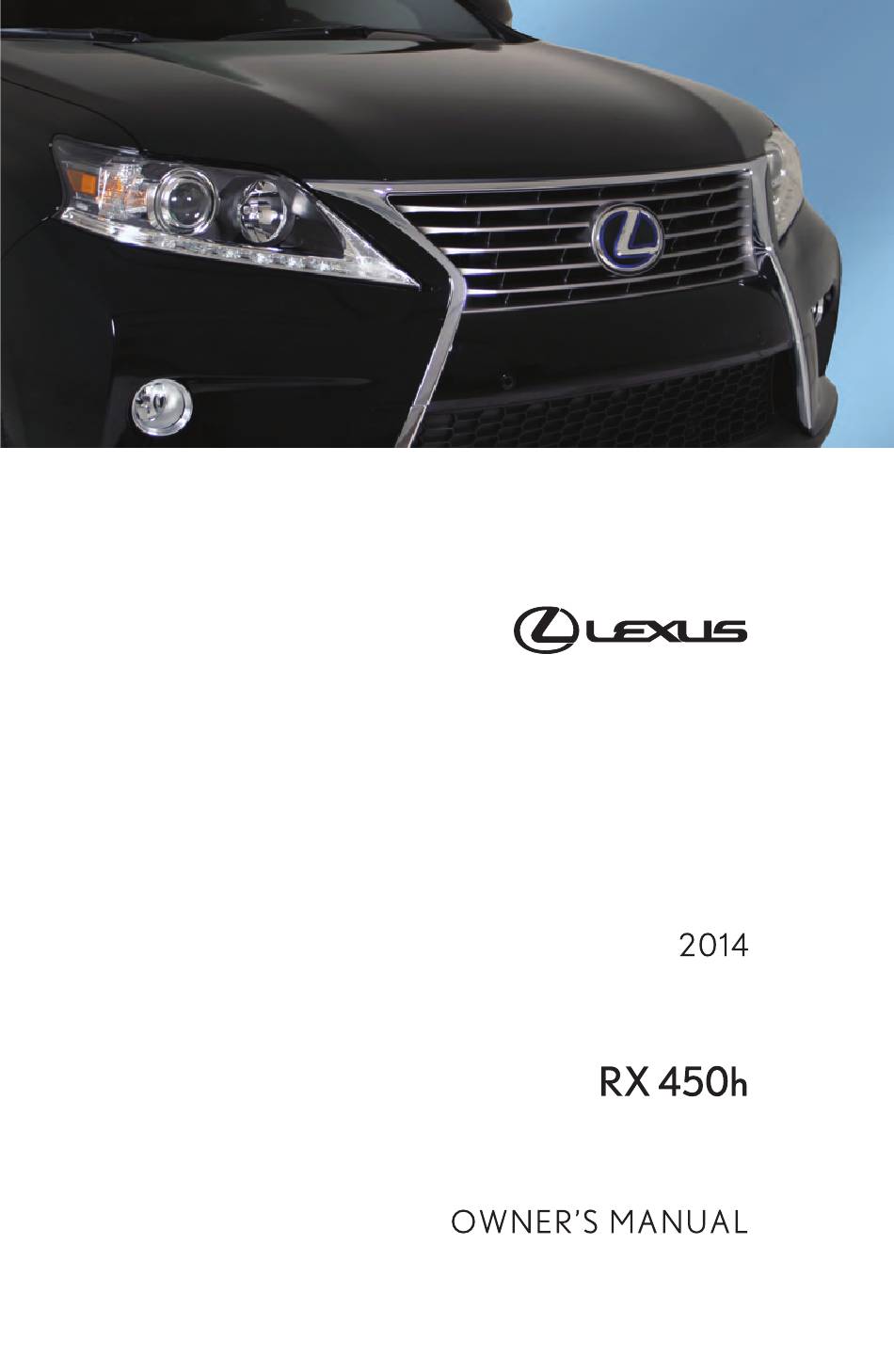

Lexus RX 450h 2014 Owner's Manual

page of 878

/ 878
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the RX 450h 2014 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lexus RX 450h 2014

Page 2: Before Driving
TABLE OF CONTENTS Information on the hybrid system and adjusting and operat- Before driving ing features such as door locks, mirrors, and steering col- umn. When driving Driving, stopping and safe-driving information. Air conditioning and audio systems, as well as other interior Interior features features for a comfortable driving experience.
Page 3: Table Of Contents
TABLE OF CONTENTS Index For vehicles with a navigation system, refer to the “Navigation System Owner’ s Manual” for information regarding the equipment listed below. • Navigation system • Intuitive parking assist • Air conditioning controls • Audio/video system • Windshield wiper de-icer •...
Page 4 (rear view mirror-attached type)..........258 2-1. Driving procedures Rear view monitor system Driving the vehicle......166 (vehicles with the Lexus Display Audio system) .... 266 Power (ignition) switch ....177 Driving assist systems....271 EV drive mode ....... 183 Hill-start assist control ....276 Hybrid transmission .....
Page 5 Using the AUX port ....408 Interior features ® Listening to Bluetooth audio..........410 Optimal use of the audio 3-1. Lexus Display Audio system system ..........424 Lexus Display Audio Using the steering wheel system ........... 328 audio switches ......426 Display settings ......
Page 6 Optimal use of the audio 3-7. Other interior features system ..........539 Sun visors........595 Using the AUX port ....541 Vanity mirrors........ 596 Using the steering wheel Clock..........597 audio switches ......543 Outside temperature Hands-free system for display ........... 598 mobile phones......
Page 7 TABLE OF CONTENTS Index Maintenance and care When trouble arises 4-1. Maintenance and care 5-1. Essential information Cleaning and protecting Emergency flashers..... 724 the vehicle exterior....634 If your vehicle needs to be Cleaning and protecting towed..........725 the vehicle interior ....637 If you think something is wrong ..........
Page 8 Vehicle specifications Index 6-1. Specifications Abbreviation list ........858 Maintenance data (fuel, oil level, etc.)..... 798 Alphabetical index......860 Fuel information......810 Tire information......813 What to do if......... 874 6-2. Customization Customizable features ..... 825 6-3. Initialization Items to initialize ......837 For owners Reporting safety defects for U.S.
Page 9 Pictorial index Exterior Windshield wipers P. 223 ∗ ∗ Moon roof P. 115 Windshield wiper de-icer Front side marker lights P. 360 P. 217 Outside rear view mirrors P. 109 Hood P. 651 Daytime running lights/ Parking lights P. 217 Turn signal lights P.
Page 10 Rear window defogger Tail lights P. 358 P. 217 Rear window wiper Fuel filler door P. 229 P. 119 Back door P. 75 Side doors P. 72 Back door opener button Tires P. 75 ●Rotation P. 670 Rear side marker lights ●Replacement P.
Page 11 Pictorial index Interior Front SRS side airbags P. 132 Door pockets P. 587 Seat belts P. 99 Bottle holders P. 587 Head restraints Front seats P. 97 P. 86 Power window switches SRS driver airbag P. 112 P. 132 Rear seats SRS knee airbags P.
Page 12 ∗ Rear view monitor system P. 258 ∗ “SOS” button P. 626 ∗ Auxiliary box P. 592 Personal lights P. 583 Interior lights P. 583 Interior lights P. 583 Personal lights P. 583 Assist grips P. 609 SRS curtain shield airbags P.
Page 13 Pictorial index Interior Inside lock buttons P. 72 ∗ Driving position memory switches P. 93 Outside rear view mirror switches P. 109 Door lock switches P. 72 Power window switches P. 112 Window lock switch P. 112...
Page 14 Hybrid transmission shift lever P. 186 Shift lock override button P. 779 ∗ Lexus Display Audio controller P. 328 Cup holders P. 588 ∗ Remote Touch Floor mat P. 610 VSC off switch P. 271 EV drive mode switch P. 183 ∗...
Page 15 Pictorial index Instrument panel Headlight switch Glove box P. 217 P. 586 Turn signal lever P. 193 Power back door main Fog light switch P. 221 switch P. 77 Gauges and meters P. 197 Multi-information display P. 206 Horn P. 196 Power (ignition) switch P.
Page 16 Without a navigation system or the Lexus Display Audio system Multi display ●Display light control P. 600 ●Outside temperature display P. 598 ●Clock P. 597 ●Air conditioning display P. 350 Emergency ●Audio display flasher switch P. 474 P. 724 Audio system P.
Page 17 Pictorial index Instrument panel With the Lexus Display Audio system Rear window and outside rear view mirror defogger switch P. 358 Lexus Display Audio system P. 328 Emergency Rear view monitor flasher switch system P. 266 P. 724 Audio system P.
Page 18 With a navigation system Rear window and outside rear view mirror defogger switch Navigation system Emergency flasher switch P. 724 Audio system Air conditioning system Clock Security indicator P. 124, 126 : Refer to the “Navigation System Owner's Manual”.
Page 19 Pictorial index Instrument panel Steering wheel audio switches P. 426, 543 Telephone switch P. 429, 547 Multi-information switches P. 206 Talk switch P. 429, 547 Cruise control switch P. 232, 236 ∗ Vehicle-to-vehicle distance button P. 236 ∗ Head-up display main switch P.
Page 20 Tire pressure warning reset switch P. 672 Pre-collision braking ∗ off switch P. 279 Cup holder P. 588 ∗ Headlight cleaner switch P. 231 Power back door switch P. 76 Fuel filler door opener P. 119 “ODO/TRIP” button P. 198 Instrument panel light control buttons P.
Page 21 Pictorial index Luggage compartment Auxiliary boxes P. 612 Power back door switch P. 76 Power outlet P. 601 ∗ Luggage cover P. 613 Cargo hooks P. 612 Cargo hooks P. 612...
Page 22 Luggage compartment lights P. 77 Rear seatback lock release levers P. 89 ∗ : If equipped...
Page 23 All specifications provided in this manual are current at the time of printing. How- ever, because of the Lexus policy of continual product improvement, we reserve the right to make changes at any time without notice. Depending on specifications, the vehicle shown in the illustrations may differ from your vehicle in terms of color and equipment.
Page 24: Hybrid System
Seat belt pretensioner system ● Be sure to check with your Lexus dealer for precautionary measures or special instructions regarding installation of a mobile two-way radio system. High voltage parts and cables on the hybrid vehicles emit approximately the same amount of electromagnetic waves as the conventional gasoline powered vehicles or home electronic appliances despite of their electromagnetic shielding.
Page 25 ● Usage of data collected through Safety Connect /Lexus Enform (U.S. mainland only) If your Lexus has Safety Connect or Lexus Enform and if you have subscribed to those services, please refer to the Safety Connect /Lexus Enform Telematics Sub- scription Service Agreement for information on data collected and its usage.
Page 26 EDR. ● Disclosure of the EDR data Lexus will not disclose the data recorded in an EDR to a third party except when: • An agreement from the vehicle's owner (or the lessee for a leased vehicle) is obtained •...
Page 27 Never resell, hand over or modify the hybrid battery. To prevent accidents, hybrid batteries that have been removed from a disposed vehicle are collected through Lexus dealers. Do not dispose of the battery yourself. Unless the battery is properly collected, the following may occur, resulting in death...
Page 28 In the event that your vehicle must be disposed of, the hybrid bat- tery must be disposed of by your Lexus dealer or a qualified service shop. If the hybrid battery is not disposed of properly, it may cause electric shock that can result...
Page 29 This is a warning against something which, if ignored, may cause damage to the vehi- cle or its equipment. You are informed about what you must or must not do in order to avoid or reduce the risk of damage to your Lexus and its equipment. Symbols used in illustrations Safety symbol The symbol of a circle with a slash through it means “Do not”,...
Page 30 Before driving 1-1. Hybrid system Anti-glare inside rear view mirror......107 Hybrid system ......30 Outside rear view Hybrid system precautions ..34 mirrors........109 Energy monitor/ consumption screen....39 1-5. Opening and closing the Hybrid vehicle driving tips..49 windows and moon roof Power windows......
Page 31: Hybrid System
1-1. Hybrid system Hybrid system Your vehicle is a hybrid vehicle. It has characteristics different from con- ventional vehicles. Be sure you are closely familiar with the characteristics of your vehicle, and operate with care. The hybrid system combines the use of a gasoline engine and an electric motor (traction motor) according to driving conditions, improving fuel effi- ciency and reducing exhaust emissions.
Page 32 1-1. Hybrid system ■ When stopped/during start-off The gasoline engine stops when the vehicle is stopped. During start- off, the electric motor (traction motor) drives the vehicle. At slow speeds or when traveling down a gentle slope, the engine is stopped and the motor is used.
Page 33 After the 12-volt battery has discharged or has been changed or removed ■ The gasoline engine may not stop even if the vehicle is running on the hybrid battery (traction battery). If this continues for a few days, contact your Lexus dealer.
Page 34 When in the area surrounding the rear of the vehicle, rather than in front of the ● vehicle Maintenance, repair, recycling, and disposal ■ Contact your Lexus dealer regarding maintenance, repair, recycling and disposal. Do not dispose of the vehicle yourself.
Page 35: Hybrid System Precautions
1-1. Hybrid system Hybrid system precautions Take care when handling the hybrid system, as it contains a high voltage system (about 650 V at maximum) as well as parts that become extremely hot when the hybrid system is operating. Obey the caution labels attached to the vehicle.
Page 36 If the emergency shut off system activates, your vehicle will not restart. To restart the hybrid system, contact your Lexus dealer. Hybrid warning message A message is automatically displayed when a malfunction occurs in the hybrid system or an improper operation is attempted.
Page 37 The hybrid system may not start. In that case, try to start the system again. If the “READY” indicator does not come on, contact your Lexus dealer. When refueling, the fuel filler door may take a few moments to open ■...
Page 38 1-1. Hybrid system CAUTION High voltage and high temperature precautions ■ The vehicle has high voltage DC and AC systems as well as a 12-volt system. DC and AC high voltage is very dangerous and can cause severe burns and electric shock that may result in death or serious injury.
Page 39 (traction battery). Do not carry large amounts of water such as an aquarium into the vehicle. If water ● spills onto the hybrid battery (traction battery), the battery may be damaged. Have the vehicle inspected by your Lexus dealer.
Page 40: Energy Monitor/Consumption Screen
1-1. Hybrid system Energy monitor/consumption screen You can view the status of your hybrid system on the multi-information dis- play and the navigation system screen or the Lexus Display Audio screen. Navigation system screen or Lexus Display Audio screen (if equipped)
Page 41 1-1. Hybrid system Energy monitor Navigation system screen (if equipped) Press the “MENU” button on the STEP Remote Touch. Select “Info/Apps”. STEP Select “Fuel Consumption”. STEP If the “Trip Information” or “Past Record” screen is displayed, select the “Energy”.
Page 42 1-1. Hybrid system Lexus Display Audio system screen (if equipped) Press the “MENU” button on the STEP Lexus Display Audio controller. Select “Car”. STEP If the “Trip Information” or “History” screen is displayed, select the “Energy”. Multi-information display Press the “∧” or “∨” switch on the...
Page 43 1-1. Hybrid system Navigation system or Lexus Multi-information Display Audio system display Navigation system When the vehi- cle is powered by the electric Lexus Display Audio system motor (traction motor) Navigation system When the vehi- cle is powered by both the gas-...
Page 44 1-1. Hybrid system Navigation system or Lexus Multi-information Display Audio system display Navigation system Lexus Display Audio system When the vehi- cle is charging the hybrid Navigation system battery (traction battery) Lexus Display Audio system...
Page 45 1-1. Hybrid system Navigation system or Lexus Multi-information Display Audio system display Navigation system When there is no energy flow Lexus Display Audio system Navigation system Full Full Hybrid battery (traction battery) status Lexus Display Audio system Full These images are examples only, and may vary slightly from actual conditions.
Page 46 1-1. Hybrid system Consumption ■ Trip information Vehicles with a navigation system Press the “MENU” button on the Remote Touch and select “Info/ STEP Apps”. Select “Fuel Consumption”. STEP If the “Trip Information” screen does not appear, select “Fuel Consump- tion”...
Page 47 1-1. Hybrid system Vehicles with the Lexus Display Audio system Press the “MENU” button on the Lexus Display Audio controller. STEP Select “Car” on the “Menu” screen. STEP If the “Trip information” screen does not appear, select “Trip informa- tion”.
Page 48 1-1. Hybrid system ■ Past record Vehicles with a navigation system Press the “MENU” button on the Remote Touch and select “Info/ STEP Apps”. Select “Fuel Consumption”. STEP If the “Past Record” screen does not appear, select “Fuel Consumption” on the “Energy Monitor” screen or “Past Record” on the “Trip Informa- tion”...
Page 49 1-1. Hybrid system Vehicles with the Lexus Display Audio system Press the “MENU” button on the Lexus Display Audio controller. STEP Select “Car” on the “Menu” screen. STEP If the “History” screen does not appear, select “History”. Previous fuel economy record...
Page 50: Hybrid Vehicle Driving Tips
1-1. Hybrid system Hybrid vehicle driving tips For economical and ecological driving, pay attention to the following points: ■ Use of Hybrid System Indicator More Eco-friendly driving is possible by keeping the indicate of Hybrid System Indicator within Eco area. ■...
Page 51 1-1. Hybrid system ■ Checking tire inflation pressure Make sure to check the tire inflation pressure frequently. Improper tire inflation pressure can cause poor fuel consumption. Also, as snow tires can cause large amounts of friction, their use on dry roads can lead to poor fuel consumption.
Page 52: 1-2. Key Information
1-2. Key information Keys The following keys are provided with the vehicle. Electronic keys • Operating the smart access system with push-button start (→P. 56) • Operating wireless remote control function (→P. 69) Mechanical keys Key number plate Card key (electronic key) (if equipped) Operating the smart access sys- tem with push-button start...
Page 53 1-2. Key information Using the mechanical key To take out the mechanical key: Electronic keys: Slide the release lever and take the key out. Card key: Press the lock release button and take the key out. If the key cannot be inserted in a lock cylinder, turn it over and re- attempt to insert it.
Page 54 Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that a mechanical key is lost, a new key can be made at your Lexus dealer using the key number plate. (→P. 780) When riding in an aircraft ■...
Page 55 Lexus dealer. When a vehicle key is lost ■ If the key remains lost, the risk of vehicle theft increases significantly. Visit your Lexus dealer immediately with all remaining electronic keys and the card key that was provided with your vehicle.
Page 56 (To remove the battery cover, lightly grasp and pull it.) If the battery is corroded, have your Lexus dealer replace the battery. Do not crush the battery cover or use a screwdriver to remove the battery cover.
Page 57: Opening, Closing And Locking The Doors Smart Access System With Push-Button Start
1-3. Opening, closing and locking the doors Smart access system with push-button start The following operations can be performed simply by carrying the elec- tronic key (including the card key) on your person, for example in your pocket. (The driver should always carry the electronic key.) Electronic key Electronic key Electronic key...
Page 58 1-3. Opening, closing and locking the doors Unlocking and locking the side doors (front door handles only) Grip the driver's door handle to unlock the door. Grip the passen- ger's door handle to unlock all the doors.* Make sure to touch the sensor on the back of the handle.
Page 59 1-3. Opening, closing and locking the doors Opening the back door Press the button to open the door. The door automatically opens fully. The door cannot be opened for 3 seconds after the door is locked. Antenna location and effective range ■...
Page 60 1-3. Opening, closing and locking the doors ■ Effective range (areas within which the electronic key is detected) When locking or unlocking the doors The system can be operated when the electronic key is within about 2.3 ft. (0.7 m) of an outside door handle.
Page 61 1-3. Opening, closing and locking the doors Alarms and warning indicators ■ A combination of exterior and interior alarms as well as warning messages shown on the multi-information display is used to prevent theft of the vehicle and accidents resulting from erroneous operation. Take appropriate measures in response to any warning message on the multi-information display.
Page 62 1-3. Opening, closing and locking the doors Security feature ■ If a door is not opened within approximately 60 seconds after the vehicle is unlocked, the security feature automatically locks the vehicle again. Battery-saving function ■ If the vehicle is parked for a long period of time, the battery-saving function is acti- vated in order to prevent the vehicle 12-volt battery from being discharged and the electronic key battery from being depleted.
Page 63 1-3. Opening, closing and locking the doors Conditions affecting operation ■ The smart access system with push-button start uses weak radio waves. In the fol- lowing situations, the communication between the electronic key and the vehicle may be affected, preventing the smart access system with push-button start, wire- less remote control and immobilizer system from operating properly.
Page 64 1-3. Opening, closing and locking the doors Note for the entry function ■ Even when the electronic key is within the effective range (detection areas), the ● system may not operate properly in the following cases: • The electronic key is too close to the window or outside door handle, near the ground, or in a high place when the doors are locked or unlocked.
Page 65 1-3. Opening, closing and locking the doors Notes for locking the doors ■ Touching the door lock sensor while wearing gloves may delay or prevent lock ● operation. Remove the gloves and touch the lock sensor again. When the lock operation is performed using the lock sensor, recognition signals ●...
Page 66 1-3. Opening, closing and locking the doors To operate the system properly ■ Make sure to carry the electronic key when operating the system. Do not get the electronic key too close to the vehicle when operating the system from the outside of the vehicle.
Page 67 1-3. Opening, closing and locking the doors When the electronic key battery is fully depleted ■ →P. 687 Customization ■ Settings (e.g. smart access system with push-button start) can be changed. (Customizable features →P. 825) Certification for the smart access system with push-button start ■...
Page 68 1-3. Opening, closing and locking the doors For vehicles sold in the mainland U.S.A. FCC ID: NI4TMLF8-6 FCC ID: HYQ14ACX FCC ID: HYQ14AEB FCC ID: HYQ13CZF FCC ID: HYQ14ADF FCC ID: HYQ14AEF FCC ID: HYQ13CZG NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 69 The radio waves may affect the operation of such devices. If necessary, the entry function can be disabled. Ask your Lexus dealer for details, such as the frequency of radio waves and timing of the emitted radio waves. Then, consult your doctor to see if you should disable the entry function.
Page 70: Wireless Remote Control
1-3. Opening, closing and locking the doors Wireless remote control The wireless remote control can be used to lock and unlock the vehicle. It also opens and closes the back door. Locks all the doors Unlocks all the doors Pressing the button unlocks the driver’...
Page 71 1-3. Opening, closing and locking the doors Operation signals ■ Doors: A buzzer sounds and the emergency flashers flash to indicate that the doors have been locked/unlocked. (Locked: Once; Unlocked: Twice) Back door: A buzzer sounds and the emergency flashers flash twice to indicate that the back door is opening/closing.
Page 72 1-3. Opening, closing and locking the doors Reversing the operation of the power back door ■ Pressing the wireless remote control switch again while the power back door is operating will cause the operation to reverse. Wireless remote control operation while the power back door is closing ■...
Page 73: Side Doors
1-3. Opening, closing and locking the doors Side doors The vehicle can be locked and unlocked using the entry function, wireless remote control or door lock switches. ■ Entry function →P. 57 ■ Wireless remote control →P. 69 ■ Door lock switches Locks all the doors Unlocks all the doors ■...
Page 74 1-3. Opening, closing and locking the doors Locking the front doors from the outside without a key Move the inside lock button to the lock position. STEP Close the door. STEP The door cannot be locked if the “POWER” switch is in ACCESSORY or ON mode, or the electronic key is left inside the vehicle.
Page 75 1-3. Opening, closing and locking the doors Impact detection door lock release system ■ In the event that the vehicle is subject to a strong impact, all the doors are unlocked. Depending on the force of the impact or the type of accident, however, the system may not operate.
Page 76: Back Door
Using the wireless remote control →P. 69 ■ Opening the back door from outside the vehicle manually* Raise the back door while push- ing up the back door opener button. *: This setting must be customized at your Lexus dealer.
Page 77 1-3. Opening, closing and locking the doors ■ Opening the back door from inside the vehicle Press and hold the switch to open/close the back door. Pressing the switch again while the power back door is operat- ing will cause the operation to reverse.
Page 78 1-3. Opening, closing and locking the doors Canceling the power back door system Turn off the main switch in the glove box to disable the power back door system. The back door cannot be operated even with the wireless remote con- trol or power back door switch.
Page 79 1-3. Opening, closing and locking the doors Back door closer ■ In the event that the back door is left slightly open, the back door closer will auto- matically close it to the fully closed position. The back door closer will operate regardless of “POWER” switch mode. ●...
Page 80 1-3. Opening, closing and locking the doors If the back door opener is inoperative ■ The back door can be opened from the inside. Remove the cover. STEP Move the lever. STEP When reconnecting the 12-volt battery or changing a fuse while the back door is ■...
Page 81 1-3. Opening, closing and locking the doors CAUTION Caution while driving ■ Keep the back door closed while driving. ● If the back door is left open, it may hit near-by objects while driving or luggage may be unexpectedly thrown out, causing an accident. In addition, exhaust gases may enter the vehicle, causing death or a serious health hazard.
Page 82 If a bicycle carrier or similar heavy object is attached to the back door, it may sud- ● denly shut again after being opened, causing someone’ s hands, head or neck to be caught and injured. When installing an accessory part to the back door, using a genuine Lexus part is recommended.
Page 83 1-3. Opening, closing and locking the doors CAUTION Back door closer ■ In the event that the back door is left slightly ● open, the back door closer will automati- cally close it to the fully closed position. It takes several seconds before the back door closer begins to operate.
Page 84 When installing an accessory part to the back door, using a genuine Lexus part is recommended. Jam protection function ■...
Page 85 ● gloves or other fabric items. Do not attach any accessories other than ● genuine Lexus parts to the back door. Do not place your hand on the damper stay ● or apply lateral forces to it. To prevent back door closer malfunction ■...
Page 86 1-3. Opening, closing and locking the doors NOTICE To prevent damage to the power back door ■ Make sure that there is no ice between the back door and frame that would pre- ● vent movement of the back door. Operating the power back door when exces- sive load is present on the back door may cause a malfunction.
Page 87: Front Seats
1-4. Adjustable components (seats, mirrors, steering wheel) Front seats Seat position adjustment switch Seatback angle adjustment switch Seat cushion (front) angle adjustment switch Vertical height adjustment switch Lumbar support adjustment switch Seat cushion length adjustment switch (if equipped)
Page 88 1-4. Adjustable components (seats, mirrors, steering wheel) Flattening the front seatbacks ■ Before flattening the front seatbacks Slide the rear seats as far back as possible. (→P. 89) ■ Flattening the front seatbacks Move the front seat forward, raise STEP the seat, and remove the head restraint.
Page 89 1-4. Adjustable components (seats, mirrors, steering wheel) Active head restraints ■ Even small forces applied to the seatback may cause the head restraint to move. Pushing up a locked head restraint forcibly may appear the head restraint inner structure. These do not indicate problems. During rear-end collision...
Page 90: Rear Seats
1-4. Adjustable components (seats, mirrors, steering wheel) Rear seats Seat position adjustment lever Seatback angle adjustment lever Folding down the rear seatbacks ■ Before folding down the rear seatbacks Stow all the head restraints and the rear center seat belt buckle.
Page 91 1-4. Adjustable components (seats, mirrors, steering wheel) ■ Folding down the rear seatbacks From inside Pull the seatback angle adjustment lever. To return the rear seatbacks to their original positions, lift them up until they lock. From outside Pull the levers. Left side lever: Folds down the left side rear seat Right side lever: Folds down the...
Page 92 1-4. Adjustable components (seats, mirrors, steering wheel) CAUTION When folding the rear seatbacks down ■ Observe the following precautions. Failure to do so may result in death or serious injury. Do not fold the seatbacks down while driving. ● Do not fold seatbacks down while passengers are seated or luggage is placed on ●...
Page 93 1-4. Adjustable components (seats, mirrors, steering wheel) NOTICE Stowing the center seat belt buckle ■ Before folding down the rear seatbacks, stow the center seat belt buckle to prevent it from becoming caught in the seatbacks.
Page 94: Driving Position Memory
1-4. Adjustable components (seats, mirrors, steering wheel) ∗ Driving position memory Your preferred driving position (the position of the driver's seat, steering wheel and outside rear view mirrors) can be memorized and recalled with the touch of a button. It is also possible to set this function to activate auto- matically when the doors are unlocked.
Page 95 1-4. Adjustable components (seats, mirrors, steering wheel) Linking driving position memory with door unlock operation Record your driving position to button “1”, “2” or “3” before performing the following: Carry only the key (including the card key) to which you want to link the driving position.
Page 96 1-4. Adjustable components (seats, mirrors, steering wheel) Power easy access system When the driver enters and exits the vehicle, the driver's seat and steer- ing wheel will automatically perform the following operations: Exiting the vehicle: When all of the following actions have been per- formed, the steering wheel will move up and back to the point far- thest away from the driver and the...
Page 97 1-4. Adjustable components (seats, mirrors, steering wheel) Canceling the linked door unlock operation ■ Turn the “POWER” switch to ON mode and close the driver's door. STEP While pressing the “SET” button, press the driver’ s door lock switches STEP (either lock or unlock) until the signal beeps.
Page 98: Head Restraints
1-4. Adjustable components (seats, mirrors, steering wheel) Head restraints Head restraints are provided for all seats. Pull the head restraints up. Down Push the head restraint down while pressing the lock release button. Lock release button Removing the head restraints ■...
Page 99 1-4. Adjustable components (seats, mirrors, steering wheel) Adjusting the height of the head restraints (front seats) ■ Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your ears. Adjusting the rear seat head restraints ■...
Page 100: Seat Belts
1-4. Adjustable components (seats, mirrors, steering wheel) Seat belts Make sure that all occupants are wearing their seat belts before driving the vehicle. ■ Correct use of the seat belts ● Extend the shoulder belt so that it comes fully over the shoulder, but does not come into contact with the neck or slide off the shoulder.
Page 101 1-4. Adjustable components (seats, mirrors, steering wheel) ■ Adjusting the seat belt shoulder anchor height (front seats) Push the seat belt shoulder anchor down while pressing the release button. Push the seat belt shoulder anchor up. Move the height adjuster up and down as needed until you hear a click.
Page 102 Seat belt extender ■ If your seat belts cannot be fastened securely because they are not long enough, a person- alized seat belt extender is available from your Lexus dealer free of charge.
Page 103 Each seat belt should be used by one person only. Do not use a seat belt for more ● than one person at once, including children. Lexus recommends that children be seated in the rear seat and always use a seat ● belt and/or an appropriate child restraint system.
Page 104 If the pretensioner has activated, the SRS warning light will come on. In that case, ● the seat belt cannot be used again and must be replaced at your Lexus dealer. Adjustable shoulder anchor ■...
Page 105 Ensure that the belt and tab are locked and the belt is not twisted. ● If the seat belt does not function correctly, immediately contact your Lexus dealer. Replace the seat assembly, including the belts, if your vehicle has been involved in ●...
Page 106: Steering Wheel
1-4. Adjustable components (seats, mirrors, steering wheel) Steering wheel The steering wheel can be adjusted to a comfortable position. Operating the switch moves the steering wheel in the following direc- tions: Down Away from the driver Toward the driver Auto tilt away When the “POWER”...
Page 107 1-4. Adjustable components (seats, mirrors, steering wheel) The steering wheel can be adjusted when ■ The “POWER” switch is in ACCESSORY or ON mode*. *: Vehicles with driving position memory: If the driver's seat belt is fastened, the steering wheel can be adjusted regardless of “POWER” switch mode. Automatic adjustment of the steering position (vehicles with driving position ■...
Page 108: Anti-Glare Inside Rear View Mirror
1-4. Adjustable components (seats, mirrors, steering wheel) Anti-glare inside rear view mirror The rear view mirror’s position can be adjusted to enable sufficient confir- mation of the rear view in accordance with the driver's seating posture. Adjusting the height of rear view mirror Adjust the height of the rear view mirror by moving it up and down.
Page 109 1-4. Adjustable components (seats, mirrors, steering wheel) Type B Changing automatic anti-glare function mode ON/OFF When the automatic anti-glare function is in ON mode, the indica- tor illuminates. The function will set to ON mode Indicator each time the “POWER” switch is turned to ON mode.
Page 110: Outside Rear View Mirrors
1-4. Adjustable components (seats, mirrors, steering wheel) Outside rear view mirrors Mirror angle can be adjusted using the switch. To select a mirror to adjust, STEP press the switch. Left Right Pressing the same switch again will put the switch in neutral. To adjust the mirror, press the STEP switch.
Page 111 1-4. Adjustable components (seats, mirrors, steering wheel) Automatically folding and extending the mirrors (power type) ■ Using the switch Press the switch to fold the mirrors. Press it again to return them. ■ Setting automatic mode Automatic mode allows the folding Indicator or extending of the mirrors to be linked to locking/unlocking of the...
Page 112 1-4. Adjustable components (seats, mirrors, steering wheel) When the mirrors are fogged up ■ The outside rear view mirrors can be cleared using the mirror defoggers. Turn on the rear window defogger to turn on the outside rear view mirror defoggers. (→P.
Page 113: 1-5. Opening And Closing The Windows And Moon Roof
1-5. Opening and closing the windows and moon roof Power windows The power windows can be opened and closed using the switches. Operating the switch moves the windows as follows: Closing One-touch closing Opening One-touch opening : To stop the window partway, operate the switch in the oppo- site direction.
Page 114 If you release the switch while the window is moving, start again from the beginning. If the window continues to close but then re-open slightly even after performing the above procedure correctly, have the vehicle inspected by your Lexus dealer.
Page 115 1-5. Opening and closing the windows and moon roof Door lock linked window operation ■ The power windows can be opened and closed using the mechanical key. ● (→P. 781) The power windows can be opened using the wireless remote control. ●...
Page 116: Moon Roof
1-5. Opening and closing the windows and moon roof ∗ Moon roof Use the overhead switches to open and close the moon roof and tilt it up and down. ■ Opening and closing Opens the moon roof* The moon roof stops slightly before the fully open position to reduce wind noise.
Page 117 1-5. Opening and closing the windows and moon roof The moon roof can be operated when ■ The “POWER” switch is in ON mode. Operating the moon roof after turning the hybrid system off ■ The moon roof can be operated for approximately 45 seconds even after the “POWER”...
Page 118 If the moon roof does not fully close even after performing the above procedure correctly, have the vehicle inspected by your Lexus dealer. Customization ■...
Page 119 1-5. Opening and closing the windows and moon roof CAUTION Opening the moon roof ■ Observe the following precautions. Failing to do so may cause death or serious injury. Do not allow any passengers to put their hands or heads outside the vehicle while ●...
Page 120: Refueling
1-6. Refueling Opening the fuel tank cap The fuel tank of your vehicle has a special structure, which requires a reduction in fuel tank pressure before refueling. After the opener switch has been pressed, it will take several seconds until the vehicle is ready for refueling.
Page 121 1-6. Refueling Hang the fuel tank cap on the STEP back of the fuel filler door. Closing the fuel tank cap After refueling, turn the fuel tank cap until you hear a click.
Page 122 STEP If the fuel filler door opener switch cannot be STEP operated, contact your Lexus dealer to ser- vice the vehicle. In case where refueling is urgently necessary, the fuel filler door can be opened using the lever in the luggage com- partment.
Page 123 Do not top off the fuel tank ● When replacing the fuel cap ■ Do not use anything but a genuine Lexus fuel tank cap designed for your vehicle. Doing so may cause a fire or other incident which may result in death or serious injury.
Page 124 1-6. Refueling NOTICE Refueling ■ Finish refueling within 30 minutes. If more than 30 minutes passes, the internal ● valve closes. In this condition, fuel may overflow during the refueling process. Press the fuel filler door opener switch again. Do not spill fuel during refueling. ●...
Page 125: Theft Deterrent System Immobilizer System
Never leave the keys inside the vehicle when you leave the vehicle. Vehicles with a navigation system or the Lexus Display Audio sys- The indicator light flashes after the “POWER” switch has been turned off to indicate that the system is operating.
Page 126 1-7. Theft deterrent system System maintenance ■ The vehicle has a maintenance-free type immobilizer system. Conditions affecting operation ■ Depending on surrounding environment and conditions, the immobilizer system may not operate properly. This may prevent the hybrid system from starting. (→P.
Page 127: Alarm
(The doors will lock again automatically.) ● The hood is opened. ■ Setting the alarm system Vehicles with a navigation system or the Lexus Display Audio sys- Close the doors and hood, and lock all the doors. The system will be set automati- cally after 30 seconds.
Page 128 1-7. Theft deterrent system ■ Deactivating or stopping the alarm Do one of the following to deactivate or stop the alarms: ● Unlock the doors. ● Turn the “POWER” switch to ACCESSORY or ON mode, or start the hybrid system. (The alarm will be deactivated or stopped after a few seconds.) System maintenance ■...
Page 129 1-7. Theft deterrent system Triggering of the alarm ■ The alarm may be triggered in the following situations: (Stopping the alarm deactivates the alarm system.) A person inside the vehicle opens a door ● or the hood. The 12-volt battery is recharged or ●...
Page 130: Theft Prevention Labels
1-7. Theft deterrent system Theft prevention labels (for U.S.A.) These labels are attached to the vehicle to reduce vehicle theft by facilitating the tracing and recovery of parts from stolen vehicles. Do not remove under penalty of law.
Page 131: 1-8. Safety Information
1-8. Safety information Correct driving posture Drive in a good posture as follows: Sit upright and well back in the seat. (→P. 86) Adjust the position of the seat forward or backward to ensure the pedals can be reached easily depressed to the extent required.
Page 132 1-8. Safety information CAUTION While driving ■ Do not adjust the position of the driver’ s seat. ● Doing so could cause the driver to lose control of the vehicle. Do not place a cushion between the driver or passenger and the seatback. ●...
Page 133: Srs Airbags
1-8. Safety information SRS airbags The SRS airbags inflate when the vehicle is subjected to certain types of severe impacts that may cause significant injury to the occupants. They work together with the seat belts to help reduce the risk of death or serious injury.
Page 134 1-8. Safety information SRS airbag system components Knee airbags Side and curtain shield airbag sensors Front passenger airbag Driver's seat belt buckle Curtain shield airbags switch Front side airbags Driver's seat position sensor Front passenger occupant Airbag sensor assembly classification system (ECU and sensors) Front airbag sensors “AIR BAG ON”...
Page 135 1-8. Safety information Your vehicle is equipped with ADVANCED AIRBAGS designed based on the US motor vehicle safety standards (FMVSS208). The airbag sen- sor assembly (ECU) controls airbag deployment based on information obtained from the sensors etc. shown in the system components diagram above.
Page 136 1-8. Safety information Depending on the type of collision, it is possible that only the seat belt preten- ● sioners will activate. The SRS front airbags for the front passenger will not activate if there is no pas- ● senger sitting in the front passenger seat. However, the SRS front airbags for the front passenger may deploy if luggage is put in the seat, even if the seat is unoc- cupied.
Page 137 1-8. Safety information Types of collisions that may not deploy the SRS airbags (SRS front airbags) ■ The SRS front airbags are generally not designed to inflate if the vehicle is involved in a side or rear collision, if it rolls over, or if it is involved in a low-speed frontal colli- sion.
Page 138 When to contact your Lexus dealer ■ In the following cases, the vehicle will require inspection and/or repair. Contact your Lexus dealer as soon as possible. Any of the SRS airbags has been inflated. ● The front of the vehicle is damaged or ●...
Page 139 1-8. Safety information The surface of the seats with the side air- ● bag is scratched, cracked, or otherwise damaged. The portion of the front pillars, rear pillars ● or roof side rail garnishes (padding) con- taining the curtain shield airbags inside is scratched, cracked, or otherwise dam- aged.
Page 140 1-8. Safety information CAUTION SRS airbag precautions ■ Observe the following precautions regarding the SRS airbags. Failure to do so may cause death or serious injury. The driver and all passengers in the vehicle must wear their seat belts properly. ●...
Page 141 An infant or child who is too small to use a seat belt should be properly secured using a child restraint system. Lexus strongly recommends that all infants and children be placed in the rear seats of the vehicle and properly restrained.
Page 142 1-8. Safety information CAUTION SRS airbag precautions ■ Do not sit on the edge of the seat or lean ● against the dashboard. Do not allow a child to stand in front of the ● SRS front passenger airbag unit or sit on the knees of a front passenger.
Page 143 If the areas where the SRS airbags are stored, such as the steering wheel pad and ● front and rear pillar garnishes, are damaged or cracked, have them replaced by your Lexus dealer.
Page 144 Modification and disposal of SRS airbag system components ■ Do not dispose of your vehicle or perform any of the following modifications with- out consulting your Lexus dealer. The SRS airbags may malfunction or deploy (inflate) accidentally, causing death or serious injury.
Page 145: Front Passenger Occupant Classification System
This system detects the condition of the front passenger seat and acti- vates or deactivates the devices for the front passenger. Without a navigation system or the Lexus Display Audio system With a navigation system or the Lexus Display Audio system SRS warning light “AIR BAG OFF”...
Page 146 1-8. Safety information Condition and operation in the front passenger occupant classification system ■ Adult “AIR BAG ON” and “AIR BAG OFF” “AIR BAG indicator lights ON” Indicator/ SRS warning light warning light Front passenger’ s seat belt reminder light Flashing Front passenger airbag Side airbag on the front...
Page 147 1-8. Safety information ■ Unoccupied “AIR BAG ON” and “AIR BAG OFF” Not illuminated indicator lights Indicator/ warning light SRS warning light Front passenger’ s seat belt reminder light Front passenger airbag Deactivated Side airbag on the front passenger seats Activated Curtain shield airbag in the front passenger Devices...
Page 148 1-8. Safety information : When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/her as an adult depending on his/her physique or posture. : Never install a rear-facing child restraint system on the front passen- ger seat.
Page 149 ● the SRS warning light may come on to indicate a malfunction of the detection sys- tem. In this case, contact your Lexus dealer immediately. Child restraint systems installed on the rear seat should not contact the front seat- ●...
Page 150: Child Restraint Systems
1-8. Safety information Child restraint systems A child restraint system for a small child or baby must itself be properly restrained on the seat with the lap portion of the lap/shoulder belt. The laws of all 50 states of the U.S.A. and Canada now require the use of child restraint systems.
Page 151 1-8. Safety information Forward facing  Convertible seat Booster seat Selecting an appropriate child restraint system ■ Use a child restraint system appropriate for the child until the child becomes ● large enough to properly wear the vehicle’ s seat belt. If the child is too large for a child restraint system, sit the child on a rear seat and ●...
Page 152 This may cause death or serious injury to the child in the event of a sudden stop or an accident. Lexus strongly urges the use of a proper child restraint system that conforms to ●...
Page 153 1-8. Safety information CAUTION Child restraint precautions ■ Make sure you have complied with all installation instructions provided by the child restraint manufacturer and that the system is properly secured. If it is not secured properly, it may cause death or serious injury to the child in the event of a sudden stop, sudden swerve or an accident.
Page 154: Installing Child Restraints
1-8. Safety information Installing child restraints Follow the child restraint system manufacturer's instructions. Firmly secure child restraints to the seats using the LATCH anchors or a seat belt. Attach the top tether strap when installing a child restraint. The lap/shoulder belt can be used if your child restraint system is not com- patible with the LATCH (Lower Anchors and Tethers for Children) system.
Page 155 1-8. Safety information Installation with LATCH system Fold the seatback while pulling the STEP seatback angle adjustment lever. Return the seatback and secure it at the first lock position. (→P. 89) Widen the gap between the seat cushion and seatback slightly. STEP Type A Latch the hooks of the lower straps...
Page 156 1-8. Safety information Type B Latch the buckles onto the LATCH STEP anchors. If the child restraint has a top tether strap, the top tether strap should be latched onto the top tether strap anchor bracket. For owners in Canada: The symbol on a child restraint sys- tem indicates the presence of a lower connector system.
Page 157 1-8. Safety information Installing child restraints using a seat belt (child restraint lock function belt) Rear-facing  Infant seat/convertible seat ■ Fold the seatback while pulling the STEP seatback angle adjustment lever. Return the seatback and secure it at the first lock position. (→P. 89) Place the child restraint system on STEP the rear seat facing the rear of the...
Page 158 1-8. Safety information Fully extend the shoulder belt and STEP allow it to retract to put it in lock mode. In lock mode, the belt can- not be extended. While pushing the child restraint STEP system down into the rear seat, allow the shoulder belt to retract until the child restraint system is securely in place.
Page 159 1-8. Safety information Run the seat belt through the child STEP restraint system and insert the plate into the buckle. Make sure that the belt is not twisted. Fully extend the shoulder belt and STEP allow it to retract to put it in lock mode.
Page 160 1-8. Safety information ■ Booster seat Fold the seatback while pulling the STEP seatback angle adjustment lever. Return the seatback and secure it at the first lock position. (→P. 89) Place the child restraint system on STEP the seat facing the front of the vehi- cle.
Page 161 1-8. Safety information Removing a child restraint installed with a seat belt Press the buckle release button and fully retract the seat belt. Child restraint systems with a top tether strap Secure the child restraint system STEP using a seat belt or the LATCH anchors, and remove the head restraint.
Page 162 1-8. Safety information Replace the head restraint and lift STEP it up to the uppermost lock posi- tion. Laws and regulations pertaining to anchors ■ The LATCH system conforms to FMVSS225 or CMVSS210.2. Child restraint systems conforming to FMVSS213 or CMVSS213 specifications can be used.
Page 163 1-8. Safety information CAUTION When installing a child restraint system ■ Follow the directions given in the child restraint system installation manual and fix the child restraint system securely in place. If the child restraint system is not correctly fixed in place, the child or other passen- gers may be injured or even killed in the event of sudden braking, sudden swerving or an accident.
Page 164 1-8. Safety information CAUTION When installing a child restraint system ■ Ensure that the belt and tab are securely locked and the seat belt is not twisted. ● Shake the child restraint system left and right, and forward and backward to ●...
Page 165 1-8. Safety information...
Page 166: When Driving
Parking brake......195 (rear view mirror-attached Horn ..........196 type) ........258 Rear view monitor system 2-2. Instrument cluster (vehicles with the Lexus Gauges and meters....197 Display Audio system)..266 Indicators and warning Driving assist systems..... 271 lights ......... 201 Hill-start assist control ..
Page 167: Driving The Vehicle
2-1. Driving procedures Driving the vehicle The following procedures should be observed to ensure safe driving. ■ Starting the hybrid system →P. 177 ■ Driving With the brake pedal depressed, shift the shift lever to D. STEP (→P. 186) Release the parking brake. (→P. 195) STEP Gradually release the brake pedal and gently depress the STEP...
Page 168 When the accelerator pedal is released ● When the brake pedal is depressed while sport mode is selected ● Breaking in your new Lexus ■ To extend the life of the vehicle, observing the following precautions is recom- mended: For the first 200 miles (300 km): ●...
Page 169 Your vehicle has a drum-in-disc type parking brake system. This type of brake sys- tem needs bedding-down of the brake shoes periodically or whenever the parking brake shoes and/or drum are replaced. Have your Lexus dealer perform the bed- ding down operation.
Page 170 Large amounts of exhaust in the vehicle can cause driver drowsiness and an accident, resulting in death or a serious health hazard. Have the vehicle inspected by your Lexus dealer immediately. Do not shift the shift lever to P while the vehicle is moving.
Page 171 2-1. Driving procedures CAUTION Do not shift the shift lever to R while the vehicle is moving forward. ● Doing so can damage the transmission and may result in a loss of vehicle control. Do not shift the shift lever to D while the vehicle is moving backward. ●...
Page 172 If you hear a squealing or scraping noise (brake pad wear limit indicators) ■ Have your Lexus dealer check and replace the brake pads as soon as possible. Rotor damage can result if the pads are not replaced when needed.
Page 173 2-1. Driving procedures CAUTION When the vehicle is stopped ■ Do not depress the accelerator pedal unnecessarily. ● If the vehicle is in any gear other than P or N, the vehicle may accelerate suddenly and unexpectedly, causing an accident. Do not leave the vehicle with the hybrid system on for a long time.
Page 174 2-1. Driving procedures CAUTION When the vehicle is parked ■ Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in the vehi- ● cle when it is in the sun. Doing so may result in the following: •...
Page 175 Lexus dealer. Failure to do so may allow exhaust gases to enter the vehicle, resulting in death or a serious health hazard.
Page 176 2-1. Driving procedures CAUTION If the vehicle becomes stuck ■ Do not spin the wheels excessively when any of the tires is up in the air, or the vehi- cle is stuck in sand, mud, etc. This may damage the driveline components or propel the vehicle forward or backward, causing an accident.
Page 177 Engine damage caused by water immersion ● In the event that you drive on a flooded road and the vehicle is flooded, be sure to have your Lexus dealer check the following: Brake function ● Changes in quantity and quality of oil and fluid used for the engine, hybrid trans- ●...
Page 178: Power (Ignition) Switch
2-1. Driving procedures Power (ignition) switch Performing the following operations when carrying the electronic key on your person starts the hybrid system or changes “POWER” switch modes. ■ Starting the hybrid system Check that the parking brake is set. STEP Check that the shift lever is set in P.
Page 179 2-1. Driving procedures ■ Stopping the hybrid system Stop the vehicle. STEP Shift the shift lever to P. STEP Set the parking brake. (→P. 195) STEP Press the “POWER” switch. STEP Release the brake pedal and check that the indicator on the STEP “POWER”...
Page 180 2-1. Driving procedures When stopping the hybrid system with the shift lever in a position other than P If the hybrid system is stopped with the shift lever in a position other than P, the “POWER” switch will not be turned off but instead be turned to ACCESSORY mode.
Page 181 If the “READY” indicator does not come on ■ If the “READY” indicator does not come on when you press the “POWER” switch with the shift lever in P and the brake pedal depressed, contact your Lexus dealer immediately. If the hybrid system is malfunctioning ■...
Page 182 2-1. Driving procedures CAUTION When starting the hybrid system ■ Always start the hybrid system while sitting in the driver’ s seat. Do not depress the accelerator pedal while starting the hybrid system under any circumstances. Doing so may cause an accident resulting in death or serious injury. Caution while driving ■...
Page 183 Lexus dealer immediately. Symptoms indicating a malfunction with the “POWER” switch ■ If the “POWER” switch seems to be operating somewhat differently than usual, such as the switch sticking slightly, there may be a malfunction. Contact your Lexus dealer immediately.
Page 184: Ev Drive Mode
2-1. Driving procedures EV drive mode In EV drive mode, the electric motor (traction motor), powered by the hybrid battery (traction battery), is used to drive the vehicle. This mode allows you to drive in residential areas early in the morning and late at night, or in indoor parking lots etc.
Page 185 2-1. Driving procedures Situations in which EV drive mode cannot be turned on ■ It may not be possible to turn EV drive mode on in the following situations. If it can- not be turned on, a buzzer will sound and a message will be shown on the multi- information display.
Page 186 2-1. Driving procedures CAUTION Caution while driving ■ When driving in EV drive mode no engine noise is made. As such, pedestrians, people riding bicycles or other people and vehicles in the surrounding area may not be aware of the vehicle starting off or approaching them. Therefore, take extra care while driving even if the Vehicle Proximity Notification System is active.
Page 187: Hybrid Transmission
2-1. Driving procedures Hybrid transmission Select a shift position appropriate for the driving conditions. ■ Shifting the shift lever While the “POWER” switch is in ON mode, depress the brake pedal and move the shift lever. When shifting the shift lever between P and D, make sure that the vehicle is completely stopped.
Page 188 2-1. Driving procedures ■ Selecting Eco drive mode When the vehicle is driven in Eco drive mode, vehicle driving force and operation of the air conditioning system (heating/cooling) is controlled to improve fuel efficiency. Press the menu switch. STEP The multi-information display will change modes to electronic features control mode.
Page 189 2-1. Driving procedures ■ Selecting snow mode Use snow mode for accelerating and driving on slippery road sur- faces such as snow. Press the menu switch. STEP The multi-information display will change modes to electronic features control mode. Press the “∧” or “∨” switch until “HYBRID SNOW”...
Page 190 2-1. Driving procedures ■ Selecting sport mode Use when high levels of response and feeling are desirable, such as when driving in mountainous regions or when overtaking. Press the menu switch. STEP The multi-information display will change modes to electronic features control mode.
Page 191 2-1. Driving procedures Changing shift ranges in S mode When the shift lever is in the S position, the shift lever can be operated as follows: Upshifting Downshifting The initial shift range in S mode is set automatically to “5” or “4” accord- ing to vehicle speed.
Page 192 ■ This may indicate a malfunction in the hybrid transmission system. Have the vehicle inspected by your Lexus dealer immediately. (In this situation, the hybrid transmission will operate in the same as manner as when the shift lever is in D.) Downshift restriction warning buzzer (S mode) ■...
Page 193 2-1. Driving procedures CAUTION When driving on slippery road surfaces ■ Do not accelerate or shift gears suddenly. Sudden changes in engine braking may cause the vehicle to spin or skid, resulting in an accident. NOTICE Hybrid battery (traction battery) charge precaution ■...
Page 194: Turn Signal Lever
2-1. Driving procedures Turn signal lever The turn signal lever can be used to show the following intention of the driver: Type A Right turn Left turn Lane change to the right (push and hold the lever part- way) The right hand signals will flash until you release the lever.
Page 195 2-1. Driving procedures Type B Right turn Left turn Lane change to the right (push and hold the lever part- way) The right hand signals will flash until you release the lever. Lane change to the left (push and hold the lever partway) The left hand signals will flash until you release the lever.
Page 196: Parking Brake
2-1. Driving procedures Parking brake To set the parking brake, fully depress the parking brake pedal with your left foot while Canada U.S.A. depressing the brake pedal with your right foot. (Depressing the pedal again releases the parking brake.) Usage in winter time ■...
Page 197: Horn
2-1. Driving procedures Horn To sound the horn, press on or close to the mark.
Page 198: Instrument Cluster Gauges And Meters
2-2. Instrument cluster Gauges and meters Hybrid System Indicator Displays hybrid system power output and regenerative charging level ECO lamp and SPORT lamp Changes colors according to driving mode Speedometer Displays the vehicle speed Fuel gauge Displays the quantity of fuel remaining in the tank Multi-information display Presents the driver with a variety of driving-related data (→P.
Page 199 2-2. Instrument cluster Changing the display Switches between odometer and trip meter displays. When the trip meter is displayed, pressing and holding the button will reset the trip meter. Instrument panel light control The brightness of the instrument panel lights can be adjusted. Darker Brighter The meters and display illuminate when...
Page 200 2-2. Instrument cluster Hybrid System Indicator ■ Power area Shows that an Eco-friendly driving range is being exceeded (during full power driving etc.) Eco area Shows that the vehicle is being driven in an Eco-friendly manner. Hybrid Eco area Shows that gasoline engine power is not being used very often.
Page 201 2-2. Instrument cluster NOTICE To prevent damage to the engine and its components ■ The engine may be overheating if the engine coolant temperature gauge is in the red zone (H). In this case, immediately stop the vehicle in a safe place, and check the engine after it has cooled completely.
Page 202: Indicators And Warning Lights
2-2. Instrument cluster Indicators and warning lights The indicator and warning lights on the instrument cluster, center panel and outside rear view mirrors inform the driver of the status of the vehicle’s various systems. For the purpose of explanation, the following illustration displays all indica- tors and warning lights illuminated.
Page 203 2-2. Instrument cluster With the Lexus Display Audio system Without a navigation system or the Lexus Display Audio system ■ Outside rear view mirrors (if equipped)
Page 204 2-2. Instrument cluster ■ Indicators The indicators inform the driver of the operating state of the vehi- cle’ s various systems. Turn signal indicator VSC off indicator (→P. 193) (→P. 272) 1, 3 Headlight high beam indi- Pre-collision system cator (→P. 219) warning light (→P.
Page 205 If the BSM outside rear view mirror indicators do not illuminate or do not turn off, there may be a malfunction with the system. If this occurs, have the vehicle inspected by your Lexus dealer.
Page 206 Have the vehicle inspected by your Lexus dealer immediately if this occurs.
Page 207: Multi-Information Display
2-2. Instrument cluster Multi-information display The multi-information display presents the driver with a variety of driving- related data including the current outside air temperature. ■ Multi-information switches “∧” “∨” switch Changes items. “ENTER” switch Turns on/off electronic features controls and changes customi- zation settings.
Page 208 2-2. Instrument cluster ■ Display contents Trip information contents Switching display items Energy monitor Current fuel consumption Average fuel consumption after refueling Average fuel consumption Press the “∧” or “∨” switch. Average vehicle speed Cruising range Tire inflation pressure Multi-information display off...
Page 209 2-2. Instrument cluster Electronic features control contents Setting electronic features controls Intuitive parking assist →P. 248 (if equipped) →P. 189 Sport mode →P. 187 Eco drive mode →P. 188 Snow mode Display order may vary depending on vehicle condition.
Page 210 2-2. Instrument cluster Other contents Details Outside temperature Displays the outside temperature Dynamic radar cruise control display Automatically displayed when using (if equipped) (→P. 236) dynamic radar cruise control Settings of functions such as the Customization (→P. 825) door lock and light illumination time can be changed Automatically displayed when a mal- Warning message (→P.
Page 211 2-2. Instrument cluster ■ Average vehicle speed Displays the average vehicle speed since the function was reset The function can be reset by pushing the “ENTER” switch for longer than one second when the average vehicle speed is displayed. ■ Cruising range Displays the estimated maximum distance that can be driven with the quantity of fuel remaining...
Page 212 2-2. Instrument cluster Electronic features control can be turned on/off when ■ The “POWER” switch is in ON mode. Conditions for ending electronic features control ■ In the following situations, the electronic features control will end: The menu switch is pressed. ●...
Page 213: Head-Up Display
2-2. Instrument cluster ∗ Head-up display The head-up display can be used to project vehicle speed and other infor- mation onto the windshield. Head-up display Display brightness will change automatically according to the brightness of the surrounding area. Head-up display main switch Display contrast adjustment switch Display brightness can be...
Page 214 2-2. Instrument cluster ■ Head-up display contents In addition to vehicle speed, the following information will be displayed: Audio display Displays audio information for approximately 3 seconds when the audio system is operated Shift position and shift range display Displays the selected shift posi- tion or selected shift range (→P.
Page 215 2-2. Instrument cluster Head-up display main switch Pressing the switch turns the head- up display on/off and changes the vehicle speed display units as fol- lows: Vehicles sold in the U.S.A. OFF → ON (mph) → ON (km/h) → OFF Except vehicles sold in the U.S.A.
Page 216 2-2. Instrument cluster Display customization The audio mode display and/or the shift position and shift range display can be shown or hidden. Press and hold the head-up display main switch changes the display to the display on/off mode. Press the head-up display main switch to select the desired setting item.
Page 217 2-2. Instrument cluster NOTICE To prevent damage to components ■ Do not place anything on the head-up display opening. ● If an object falls into the opening of the ● head-up display, remove it immediately. Also, avoid spilling water or other liquids near the head-up display opening as this may cause mechanical damage.
Page 218: 2-3. Operating The Lights And Windshield Wipers
2-3. Operating the lights and windshield wipers Headlight switch The headlights can be operated manually or automatically. Type A The headlights and side marker, parking, tail, license plate, day- time running lights and instrument panel lights turn on and off automatically.
Page 219 2-3. Operating the lights and windshield wipers Type B The daytime running lights turn on. The headlights and side marker, parking, tail, license plate, day- time running lights and instrument panel lights turn on and off automatically. (When the “POWER” switch is in ON mode) The side marker, park- ing, tail, license plate,...
Page 220 2-3. Operating the lights and windshield wipers Turning on the high beam headlights With the headlights on, push the lever away from you to turn on the high beams. Pull the lever toward you to the center position to turn the high beams off.
Page 221 2-3. Operating the lights and windshield wipers Automatic light off system ■ When the headlights are on: The headlights and tail lights turn off 30 seconds ● after a door is opened and closed if the “POWER” switch is turned to ACCES- SORY mode or turned off.
Page 222: Fog Light Switch
2-3. Operating the lights and windshield wipers Fog light switch The fog lights improve visibility in difficult driving conditions, such as in rain and fog. Type A Turns the front fog lights off Turns the front fog lights on...
Page 223 2-3. Operating the lights and windshield wipers Type B Turns the front fog lights off Turns the front fog lights on Fog lights can be used when ■ The headlights are on in low beam.
Page 224: Windshield Wipers And Washer
2-3. Operating the lights and windshield wipers Windshield wipers and washer ■ Intermittent windshield wipers with interval adjuster The wiper operation is selected by moving the lever as follows. When intermittent windshield wiper operation is selected, the wiper intervals can be also adjusted. Intermittent wind- shield wiper operation...
Page 225 2-3. Operating the lights and windshield wipers Washer/wiper dual operation The wipers will automatically operate a couple of times after the washer squirts. If the headlights are on, the headlight cleaners will operate once. ■ Rain-sensing windshield wipers When is selected, the wipers will operate automatically when the sensor detects falling rain.
Page 226 2-3. Operating the lights and windshield wipers Type B Rain-sensing wiper operation speed wiper operation High speed wiper operation Temporary operation Sensor sensitivity (high) Sensor sensitivity (low)
Page 227 2-3. Operating the lights and windshield wipers Washer/wiper dual operation The wipers will automatically operate a couple of times after the washer squirts. (After oper- ating several times, the wipers operate one more time after a short delay to prevent dripping.) If the headlights are on, the headlight cleaners will operate once.
Page 228 2-3. Operating the lights and windshield wipers Raindrop sensor (vehicles with rain-sensing windshield wipers) ■ The raindrop sensor judges the amount ● of raindrops. An optical sensor is adopted. It may not operate properly when sunlight from the rising or setting of the sun intermittently strikes the windshield, or if bugs etc.
Page 229 Damage to the washer fluid pump may be caused if the lever is pulled toward you and held continually. When a nozzle becomes blocked ■ In this case, contact your Lexus dealer. Do not try to clear it with a pin or other object. The nozzle will be damaged.
Page 230: Rear Window Wiper And Washer
2-3. Operating the lights and windshield wipers Rear window wiper and washer The wiper operation is selected by moving the lever as follows: Type A Intermittent window wiper operation Normal window wiper operation Washer/wiper dual operation Washer/wiper dual operation...
Page 231 Damage to the washer fluid pump may be caused if the lever is operated continu- ally. When a nozzle becomes blocked ■ In this case, contact your Lexus dealer. Do not try to clear it with a pin or other object. The nozzle will be damaged.
Page 232: Headlight Cleaner Switch
2-3. Operating the lights and windshield wipers ∗ Headlight cleaner switch Washer fluid can be sprayed on the headlights. Press the switch to clean the headlights. The headlight cleaner can be operated when ■ The “POWER” switch is in ON mode and the headlight switch is turned on. Windshield washer linked operation ■...
Page 233: Cruise Control
2-4. Using other driving systems ∗ Cruise control Use the cruise control to maintain a set speed without depressing the accelerator pedal. Indicator Display Cruise control switch ■ Setting the vehicle speed Press the “ON-OFF” button to STEP activate the cruise control. Cruise control indicator will come on.
Page 234 2-4. Using other driving systems Accelerate or decelerate the STEP vehicle to the desired speed, and push the lever down to set the speed. “SET” will be displayed. The vehicle speed at the moment the lever is released becomes the set speed. ■...
Page 235 2-4. Using other driving systems ■ Canceling and resuming the constant speed control Pulling the lever toward you cancels the constant speed control. The speed setting is also canceled when the brakes are applied. Pushing the lever up resumes the constant speed control. Resuming is available when the vehicle speed is more than approximately 25 mph (40...
Page 236 If the cruise control speed cannot be set or if the cruise control cancels immediately after being activated, there may be a malfunction in the cruise control system. Have the vehicle inspected by your Lexus dealer. CAUTION To avoid operating the cruise control by mistake ■...
Page 237: Dynamic Radar Cruise Control
2-4. Using other driving systems ∗ Dynamic radar cruise control Dynamic radar cruise control supplements conventional cruise control with a vehicle-to-vehicle distance control. In vehicle-to-vehicle distance control mode, the vehicle automatically accelerates or decelerates in order to maintain a set following distance from vehicles ahead. Indicator (vehicle-to-vehicle distance control mode) Indicator (constant speed...
Page 238 2-4. Using other driving systems Accelerate or decelerate the STEP vehicle to the desired speed, and push the lever down to set the speed. “SET” will be displayed. The vehicle speed at the moment the lever is released becomes the set speed. ■...
Page 239 2-4. Using other driving systems When the set speed is shown in “km/h” Fine adjustment: By approximately 0.6 mph (1 km/h) each time the lever is operated Large adjustment: By approximately 3.1 mph (5 km/h) for each 0.75 sec- onds the lever is held In the constant speed control mode (→P.
Page 240 2-4. Using other driving systems ■ Vehicle-to-vehicle distance settings Select a distance from the table below. Note that the distances shown correspond to a vehicle speed of 50 mph (80 km/h). Vehi- cle-to-vehicle distance increases/decreases in accordance with vehicle speed. Distance options Vehicle-to-vehicle distance Long...
Page 241 2-4. Using other driving systems Driving in vehicle-to-vehicle distance control mode This mode employs a radar sensor to detect the presence of vehicles up to approximately 400 ft. (120 m) ahead, determines the current vehicle- to-vehicle following distance, and operates to maintain a suitable follow- ing distance from the vehicle ahead.
Page 242 2-4. Using other driving systems Example of follow-up cruising When following a vehicle driving slower than the set speed The system continues follow-up cruising while adjusting for changes in the speed of the vehicle ahead in order to maintain the vehicle-to-vehicle dis- tance set by the driver.
Page 243 2-4. Using other driving systems Selecting conventional constant speed control mode Constant speed control mode differs from vehicle-to-vehicle distance control mode. When constant speed control mode is selected, your vehi- cle will maintain a set speed regardless of whether or not there are other vehicles in the lane ahead.
Page 244 When the snow mode is set. ● If vehicle-to-vehicle distance control driving is automatically canceled for any other reason, there may be a malfunction in the system. Contact your Lexus dealer. Automatic cancelation of constant speed control ■ The cruise control will stop maintaining the vehicle speed in the following situations: Actual vehicle speed is more than approximately 10 mph (16 km/h) below the ●...
Page 245 2-4. Using other driving systems Radar sensor and grille cover ■ Always keep the sensor and grille cover clean to ensure that the vehicle-to-vehicle distance control operates properly. (Some obstructions, such as snow, ice and plas- tic objects, cannot be detected by the obstruction sensor.) Dynamic radar cruise control is canceled if an obstruction is detected.
Page 246 2-4. Using other driving systems For vehicles sold in Canada Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interfer- ence that may cause undesired operation of the device. CAUTION Before using dynamic radar cruise control ■...
Page 247 2-4. Using other driving systems CAUTION Situations unsuitable for dynamic radar cruise control ■ Do not use dynamic radar cruise control in any of the following situations. Doing so may result in inappropriate speed control and could cause an accident resulting in death or serious injury.
Page 248 If the sensor moves even slightly off position, the system may malfunction. If the sensor or surrounding area is subject to a strong impact, always have the area inspected and adjusted by your Lexus dealer. Do not disassemble the sensor.
Page 249: Intuitive Parking Assist
Intuitive parking assist The distance to obstacles measured by the sensors is communicated via the multi-information display, screen (vehicles with the Lexus Display Audio system) and a buzzer when parallel parking or maneuvering into a garage is conducted. Always check the surrounding area when using this system.
Page 250 Display When the sensors detect an obstacle, a graphic is shown on the multi- information display and screen (vehicles with the Lexus Display Audio system) depending on the position and distance to the obstacle. ■...
Page 251 2-4. Using other driving systems ■ Screen (vehicles with the Lexus Display Audio system) When the vehicle is moving for- ward The graphic is automatically dis- played when an obstacle is detected. The screen can be set so that the graphic is not displayed.
Page 252 2-4. Using other driving systems The distance display and buzzer When a sensor detects an obstacle, the direction of and the approximate distance to the obstacle are displayed and the buzzer sounds. The site of the obstacle will flash (detection level 4 only). ■...
Page 253 2-4. Using other driving systems ■ Front center sensors Detection Multi-information Approximate dis- Buzzer level display tance to obstacle 3.3 to 1.6 ft. Slow (100 to 50 cm) 1.6 to 1.3 ft. Medium (50 to 40 cm) 1.3 to 1.0 ft. Fast (40 to 30 cm) 1.0 ft.
Page 254 2-4. Using other driving systems ■ Rear center sensors Detection Multi-information Approximate dis- Buzzer level display tance to obstacle 4. 9 to 2.0 ft. Slow (150 to 60 cm) 2.0 to 1.5 ft. Medium (60 to 45 cm) 1.5 to 1.2 ft. Fast (45 to 35 cm) 1.2 ft.
Page 255 2-4. Using other driving systems Detection range of the sensors Approximately 3.3 ft. (100 cm) Approximately 4. 9 ft. (150 cm) Approximately 1.6 ft. (50 cm) The diagram shows the detection range of the sensors. Note that the sensors cannot detect obstacles that are extremely close to the vehicle.
Page 256 2-4. Using other driving systems Customization of the intuitive parking assist (vehicle with the Lexus Display Audio system) The buzzer volume, display and buzzer timing and display of the graphic on the screen can be customized. Press the “MENU” button on the Lexus Display Audio controller.
Page 257 • The vehicle is approaching a tall or right-angled curb. • In harsh sunlight or intense cold weather. • A non-genuine Lexus suspension (lowered suspension, etc.) is installed. In addition to the examples above, there are instances in which, because of their shapes, signs and other objects may be judged by a sensor to be closer than they are.
Page 258 ■ If any of the following occurs, the system may be malfunctioning due to a sensor fail- ure etc. Have the vehicle inspected by your Lexus dealer. The buzzer does not sound when the intuitive parking assist mode is set.
Page 259: Rear View Monitor System (Rear View Mirror-Attached Type)
2-4. Using other driving systems ∗ Rear view monitor system (rear view mirror-attached type) The rear view monitor system assists the driver by displaying an image of the view behind the vehicle while reversing. The image is displayed in reverse on the screen. This allows the image to appear in the same manner as that of the rear view mirror.
Page 260 2-4. Using other driving systems Changing display modes ■ The rear view monitor display mode can be changed while the screen is on. To temporarily disable the rear view monitor system ● Press The indicator will turn amber. The system will be re-enabled once the “POWER”...
Page 261 2-4. Using other driving systems Rear view monitor guide lines ■ Guide lines are displayed on the screen. Guidelines shown differ from those shown on the actual screen. Vehicle width extension guide lines (blue) These lines indicate the estimated vehi- cle width extension.
Page 262 2-4. Using other driving systems Displayed area ■ The area detected by the camera is limited. Object which are close to either corner of the bumper or under the bumper cannot be seen on the screen. The area displayed on the screen may vary according to vehicle orientation or road conditions.
Page 263 2-4. Using other driving systems When the grade behind the vehicle slopes down sharply, objects appear to be closer than they actually are. The distance that appears on the screen between three-dimensional objects (such as vehicles) and flat surfaces (such as the road) and the actual distance differ as fol- lows.
Page 264 2-4. Using other driving systems Rear view monitor system camera ■ The rear view monitor system camera is located on the back door as shown in the illustration. In the following cases, it may become diffi- cult to see the images on the screen, even when the system is functioning correctly.
Page 265 2-4. Using other driving systems Flicker effect ■ When the camera is used under fluorescent light, sodium lights, or mercury lights etc., the lights and the illuminated areas may appear to flicker. CAUTION When using the rear view monitor system, observe the following precautions to ■...
Page 266 When washing the vehicle, do not apply intensive bursts of water to the camera ● or camera area. Doing so may result in the camera malfunctioning. When replacing tires, please consult your Lexus dealer. If you replace the tires, ● the area displayed on the screen may change.
Page 267: Rear View Monitor System (Vehicles With The Lexus Display Audio System)
2-4. Using other driving systems ∗ Rear view monitor system (vehicles with the Lexus Display Audio system) The rear view monitor system assists the driver by displaying an image of the view behind the vehicle while reversing. The image is displayed in reverse on the screen.
Page 268 2-4. Using other driving systems Displayed area ■ The area detected by the camera is limited. Object which are close to either corner of the bumper or under the bumper cannot be seen on the screen. The area displayed on the screen may vary according to vehicle orientation or road conditions.
Page 269 2-4. Using other driving systems Rear view monitor system camera ■ The rear view monitor system camera is located on the back door as shown in the illustration. In the following cases, it may become diffi- cult to see the images on the screen, even when the system is functioning correctly: The vehicle is in a dark area, such as at ●...
Page 270 2-4. Using other driving systems Flicker effect ■ When the camera is used under fluorescent lights, sodium lights, mercury lights etc., the lights and the illuminated areas may appear to flicker. CAUTION When using the rear view monitor system, observe the following precautions to ■...
Page 271 When washing the vehicle, do not apply intensive bursts of water to the camera ● or camera area. Doing so may result in the camera malfunctioning. When replacing tires, please consult your Lexus dealer. If you replace the tires, ● the area displayed on the screen may change.
Page 272: Driving Assist Systems
2-4. Using other driving systems Driving assist systems To help enhance driving safety and performance, the following systems operate automatically in response to various driving situations. Be aware, however, that these systems are supplementary and should not be relied upon too heavily when operating the vehicle. ■...
Page 273 2-4. Using other driving systems When the VSC/TRAC systems are operating If the vehicle is in danger of slip- ping or if any of the drive wheels spins, the slip indicator light flashes to indicate that the VSC/TRAC systems are operating. Disabling TRAC and/or VSC systems If the vehicle gets stuck in fresh snow or mud, the TRAC/VSC systems may reduce power from the hybrid system to the wheels.
Page 274 ■ TRAC has been disabled even if the VSC off switch has not been pressed TRAC and hill-start assist control cannot be operated. Contact your Lexus dealer. Sounds and vibrations caused by the ABS, VSC, TRAC and brake assist ■...
Page 275 2-4. Using other driving systems Reactivation of the TRAC system linked to vehicle speed ■ When only the TRAC system is turned off, the TRAC system will turn on when vehi- cle speed increases. However, when both TRAC and VSC systems are turned off, the systems will not turn on even when vehicle speed increases.
Page 276 The ABS and VSC systems will not function correctly if different tires are installed on the vehicle. Contact your Lexus dealer for further information when replacing tires or wheels. Handling of tires and suspension ■ Using tires with any kind of problem or modifying the suspension will affect the driv-...
Page 277: Hill-Start Assist Control
2-4. Using other driving systems Hill-start assist control Hill-start assist control helps to prevent the vehicle from rolling backwards when starting on an incline or slippery slope. To engage hill-start assist con- trol, further depress the brake pedal when the vehicle is stopped completely.
Page 278 ● assist control buzzer may not sound when the system is activated or canceled. If the slip indicator comes on ■ It may indicate a malfunction in the system. Contact your Lexus dealer. CAUTION Hill-start assist control ■ Do not overly rely on hill-start assist control. Hill-start assist control may not oper- ●...
Page 279: Pre-Collision System
2-4. Using other driving systems ∗ Pre-Collision System When the radar sensor detects the possibility of a frontal collision, the pre- collision system such as the brakes and seat belts are automatically engaged to lessen impact as well as vehicle damage. ■...
Page 280 2-4. Using other driving systems Disabling pre-collision braking Pre-collision braking disabled Pre-collision braking enabled The pre-collision system warning light turn on when pre-collision braking is disabled. Radar sensor The radar sensor detects vehicles or other obstacles on or near the road ahead determines whether a collision is imminent...
Page 281 2-4. Using other driving systems The pre-collision system is operational when ■ Pre-collision seat belts (type A): ● • Vehicle speed is greater than about 4 mph (5 km/h). • The speed at which your vehicle is approaching the obstacle or the vehicle running ahead of you is greater than about 19 mph (30 km/h).
Page 282 2-4. Using other driving systems Conditions that may trigger the system even if there is no possibility of collision ■ When there is an object by the roadside at the entrance to a curve ● When passing an oncoming vehicle on a curve ●...
Page 283 2-4. Using other driving systems Situations in which the pre-collision system does not function properly ■ The system may not function effectively in situations such as the following: On roads with sharp bends or uneven surfaces ● If a vehicle suddenly moves in front of your vehicle, such as at an intersection ●...
Page 284 2-4. Using other driving systems Certification ■ For vehicles sold in the U.S.A. FCC ID: HYQDNMWR004 This device complies with part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 285 2-4. Using other driving systems CAUTION Limitations of the pre-collision system ■ Do not overly rely on the pre-collision system. Always drive safely, taking care to observe your surroundings and checking for any obstacles or other road hazards. Failure to do so may cause an accident resulting in death or serious injury. Cautions regarding the assist contents of the system ■...
Page 286 If the sensor moves even slightly off position, the system may become inaccurate or malfunction. If the sensor or surrounding area is subject to a strong impact, always have the area inspected and adjusted by your Lexus dealer. Do not disassemble the sensor.
Page 287: Bsm (Blind Spot Monitor)
2-4. Using other driving systems ∗ BSM (Blind Spot Monitor) The Blind Spot Monitor is a system that assists the driver in making the decision to change lanes. The system uses radar sensors to detect vehicles that are traveling in an adjacent lane in the area that is not reflected in the outside rear view mirror (the blind spot), and advises the driver of the vehicles existence via the out- side rear view mirror indicator.
Page 288 2-4. Using other driving systems The Blind Spot Monitor detection areas The blind spot that vehicles can be detected in are outlined below. The range of the detection area extends to: Approximately 11.5 ft. (3.5 m) from the side of the vehicle The first 1.6 ft.
Page 289 2-4. Using other driving systems Conditions under which the Blind Spot Monitor will not detect a vehicle ■ The Blind Spot Monitor is not designed to detect the following types of vehicles and/or objects: Vehicles traveling from the opposite direction ●...
Page 290 2-4. Using other driving systems Instances of the Blind Spot Monitor unnecessarily detecting a vehicle and/or ● object may increase under the following conditions: • When there is only a short distance between your vehicle and a guardrail, wall etc. •...
Page 291 2-4. Using other driving systems For vehicles sold in Canada Applicable law : Canada 310 This device complies with Industry Canada licence-exempt RSS standard(s). Oper- ation is subject to the following two conditions: (1) this device may not cause inter- ference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Page 292 If the sensor moves even slightly off position, the system may malfunction and vehicles that enter the detection area may not be detected. If the sensor or sur- rounding area is subject to a strong impact, always have the area inspected by your Lexus dealer. Do not disassemble the sensor. ●...
Page 293: Driving Information Utility Vehicle Precautions
2-5. Driving information Utility vehicle precautions This vehicle belongs to the utility vehicle class, which has higher ground clearance and narrower tread in relation to the height of its center of gravity. Utility vehicle feature ● Specific design characteristics give it a higher center of gravity than ordinary passenger cars.
Page 294 2-5. Driving information CAUTION Always slow down in gusty crosswinds. Because of its profile and higher center of ● gravity, your vehicle is more sensitive to side winds than an ordinary passenger car. Slowing down will allow you to have better control. Do not drive horizontally across steep slopes.
Page 295 2-5. Driving information Additional information for off-road driving ■ For owners in U.S. mainland, Hawaii and Puerto Rico: To obtain additional information pertaining to driving your vehicle off-road, consult the following organizations. State and Local Parks and Recreation Departments ● State Motor Vehicle Bureau ●...
Page 296 2-5. Driving information NOTICE To prevent water damage ■ Take all necessary safety measures to ensure that water damage to the hybrid bat- tery, hybrid system or other components does not occur. Water entering the engine compartment may cause severe damage to the hybrid ●...
Page 297: Cargo And Luggage
2-5. Driving information Cargo and luggage Take notice of the following information about storage precautions, cargo capacity and load. ● Stow cargo and luggage in the luggage compartment whenever possible. ● Be sure all items are secured in place. ● Be careful to keep the vehicle level. Placing the weight as far for- ward as possible helps maintain vehicle balance.
Page 298 2-5. Driving information (6)If your vehicle will be towing a trailer, load from your trailer will be transferred to your vehicle. Consult this manual to determine how this reduces the available cargo and luggage load capacity of your vehi- cle. (→P.
Page 299 2-5. Driving information As shown in the example above, if the number of occupants increases, the cargo and luggage load will be reduced by an amount that equals the increased weight due to the additional occupants. In other words, if an increase in the number of occupants causes an excess of the total load capacity (combined weight of occupants plus cargo and luggage load), you must reduce the cargo and luggage on your vehicle.
Page 300 ■ To use the roof rails as a roof luggage carrier, you must fit the roof rails with two or more genuine Lexus cross rails or their equivalent. When you load cargo on the roof luggage carrier, observe the following: Place the cargo so that its weight is distrib- ●...
Page 301 2-5. Driving information NOTICE When loading cargo ■ Be careful not to scratch the surface of the moon roof.
Page 302: Vehicle Load Limits
■ TWR (Trailer Weight Rating) (2WD models and AWD models without towing package) Lexus does not recommend towing a trailer with your vehicle. ■ Cargo capacity Cargo capacity may increase or decrease depending on the weight and the number of occupants.
Page 303: Winter Driving Tips
2-5. Driving information Winter driving tips Carry out the necessary preparations and inspections before driving the vehicle in winter. Always drive the vehicle in a manner appropriate to the prevailing weather conditions. ■ Pre-winter preparations ● Use fluids that are appropriate to the prevailing outside tempera- tures.
Page 304 2-5. Driving information ■ When driving the vehicle Accelerate the vehicle slowly, keep a safe distance between you and the vehicle ahead, and drive at a reduced speed suitable to road conditions. ■ When parking the vehicle Park the vehicle and move the shift lever to P without setting the parking brake.
Page 305 2-5. Driving information Tire chain installation ■ Observe the following precautions when installing and removing chains: Install and remove tire chains in a safe location. ● Install tire chains on the front tires only. Do not install tire chains on the rear tires. ●...
Page 306 NOTICE Repairing or replacing snow tires ■ Request repairs or replacement of snow tires from Lexus dealers or legitimate tire retailers. This is because the removal and attachment of snow tires affects the operation of the tire pressure warning valves and transmitters.
Page 307: Trailer Towing (Awd Models With Towing Package)
To tow a trailer safely, use extreme care and drive the vehicle in accor- dance with your trailer’s characteristics and operating conditions. Lexus warranties do not apply to damage or malfunction caused by towing a trailer for commercial purposes. Contact your Lexus dealer for further information about additional requirements such as towing kits, etc.
Page 308 2-5. Driving information ■ GVWR (Gross Vehicle Weight Rating) The maximum allowable gross vehicle weight. The gross vehicle weight is the total weight of the vehicle. When towing a trailer, it is the sum of the vehicle weight (including the occupants, cargo and any optional equipment installed on the vehicle) and the tongue weight.
Page 309 2-5. Driving information ■ TWR (Trailer Weight Rating) The maximum allowable gross (With brakes) trailer weight. The gross trailer weight is the sum of the trailer weight and the weight of the cargo in the trailer. TWR is calculated assuming base vehicle with one driver, one front passenger, towing package (if available), hitch and hitch systems...
Page 310 2-5. Driving information ■ Tongue Weight The load placed on the trailer hitch ball. (→P. 311) Weight limits ● The gross trailer weight must never exceed the TWR described in the table. (→P. 310) ● The gross combination weight must never exceed the GCWR described in the table.
Page 311 2-5. Driving information GCWR, TWR, Unbraked TWR, Fifth wheel and Gooseneck towing TWR Confirm that the gross trailer weight, gross combination weight, gross vehicle weight, gross axle weight and tongue weight are all within the lim- its. ■ GCWR and TWR Towing type Driving system GCWR...
Page 312 2-5. Driving information Trailer Tongue Weight ● A recommended tongue weight varies in accordance with the types of trailers or towing as described below. ● To ensure the recommended values shown below, the trailer must be loaded by referring to the following instructions. •...
Page 313 Lexus hitch/bracket for your vehicle. For details, con- tact your Lexus dealer. ● If you wish to install a trailer hitch, contact your Lexus dealer. ● Use only a hitch that conforms to the gross trailer weight requirement of your vehicle.
Page 314 2-5. Driving information Selecting trailer ball Use the correct trailer ball for your application. Trailer ball load rating Matches or exceeds the gross trailer weight rating of the trailer. Ball diameter Matches the size of the trailer cou- pler. Most couplers are stamped with the required trailer ball size.
Page 315 2-5. Driving information Positions for towing hitch receiver and hitch ball Weight carrying ball position: 45.1 in. (1145 mm) Connecting trailer lights Use the wire harness stored in the rear end under body.
Page 316 If the emergency flashers do not operate, press the emergency flasher switch to turn them off. After the light system is reset, operate the light switches again to see if the lights operate normally. If the lights do not operate normally, have the vehicle inspected by your Lexus dealer.
Page 317 ● Speed limits for towing a trailer vary by state or province. Do not exceed the posted towing speed limit. ● Lexus recommends that the vehicle-trailer speed limit is 65 mph (104 km/h) on a flat, straight, dry road. Do not exceed this limit, the posted towing speed limit or the speed limit for your trailer as set forth in your trailer owner’...
Page 318 2-5. Driving information ● Avoid jerky steering and sharp turns, and slow down before making a turn. ● Note that when making a turn, the trailer wheels will be closer than the vehicle wheels to the inside of the turn. Compensate by making a wider than normal turning radius.
Page 319 2-5. Driving information ● Always place wheel blocks under both the vehicle’ s and the trailer’ s wheels when parking. Apply the parking brake firmly, and put the transmission in P. Avoid parking on a slope, but if unavoidable, do so only after performing the following: Apply the brakes and keep them applied.
Page 320 2-5. Driving information Matching trailer ball height to trailer coupler height ■ No matter which class of tow hitch applies, for a more safe trailer hookup, the trailer ball setup must be the proper height for the cou- pler on the trailer. Coupler Trailer ball Before towing...
Page 321 If your vehicle is new or equipped with any new power train components (such as an engine, transmission, differential or wheel bearing), Lexus recommends that you do not tow a trailer until the vehicle has been driven for over 500 miles (800 km).
Page 322 2-5. Driving information CAUTION Trailer towing precautions ■ To tow a trailer safely, use extreme care and drive the vehicle in accordance with the trailer’ s characteristics and operating conditions. Failure to do so could cause an accident resulting in death or serious injury. Vehicle stability and braking perfor- mance are affected by trailer stability, brake setting and performance, and the hitch.
Page 323 NOTICE When installing a trailer hitch ■ Use only the position recommended by your Lexus dealer. Do not install the trailer hitch on the bumper; this may cause body damage. Do not directly splice trailer lights ■...
Page 324: Trailer Towing (Without Towing Package)
2-5. Driving information Trailer towing (without towing package) Lexus does not recommend towing a trailer with your vehicle. Lexus also does not recommend the installation of a tow hitch or the use of a tow hitch carrier for a wheelchair, scooter, bicycle, etc. Your vehicle is not designed...
Page 325: Dinghy Towing
2-5. Driving information Dinghy towing Your vehicle is not designed to be dinghy towed (with 4 wheels on the ground) behind a motor home. NOTICE To avoid serious damage to your vehicle ■ Do not tow your vehicle with 4 wheels on the ground. To prevent causing serious damage to the hybrid transmission and AWD system ■...
Page 326: Lexus Display Audio System
Interior features 3-1. Lexus Display Audio system Lexus Display Audio system........328 Display settings ...... 332 Setup menu ......334 Mobile Assistant ....340 3-2. Using the air conditioning system and defogger Automatic air conditioning system (with the Lexus Display Audio system)..342...
Page 327 3-3. Using the Lexus Display 3-4. Using the audio system Audio system Audio system (without a Audio system (with the navigation system or the Lexus Display Audio Lexus Display Audio system)........362 system) ........474 Using the radio......365 Using the radio ......477 Using the CD player ....
Page 328 Interior features 3-7. Other interior features Hands-free system for mobile phones ...... 547 Sun visors ......... 595 Using the hands-free system Vanity mirrors ......596 (for mobile phones)..... 552 Clock.......... 597 Making a phone call ....560 Outside temperature Setting a mobile phone..565 display........
Page 329: Lexus Display Audio System
3-1. Lexus Display Audio system ∗ Lexus Display Audio system By using the Lexus Display Audio controller, you can control the audio sys- tem and hands-free system, etc. ■ Lexus Display Audio controller Displaying the audio control screen (→P. 362) Displaying “Menu”...
Page 330 3-1. Lexus Display Audio system ■ “Menu” screen To display the “Menu” screen, press the “MENU” button on the Lexus Display Audio controller. Button Function Automatic air conditioning system “Climate” (→P. 342) “Phone” Hands-free system (→P. 429) Energy monitor/consumption screen “Car”...
Page 331 3-1. Lexus Display Audio system Lexus Display Audio system operation ■ Using the Lexus Display Audio controller Select: Turn or move the con- troller. Enter: Push the controller. ■ Basic screen operation When a list is displayed, use the appropriate button to scroll through the list.
Page 332 Do not allow coins, contact lenses or other such items to become caught in the ● Lexus Display Audio controller as this may cause it to stop functioning. Items of clothing may rip if they become caught on the Lexus Display Audio con- ● troller.
Page 333: Display Settings
You can adjust the contrast and brightness of the screen and also turn the display off. To display the “Display Settings” screen, press the “MENU” button on the Lexus Display Audio controller and then select “Display” on the “Menu” screen. Turn off screen The screen is turned off.
Page 334 3-1. Lexus Display Audio system Adjusting the screen contrast/brightness Select “General” or “Camera” on the “Display Settings” screen. STEP Adjust the display as desired using STEP “+” or “-”. Select “Contrast” or “Brightness” using the “<<” or “>>”. “-” “+”...
Page 335: Setup Menu
3-1. Lexus Display Audio system Setup menu You can change the Lexus Display Audio system to your desired setting. To display the “Setup” screen, press the “MENU” button on the Lexus Dis- play Audio controller and then select “Setup” on the “Menu” screen. Button Page “General”...
Page 336 3-1. Lexus Display Audio system General settings This screen is used for various settings. Display the “Setup” screen. (→P. 334) STEP Select “General” on the “Setup” screen. STEP Select language (→P. 335) Beep on/off Select button color Animation on/off The animation effect for audio source selection screen, screen transitions, etc.
Page 337 3-1. Lexus Display Audio system ■ Delete personal data Select “Delete Personal Data” on the “General Settings” screen. STEP Select “Delete”. STEP Check carefully beforehand, as data cannot be retrieved once deleted. A confirmation screen will be displayed. Select “Yes”.
Page 338 3-1. Lexus Display Audio system Vehicle settings This screen is used for various vehicle settings. Display the “Setup” screen. (→P. 334) STEP Select “Vehicle” on the “Setup” screen. STEP Vehicle customization settings (→P. 337) ∗ LEXUS park assist settings (→P. 255) ■...
Page 339 3-1. Lexus Display Audio system Audio settings This screen is used for various audio settings. Display the “Setup” screen. (→P. 334) STEP Select “Audio” on the “Setup” screen. STEP HD Radio™ technology set- tings (→P. 371) iPod setting (→P. 338) ■...
Page 340 3-1. Lexus Display Audio system Voice settings ® This screen is used for guidance for Bluetooth hands-free systems set- ting. Display the “Setup” screen. (→P. 334) STEP Select “Voice” on the “Setup” screen. STEP Voice guidance volume setting STEP Voice recognition prompts on/ Restore default settings When you complete settings, select “OK”.
Page 341: Mobile Assistant
3-1. Lexus Display Audio system Mobile Assistant The Mobile Assistant feature on this system allows the activation of Apple’s ® Siri Eyes Free mode via the steering wheel switches. To operate the Mobile Assistant, a compatible cellular phone must be registered and con- ®...
Page 342 3-1. Lexus Display Audio system Adjusting the volume ■ “ ” The volume of the Mobile Assistant can be adjusted using the PWR·VOL knob or steering wheel volume switches. The Mobile Assistant and phone call volumes are synchronized. Microphone ■...
Page 343: 3-2. Using The Air Conditioning System And Defogger
3-2. Using the air conditioning system and defogger Automatic air conditioning system (with the Lexus Display Audio system) Air outlets and fan speed are automatically adjusted according to the tem- perature setting. To display the air conditioning operation screen, press the “MENU” button on the Lexus Display Audio controller and then select “Climate”.
Page 344: Automatic Air Conditioning
3-2. Using the air conditioning system and defogger ■ Automatic air conditioning system control screen Adjusting driver’ s side tem- perature setting Adjusting passenger’ s side temperature setting Adjusting the fan speed Selecting air outlet mode Cooling and dehumidifica- tion function on/off Dual mode on/off Windshield wiper de-icer on/ Using the automatic air conditioning system...
Page 345 3-2. Using the air conditioning system and defogger Adjusting the settings manually ■ Basic setting To turn on the air conditioning system and adjust the fan speed, STEP press to increase the fan speed and decrease the fan speed or select “>” of to increase the fan speed and “<”...
Page 346 3-2. Using the air conditioning system and defogger Air flows to the upper body. Air flows to the upper body and feet. Air flows to the feet. Air flows to the feet and the wind- shield defogger operates.
Page 347 3-2. Using the air conditioning system and defogger ■ Switching between outside air and recirculated air modes Press The mode switches between (recirculated air mode) and (outside air mode) modes each time the button is pressed. Defogging the windshield Defogging The air conditioning system oper- ates automatically.
Page 348 3-2. Using the air conditioning system and defogger Front side outlets Direct air flow to the left or right, up or down. Turn the knob to open or close the vent. Rear outlets Direct air flow to the left or right, up or down.
Page 349 Air conditioning system settings are memorized individually on each electronic ● key, so the settings reproduced will be specific to the key that is used. This feature is customizable at your Lexus dealer. ● Using automatic mode ■...
Page 350 3-2. Using the air conditioning system and defogger When outside air temperature is below 32°F (0°C) ■ The cooling and dehumidification function may not operate even when Air conditioning odors ■ During use, various odors from inside and outside the vehicle may enter into ●...
Page 351: Automatic Air Conditioning System (Without A Navigation System Or The Lexus Display Audio System)
3-2. Using the air conditioning system and defogger Automatic air conditioning system (without a navigation system or the Lexus Display Audio system) Air outlets and fan speed are automatically adjusted according to the tem- perature setting. Fan speed display Air outlet display Passenger’...
Page 352 3-2. Using the air conditioning system and defogger Using the automatic air conditioning system Press STEP The air conditioning system begins to operate. Air outlets and fan speed are automatically adjusted according to the temperature setting. Press to increase the temperature and STEP decrease the temperature.
Page 353 3-2. Using the air conditioning system and defogger To change the air outlets, press STEP The air outlets used are switched each time the button is pressed. The air flow shown on the display indicates the following: Air flows to the upper body. Air flows to the upper body and feet.
Page 354 3-2. Using the air conditioning system and defogger Air flows to the feet and the wind- shield defogger operates. ■ Switching between outside air and recirculated air modes Press The mode switches between (recirculated air mode) and (out- side air mode) modes each time the button is pressed. Defogging the windshield Defogging The air conditioning system oper-...
Page 355 3-2. Using the air conditioning system and defogger Adjusting the position of and opening and closing the air outlets Front center outlets Direct air flow to the left or right, up or down. Turn the knob to open or close the vent.
Page 356 Air conditioning system settings are memorized individually on each electronic ● key, so the settings reproduced will be specific to the key that is used. This feature is customizable at your Lexus dealer. ● Using automatic mode ■...
Page 357 There may be a problem in the air conditioning system if the indicator light goes off again shortly after the button is pressed. Have it inspected by your Lexus dealer. Air conditioning odors ■...
Page 358 3-2. Using the air conditioning system and defogger CAUTION To prevent the windshield from fogging up ■ Do not use during cool air operation in extremely humid weather. The differ- ence between the temperature of the outside air and that of the windshield can cause the outer surface of the windshield to fog up, blocking your vision.
Page 359: Rear Window Defogger Switch
15 to 60 minutes. The operation time changes according to the ambient tem- perature and vehicle speed. Vehicles without a navigation system or the Lexus Display Audio system Turns the rear window and out- side rear view mirror defoggers...
Page 360 3-2. Using the air conditioning system and defogger Operating conditions ■ The “POWER” switch is in ON mode. The outside rear view mirror defoggers ■ Turning the rear window defogger on will turn the outside rear view mirror defog- gers on. CAUTION When the outside rear view mirror defoggers are on ■...
Page 361: Windshield Wiper De-Icer
STEP shield wiper de-icer on/off The windshield wiper de-icer will automatically turn off after approximately 15 minutes. Vehicles without a navigation system or the Lexus Display Audio system Turns the windshield wiper de- icer on/off The windshield wiper de-icer will automatically turn off after approximately 15 minutes.
Page 362 3-2. Using the air conditioning system and defogger Operating conditions ■ The “POWER” switch is in ON mode. CAUTION When the windshield wiper de-icer is on ■ Do not touch the lower part of the windshield or the side of the front pillars, as the surfaces can become very hot and burn you.
Page 363: Audio System (With The Lexus Display Audio System)
3-3. Using the Lexus Display Audio system Audio system (with the Lexus Display Audio system) To display the audio control screen, press the “MEDIA” button, “RADIO” button or the “AUDIO” button on the Lexus Display Audio controller. Title Page Using the radio P.
Page 364 3-3. Using the Lexus Display Audio system Switching the audio source Press the “MEDIA” button, “RADIO” button or the “AUDIO” but- STEP ton on the Lexus Display Audio controller to display the audio control screen. Select “Source” or press the STEP “AUDIO”...
Page 365 3-3. Using the Lexus Display Audio system Using mobile phones ■ Interference may be heard through the audio system’ s speakers if a mobile phone is being used inside or close to the vehicle while the audio system is operating.
Page 366: Using The Lexus Display Audio System
3-3. Using the Lexus Display Audio system Using the radio Press the “RADIO” button or “AUDIO” button on the Lexus Display Audio controller and then select “AM”, “FM” or “SAT”. ■ Control panel Audio control screen Mute button Frequency adjust- “PWR·VOL”...
Page 367 3-3. Using the Lexus Display Audio system ■ Audio control screen Pressing the “RADIO” button or “AUDIO” button on the Lexus Dis- play Audio controller displays the audio control screen from any screens of the selected source. “Presets” screen “Options” screen appears...
Page 368 3-3. Using the Lexus Display Audio system Selecting a station ■ Seek tuning Press and hold “<” or “>” on the “PRST•TRACK” button. ■ Manual tuning Turn the “TUNE•SCROLL” knob. ■ Preset stations Press “<” or “>” on the “PRST•TRACK” button or select desired preset stations.
Page 369 3-3. Using the Lexus Display Audio system RBDS (Radio Broadcast Data System) This feature allows your radio to receive station identification information and program information (classical, jazz, etc.) from radio stations which broadcast this information. RBDS features are available only when listen- ing to an FM station that broadcasts RBDS information and the “FM Info”...
Page 370 3-3. Using the Lexus Display Audio system Select “TYPE >” or “< TYPE” to select program types. STEP The type of program changes each time the button is selected. • Classical • Country • EasyLis (Easy Listening) • Inform (Information) •...
Page 371 3-3. Using the Lexus Display Audio system ■ Traffic announcement Select “Traffic” on the “Options” screen. “TRAF SEEK” appears on the screen, and the radio will start seeking any station broadcasting traffic program information. If no traffic program station is found, “No Traffic”...
Page 372 3-3. Using the Lexus Display Audio system ■ HD Radio™ technology settings Display the “Setup” screen. (→P. 334) STEP Select “Audio” on the “Setup” screen. STEP Select “HD Radio Settings”. STEP Select “HD Radio/Analog Set- STEP tings”. Receiving both analog and digi-...
Page 373 3-3. Using the Lexus Display Audio system ■ Selecting a desired type Select “Options”. STEP Select “TYPE >” or “< TYPE” to select program types. STEP The type of program changes each time the button is selected. (→P. 368) When a program is set, “TYPE SEEK” appears.
Page 374 3-3. Using the Lexus Display Audio system ■ Changing the multiple or supplemental programs On the FM radio frequency most digital stations have multiple or sup- plemental programs on one FM station. Select “Multicast”. Each time “Multicast” is selected, supplemental program changes.
Page 375 3-3. Using the Lexus Display Audio system ■ HD Radio™ technology troubleshooting guide Experience Cause Action Mismatch of time The radio stations alignment- a user analog and digital None, radio broadcast issue. A may hear a short volume is not prop-...
Page 376 3-3. Using the Lexus Display Audio system Experience Cause Action Broadcaster should be noti- No text information Data service issue fied. Complete the form; shown for the by the radio broad- www.ibiquity.com/automotive/ present selected caster. report_radio_station_experie frequency. nces. ® Satellite Radio ®...
Page 377 3-3. Using the Lexus Display Audio system ■ Changing the channel category Select “Options”. STEP Select “TYPE >” or “<TYPE”. STEP ® ■ Scanning XM Satellite Radio channels Scanning channels in the current category Select “SCAN” on the screen. STEP “SCAN”...
Page 378 3-3. Using the Lexus Display Audio system When the 12-volt battery is disconnected ■ All preset stations are erased. Reception sensitivity ■ Cargo loaded on the roof luggage carrier, especially metal objects, may ● ® adversely affect the reception of XM Satellite Radio.
Page 379 SAT Check A short circuit occurs in the antenna or the surround- Antenna ing antenna cable. See a Lexus certified dealer for assistance. You have not subscribed to XM Satellite Radio. The radio is being updated with the latest encryption code.
Page 380 3-3. Using the Lexus Display Audio system Message Explanation There is no song/program title or artist name/feature ----- associated with the channel at that time. No action is required. The channel you selected is no longer available. Wait SAT Chan...
Page 381: Using The Cd Player
3-3. Using the Lexus Display Audio system Using the CD player Audio control screen Playback/ Pause button Eject button Track/file selector “PWR·VOL” knob knob Power Volume Track/file selector button Audio source selector button Loading a disc Insert a disc into the disc slot.
Page 382: Playing An Audio Cd And Mp3/Wma Discs
3-3. Using the Lexus Display Audio system Playing an audio CD and MP3/WMA discs Insert a disc or press the “MEDIA” button or the “AUDIO” button on the Lexus Display Audio controller and then select “CD” with a disc inserted. ■ Audio control screen Pressing the “MEDIA”...
Page 383 3-3. Using the Lexus Display Audio system Selecting, fast-forwarding and reversing tracks (Audio CD) ■ Selecting a track Press “<” or “>” on the “PRST•TRACK” button or turn the “TUNE•SCROLL” knob to select the desired track number. To fast-forward or reverse, press and hold “>” or “<” on the “PRST•TRACK”...
Page 384 3-3. Using the Lexus Display Audio system ■ Selecting a file from the file list Select “Files” on the screen. STEP Select the desired file number. STEP Selecting a folder (MP3/WMA disc) Select “Folders” on the screen. STEP Select the desired folder number.
Page 385 3-3. Using the Lexus Display Audio system Random playback Each time is selected, the mode changes in the following order: Audio CD : Random play on the disc : Off MP3/WMA disc : Random play on the folder : Random play in all the folders...
Page 386 If a CD-TEXT disc is inserted, the title of the disc and track will be displayed. Error messages ■ If the following error messages appear on the screen, refer to the table and take the appropriate measures. If the problem is not rectified, take the vehicle to your Lexus dealer. Message Cause Correction procedures •...
Page 387 3-3. Using the Lexus Display Audio system Lens cleaners ■ Do not use lens cleaners. Doing so may damage the CD player. MP3 and WMA files ■ MP3 (MPEG Audio LAYER 3) is a standard audio compression format. Files can be compressed to approximately 1/10 of their original size by using MP3 compression.
Page 388 3-3. Using the Lexus Display Audio system Compatible disc formats ● The following disc formats can be used. • Disc formats: CD-ROM Mode 1 and Mode 2 CD-ROM XA Mode 2, Form 1 and Form 2 • File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet) UDF (2.01 or lower)
Page 389 3-3. Using the Lexus Display Audio system MP3 and WMA playback ● When a disc containing MP3 or WMA files is inserted, all files on the disc are first checked. Once the file check is finished, the first MP3 or WMA file is played. To make the file check finish more quickly, we recommend you do not write in any files other than MP3 or WMA files or create any unnecessary folders.
Page 390 3-3. Using the Lexus Display Audio system NOTICE CDs and adapters that cannot be used ■ Do not use the following types of CDs. Also, do not use 3 in. (8 cm) CD adapters, DualDiscs or printable discs. Doing so may damage the CD player and/or the CD load/eject function.
Page 391 3-3. Using the Lexus Display Audio system NOTICE CD player precautions ■ Failure to follow the precautions below may result in serious damage to the CDs or the player itself. Do not insert anything other than CDs into the CD slot.
Page 392: Listening To An Ipod
3-3. Using the Lexus Display Audio system Listening to an iPod Connecting an iPod enables you to enjoy music from the vehicle speakers. Press the “MEDIA” button or the “AUDIO” button on the Lexus Display Audio controller and then select “iPod” with an iPod connected. ■...
Page 393 3-3. Using the Lexus Display Audio system ■ Control panel Audio control screen Playback/ Pause button Song selector knob “PWR·VOL” knob Power Volume Song selector button Audio source selector button...
Page 394 3-3. Using the Lexus Display Audio system ■ Audio control screen Pressing the “MEDIA” button or the “AUDIO” button on the Lexus Dis- play Audio controller displays the audio control screen from any screens of the selected source. Audio source...
Page 395 3-3. Using the Lexus Display Audio system Selecting a play mode Select “Browse” on the screen. STEP Select the desired play mode by STEP selecting the “Playlists”, “Artists”, “Albums”, “Songs”, “Podcasts”, “Audio books”, “Genres” or “Com- posers” tabs. Selecting, fast-forwarding and reversing songs ■...
Page 396 3-3. Using the Lexus Display Audio system Shuffle play Each time is selected, the mode changes in the following order: : Playing the songs in shuffle : Playing the albums in the iPod in shuffle : Off When a large number of songs is stored in an iPod, shuffle selection may take time.
Page 397 3-3. Using the Lexus Display Audio system About iPod ■ “Made for iPod” and “Made for iPhone” mean that an electronic accessory has ● been designed to connect specifically to iPod, or iPhone, respectively, and has been certified by the developer to meet Apple performance standards.
Page 398 3-3. Using the Lexus Display Audio system iPod problems ■ To resolve most problems encountered when using your iPod, disconnect your iPod from the vehicle iPod connection and reset it. For instructions on how to reset your iPod, refer to your iPod Owner’ s Manual.
Page 399 3-3. Using the Lexus Display Audio system CAUTION Caution while driving ■ Do not connect iPod or operate the controls. NOTICE If the armrest cannot be fully closed ■ Depending on the size and shape of the iPod that is connected to the system, the armrest may not close fully.
Page 400: Listening To A Usb Memory
Listening to a USB memory Connecting a USB memory enables you to enjoy music from the vehicle speakers. Press the “MEDIA” button or the “AUDIO” button on the Lexus Display Audio controller and then select “USB” with a USB memory connected. ■...
Page 401 3-3. Using the Lexus Display Audio system ■ Control panel Audio control screen Playback/ Pause button File selector knob “PWR·VOL” knob Power Volume File selector button Audio source selector button...
Page 402 3-3. Using the Lexus Display Audio system ■ Audio control screen Pressing the “MEDIA” button or the “AUDIO” button on the Lexus Dis- play Audio controller displays the audio control screen from any screens of the selected source. Audio source...
Page 403 3-3. Using the Lexus Display Audio system Selecting, fast-forwarding and reversing files ■ Selecting one file at time Press “<” or “>” on the “PRST•TRACK” button or turn the “TUNE•SCROLL” knob to select the desired file. To fast-forward or reverse, press and hold “>” or “<” on the “PRST•TRACK”...
Page 404 3-3. Using the Lexus Display Audio system Selecting a folder Select “Folders” on the screen. STEP Select the desired folder number. STEP Select the desired file number. STEP Random playback Each time is selected, the mode changes in the following order:...
Page 405 3-3. Using the Lexus Display Audio system Repeat play Each time is selected, the mode changes in the following order: : File repeat : Folder repeat : Off USB memory functions ■ Depending on the USB memory that is connected to the system, the device ●...
Page 406 3-3. Using the Lexus Display Audio system USB memory ■ Compatible devices ● USB memory that can be used for MP3 and WMA playback. Compatible device formats ● The following device formats can be used: • USB communication formats: USB2.0 HS (480Mbps) •...
Page 407 3-3. Using the Lexus Display Audio system WMA file compatibility ● • Compatible standards WMA Ver. 7, 8, 9 • Compatible sampling frequencies HIGH PROFILE 32, 44.1, 48 (kHz) • Compatible bit rates HIGH PROFILE 48-320 (kbps, VBR) File names ●...
Page 408 3-3. Using the Lexus Display Audio system Playback ● • To play MP3 files with steady sound quality, we recommend a fixed bit rate of at least 128 kbps and a sampling frequency of 44.1 kHz. • There is a wide variety of freeware and other encoding software for MP3 and WMA files on the market, and depending on the status of the encoding and the file format, poor sound quality or noise at the start of playback may result.
Page 409: Using The Aux Port
Open the cover and connect STEP the portable audio device. AUX port Press the “MEDIA” button or the “AUDIO” button on the Lexus STEP Display Audio controller and then select “AUX”. Operating portable audio devices connected to the audio system ■...
Page 410 3-3. Using the Lexus Display Audio system CAUTION Caution while driving ■ Do not connect portable audio device or operate the controls. NOTICE If the armrest cannot be fully closed ■ Depending on the size and shape of the portable audio device that is connected to the system, the armrest may not close fully.
Page 411: Listening To Bluetooth ® Audio
® support Bluetooth , the Bluetooth audio system will not function. Press the “MEDIA” button or the “AUDIO” button on the Lexus Display Audio controller and then select “Bluetooth*”. *: Bluetooth is a registered trademark of Bluetooth SIG. Inc. ■...
Page 412 3-3. Using the Lexus Display Audio system ■ Audio control screen Pressing the “MEDIA” button or the “AUDIO” button on the Lexus Dis- play Audio controller displays the audio control screen from any screens of the selected source. Audio source...
Page 413 3-3. Using the Lexus Display Audio system Status display You can check such indicators as signal strength and battery charge on the screen. Connection status Battery charge Indicators Conditions Good Not connected Connection status Full Empty Battery charge...
Page 414 3-3. Using the Lexus Display Audio system ® Registering a Bluetooth audio player ® To use the Bluetooth audio system, you need to register your portable audio player into the system. Once registered, you can enjoy your music on the vehicle’ s audio system.
Page 415 3-3. Using the Lexus Display Audio system Input the passcode displayed on STEP the screen into your portable audio player. For the operation of the portable audio player, see the manual that comes with your portable audio player. Passcodes are not required for SSP (Secure Simple Pairing) compati- ®...
Page 416 3-3. Using the Lexus Display Audio system ® Selecting the Bluetooth audio player ® If multiple Bluetooth devices are registered, follow the procedure ® below to select the Bluetooth device to be used. You may only use one device at a time.
Page 417 3-3. Using the Lexus Display Audio system ® Connecting the Bluetooth audio player There are two connection methods available. ■ When the connection method is set to “From Vehicle” When the portable audio player is on standby for the connection, it will be automatically connected whenever the “POWER”...
Page 418 3-3. Using the Lexus Display Audio system Selecting, fast-forwarding and reversing tracks ■ Selecting a track Press “<” or “>” on the “PRST•TRACK” button or turn the “TUNE•SCROLL” knob to select the desired track number. To fast-forward or reverse, press and hold “>” or “<” on the “PRST•TRACK”...
Page 419 3-3. Using the Lexus Display Audio system From “Browse” Select “Browse” on the screen. STEP Select the desired item. STEP Continue to select the applicable screen button until its track list is displayed. Select the desired track. STEP Random playback...
Page 420 3-3. Using the Lexus Display Audio system Repeat play Each time is selected, the mode changes in the following order: : Track repeat : Album repeat : Off ® When using the Bluetooth audio system ■ In the following conditions, the system may not function.
Page 421 3-3. Using the Lexus Display Audio system ® About Bluetooth ■ Bluetooth is a registered trademark of Bluetooth SIG. Inc. Compatible models ■ Portable audio players must correspond to the specifications. ® Bluetooth specifications: ● Ver. 1.1, or higher (Recommended: Ver. 2.1 + EDR or higher) Profiles: ●...
Page 422 3-3. Using the Lexus Display Audio system ® Certification for the Bluetooth audio system ■ FCC ID: AJDK046 IC ID: 775E-K046 This device complies with Part 15 of FCC Rules and Industry Canada licence- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any inter- ference, including interference that may cause undesired operation of this device.
Page 423 3-3. Using the Lexus Display Audio system CAUTION FCC WARNING ■ Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC/IC radiation exposure limits set forth for an...
Page 424 3-3. Using the Lexus Display Audio system CAUTION Caution while driving ■ Do not connect portable players or operate the controls. Caution regarding interference with electronic devices ■ ® Your audio unit is fitted with Bluetooth antennas. People with implantable car- ●...
Page 425: Optimal Use Of The Audio System
3-3. Using the Lexus Display Audio system Optimal use of the audio system Select on the audio con- trol screen to adjust the sound settings. “Sound” tab Select “-” or “+” to adjust the treble, mid or bass to a level between -5 to 5.
Page 426 3-3. Using the Lexus Display Audio system The sound quality level is adjusted individually ■ The treble, mid and bass levels can be adjusted for the each audio mode separately. About Automatic Sound Leveliser (ASL) ■ ASL automatically adjusts the volume and tone quality according to the vehicle...
Page 427: Using The Steering Wheel Audio Switches
3-3. Using the Lexus Display Audio system Using the steering wheel audio switches Some audio features can be controlled using the switches on the steering wheel. Press: Turns the power on, selects audio source Press and hold: Pause or mute...
Page 428 3-3. Using the Lexus Display Audio system Changing the audio source Press the “MODE” switch when the audio system is turned on. The audio source changes as follows each time the “MODE” switch is pressed. If no discs are inserted in the player, or if the external device is not connected, that mode will be skipped.
Page 429 3-3. Using the Lexus Display Audio system Selecting a track/file or song ® Press the “MODE” switch to select the CD, Bluetooth audio, STEP iPod or USB memory mode. Press “∧” or “∨” on to select the desired track/file or song.
Page 430: Hands-Free System (For Mobile Phone)
3-3. Using the Lexus Display Audio system Hands-free system (for mobile phone) The hands-free system is a function that allows you to use your mobile phone without touching it. ® ® This system supports Bluetooth . Bluetooth is a wireless data system that allows the mobile phone to wirelessly connect to the hands-free system and make/receive calls.
Page 431 3-3. Using the Lexus Display Audio system ■ Microphone You can use the microphone when talking on the phone. The person you are speaking to can be heard from the front speakers. ® To use the hands-free system, you must register your Bluetooth...
Page 432 3-3. Using the Lexus Display Audio system Status display You can check indicators such as signal strength and battery charge on the “Phone” screen. Connection status Battery charge Call area Signal strength Indicators Conditions Good Not connected Connection status Full...
Page 433 3-3. Using the Lexus Display Audio system In the following circumstances, it may be difficult to hear the other party: ● • When driving on unpaved roads • When driving at high speeds • If a window is open • If the air conditioning is blowing directly on the microphone •...
Page 434 3-3. Using the Lexus Display Audio system About the phonebook in this system ■ The following data is stored for every registered phone. When another phone is connecting, you cannot read the registered data. Phonebook data ● Call history date ●...
Page 435 3-3. Using the Lexus Display Audio system Certification for the hands-free system ■ FCC ID: AJDK046 IC ID: 775E-K046 This device complies with Part 15 of FCC Rules and Industry Canada licence- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any inter- ference, including interference that may cause undesired operation of this device.
Page 436 3-3. Using the Lexus Display Audio system CAUTION FCC WARNING ■ Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC/IC radiation exposure limits set forth for an...
Page 437 3-3. Using the Lexus Display Audio system CAUTION Caution while driving ■ ® Do not use a mobile phone or connect the Bluetooth phone. Caution regarding interference with electronic devices ■ ® Your audio unit is fitted with Bluetooth antennas. People with implantable car- ●...
Page 438: Using The Bluetooth ® Phone
Dialing by inputting a number (→P. 442) ® Connecting a Bluetooth phone (→P. 440) To display the screen shown above, press on the steering wheel or press the “MENU” button on the Lexus Display Audio controller and then select “Phone” on the “Menu” screen.
Page 439 3-3. Using the Lexus Display Audio system ® Registering a Bluetooth phone ® To use the hands-free system, you must register a Bluetooth phone in the system. You can register up to 5 phones in the system. Display the “Phone” screen. (→P. 437) STEP Select “Yes”.
Page 440 3-3. Using the Lexus Display Audio system Input the passcode displayed on STEP the screen into your phone. For the operation of the phone, see the manual that comes with your mobile phone. Depending on the type of phone, further phone operations may be...
Page 441 3-3. Using the Lexus Display Audio system ® Selecting the Bluetooth phone ® If multiple Bluetooth devices are registered, follow the procedure ® below to select the Bluetooth device to be used. You may only use one device at a time.
Page 442 3-3. Using the Lexus Display Audio system ® Connecting a Bluetooth phone There are two connecting methods available-automatic and manual. Automatic When you register your phone, auto connection will be activated. Always ® set it to this mode and leave the Bluetooth phone in a place where con- nection can be established.
Page 443 3-3. Using the Lexus Display Audio system Select the device to connect. STEP A message is shown if connection has been successful. If connection fails, a message will be displayed and connection will be re-attempted. ® Reconnecting to the Bluetooth phone ■...
Page 444 3-3. Using the Lexus Display Audio system Press on the steering wheel or select STEP Depending on the type of phone, when internet communication func- tions such as skype are available, phone operations (selecting between normal phone communication or internet communication) may be nec- essary after dialing operations are performed.
Page 445 3-3. Using the Lexus Display Audio system ● When the phonebook is empty ® You can transfer the phone numbers in your Bluetooth phone to the system. Operation methods differ between PBAP compatible and PBAP ® incompatible Bluetooth phones. If your mobile phone does not sup- port either PBAP or OPP service, you cannot transfer contacts.
Page 446 3-3. Using the Lexus Display Audio system ■ Calling using speed dial You can make a call using numbers registered from the phonebook. Display the “Phone” screen. (→P. 437) STEP Select “Speed Dials” on the “Phone” screen. STEP Select the desired tab and choose STEP the desired number to make a call.
Page 447 3-3. Using the Lexus Display Audio system Press on the steering wheel or STEP select ■ Calling using voice recognition Calls can be made by giving a voice command. Press the talk switch. STEP To cancel voice recognition press and hold the talk switch.
Page 448 3-3. Using the Lexus Display Audio system ● Dial by name The procedure below shows “Call <name>” or “Call <name> at <type>”. Follow similar procedures for the other operations. Press the talk switch. STEP Say the name, or the name and type of phone, of a registered STEP contact.
Page 449 3-3. Using the Lexus Display Audio system Voice guidance function ■ Voice guidance for the voice recognition system can be skipped by pressing the ● talk switch. When “Voice Prompts (on/off)” is selected, voice recognition will be tempo- ● rarily suspended. Press the talk switch again.
Page 450 3-3. Using the Lexus Display Audio system Using voice command “Dial <number>” ● • In the same manner as it is displayed on the screen, “Dial <number>”, after saying “Dial” say the phone number. • Say the phone number one digit at a time.
Page 451 3-3. Using the Lexus Display Audio system Receiving a call When a call is received, the following screen is displayed together with a sound. To answer the phone: • Press on the steering wheel. • Select ■ To refuse a call...
Page 452 3-3. Using the Lexus Display Audio system Speaking on the phone The following screen is displayed when speaking on the phone. ■ To adjust the receiver volume Select “-” or “+”. You can also adjust the volume using the steering switches or the volume knob.
Page 453 3-3. Using the Lexus Display Audio system If repeated tone symbols* are STEP stored in the phone book, “Send” and “Exit” are displayed on the right side of the screen. *: Repeated tone symbols are symbols or numbers displayed as p or w, that come after the phone number.
Page 454 3-3. Using the Lexus Display Audio system Transferring calls ■ It is not possible to transfer from hands-free to the mobile phone while driving. ● If you transfer from the mobile phone to hands-free, the hands-free screen will ● be displayed, and you can operate the system using the screen.
Page 455: Setting The Hands-Free System
You can set the hands-free system to your desired settings. Setting the sound Phonebook settings To display the screen shown above, follow the steps below. Press the “MENU” button on the Lexus Display Audio control- STEP ler. Select “Setup” on the “Menu” screen.
Page 456 3-3. Using the Lexus Display Audio system Changes the speaker volume STEP (→P. 455) Changes the ring tone volume (→P. 455) Changes the ring tone (→P. 455) Restore default settings When you complete settings, select “Save”. STEP ■ Setting the volume Select “Call Volume”...
Page 457 3-3. Using the Lexus Display Audio system Phonebook settings The phonebook manages a maximum of 5 phones in total. The data for 1000 contacts (up to 3 numbers per contact) can be registered in each phonebook. Managing the contacts Managing the speed dials Deleting the call history To display the screen above, follow the steps below.
Page 458 3-3. Using the Lexus Display Audio system ■ Managing the contacts ● Transferring a phone number  You can transfer the phone numbers in your Bluetooth phone to the system. Operation methods differ between PBAP compatible and PBAP  incompatible Bluetooth phones.
Page 459 3-3. Using the Lexus Display Audio system  For PBAP incompatible Bluetooth phones Replace contacts STEP The phonebook data can be replaced. Add contacts The phonebook can be added. ● Deleting the phonebook data Display the “Phonebook Settings” screen. (→P. 456) STEP Select “Manage Contacts”...
Page 460 3-3. Using the Lexus Display Audio system Phonebook data ■ Phonebook data is managed for every registered phone. When another phone is connecting, you cannot read the registered data. Setting the phonebook in a different way (To display the “Contacts” screen) ■...
Page 461 3-3. Using the Lexus Display Audio system Deleting the phonebook data in a different way ■ Display the “Phone” screen. (→P. 437) STEP Select “Contacts” on the “Phone” screen. STEP Choose the desired data from the list. STEP Select “Options” on the “Contact” screen.
Page 462 3-3. Using the Lexus Display Audio system Choose the data to register. STEP Select the desired phone number. STEP Select the switch you want to reg- STEP ister the number in. If you select a switch you registered before, a confirmation mes- STEP sage will be displayed.
Page 463 3-3. Using the Lexus Display Audio system ● Registering the speed dial from call history Display the “Phonebook Settings” screen. (→P. 456) STEP Select “Manage Speed Dials” on the “Phonebook Settings” STEP screen. Select “New Speed Dial from Call History” on the “Speed Dials”...
Page 464 3-3. Using the Lexus Display Audio system ● Deleting the speed dial Display the “Phonebook Settings” screen. (→P. 456) STEP Select “Manage Speed Dials” on the “Phonebook Settings” STEP screen. Select “Delete Speed Dials” on the “Speed Dials” screen. STEP Choose the data to delete.
Page 465 3-3. Using the Lexus Display Audio system Registering the speed dial in a different way (From “Speed Dial” screen) ■ Display the “Phone” screen. (→P. 437) STEP Select “Speed Dials” on the “Phone” screen. STEP Select “(add new)” on the “Speed Dial” screen.
Page 466 3-3. Using the Lexus Display Audio system ■ Deleting the call history Display the “Phonebook Settings” screen. (→P. 456) STEP Select “Delete Call History” on the “Phonebook Settings” screen. STEP If your phone supports PBAP service, the “Automatically Download Contacts” setting needs to be set to “Off”. (→P. 457)
Page 467: Bluetooth ® Settings
Connecting telephone Connecting audio player  Detailed Bluetooth settings To display the screen shown above, follow the steps below. Press the “MENU” button on the Lexus Display Audio control- STEP ler. Select “Setup” on the “Menu” screen. STEP Select “Bluetooth ”...
Page 468 3-3. Using the Lexus Display Audio system Registered devices settings  ■ Registering a Bluetooth device  Bluetooth devices compatible with phones (HFP) and portable audio players (AVP) can be registered simultaneously. You can register up to 5  Bluetooth devices.
Page 469 3-3. Using the Lexus Display Audio system When this screen is displayed, STEP input the passcode displayed on  the screen into your Bluetooth device. operation ® Bluetooth device, see the manual ® that comes with your Bluetooth device. Depending on the type of phone,...
Page 470 3-3. Using the Lexus Display Audio system Select “Remove”. STEP Select the device to remove. STEP A confirmation message will be displayed, select “Yes” to remove STEP the device.  ■ Displaying a Bluetooth device details You can confirm and change the device details.
Page 471 3-3. Using the Lexus Display Audio system Select the device. STEP Following screen is displayed: STEP Display device name Display device address Display your telephone number The number may not be dis- played depending phones. Display compatibility profile of the device Change connection method (→P.
Page 472 3-3. Using the Lexus Display Audio system  Selecting the Bluetooth phone  If multiple Bluetooth devices are registered, follow the procedure  below to select the Bluetooth device to be used. You may only use one device at a time.
Page 473 3-3. Using the Lexus Display Audio system  Detailed Bluetooth settings  You can confirm and change the detailed Bluetooth settings. Display the “Bluetooth Settings” screen. (→P. 466) STEP Select “Detailed Bluetooth Settings” on the “Bluetooth STEP Settings” screen. Following screen is displayed: STEP ...
Page 474 3-3. Using the Lexus Display Audio system ■ Editing the passcode  You can change the passcode that you use to register your Bluetooth device in the system. Select “Passcode” on the “Detailed Bluetooth Settings” screen. STEP Input a passcode, and select “OK”.
Page 475: 3-4. Using The Audio System
3-4. Using the audio system Audio system (without a navigation system or the Lexus Display Audio system) CD player with a changer and AM/FM radio (type A)
Page 476 3-4. Using the audio system CD player with a changer and AM/FM radio (type B) Title Page Using the radio P. 477 Using the CD player P. 485 Playing MP3 and WMA discs P. 493 Operating an iPod P. 501 Operating a USB memory P.
Page 477 3-4. Using the audio system Using mobile phones ■ Interference may be heard through the audio system’ s speakers if a mobile phone is being used inside or close to the vehicle while the audio system is operating. CAUTION Certification ■...
Page 478: Using The Radio
3-4. Using the audio system Using the radio Type A Channel category button Preset station buttons Frequency adjustment “PWR⋅VOL” knob (AM/FM mode) and Power Volume channel (SAT mode) AM⋅FM/SAT knob mode buttons Traffic information button Seek button Radio text message button Scan button...
Page 479 3-4. Using the audio system Type B Channel category button Preset station buttons Frequency adjustment “PWR⋅VOL” knob knob Power Volume AM⋅FM buttons Traffic information button Seek button Radio text message button Scan button Setting station presets (excluding XM ® Satellite Radio) Search for the desired stations by turning or pressing “>”...
Page 480 3-4. Using the audio system ® Scanning radio stations (excluding XM Satellite Radio) ■ Scanning the preset radio stations Press and hold until you hear a beep. STEP Preset stations will be played for 5 seconds each. When the desired station is reached, press the button again. STEP ■...
Page 481 3-4. Using the audio system Press , or “>” or “<” on STEP The radio seeks or scans for stations of the relevant program type. ■ Displaying radio station names Press ■ Displaying radio text messages Press twice. A text message is displayed when “MSG” is shown on the screen. If the text continues past the end of the display, is displayed.
Page 482 3-4. Using the audio system ® ■ Scanning the XM Satellite Radio channels ● Scanning the channels in the current category Press STEP When the desired channel is reached, press the button STEP again. ● Scanning the preset channels Press and hold until you hear a beep.
Page 483 3-4. Using the audio system When the 12-volt battery is disconnected ■ All preset stations are erased. Reception sensitivity ■ Cargo loaded on the roof luggage carrier, especially metal objects, may ● ® adversely affect the reception of XM Satellite Radio. It is difficult to maintain perfect radio reception at all times due to the continually ●...
Page 484 XM antenna cable is attached securely. “ANTENNA” There is a short-circuit in the antenna or the surround- ing antenna cable. See a Lexus certified dealer. ® You have not subscribed to the XM Satellite Radio. The radio is being updated with the latest encryption ®...
Page 485 3-4. Using the audio system There is no song/program title or artist name/feature “-----” associated with the channel at that time. No action needed. The channel you selected is no longer available. Wait for about 2 seconds until the radio returns to the previ- “CH UNAVL”...
Page 486: Using The Cd Player
3-4. Using the audio system Using the CD player Type A Repeat play button Playback/Pause button Eject button Load button “PWR⋅VOL” knob Text button Power Volume Search playback button Playback button Random playback button CD selector button Track selector button...
Page 487 3-4. Using the audio system Type B Repeat play button Playback/Pause button Eject button Load button “PWR⋅VOL” knob Text button Power Volume Search playback button Playback button Random playback button CD selector button Track selector button Loading a CD ■ Loading a CD Press STEP...
Page 488 3-4. Using the audio system ■ Loading multiple CDs Press and hold until you hear a beep. STEP “WAIT” is shown on the display. When the indicator on the slot turns from amber to green, insert a STEP The display changes from “WAIT” to “LOAD”. The indicator on the slot turns to amber when the CD is being inserted.
Page 489 3-4. Using the audio system Selecting, fast-forwarding, reversing and scanning tracks ■ Selecting a track Press “>” to move up or “<” to move down using until the desired track number is displayed. ■ Fast-forwarding and reversing tracks To fast-forward or reverse, press and hold “>” or “<” on until you hear a beep.
Page 490 3-4. Using the audio system Random playback ■ Current CD Press Songs are played in random order. To cancel, press again. ■ All CDs Press and hold until you hear a beep. Tracks on all loaded CDs are played in random order. To cancel, press again.
Page 491 “WAIT”: This indicates that operation is stopped due to a high temperature inside the player. Wait for a while and then press . If the CD still cannot be played back, contact your Lexus dealer. Discs that can be used ■...
Page 492 3-4. Using the audio system NOTICE CDs and adapters that cannot be used ■ Do not use the following types of CDs. Also, do not use 3 in. (8 cm) CD adapters, DualDiscs or printable discs. Doing so may damage the CD player and/or the CD load/eject function. CDs that have a diameter that is not 4.7 in.
Page 493 3-4. Using the audio system NOTICE CD player precautions ■ Failure to follow the precautions below may result in serious damage to the CDs or the player itself. Do not insert anything other than CDs into the CD slot. ● Do not apply oil to the CD player.
Page 494: Playing Mp3 And Wma Discs
3-4. Using the audio system Playing MP3 and WMA discs Type A Repeat play button Playback/Pause button Disc selector button Folder selector buttons Eject button Load button File selector knob “PWR⋅VOL” knob Text button Power Volume Search playback button Playback button Random playback button File selector button...
Page 495 3-4. Using the audio system Type B Repeat play button Playback/Pause button Disc selector button Folder selector buttons Eject button Load button File selector knob “PWR⋅VOL” knob Text button Power Volume Search playback button Playback button Random playback button File selector button Loading and ejecting MP3 and WMA discs →P.
Page 496 3-4. Using the audio system Selecting and scanning a folder ■ Selecting a folder one at a time Press to select the desired folder. ■ Returning to the first folder Press and hold until you hear a beep. ■ Scanning the first file of all the folders Press and hold until you hear a beep.
Page 497 3-4. Using the audio system Random playback ■ Playing files from a folder in random order Press To cancel, press again. ■ Playing all the files from a disc in random order Press and hold until you hear a beep. To cancel, press again.
Page 498 Wait for a while and then press . If the CD still cannot be played back, contact your Lexus dealer. “NO MUSIC”: This indicates that an MP3/WMA file is not included in the CD. Discs that can be used ■...
Page 499 3-4. Using the audio system MP3 and WMA files ■ MP3 (MPEG Audio LAYER 3) is a standard audio compression format. Files can be compressed to approximately 1/10 of their original size by using MP3 compression. WMA (Windows Media Audio) is a Microsoft audio compression format. This format compresses audio data to a size smaller than that of the MP3 format.
Page 500 3-4. Using the audio system Compatible disc formats ● The following disc formats can be used: • Disc formats: CD-ROM Mode 1 and Mode 2 CD-ROM XA Mode 2, Form 1 and Form 2 • File formats: ISO9660 Level 1, Level 2, (Romeo, Joliet) MP3 and WMA files written in any format other than those listed above may not play correctly, and their file names and folder names may not be dis- played correctly.
Page 501 3-4. Using the audio system MP3 and WMA playback ● When a disc containing MP3 or WMA files is inserted, all files on the disc are first checked. Once the file check is finished, the first MP3 or WMA file is played. To make the file check finish more quickly, we recommend you do not write in any files other than MP3 or WMA files or create any unnecessary folders.
Page 502: Operating An Ipod
3-4. Using the audio system Operating an iPod Connecting an iPod enables you to enjoy music from the vehicle speakers. ■ Connecting an iPod Pull up the lever to release the STEP lock, and lift the armrest. Open the cover and connect an STEP iPod using an iPod cable.
Page 503 3-4. Using the audio system ■ Control panel Type A Playback/Pause button Go back button Repeat play button iPod menu/ “PWR⋅VOL” knob Song selector knob Power Volume Text button Playback button Shuffle playback button Song selector button...
Page 504 3-4. Using the audio system Type B Playback/Pause button Go back button Repeat play button iPod menu/ “PWR⋅VOL” knob Song selector knob Power Volume Text button Playback button Shuffle playback button Song selector button Selecting a play mode Press to select iPod menu mode. STEP Turning changes the play mode in the following order:...
Page 505 3-4. Using the audio system Press to select the desired play mode. STEP ■ Play mode list First Second Third Fourth Play mode selection selection selection selection “PLAYLISTS” Playlists select Songs select “ARTISTS” Artists select Albums select Songs select “ALBUMS” Albums select Songs select “SONGS”...
Page 506 3-4. Using the audio system Selecting songs Turn or press “>” or “<” on to select the desired song. Playing and pausing songs To play or pause a song, press Fast-forwarding and reversing songs To fast-forward or reverse, press and hold “>” or “<” on until you hear a beep.
Page 507 3-4. Using the audio system Adjusting sound quality and volume balance Press to enter iPod menu mode. STEP Pressing changes sound modes. (→P. 539) STEP About iPod ■ “Made for iPod” and “Made for iPhone” mean that an electronic accessory has ●...
Page 508 3-4. Using the audio system iPod functions ■ When an iPod is connected and the audio source is changed to iPod mode, the ● iPod will resume play from the same point in which it was last used. Depending on the iPod that is connected to the system, certain functions may ●...
Page 509 3-4. Using the audio system Compatible models ■      The following iPod , iPod nano , iPod classic , iPod touch and iPhone devices can be used with this system. Made for ● • iPod touch (4th generation) •...
Page 510 3-4. Using the audio system NOTICE If the armrest cannot be fully closed ■ Depending on the size and shape of the iPod that is connected to the system, the armrest may not close fully. In this case, do not forcibly close the armrest as this may damage the iPod or the terminal, etc.
Page 511: Operating A Usb Memory
3-4. Using the audio system Operating a USB memory Connecting a USB memory enables you to enjoy music from the vehicle speakers. ■ Connecting a USB memory Pull up the lever to release the STEP lock, and lift the armrest. Open the cover and connect a STEP USB memory.
Page 512 3-4. Using the audio system ■ Control panel Type A Playback/Pause button Repeat play button Folder selector buttons File selector knob “PWR⋅VOL” knob Text button Power Volume Search playback button Playback button Random playback button File selector button...
Page 513 3-4. Using the audio system Type B Playback/Pause button Repeat play button Folder selector buttons File selector knob “PWR⋅VOL” knob Text button Power Volume Search playback button Playback button Random playback button File selector button...
Page 514 3-4. Using the audio system Selecting and scanning a folder ■ Selecting folders one at a time Press to select the desired folder. ■ Returning to the first folder Press and hold until you hear a beep. ■ Scanning the first file of all the folders Press and hold until you hear a beep.
Page 515 3-4. Using the audio system Random playback ■ Playing files from a folder in random order Press To cancel, press again. ■ Playing all the files from a USB memory in random order Press and hold until you hear a beep. To cancel, press again.
Page 516 3-4. Using the audio system Display ■ →P. 490 Error messages ■ “ERROR”: This indicates a problem in the USB memory or its connection. “NO MUSIC”: This indicates that no MP3/WMA files are included in the USB memory. USB memory ■...
Page 517 3-4. Using the audio system MP3 file compatibility ● • Compatible standards MP3 (MPEG1 AUDIO LAYERII, III, MPEG2 AUDIO LAYERII, III, MPEG2.5) • Compatible sampling frequencies MPEG1 AUDIO LAYERII, III: 32, 44.1, 48 (kHz) MPEG2 AUDIO LAYERII, III: 16, 22.05, 24 (kHz) MPEG2.5: 8, 11.025, 12 (kHz) •...
Page 518 3-4. Using the audio system MP3 and WMA playback ● • When a device containing MP3 or WMA files is connected, all files in the USB memory device are checked. Once the file check is finished, the first MP3 or WMA file is played. To make the file check finish more quickly, we recommend that you do not include any files other than MP3 or WMA files or create any unnecessary folders.
Page 519 3-4. Using the audio system NOTICE If the armrest cannot be fully closed ■ Depending on the size and shape of the USB memory that is connected to the sys- tem, the armrest may not close fully. In this case, do not forcibly close the armrest as this may damage the USB memory or the terminal, etc.
Page 520: Bluetooth ® Audio System
3-4. Using the audio system ® Bluetooth audio system ® The Bluetooth audio system enables you to enjoy music played on a por- table digital audio player (portable player) from the vehicle speakers via wireless communication. ® This audio system supports Bluetooth , a wireless data system capable of playing portable audio music without cables.
Page 521 3-4. Using the audio system ® About Bluetooth ■ Bluetooth is a registered trademark of Bluetooth SIG. Inc. Compatible models ■ ® Bluetooth specifications: ● Ver. 1.1, or higher (Recommended: Ver. 1.2 or higher) Following profiles: ● • A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher (Conformed: Ver.
Page 522 3-4. Using the audio system CAUTION FCC WARNING ■ Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules.
Page 523 3-4. Using the audio system CAUTION Caution while driving ■ Do not connect portable players or operate the controls. Caution regarding interference with electronic devices ■ ® Your audio unit is fitted with Bluetooth antennas. People with implantable car- ● diac pacemakers, cardiac resynchronization therapy-pacemakers or implantable cardioverter defibrillators should maintain a reasonable distance between them- ®...
Page 524: Using The Bluetooth Audio System
3-4. Using the audio system ® Using the Bluetooth audio system ■ Audio unit Display A message, name, number, etc. is displayed. Lower-case characters and special characters cannot be displayed. Displays information that is too long to be displayed at one time on the display (press and hold) Selects items such as menu...
Page 525 3-4. Using the audio system Operating the system using voice commands By following voice guidance instructions output from the speaker, voice ® commands enable the operation of the Bluetooth audio system without the need to check the display or operate ■...
Page 526 3-4. Using the audio system ® Using the Bluetooth audio system for the first time ® Before using the Bluetooth audio system, it is necessary to register a ® Bluetooth enabled portable player in the system. Follow the procedure below to register (pair) a portable player: Press and select “BT•A MENU”...
Page 527 3-4. Using the audio system Guidance for registration completion is heard. ® If the portable player has a Bluetooth phone, the phone can be regis- tered at the same time. A voice guidance instruction to register a ® Bluetooth phone is heard. Select “Yes”...
Page 528 3-4. Using the audio system When using a voice command ■ For numbers, say a combination of single digits from zero to nine. Say the command correctly and clearly. Situations in which the system may not recognize your voice ■ When driving on rough roads ●...
Page 529: Operating A Bluetooth
3-4. Using the audio system ® Operating a Bluetooth enabled portable player Type A Playback/Pause button Album selector buttons BT·A menu knob “PWR⋅VOL” knob Text button Power Volume Search playback button Playback button Repeat play button Random playback button Track selector button...
Page 530 3-4. Using the audio system Type B Playback/Pause button Album selector buttons BT·A menu knob “PWR⋅VOL” knob Text button Power Volume Search playback button Playback button Repeat play button Random playback button Track selector button Selecting an album To select the desired album, press Selecting tracks Press “>”...
Page 531 3-4. Using the audio system Fast-forwarding and reversing tracks To fast-forward or reverse, press and hold “>” or “<” on until you hear a beep. Random playback Press To cancel, press again. Repeat play Press To cancel, press again. Scanning tracks Press To cancel, press again.
Page 532: Setting Up A Bluetooth ® Enabled Portable Player
3-4. Using the audio system ® Setting up a Bluetooth enabled portable player ® Registering a portable player in the Bluetooth audio system allows the system to function. The following functions can be used for registered por- table players: ■ Functions and operation procedures Pattern A To enter the menu for each function, follow the steps below using a...
Page 533 3-4. Using the audio system Pattern B Press to select “BT•A MENU”. STEP Press the talk switch or select “BT•A Setup” using STEP Select one of the following functions using a voice command STEP ● Registering a portable player “Pair Audio Player (Pair Audio)” ●...
Page 534 3-4. Using the audio system Registering a portable player Select “Pair Audio Player (Pair Audio)” using a voice command or and perform the procedure for registering a portable player. (→P. 525) Selecting a portable player to be used Select “Connect Audio Player (Connect)” using a voice com- STEP mand or Pattern A...
Page 535 3-4. Using the audio system Pattern A Press the talk switch and say “From Car” or “From Audio player”, STEP and select “Confirm” by using a voice command or Pattern B Select “From Car” or “From Audio”, using STEP If “From Car” is selected, the portable player will be automatically con- nected whenever the “POWER”...
Page 536 3-4. Using the audio system Pattern B Select the desired portable player name to be changed using STEP Press the talk switch or select “Record Name” using , and STEP say the new name. Select “Confirm” using a voice command or STEP Listing the registered portable players Select “List Audio Players (List Audios)”...
Page 537 3-4. Using the audio system Changing the passkey Select “Set Passkey” using a voice command or STEP Pattern A Press the talk switch, say a 4 to 8-digit number, and select “Con- STEP firm” using a voice command or Pattern B Select a 4 to 8-digit number using STEP The number should be input 1 digit at a time.
Page 538 3-4. Using the audio system Deleting a registered portable player Select “Delete Audio Player (Delete Audio)” using a voice com- STEP mand or Pattern A Select the portable player to be deleted by either of the following STEP methods and select “Confirm” using a voice command or a.
Page 539: Bluetooth Audio System Setup
3-4. Using the audio system ® Bluetooth audio system setup ■ System setup items and operation procedures Pattern A To enter the menu for each function, follow the steps below using a voice command or (→P. 571) Pattern B Press to select “BT•A MENU”.
Page 540: Optimal Use Of The Audio System
3-4. Using the audio system Optimal use of the audio system Displays the current mode Changes the following set- tings: • Sound quality and volume balance →P. 540 The sound quality and balance setting can be changed to pro- duce the best sound. •...
Page 541 3-4. Using the audio system ■ Adjusting sound quality Turning adjusts the level. Mode Sound qual- Turn counter- Turn clock- Level displayed ity mode clockwise wise “BAS” Bass -5 to 5 “MID” Mid-range -5 to 5 High “TRE” Treble -5 to 5 Front/rear “FAD”...
Page 542: Using The Aux Port
3-4. Using the audio system Using the AUX port This port can be used to connect a portable audio device and listen to it through the vehicle’s speakers. Pull up the lever to release the STEP lock, and lift the armrest. Open the cover and connect STEP the portable audio device.
Page 543 3-4. Using the audio system CAUTION Caution while driving ■ Do not connect portable audio device or operate the controls. NOTICE If the armrest cannot be fully closed ■ Depending on the size and shape of the portable audio device that is connected to the system, the armrest may not close fully.
Page 544: Using The Steering Wheel Audio Switches
3-4. Using the audio system Using the steering wheel audio switches Some audio features can be controlled using the switches on the steering wheel. Turns the power on, selects an audio source Increases/decreases volume Radio mode: Selects a radio station CD mode: Selects a track, file (MP3 and WMA) and disc ®...
Page 545 3-4. Using the audio system Changing the audio source Press when the audio system is turned on. The audio source changes as follows each time the button is pressed. If no discs are inserted in the player, that mode will be skipped. Type A: FM1→FM2→SAT1→SAT2→SAT3→CD player→...
Page 546 3-4. Using the audio system Selecting a track/file or song ® Press to select CD, Bluetooth audio, iPod or USB STEP memory mode. Press “∧” or “∨” on to select the desired track/file or song. STEP Selecting an album ® Press to select Bluetooth audio mode.
Page 547 3-4. Using the audio system CAUTION To reduce the risk of an accident ■ Exercise care when operating the audio switches on the steering wheel.
Page 548: Hands-Free System For Mobile Phones
3-4. Using the audio system Hands-free system for mobile phones The hands-free system is a function that allows you to use your mobile phone without touching it. ® ® This system supports Bluetooth mobile phones. Bluetooth is a wireless data system that allows the mobile phone to wirelessly connect to the hands-free system and make/receive calls.
Page 549 3-4. Using the audio system Conditions under which the system will not operate ■ ® If using a mobile phone that does not support Bluetooth ● If the mobile phone is switched off ● If you are outside service range ●...
Page 550 3-4. Using the audio system Compatible models ■ Compatible with HFP (Hands Free Profile) Ver. 1.0 or higher (Conformed: Ver. 1.5) and OPP (Object Push Profile) Ver. 1.1. ® If your mobile phone does not support HFP, you cannot enter the Bluetooth ®...
Page 551 3-4. Using the audio system CAUTION FCC WARNING ■ Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules.
Page 552 3-4. Using the audio system CAUTION Caution while driving ■ ® Do not use a mobile phone or connect the Bluetooth phone. Caution regarding interference with electronic devices ■ ® Your audio unit is fitted with Bluetooth antennas. People with implantable car- ●...
Page 553: Using The Hands-Free System (For Mobile Phones)
3-4. Using the audio system Using the hands-free system (for mobile phones) ■ Audio unit Display A message, name, phone number, etc. is displayed. Lower-case characters and special characters cannot be displayed. Displays information that is too long to be displayed at one time on the display (press and hold) Selects speed dials...
Page 554 3-4. Using the audio system ■ Steering wheel switches Volume During an incoming call: Adjusts the ring tone volume During an ongoing call: Adjusts the receiver volume The voice guidance volume can- not be adjusted using this but- ton. Off-hook switch Turns the hands-free system on/starts a call On-hook switch...
Page 555 3-4. Using the audio system Operating the system using voice commands By following voice guidance instructions output from the speaker, voice commands enable the operation of the hands-free phone system without the need to check the display or operate ■ Operation procedure when using voice commands Press the talk switch and follow voice guidance instructions.
Page 556 3-4. Using the audio system Using the hands-free phone system for the first time Before using the hands-free phone system, it is necessary to register a mobile phone in the system. The system will enter phone registration mode automatically when starting the system with no mobile phone reg- istered.
Page 557 3-4. Using the audio system Select “Yes” or “No” using a voice command or STEP ® audio player →P. 520) (Bluetooth Menu list of the hands-free phone system ■ Normal operation Second First menu Third menu Operation detail menu Dialing a number stored in the “Callback”...
Page 558 3-4. Using the audio system Second First menu Third menu Operation detail menu “Set PIN” Setting a PIN code “Security” “Phbk Lock” Locking the phone book “Phbk Unlock” Unlocking the phone book Registering the mobile phone “Pair Phone” to be used Selecting a mobile phone to be “Connect”...
Page 559 3-4. Using the audio system ■ Short cut key operation First menu Second menu Operation detail Dialing a name registered in the “Dial XXX (name)” phone book “Phone book add Adding a new phone number Entry” “Phone book Change Changing a registered name in name”...
Page 560 3-4. Using the audio system Automatic volume adjustment ■ When vehicle speed reaches 50 mph (80 km/h) or more, the volume automati- cally increases. The volume returns to the previous volume setting when vehicle speed drops to 43 mph (70 km/h) or less. When using a voice command ■...
Page 561: Making A Phone Call
3-4. Using the audio system Making a phone call ■ Making a phone call ● Dialing by inputting a number “Dial by number” ● Dialing by inputting a name “Dial by name” ● Speed dialing ● Dialing a number stored in the outgoing history memory “Redial”...
Page 562 3-4. Using the audio system Dialing by inputting a number Press the talk switch and say “Dial by number”. STEP Press the talk switch and say the phone number. STEP Dial by one of the following methods: STEP a. Press the off-hook switch. b.
Page 563 3-4. Using the audio system When receiving a phone call ■ Answering a phone call Press the off-hook switch. ■ Refusing a phone call Press the on-hook switch. Transferring a phone call A call can be transferred between the mobile phone and system while dialing, receiving a call, or during a call.
Page 564 3-4. Using the audio system Using the call history memory Follow the procedure below to use a number stored in the call history memory: Press the talk switch and say “Redial” (when using a number STEP stored in the outgoing call history memory) or “Call back” (when using a number stored in the incoming call history memory).
Page 565 3-4. Using the audio system Call waiting ■ If your phone does not support HFP Ver. 1.5, this function cannot be used. ● Call waiting operation may differ depending on your mobile phone and service ● provider. Call history ■ Up to 5 numbers can be stored in each of the outgoing and incoming call history memories.
Page 566: Setting A Mobile Phone
3-4. Using the audio system Setting a mobile phone Registering a mobile phone in the hands-free phone system allows the sys- tem to function. The following functions can be used for registered mobile phones: ■ Functions and operation procedures To enter the menu for each function, follow the steps below using a voice command or ●...
Page 567 3-4. Using the audio system Registering a mobile phone Select “Pair Phone” using a voice command or , and perform the procedure for registering a mobile phone. (→P. 555) Selecting a mobile phone to be used Select “Connect Phone (Connect)” using a voice command or STEP Pattern A Select the mobile phone to be used by either of the following...
Page 568 3-4. Using the audio system Changing the registered name of a mobile phone Select “Change Name” using a voice command or STEP Pattern A Select the name of the mobile phone to be changed by either of STEP the following methods, and select “Confirm” using a voice com- mand or a.
Page 569 3-4. Using the audio system Listing the registered mobile phones Select “List Phones” using a voice command or . The list of regis- tered mobile phones will be read aloud. When listing is complete, the system returns to “Phone Setup”. Pressing the talk switch while the name of a mobile phone is being read aloud selects the mobile phone, and the following functions will become available:...
Page 570 3-4. Using the audio system Pattern B Select a 4 to 8-digit number using STEP The number should be input 1 digit at a time. When the entire number to be registered as a passkey has been STEP input, press again.
Page 571 3-4. Using the audio system Pattern B Select the desired mobile phone to be deleted using STEP ® If the mobile phone to be deleted is paired as a Bluetooth audio player, the registration of the audio player can be deleted at the same time. A ®...
Page 572: Security And System Setup
3-4. Using the audio system Security and system setup ■ Security setting items and operation procedures To enter the menu for each function, follow the steps below using a voice command or ● Setting or changing the PIN (Personal Identification Number) 1.
Page 573 3-4. Using the audio system Setting or changing the PIN ■ Setting a PIN Select “Set PIN” using a voice command or STEP Enter a PIN using a voice command or STEP When using , input the code 1 digit at a time. ■...
Page 574 3-4. Using the audio system Input the PIN by either of the following methods and select “Con- STEP firm” using a voice command or a. Press the talk switch and say the registered PIN. b. Input a new PIN using Setting voice guidance volume Select “Guidance Vol”...
Page 575 3-4. Using the audio system Initializing the system Select “Initialize” and then “Confirm” using STEP Select “Confirm” again using STEP Initialization ■ The following data in the system can be initialized: ● • Phone book • Outgoing and incoming call history •...
Page 576: Using The Phone Book
3-4. Using the audio system Using the phone book To enter the menu for each function, follow the steps below using a voice command or ● Adding a new phone number 1. “Phonebook” → 2. “Add Entry” ● Changing the registered name in the phone book 1.
Page 577 3-4. Using the audio system ■ Adding procedure Select “Add Entry” using a voice command or STEP Use one of the following methods to input a telephone number: STEP Inputting a telephone number using a voice command: STEP2-1 Select “By Voice” using a voice command or STEP2-2 Press the talk switch, say the desired number, and select “Confirm”...
Page 578 3-4. Using the audio system Inputting a phone number using STEP2-1 Select “Manual Input” using STEP2-2 Input a phone number using , and press again. Input the phone number 1 digit at a time. Selecting a phone number from the outgoing or incoming call history: STEP2-1 Select “Call History”...
Page 579 3-4. Using the audio system Select the name to be registered by either of the following meth- STEP ods, and select “Confirm” using a voice command or a. Press the talk switch and say the desired name. b. Select “Record Name” using and say the desired name.
Page 580 3-4. Using the audio system Press the talk switch or select “Record Name” using STEP say the new name. Select “Confirm” using a voice command or STEP Listing the registered data Select “List Names” using a voice command or . The list of the reg- istered data will be read aloud.
Page 581 3-4. Using the audio system Setting speed dials Select “Set Speed Dial (Speed Dial)” using a voice command or STEP Pattern A Select the data to be registered as a speed dial by either of the STEP following methods and select “Confirm” using a voice command a.
Page 582 3-4. Using the audio system Deleting the registered data Select “Delete Entry” using a voice command or STEP Pattern A Select the data to be deleted by either of the following methods STEP and select “Confirm” using a voice command or a.
Page 583: 3-5. Using The Interior Lights
3-5. Using the interior lights Interior lights list Front personal lights (→P. 583) Front interior light (→P. 583) Shift lever light (when the “POWER” switch is in ACCESSORY or ON mode) Rear personal lights (→ P. 583) Rear interior light Door courtesy lights Scuff lights (if equipped) Footwell lights...
Page 584: Interior Lights
3-5. Using the interior lights Interior lights and personal lights Interior lights Turns the lights on/off linked to door positions. Turns the lights on/off Personal lights Front Turns the light on/off Rear Turns the light on/off...
Page 585 3-5. Using the interior lights Interior lights and personal lights Illuminated entry system ■ The lights automatically turn on/off according to “POWER” switch mode, the pres- ence of the electronic key, whether the doors are locked/unlocked, and whether the doors are open/closed. To prevent 12-volt battery discharge ■...
Page 586: Using The Storage Features List Of Storage Features
3-6. Using the storage features List of storage features Glove box Auxiliary boxes (if equipped) Bottle holders/door pockets Cup holders Console box/coin holder Under tray CAUTION Items that should not be left in the storage spaces ■ Do not leave glasses, lighters or spray cans in the storage spaces, as this may cause the following when cabin temperature becomes high: Glasses may be deformed by heat or cracked if they come into contact with ●...
Page 587: Glove Box
3-6. Using the storage features Glove box Glove box The glove box can be opened by pressing the lock release button and locked and unlocked using the mechanical key. Opens Locks Unlocks Power back door main switch ■ The power back door main switch is located in the glove box. (→P. 77) CAUTION Caution while driving ■...
Page 588: Bottle Holders/Door Pockets
3-6. Using the storage features Bottle holders/door pockets Bottle holders/door pockets Front The front door pockets can be opened and closed. Rear CAUTION Caution while driving (front door pockets) ■ Keep the door pockets closed. Injuries may result in the event of an accident or sudden braking. Items unsuitable for the bottle holders ■...
Page 589: Cup Holders
3-6. Using the storage features Bottle holders/door pockets and cup holders NOTICE When stowing a bottle ■ Put the cap on before stowing the bottle. Do not place open bottles in the bottle holders. The contents may spill. Cup holders Front (Center console) Press down the lid on the farthest side from the driver.
Page 590 3-6. Using the storage features Cup holders Rear Pull down the armrest. STEP Press down the button on the arm- STEP rest. Cup holder insert ■ The cup holder insert may be removed for cleaning.
Page 591: Console Box
3-6. Using the storage features Cup holders and console box CAUTION Items unsuitable for the cup holder ■ Do not place anything other than cups or beverage cans in the cup holders. Even when the lid is closed, items must not be stored in the cup holders. Other items may be thrown out of the holders in the event of an accident or sudden braking and cause injury.
Page 592 3-6. Using the storage features Console box Console box storage space ■ The console box comes with partition doors. Partition door B Partition door A can be removed. Partition door A The storage space can be expanded by opening the partition doors. Lift the tab Pull partition door B as shown in the illus- tration...
Page 593: Coin Holder
3-6. Using the storage features Coin holder and auxiliary boxes Coin holder Pull up the lever to release the lock, and slide the armrest. Auxiliary boxes (if equipped) Overhead Press in the lid. This box is useful for temporarily storing sunglasses and similar small items.
Page 594 3-6. Using the storage features Auxiliary boxes Rear seat Pull down the armrest. STEP Pull up the lever to release the lock STEP and lift the armrest. CAUTION Caution while driving ■ Do not leave the auxiliary box open while driving. Items stored in the auxiliary box may fall out and cause death or serious injury in case of an accident or sudden stop.
Page 595: Under Tray
3-6. Using the storage features Under tray Under tray CAUTION Items unsuitable for the under tray ■ Observe the following precautions when putting items in the under tray. Failure to do so may cause items to be thrown out of the tray in the event of sudden braking or steering.
Page 596: 3-7. Other Interior Features
3-7. Other interior features Sun visors To set the visor in the forward position, flip it down. To set the visor in the side position, flip down, unhook, and swing it to the side. To use the side extender, place the visor in the side position, then slide it back- ward.
Page 597: Vanity Mirrors
3-7. Other interior features Vanity mirrors Slide the cover to open. The light turns on when the cover is opened. To prevent 12-volt battery discharge ■ When the “POWER” switch is turned off, the lights will go off automatically after 20 minutes.
Page 598: Clock
Refer to the “Navigation System Owner’ s Manual”. With the Lexus Display Audio system Adjusts the hours Adjusts the minutes Without a navigation system or the Lexus Display Audio system Adjusts the hours Adjusts the minutes The clock is displayed when ■...
Page 599: Outside Temperature Display
With a navigation system Refer to the “Navigation System Owner’ s Manual”. With the Lexus Display Audio system The outside temperature is dis- played on the air conditioning operation screen. (→P. 342) Without a navigation system or the Lexus Display Audio system...
Page 600 If the temperature does not appear (without the Lexus Display Audio system) ■ The system may be malfunctioning. Take your vehicle to your Lexus dealer. When “- -” or “E” is displayed (with the Lexus Display Audio system) ■ The system may be malfunctioning. Take your vehicle to your Lexus dealer.
Page 601: Multi-Display Light Control
3-7. Other interior features ∗ Multi-display light control The brightness of the multi-display can be adjusted to four levels. Press and release the “DISP” switch until the brightness of the display is adjusted to the desired level. Instrument panel linked brightness control ■...
Page 602: Power Outlets
3-7. Other interior features Power outlets The power outlets can be used for the following components. 12 V: Accessories that run on less than 10 A. 120 VAC: Accessories that use less than 100 W. Inside the console (12 V) Pull up the lever to release the STEP lock, and lift the armrest.
Page 603 3-7. Other interior features Luggage compartment (12V) Open the cover. On the back surface of the console (120 VAC)* Open the cover. *: If equipped The power outlets can be used when ■ 12 V The “POWER” switch is in ACCESSORY or ON mode. 120 VAC The “POWER”...
Page 604 3-7. Other interior features NOTICE To avoid damaging the power outlets ■ Close the power outlet lid when the power outlet is not in use. Foreign objects or liquids that enter the power outlet may cause a short circuit. To prevent the fuse from being blown ■...
Page 605: Heated Steering Wheel
If the indicator light does not come on ■ If the indicator light does not come on when the switch is pressed, a malfunction may have occurred in the system. Have the vehicle inspected by your Lexus dealer. CAUTION Burns ■...
Page 606: Seat Heaters And Ventilators
3-7. Other interior features ∗ Seat heaters and ventilators The seat heaters and ventilators heat the seats and maintain good airflow by blowing air from the seats. Turns the seat heater on The indicator light comes on. The higher the number is, the warmer the seat becomes.
Page 607 3-7. Other interior features NOTICE To prevent damage to the seat heaters/ventilators ■ Do not put heavy objects that have an uneven surface on the seat and do not stick sharp objects (needles, nails, etc.) into the seat. To prevent 12-volt battery discharge ■...
Page 608: Armrest
3-7. Other interior features Armrest Pull the armrest down for use. NOTICE To prevent damage to the armrest ■ Do not place too much strain on the armrest.
Page 609: Coat Hooks
3-7. Other interior features Coat hooks To use the coat hook, push it in. CAUTION Items that must not be hung on the hook ■ Do not hang a coat hanger or other hard or sharp object on the hook. If the SRS curtain shield airbags deploy, these items may become projectiles that cause death or serious injury.
Page 610: Assist Grips
3-7. Other interior features Assist grips An assist grip installed on the ceiling can be used to support your body while sitting on the seat. CAUTION Assist grip ■ Do not use the assist grip when getting in or out of the vehicle or rising from your seat.
Page 611: Floor Mat
3-7. Other interior features Floor mat Use only floor mats designed specifically for vehicles of the same model and model year as your vehicle. Fix them securely in place onto the carpet. Insert the retaining hooks (clips) STEP into the floor mat eyelets. Turn the upper knob of each STEP retaining hook (clip) to secure...
Page 612 ■ Do not use floor mats designed for other models or different model year vehicles, ● even if they are Lexus Genuine floor mats. Only use floor mats designed for the driver's seat. ● Always install the floor mat securely using the retaining hooks (clips) provided.
Page 613: Luggage Compartment Features
3-7. Other interior features Luggage compartment features ■ Cargo hooks Pull the hook to use. The cargo hooks are provided for securing loose items. ■ Auxiliary boxes Pull the strap upwards when lift- ing the cover up.
Page 614 3-7. Other interior features ■ Luggage cover (if equipped) Push from above until the claws STEP on both sides are securely locked in position. Pull out the luggage cover and STEP hook it onto the anchors. Removing the luggage covers Front luggage cover Press the buttons to remove the luggage cover.
Page 615 3-7. Other interior features Rear luggage cover Detach the outer clips of the rear STEP luggage cover from the back door. Detach the inner clips of the rear STEP luggage cover from the back door. Installing the rear luggage cover ■...
Page 616 3-7. Other interior features CAUTION When the cargo hooks are not in use ■ To avoid injury, always return the cargo hooks to their stowed positions.
Page 617: Garage Door Opener
3-7. Other interior features Garage door opener The garage door opener can be programmed to operate garage doors, gates, entry doors, door locks, home lighting systems, security systems, and other devices.  The garage door opener (HomeLink Universal Transceiver) is manufactured ...
Page 618 3-7. Other interior features Press and hold one of the STEP  HomeLink buttons and the trans- mitter button. When  HomeLink indicator light changes from a slow to a rapid flash, you can release both buttons.  If the HomeLink indicator light comes on but does not flash, or flashes rapidly for 2 seconds and...
Page 619 3-7. Other interior features ■ Programming a Rolling Code system (for U.S.A. owners) If your device is Rolling Code equipped, follow the steps under the  heading “Programming the HomeLink ” before proceeding with the steps listed below. Locate the learn button on the ceiling mounted garage door STEP opener motor.
Page 620 HomeLink buttons. ■ Programming other devices To program other devices such as home security systems, home door locks or lighting, contact your authorized Lexus dealer for assistance. ■ Reprogramming a button  The individual HomeLink buttons cannot be erased but can be reprogrammed.
Page 621 3-7. Other interior features  Erasing the entire HomeLink memory (all three programs) Press and hold the 2 outside but- tons for 10 seconds until the indi- cator light flashes. If you sell your vehicle, be sure to erase the programs stored in the ...
Page 622 3-7. Other interior features Certification for the garage door opener ■ For vehicles sold in the U.S.A. FCC ID: NZLGHSHL4 FCC ID: NZLOBIHL4 FCC ID: NZLWZLHL4 NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 623: Compass
3-7. Other interior features ∗ Compass The compass on the inside rear view mirror indicates the direction in which the vehicle is heading. ■ Operation To turn the compass on or off, press for more than 3 seconds. The location the compass is dis- played differs according to the type of inner rear view mirror.
Page 624 3-7. Other interior features Calibrating the compass The direction display deviates from the true direction determined by the earth’ s magnetic field. The amount of deviation varies depending on the geographic position of the vehicle. If you cross over one of the map boundaries shown in illustration, the com- pass will deviate.
Page 625 3-7. Other interior features Referring to the map above, press to select the number of STEP the zone you are in. If the direction is displayed for several seconds after adjustment, the calibration is complete. ■ Circling calibration If “C” appears on the display, drive the vehicle at 5 mph (8 km/h) or less in a circle until a direction is displayed.
Page 626 3-7. Other interior features CAUTION While driving the vehicle ■ Do not adjust the display. Adjust the display only when the vehicle is stopped. When doing the circling calibration ■ Secure a wide space, and watch out for people and vehicles in the vicinity. Do not violate any local traffic rules while performing circling calibration.
Page 627: Safety Connect
Telematics Subscription Service Agreement and its Terms and Conditions, as in effect and amended from time to time, a current copy of which is avail- able at Lexus.com. All use of the Safety Connect service is subject to such then-applicable Terms and Conditions.
Page 628 After you have signed the Telematics Subscription Service Agree- ment and are enrolled, you can begin receiving services. A variety of subscription terms is available for purchase. Contact your Lexus dealer, call 1-800-25-LEXUS (1-800-255-3987) or push the “SOS” button in your vehicle for further subscription details.
Page 629 ● ing Safety Connect. Safety Connect is available beginning Fall 2009 on select Lexus models. Con- ● tact with the Safety Connect response center is dependent upon the telematics device being in operative condition, cellular connection availability, and GPS satellite signal reception, which can limit the ability to reach the response center or receive emergency service support.
Page 630 • Green indicator light flashing = Safety Connect call in process • Red indicator light (except at vehicle start-up) = System malfunction (contact your Lexus dealer) • No indicator light (off) = Safety Connect service not active Safety Connect services ■...
Page 631 After filing a police report, call the Safety Connect response center at 1-800-25- LEXUS (1-800-255-3987) and follow the prompts for Safety Con- nect to initiate this service. In addition to assisting law enforcement with recovery of a stolen vehi- cle, Safety-Connect-equipped vehicle location data may, under cer- tain circumstances, be shared with third parties to locate your vehicle.
Page 632 3-7. Other interior features Safety information for Safety Connect Important! Read this information before using Safety Connect. ■ Exposure to radio frequency signals The Safety Connect system installed in your vehicle is a low-power radio transmitter and receiver. It receives and also sends out radio fre- quency (RF) signals.
Page 633 3-7. Other interior features Certification for Lexus Enform with Safety Connect ■ FCC ID: O9EGTM1 FCC ID: O6Y-CDMRF101 FCC ID: N7NGTM2 NOTE: This device complies with Part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 634 Maintenance and care 4-1. Maintenance and care 4-3. Do-it-yourself maintenance Cleaning and protecting the vehicle exterior..... 634 Do-it-yourself service precautions......648 Cleaning and protecting the vehicle interior....637 Hood........... 651 Positioning a floor jack ..652 4-2. Maintenance Engine compartment ... 654 Maintenance 12-volt battery ......
Page 635: Cleaning And Protecting The Vehicle Exterior
4-1. Maintenance and care Cleaning and protecting the vehicle exterior Perform the following to protect the vehicle and maintain it in prime condi- tion: ● Working from top to bottom, liberally apply water to the vehicle body, wheel wells and underside of the vehicle to remove any dirt and dust.
Page 636 4-1. Maintenance and care Aluminum wheels ■ Remove any dirt immediately by using a neutral detergent. Do not use hard ● brushes or abrasive cleaners. Do not use strong or harsh chemical cleaners. Use the same mild detergent and wax as used on the paint. Do not use detergent on the wheels when they are hot, for example after driving ●...
Page 637 4-1. Maintenance and care NOTICE To prevent paint deterioration and corrosion on the body and components (alu- ■ minum wheels etc.) Wash the vehicle immediately in the following cases: ● • After driving near the sea coast • After driving on salted roads •...
Page 638: Cleaning And Protecting The Vehicle Interior
4-1. Maintenance and care Cleaning and protecting the vehicle interior The following procedures will help protect your vehicle's interior and keep it in top condition: ■ Protecting the vehicle interior Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces with a cloth dampened with lukewarm water.
Page 639 4-1. Maintenance and care Caring for leather areas ■ Lexus recommends cleaning the interior of the vehicle at least twice a year to main- tain the quality of the vehicle’ s interior. Shampooing the carpets ■ There are several commercial foaming-type cleaners available. Use a sponge or brush to apply the foam.
Page 640 4-1. Maintenance and care NOTICE Cleaning detergents ■ Do not use the following types of detergent, as they may discolor the vehicle inte- ● rior or cause streaks or damage to painted surfaces: • Non-seat portions: Organic substances such as benzene or gasoline, alkaline or acidic solutions, dye, or bleach •...
Page 641: Maintenance Maintenance Requirements
It is recommended that genuine Lexus parts be used for repair to ensure perfor- mance of each system. If non-Lexus parts are used in replacement or if a repair shop other than a Lexus dealer performs repairs, confirm the warranty coverage.
Page 642 Allow inspection and repairs to be performed by a Lexus dealer ■ Lexus technicians are well-trained specialists and are kept up to date with the ● latest service information. They are well informed about the operations of all systems on your vehicle.
Page 643 4-2. Maintenance CAUTION If your vehicle is not properly maintained ■ Improper maintenance could result in serious damage to the vehicle and possible serious injury or death. Handling of the 12-volt battery ■ Engine exhaust, some of its constituents, and a wide variety of automobile com- ●...
Page 644: General Maintenance
“Warranty and Service Guide” or “Owner’s Manual Supplement”. It is recommended that any problem you notice should be brought to the attention of your Lexus dealer or qualified service shop for advice. Engine compartment...
Page 645 4-2. Maintenance Vehicle interior Items Check points 12-volt battery Check the connections. (→P. 664) • The accelerator pedal should move Accelerator pedal smoothly (without uneven pedal effort or catching). • Does the brake pedal move smoothly? • Does the brake pedal have appro- priate clearance from the floor? Brake pedal (→P.
Page 646 4-2. Maintenance Items Check points • Do the indicators and buzzers Indicators/buzzers function properly? • Do all the lights come on? Lights • Are the headlights aimed cor- rectly? (→P. 705) • Does the parking brake pedal move smoothly? Parking brake •...
Page 647 4-2. Maintenance Vehicle exterior Items Check points Doors • Do the doors operate smoothly? • Does the engine hood lock system Engine hood work properly? • There should not be any signs of Fluid leaks fluid leakage after the vehicle has been parked.
Page 648: Emission Inspection And Maintenance (I/M) Programs
If the malfunction indicator lamp comes on The OBD system determines that a problem exists somewhere in the emission control system. Your vehicle may not pass the I/M test and may need to be repaired. Contact your Lexus dealer to service the vehicle. ■...
Page 649: Do-It-Yourself Maintenance Do-It-Yourself Service Precautions
4-3. Do-it-yourself maintenance Do-it-yourself service precautions If you perform maintenance by yourself, be sure to follow the correct pro- cedures as given in these sections. Items Parts and tools • Grease 12-volt battery condition (→ P. 664 ) • Conventional wrench (for terminal clamp bolts) •...
Page 650 4-3. Do-it-yourself maintenance Items Parts and tools • “Toyota Genuine Motor Oil” or equivalent Engine oil level (→P. 656) • Rag or paper towel • Funnel (used only for adding engine oil) • Fuse with same amperage rating as Fuses (→P.
Page 651 4-3. Do-it-yourself maintenance CAUTION The engine compartment contains many mechanisms and fluids that may move sud- denly, become hot, or become electrically energized. To avoid death or serious injury, observe the following precautions: When working on the engine compartment ■ Make sure that the indicator on the “POWER”...
Page 652: Hood
4-3. Do-it-yourself maintenance Hood Release the lock from the inside of the vehicle to open the hood. Pull the hood lock release lever. STEP The hood will pop up slightly. Pull up the hood catch and lift STEP the hood. CAUTION Pre-driving check ■...
Page 653: Positioning A Floor Jack
4-3. Do-it-yourself maintenance Positioning a floor jack When raising your vehicle with a floor jack, position the jack correctly. Improper placement may damage your vehicle or cause injury. ■ Front ■ Rear...
Page 654 4-3. Do-it-yourself maintenance CAUTION When raising your vehicle ■ Make sure to observe the following precautions to reduce the possibility of death or serious injury: Lift up the vehicle using a floor jack such as ● the one shown in the illustration. When using a floor jack, follow the instructions of the manual provided with the ●...
Page 655: Engine Compartment
4-3. Do-it-yourself maintenance Engine compartment Brake fluid reservoir Engine coolant reservoir (→P. 662) (→P. 659) Engine oil filler cap Condenser (→P. 661) (→P. 657) Radiator (→P. 661) Engine oil level dipstick Electric cooling fans (→P. 656) Power control unit coolant Power control unit coolant radiator (→P.
Page 656 4-3. Do-it-yourself maintenance Engine compartment cover ■ Removing the engine compartment covers Outside Front ■ Installing the clips...
Page 657 4-3. Do-it-yourself maintenance NOTICE After installing an engine compartment cover ■ Make sure that the cover is securely installed in its original position. Engine oil With the engine at operating temperature and turned off, check the oil level on the dipstick. ■...
Page 658 4-3. Do-it-yourself maintenance Holding a rag under the end, pull the dipstick out and check the STEP oil level. Normal Excessive The shape of the dipstick may dif- fer depending on the type of vehi- cle or engine. Wipe the dipstick and reinsert it fully. STEP ■...
Page 659 ● pose of used oil and filters in household trash, in sewers or onto the ground. Call your Lexus dealer, service station or auto parts store for information con- cerning recycling or disposal. Do not leave used engine oil within the reach of children.
Page 660 4-3. Do-it-yourself maintenance NOTICE To prevent serious engine damage ■ Check the oil level on a regular basis. When replacing the engine oil ■ Be careful not to spill engine oil on the vehicle components. ● Avoid overfilling, or the engine could be damaged. ●...
Page 661 If the coolant level drops within a short time of replenishing ■ Visually check the radiators, hoses, engine/power control unit coolant reservoir caps, drain cock and water pump. If you cannot find a leak, have your Lexus dealer test the cap and check for leaks in the cooling systems.
Page 662 Check the radiator and condenser and clear away any foreign objects. If either of the above parts are extremely dirty or you are not sure of their condition, have your vehicle checked by your Lexus dealer. CAUTION When the hybrid system is hot ■...
Page 663 4-3. Do-it-yourself maintenance Brake fluid ■ Checking fluid level The brake fluid level should be between the “MAX” and “MIN” lines on the tank. ■ Adding fluid Make sure to check the fluid type and prepare the necessary item. Fluid type FMVSS No.116 DOT 3 or SAE J1703 Items Clean funnel...
Page 664 4-3. Do-it-yourself maintenance NOTICE If the fluid level is low or high ■ It is normal for the brake fluid level to go down slightly as the brake pads wear out or when the fluid level in the accumulator is high. If the reservoir needs frequent refilling, may be a serious problem.
Page 665: 12-Volt Battery
4-3. Do-it-yourself maintenance 12-volt battery ■ Location The 12-volt battery is located on the left-hand side of the luggage compartment. ■ Removing the 12-volt battery cover Vehicles with a compact spare tire Pull the lever upward to fold STEP back the front part of the deck board.
Page 666 4-3. Do-it-yourself maintenance Pull on the attached hook to STEP extend the string. Use the hook to secure the deck STEP board as shown in the illustra- tion. Remove the spare tire cover. STEP After removing clips, STEP remove the 12-volt battery cover.
Page 667 4-3. Do-it-yourself maintenance Vehicles with a full-size spare tire Pull the lever upward to fold STEP back the front part of the deck board. Pull on the attached hook to STEP extend the string. Use the hook to secure the deck STEP board as shown in the illustra- tion.
Page 668 4-3. Do-it-yourself maintenance After removing clips, STEP remove the 12-volt battery cover. ■ Exterior Make sure that the 12-volt battery terminals are not corroded and that there are no loose connections, cracks or loose clamps. Terminals Hold-down clamp ■ Installing the 12-volt battery cover Install the 12-volt battery cover with the clips.
Page 669 With the shift lever in P and the “POWER” switch off, open and close any door ● and then attempt to start the hybrid system. If the system will not start even after multiple attempts at both methods, contact your Lexus dealer. CAUTION Chemicals in the 12-volt battery ■...
Page 670 Use a 12-volt battery designed for the RX450h. Failure to do so may cause gas (hydrogen) to enter the passenger compartment, causing a fire or explosion. For replacement of the 12-volt battery, contact your Lexus dealer. NOTICE When recharging the 12-volt battery ■...
Page 671: Tires
Vehicles with a compact spare tire Rotate the tires in the order shown. To equalize tire wear and extend tire life, Lexus recommends that tire rotation is carried out at the Front same interval as tire inspection. Vehicles with a full-size spare tire Rotate the tires in the order shown.
Page 672 4-3. Do-it-yourself maintenance ■ The tire pressure warning system Your Lexus is equipped with a tire pressure warning system that uses tire pressure warning valves and transmitters to detect low tire infla- tion pressure before serious problems arise. (→P. 736)
Page 673 4-3. Do-it-yourself maintenance ■ How to initialize the tire pressure warning system Park the vehicle in a safe place and turn the “POWER” switch off. STEP Initialization cannot be performed while the vehicle is moving. Adjust the tire inflation pressure to the specified cold tire inflation STEP pressure level.
Page 674 A tire goes flat repeatedly or cannot be properly repaired due to the size or ● location of a cut or other damage. If you are not sure, consult with your Lexus dealer. Replacing tires and wheels ■ If the ID code of the tire pressure warning valve and transmitter is not registered, the tire pressure warning system will not work properly.
Page 675 4-3. Do-it-yourself maintenance Maximum load of tire ■ Check that the number given by dividing the maximum load by 1.10 of the replace- ment tire is greater than 1/2 of the Gross Axle Weight Ratings (GAWR) of either the front axle or the rear axle, whichever is greater. For the GAWR, see the Certification Label.
Page 676 If repeated attempts to record tire inflation pressure settings are unsuccessful, have the vehicle inspected by your Lexus dealer. When operating the tire pressure warning reset switch, the tire pressure warn- ●...
Page 677 4-3. Do-it-yourself maintenance Certification for tire pressure warning system ■ TPMS Transmitter FCC ID: PAXPMV107J For vehicles sold in the U.S.A. NOTE: This device complies with part 15 of the FCC Rules. Operation is subject to the fol- lowing two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 678 Do not mix tires of different makes, models or tread patterns. Also, do not mix ● tires of remarkably different treadwear. Do not use tire sizes other than those recommended by Lexus. ● Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
Page 679 When a tire is repaired with liquid sealants, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used, contact your Lexus dealer or other qualified service shop as soon as possible. Make sure to replace the tire pressure warning valve and transmitter when replacing the tire.
Page 680: Tire Inflation Pressure
4-3. Do-it-yourself maintenance Tire inflation pressure ■ Tire inflation pressure The recommended cold tire inflation pressure and tire size is dis- played on the tire and loading information label. (→P. 807)
Page 681 4-3. Do-it-yourself maintenance ■ Inspection and adjustment procedure Tire valve Tire pressure gauge Remove the tire valve cap. STEP Press the tip of the tire pressure gauge onto the tire valve. STEP Read the pressure using the gauge graduations. STEP If the tire inflation pressure is not at the recommended level, STEP adjust the pressure.
Page 682 Reduced safety ● Damage to the drive train ● If a tire needs frequent inflating, have it checked by your Lexus dealer. Instructions for checking tire pressure ■ When checking tire inflation pressure, observe the following: Check only when the tires are cold.
Page 683 4-3. Do-it-yourself maintenance CAUTION Proper inflation is critical to save tire performance ■ Keep your tires properly inflated. Otherwise, the following conditions may occur and result in an accident causing death or serious injury: Excessive wear ● Uneven wear ● Poor handling ●...
Page 684: Wheels
● Bent wheels that have been straightened ■ Aluminum wheel precautions ● Use only Lexus wheel nuts and wrenches designed for use with your aluminum wheels. ● When rotating, repairing or changing your tires, check that the wheel nuts are still tight after driving 1000 miles (1600 km).
Page 685 Because tire repair or replacement may affect the tire pressure warning valves ● and transmitters, make sure to have tires serviced by your Lexus dealer or other qualified service shop. In addition, make sure to purchase your tire pressure warning valves and transmitters at your Lexus dealer.
Page 686: Air Conditioning Filter
4-3. Do-it-yourself maintenance Air conditioning filter The air conditioning filter must be changed regularly to maintain air condi- tioning efficiency. ■ Removal method Turn the “POWER” switch off. STEP Open the glove box. Lift and STEP remove the partition. Remove the glove box cover. STEP Remove the filter cover.
Page 687 4-3. Do-it-yourself maintenance Remove the air conditioning fil- STEP ter and replace it with a new one. The “↑UP” mark shown on the filter should be pointing up. Checking interval ■ Inspect and replace the air conditioning filter according to the maintenance sched- ule.
Page 688: Electronic Key Battery
4-3. Do-it-yourself maintenance Electronic key battery Replace the battery with a new one if it is discharged. ■ You will need the following items: ● Flathead screwdriver ● Small Phillips-head screwdriver ● Lithium battery (CR1632) ■ Replacing the battery Take out the mechanical key. STEP Remove the cover.
Page 689 ● When the card key battery needs to be replaced (if equipped) ■ The battery for the card key is available only at Lexus dealers. Your Lexus dealer can replace the battery for you. CAUTION Removed battery and other parts ■...
Page 690: Checking And Replacing Fuses
4-3. Do-it-yourself maintenance Checking and replacing fuses If any of the electrical components do not operate, a fuse may have blown. If this happens, check and replace the fuses as necessary. Turn the “POWER” switch off. STEP Remove the engine compartment cover. (→P. 655) STEP Open the fuse box cover.
Page 691 4-3. Do-it-yourself maintenance Engine compartment (type C fuse box) Push the tab in and lift the lid off. Driver's side instrument panel Remove the lid. Luggage compartment (type A fuse box)
Page 692 4-3. Do-it-yourself maintenance Luggage compartment (type B fuse box) Remove the terminal cover. After a system failure, see “Fuse layout and amperage ratings” STEP for details about which fuse to check. (→P. 694) Remove the fuse with the pull- STEP out tool.
Page 693 4-3. Do-it-yourself maintenance Type B Normal fuse Blown fuse Replace the blown fuse with a new fuse of an appropriate amperage rating. The amperage rating can be found on the fuse box lid. Type C Normal fuse Blown fuse Replace the blown fuse with a new fuse of an appropriate amperage rating.
Page 694 Type E Normal fuse Blown fuse Replace the blown fuse with a new fuse of an appropriate amperage rating. The amperage rating can be found on the fuse box lid. Type F Normal fuse Blown fuse Contact your Lexus dealer.
Page 695 4-3. Do-it-yourself maintenance Fuse layout and amperage ratings ■ Engine compartment (type A fuse box) Fuse Ampere Circuit 15 A Hybrid system IGCT NO. 2 10 A Hybrid system IGCT NO. 3 10 A Hybrid system INV W/P 10 A Hybrid system...
Page 696 4-3. Do-it-yourself maintenance ■ Engine compartment (type B fuse box) Fuse Ampere Circuit RR DEF 50 A Rear window defogger AIR SUS 50 A HEATER 50 A Air conditioning system ABS NO. 1 50 A Electronically controlled brake system RDI FAN NO. 1 40 A Electric cooling fans RDI FAN NO.
Page 697 4-3. Do-it-yourself maintenance Fuse Ampere Circuit IG1 MAIN, TOWING BATT, DEICER, TOWING, STOP, RDI FAN NO. 1, ABS NO. 1, RR DEF, AIR SUS, HEATER, RDI FAN NO. 2, H-LP CLN, PBD, ECU-IG1 NO. 1, ECU- IG1 NO. 3, GAUGE NO. 1, ECU-IG1 NO.
Page 698 4-3. Do-it-yourself maintenance Fuse Ampere Circuit 7.5 A Starter system Air conditioning system, front passen- ger occupant classification system, ECU-B NO. 2 7.5 A audio system, vehicle dynamics inte- grated management, power windows, electric power steering system MAYDAY/TEL 7.5 A MAYDAY/TEL IMMOBI 7.5 A...
Page 699 4-3. Do-it-yourself maintenance Fuse Ampere Circuit Air conditioning system, rear window ECU-IG1 NO. 4 10 A defogger, electronically controlled brake system, electric cooling fans BK/UP LP 7.5 A Back-up lights ECU-IG1 NO. 5 15 A Air conditioning system Head light cleaner, cruise control, air ECU-IG1 NO.
Page 700 4-3. Do-it-yourself maintenance Fuse Ampere Circuit BIXENON 10 A H-LP RH LO 15 A Right-hand headlight (low beam) H-LP LH LO 15 A Left-hand headlight (low beam) HORN 10 A Horn Multiport fuel injection system/ 20 A sequential multiport fuel injection sys- S-HORN 7.5 A S-HORN...
Page 701 4-3. Do-it-yourself maintenance ■ Driver’s side instrument panel Fuse Ampere Circuit P/POINT 15 A Power outlet Navigation system, air conditioning system, audio system, multiplex com- ECU-ACC 10 A munication system, multi-information display, head-up display 15 A Power outlet RADIO NO. 2 7.5 A Audio system, navigation system Emergency flashers, navigation sys-...
Page 702 4-3. Do-it-yourself maintenance Fuse Ampere Circuit Multiplex communication system, steering sensor, shift lock control sys- tem, tilt and telescopic steering, ECU-IG1 NO. 1 10 A power back door, pre-collision sys- tem, vehicle dynamics integrated management, tire pressure warning system S/ROOF 30 A Moon roof FUEL OPN...
Page 703 4-3. Do-it-yourself maintenance Fuse Ampere Circuit Parking lights, front side marker lights, TAIL 10 A tail lights, license plate lights, front fog lights, towing converter AIR SUS 20 A P-SEAT RH 30 A Power seat (right-side) 7.5 A On-board diagnosis Front power window (right-side), out- FR DOOR 25 A...
Page 704 4-3. Do-it-yourself maintenance ■ Luggage compartment (type A fuse box) Fuse Ampere Circuit DCDC-S 7.5 A Hybrid system CAPACITOR 10 A Capacitor ■ Luggage compartment (type B fuse box) Fuse Ampere Circuit MAIN 180 A All electrical components RR-B 50 A CAPACITOR, DCDC-S 80 A Hybrid system...
Page 705 If the lights do not turn on even after the fuse has been replaced, a bulb may ● need replacement. (→P. 708) If the replaced fuse blows again, have the vehicle inspected by your Lexus ● dealer. If there is an overload in the circuit ■...
Page 706: Headlight Aim
4-3. Do-it-yourself maintenance Headlight aim (vehicles without LED headlights) ■ Removing the engine compartment cover →P. 655 ■ Vertical movement adjusting bolts Vehicles with halogen headlights Adjustment bolt A Adjustment bolt B Vehicles with discharge headlights Adjustment bolt A Adjustment bolt B ■...
Page 707 Turn bolt B the same number of STEP turns and in the same direction as in step 1 using a Phillips-head screwdriver. If the headlight cannot be adjusted using this procedure, take the vehicle to your Lexus dealer to adjust the headlight aim.
Page 708 Turn bolt B the same number of STEP turns and in the same direction as step 1 using a Phillips-head screwdriver. If the headlight cannot be adjusted using this procedure, take the vehicle to your Lexus dealer to adjust the headlight aim.
Page 709: Light Bulbs
You may replace the following bulbs by yourself. The difficulty level of replacement varies depending on the bulb. If necessary bulb replacement seems difficult to perform, contact your Lexus dealer. For more information about replacing other light bulbs, contact your Lexus dealer. ■...
Page 710 4-3. Do-it-yourself maintenance Vehicles with discharge headlights Headlight high beam Front turn signal light Vehicles with LED headlights Headlight high beam Front turn signal light...
Page 711 4-3. Do-it-yourself maintenance ■ Rear bulb locations Tail light Tail light Back-up light Rear side marker light Rear turn signal light Replacing light bulbs ■ Headlight high beams (vehicles without LED headlights) Unplug the connector while STEP depressing the lock release.
Page 712 4-3. Do-it-yourself maintenance Turn the bulb base counterclock- STEP wise. Replace the light bulb, and install STEP the bulb base. Align the 3 tabs on the light bulb with the mounting, and insert. Turn and secure the bulb base. STEP Connect the connector.
Page 713 4-3. Do-it-yourself maintenance ■ Headlight high beams (vehicles with LED headlights) Turn the cover counterclockwise STEP and remove it. Unplug the connector while pull- STEP ing the lock release. Turn the bulb base counterclock- STEP wise. Replace the light bulb, and install STEP the bulb base.
Page 714 4-3. Do-it-yourself maintenance Turn and secure the bulb base. STEP Connect the connector. Shake the bulb base gently to check that it is not loose, turn the headlight high beams on once and visually confirm that no light is leak- ing through the mounting.
Page 715 4-3. Do-it-yourself maintenance ■ Headlight low beams (vehicles with halogen headlights) Turn the bulb base counterclock- STEP wise. Unplug the connector while STEP depressing the lock release. Replace the light bulb, and install STEP the bulb base. Align the 3 tabs on the light bulb with the mounting, and insert.
Page 716 4-3. Do-it-yourself maintenance ■ Front turn signal light (left side) Move the fuse box. STEP Vehicles with LED headlights: STEP Unplug the connector while depressing the lock release. Turn the bulb base counterclock- STEP wise. Remove the light bulb. STEP...
Page 717 4-3. Do-it-yourself maintenance ■ Front turn signal light (right side) Move the washer fluid filler open- STEP ing. Turn the bulb base counterclock- STEP wise. Remove the light bulb. STEP...
Page 718 4-3. Do-it-yourself maintenance ■ Rear turn signal and tail lights Remove the access hole cover. STEP flathead screwdriver wrapped in a cloth. Turn the bulb base counterclock- STEP wise. Tail light Rear turn signal light Remove the light bulb. STEP Tail light Rear turn signal light...
Page 719 4-3. Do-it-yourself maintenance ■ Tail and back-up lights Remove the access hole cover. STEP flathead screwdriver wrapped in a cloth. Turn the bulb base counterclock- STEP wise. Tail light Back-up light Remove the light bulb. STEP Tail light Back-up light...
Page 720 4-3. Do-it-yourself maintenance ■ Rear side marker light (right side) Remove the bolts using a Phillips- STEP head screwdriver and remove the clip. Removing the clip Installing the clip Turn the bulb base counterclock- STEP wise. Remove the light bulb. STEP...
Page 721 STEP ■ Lights other than the above If any of the lights listed below has burnt out, have it replaced by your Lexus dealer. ● Headlight low beams (vehicles without halogen headlights) ● Daytime running lights ● Parking lights ● Front side marker lights ●...
Page 722 ■ Temporary condensation build-up on the inside of the headlight lens does not indi- cate a malfunction. Contact your Lexus dealer for more information in the following situations: Large drops of water are built up on the inside of the lens.
Page 723 Discharge headlights (if equipped) ■ Contact your Lexus dealer before replacing discharge headlights (including light ● bulbs). Do not touch the discharge headlight’ s high voltage socket when the headlights ●...
Page 724: 5-1. Essential Information
When trouble arises 5-1. Essential information 5-2. Steps to take in an emergency Emergency flashers....724 If a warning light turns If your vehicle needs to be on or a warning buzzer towed ........725 sounds........733 If you think something is If a warning message is wrong ........
Page 725: Emergency Flashers
5-1. Essential information Emergency flashers The emergency flashers are used to warn other drivers when the vehicle has to be stopped in the road due to a breakdown, etc. Press the switch. All the turn signal lights will flash. To turn them off, press the switch once again.
Page 726: If Your Vehicle Needs To Be Towed
If your vehicle needs to be towed If towing is necessary, we recommend having your vehicle towed by your Lexus dealer or a commercial towing service, using a lift-type truck or a flatbed truck. Use a safety chain system for all towing, and abide by all state/provincial and local laws.
Page 727 5-1. Essential information Emergency towing If a tow truck is not available in an emergency, your vehicle may be temporarily towed using a cable or chain secured to the emergency towing eyelet(s). This should only be attempted on hard surfaced roads for short distances at under 18 mph (30 km/h).
Page 728 5-1. Essential information Type B Insert the mechanical key (→P. STEP 52) into the groove and release the claws. With the mechanical key inserted, remove the eyelet cover by pulling it towards you. Insert the towing eyelet into the STEP hole and tighten as much as possi- ble by hand.
Page 729 5-1. Essential information Towing with a sling-type truck Do not tow with a sling-type truck to prevent body damage. Towing with a wheel-lift type truck From the front (2WD models) Release the parking brake. From the front (AWD models) Use a towing dolly under the rear wheels.
Page 730 From the rear Use a towing dolly under the front wheels. Using a flatbed truck If your Lexus is transported by a flatbed truck, it should be tied down at the locations shown in the illustration. If you use chains or cables to tie down your vehicle, the angles shaded in black must be 45°.
Page 731 5-1. Essential information Before emergency towing ■ Release the parking brake. STEP Shift the shift lever to N. STEP Turn the “POWER” switch to ACCESSORY (hybrid system off) or ON STEP (hybrid system operating) mode. Emergency towing eyelet location ■ →P.
Page 732 5-1. Essential information NOTICE To prevent causing serious damage to the hybrid transmission and AWD system ■ (AWD models) when towing using a wheel-lift type truck 2WD models: Never tow this vehicle from the rear with the front wheels on the ground. This may cause serious damage to the hybrid transmission.
Page 733: If You Think Something Is Wrong
5-1. Essential information If you think something is wrong If you notice any of the following symptoms, your vehicle probably needs adjustment or repair. Contact your Lexus dealer as soon as possible. ■ Visible symptoms ● Fluid leaks under the vehicle.
Page 734: 5-2. Steps To Take In An Emergency
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous. The following warning indicates a possible problem in the brake system. Immediately stop the vehicle in a safe place and contact your Lexus dealer. Warning light...
Page 735 Have the vehicle inspected immediately. Failing to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident. Have the vehicle inspected by your Lexus dealer immediately. Warning light Warning light/Details Malfunction indicator lamp Indicates a malfunction in: (U.S.A.)
Page 736: If A Warning Light Turns
5-2. Steps to take in an emergency Warning light Warning light/Details Pre-collision system warning light (if equipped) Indicates a malfunction in the pre-collision system The warning light will operate as follows, even when the sys- tem is not malfunctioning: • The light will flash quickly when the system is operating. (→P.
Page 737 5-2. Steps to take in an emergency Follow the correction procedures. After taking the specified steps to correct the suspected problem, check that the warning light goes off. Warning light Warning light/Details Correction procedure Open door warning light (warning buzzer) Check that all the doors are Indicates that one or more of closed.
Page 738 • Flat tire (→P. 764) tire inflation pressure is adjusted, have the system checked by your Lexus dealer. When the light comes on after blinking for 1 minute: Have the system checked by Malfunction in the tire pres- your Lexus dealer.
Page 739 Is the fuel tank cap loose? ● If it is, tighten it securely. The lamp will go off after several driving trips. If the light does not go off even after several trips, contact your Lexus dealer as soon as possible. SRS warning light ■...
Page 740 5-2. Steps to take in an emergency The tire pressure warning light may come on due to natural causes ■ The tire pressure warning light may come on due to natural causes such as natural air leaks and tire inflation pressure changes caused by temperature. In this case, adjusting the tire inflation pressure will turn off the warning light (after a few min- utes).
Page 741 Check the tires. If a tire is flat, change it with the spare tire and have the flat tire repaired by the nearest Lexus dealer. Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you could ●...
Page 742 5-2. Steps to take in an emergency CAUTION Maintenance of the tires ■ Each tire, including the spare (if provided), should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label (tire and load information label). (If your vehicle has tires of a different size than the size indicated on the vehicle placard or tire inflation pressure label [tire and load information label], you should determine the proper tire inflation pressure for those tires.)
Page 743 5-2. Steps to take in an emergency NOTICE Precaution when installing a different tire ■ When a tire of a different specification or maker is installed, the tire pressure warn- ing system may not operate properly.
Page 744: If A Warning Message Is Displayed
Lexus dealer. Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous. The following warning indicates a possible problem in the brake system. Immediately stop the vehicle in a safe place and contact your Lexus dealer. Warning message...
Page 745 A buzzer sounds and a warning message is shown on the multi-informa- tion display. The following warning indicates the possibility of damage to the vehicle that may lead to an accident. Immediately stop the vehicle in a safe place and contact your Lexus dealer. Warning message Details (U.S.A.)
Page 746 5-2. Steps to take in an emergency Have the vehicle inspected by your Lexus dealer immediately. A buzzer sounds and a warning message is shown on the multi-informa- tion display. Failure to investigate the cause of the following warnings may lead to the system operating abnormally and possibly cause an accident.
Page 747 5-2. Steps to take in an emergency Warning message Details Indicates a malfunction in the pre-collision system (Flashes) (If equipped) Indicates a malfunction in the intuitive parking assist The malfunctioning assist-sensor is flashing. (If equipped) Indicates a malfunction in the cruise control system or the radar cruise control system (If equipped) Press the “ON-OFF”...
Page 748 5-2. Steps to take in an emergency Warning message Details Indicates a malfunction in: • The SRS airbag system; • The front passenger occupant classification system; • The seat belt pretensioner system Indicates a malfunction in: • The ABS; or, •...
Page 749 5-2. Steps to take in an emergency Follow the correction procedures. A buzzer sounds and a warning message is shown on the multi-informa- tion display. After taking the specified steps to correct the suspected problem, check that the warning message goes off. Warning message Details Correction procedure...
Page 750 5-2. Steps to take in an emergency Warning message Details Correction procedure Indicates that the back door is not fully closed If the vehicle reaches a speed of 3 mph Close the back door. (5 km/h), a buzzer sounds to indicate that the back door is not yet fully closed.
Page 751 5-2. Steps to take in an emergency Warning message Details Correction procedure Indicates that all mainte- nance according to the driven distance on the maintenance schedule* should be performed If necessary, perform soon. maintenance. Comes on approximately (U.S.A. only) 4500 miles (7200 km) after the maintenance data has been reset.
Page 752 5-2. Steps to take in an emergency Warning message Details Correction procedure Indicates that the pre- collision system is not • Check the grille and the currently functional sensor and clean them if because the grille or the they are dirty. sensor is dirty.
Page 753 5-2. Steps to take in an emergency Warning message Details Correction procedure Indicates that there is a high possibility of a fron- tal collision, or that the pre-collision braking function is operating Slow the vehicle by apply- A buzzer also sounds. ing the brakes.
Page 754 5-2. Steps to take in an emergency Warning message Details Correction procedure Indicates that the hybrid system has overheated A buzzer also sounds. This message may be Stop and check. displayed when driving (→P. 788) under severe operating conditions. (For exam- ple, when driving up a long steep hill.) •...
Page 755 5-2. Steps to take in an emergency Warning message Details Correction procedure Indicates that the “POWER” switch is turned off or turned to ACCESSORY mode and Turn the lights off. the driver's door is (Flashes) opened while the lights are turned on. Indicates that the driver’s door is opened when the hybrid transmission is out...
Page 756 Messages displayed when refueling The following messages are displayed after the fuel filler door opener is pressed. If the messages do not change or are displayed continuously, have the vehicle checked by your Lexus dealer. Message Details Preparing the vehicle for refueling.
Page 757 5-2. Steps to take in an emergency Have the malfunction repaired immediately After taking the specified steps to correct the suspected problem, check that the warning message and light go off. Interior Correction Exterior Warning message Details buzzer buzzer procedure The electronic key Confirm the loca- is not detected...
Page 758 5-2. Steps to take in an emergency Interior Correction Exterior Warning message Details buzzer buzzer procedure An attempt was made to exit the Turn the vehicle with the Sounds Sounds “POWER” switch electronic key and lock the doors once once off and lock the without first turn- doors again.
Page 759 5-2. Steps to take in an emergency Interior Correction Exterior Warning message Details buzzer buzzer procedure The driver’ s door was opened when Con- Shift the shift lever the shift lever was  not in P and the tinuous to P. “POWER”...
Page 760 5-2. Steps to take in an emergency Interior Correction Exterior Warning message Details buzzer buzzer procedure An attempt was made to lock the doors using the smart access sys- tem with push- button start while the electronic key was still inside the vehicle.
Page 761 5-2. Steps to take in an emergency Interior Correction Exterior Warning message Details buzzer buzzer procedure • When the doors were unlocked with the mechanical key and then the “POWER” switch was pressed, the electronic key Touch the elec- could not be tronic key to the Sounds detected in the...
Page 762 5-2. Steps to take in an emergency Interior Correction Exterior Warning message Details buzzer buzzer procedure To turn off the hybrid system, An attempt was first shift the shift made to turn the Sounds  “POWER” switch lever to P and once off when the shift then turn the...
Page 763 5-2. Steps to take in an emergency Interior Correction Exterior Warning message Details buzzer buzzer procedure The driver's door was opened and closed with the “POWER” switch Press the turned off and “POWER” switch then the “POWER” switch while depressing was put in the brake pedal.
Page 764 5-2. Steps to take in an emergency Warning message in radar cruise mode (if equipped) ■ In the following cases, the warning message may not be displayed even if vehicle- to-vehicle distance decreases: When your vehicle and the vehicle ahead are traveling at the same speed or the ●...
Page 765: If You Have A Flat Tire
5-2. Steps to take in an emergency If you have a flat tire Remove the flat tire and replace it with the spare provided. ■ Before jacking up the vehicle ● Stop the vehicle on a hard, flat surface. ● Set the parking brake. ●...
Page 766 5-2. Steps to take in an emergency ■ Location of the spare tire, jack and tools Vehicles with a compact spare tire Spare tire Jack handle cover Wheel nut wrench Tool bag Towing eyelet Jack Spare tire Vehicles with a full-size spare tire Jack handle Spare tire cover...
Page 767 5-2. Steps to take in an emergency Taking out the jack Vehicles with a compact spare tire Pull the lever upward to fold back STEP the front part of the deck board. Pull the folded deck board upright. STEP Pull on the attached hook to STEP extend the string.
Page 768 5-2. Steps to take in an emergency Use the hook to secure the deck STEP board as shown in the illustration. Remove the jack after removing STEP the hook. Vehicles with a full-size spare tire Pull the lever upward to fold back STEP the front part of the deck board.
Page 769 5-2. Steps to take in an emergency Use the hook to secure the deck STEP board as shown in the illustration. Remove the jack after removing STEP the hook. Taking out the spare tire Lift up the deck board. (See “Taking out the jack” for details.) STEP Remove the spare tire cover.
Page 770 5-2. Steps to take in an emergency Vehicles with a full-size spare tire Replacing a flat tire Chock the tires. STEP Wheel chock Flat tire positions Behind the Left- rear right- hand side hand side tire Front Behind the Right- rear left- hand side hand side tire...
Page 771 5-2. Steps to take in an emergency Slightly loosen the wheel nuts (one STEP turn). Turn the tire jack portion “A” by STEP hand until the notch of the jack is in contact with the jack point. Raise the vehicle until the tire is STEP slightly raised off the ground.
Page 772 5-2. Steps to take in an emergency Installing the spare tire Remove any dirt or foreign matter STEP from the wheel contact surface. If foreign matter is on the wheel contact surface, the wheel nuts may loosen while the vehicle is in motion, causing the tire to come off.
Page 773 5-2. Steps to take in an emergency Lower the vehicle. STEP Firmly tighten each wheel nut two STEP or three times in the order shown in the illustration. Tightening torque: 76 ft•lbf (103 N•m, 10.5 kgf•m) Stow the flat tire, tire jack and all tools. STEP The compact spare tire ■...
Page 774 5-2. Steps to take in an emergency If you have a flat front tire on a road covered with snow or ice (vehicles with a ■ compact spare tire) Install the compact spare tire on one of the rear wheels of the vehicle. Perform the following steps and fit tire chains to the front tires: Replace a rear tire with the compact spare tire.
Page 775 • If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by your Lexus dealer. Replacing a flat tire for vehicles with power back door ■...
Page 776 5-2. Steps to take in an emergency CAUTION When using the compact spare tire ■ Remember that the compact spare tire provided is specifically designed for use ● with your vehicle. Do not use your compact spare tire on another vehicle. Do not use more than one compact spare tire simultaneously.
Page 777 When a tire is repaired with liquid sealants, the tire pressure warning valve and transmitter may not operate properly. If a liquid sealant is used, contact your Lexus dealer or other qualified service shop as soon as possible. Make sure to replace the...
Page 778: If The Hybrid System Will Not Start
One of the following may be the cause of the problem: ● One or both of the 12-volt battery terminals may be discon- nected. ● The 12-volt battery may be discharged. (→P. 784) Contact your Lexus dealer if the problem cannot be repaired, or if repair procedures are unknown.
Page 779 Press and hold the “POWER” switch for about 15 seconds while STEP depressing the brake pedal firmly. Even if the hybrid system can be started using the above steps, the system may be malfunctioning. Have the vehicle inspected by your Lexus dealer.
Page 780: If The Shift Lever Cannot Be Shifted From P
If the shift lever cannot be shifted with your foot on the brake pedal, there may be a problem with the shift lock system (a system to prevent accidental operation of the shift lever). Have the vehicle inspected by your Lexus dealer immediately.
Page 781: If You Lose Your Keys
5-2. Steps to take in an emergency If you lose your keys New genuine Lexus keys can be made by your Lexus dealer using the other keys and the key number stamped on your key number plate.
Page 782: If The Electronic Key Does Not Operate Properly
5-2. Steps to take in an emergency If the electronic key does not operate properly If communication between the electronic key and vehicle is interrupted (→P. 62) or the electronic key cannot be used because the battery is depleted, the smart access system with push-button start and wireless remote control cannot be used.
Page 783 5-2. Steps to take in an emergency Starting the hybrid system Ensure that the shift lever is in P and depress the brake pedal. STEP Touch the Lexus emblem side of STEP electronic “POWER” switch. If any of the doors is opened or...
Page 784 5-2. Steps to take in an emergency Stopping the hybrid system ■ Shift the shift lever to P and press the “POWER” switch as you normally do when stopping the hybrid system. Replacing the key battery ■ As the above procedure is a temporary measure, it is recommended that the elec- tronic key battery be replaced immediately when the battery is depleted.
Page 785: If The Vehicle 12-Volt Battery Is Discharged
The following procedures may be used to start the hybrid system if the vehi- cle’s 12-volt battery is discharged. You can also call your Lexus dealer or a qualified repair shop. If you have a set of jumper (or booster) cables and a second vehicle with a 12-volt battery, you can jump start your vehicle by following the steps below.
Page 786 ON mode. Make sure the “READY” indicator comes on. If the indicator STEP does not come on, contact your Lexus dealer. Once the hybrid system has started, remove the jumper cables STEP in the exact reverse order from which they were connected.
Page 787 5-2. Steps to take in an emergency Charging the 12-volt battery ■ The electricity stored in the 12-volt battery will discharge gradually even when the vehicle is not in use, due to natural discharge and the draining effects of certain electrical appliances.
Page 788 After recharging the 12-volt battery ■ Have the 12-volt battery inspected at your Lexus dealer as soon as possible. If the 12-volt battery is deteriorating, continued use may cause the 12-volt battery to emit a malodorous gas, which may be detrimental to the health of passengers.
Page 789: If Your Vehicle Overheats
If you do not see steam: Carefully lift the hood. After the hybrid system has cooled STEP down sufficiently, inspect the hoses and radiator core (radiator) for any leaks. Radiator Cooling fans If a large amount of coolant leaks, immediately contact your Lexus dealer.
Page 790 5-2. Steps to take in an emergency The coolant level is satisfactory if it STEP is between the “FULL” and “LOW” lines on the reservoir. Reservoir “FULL” line “LOW” line Radiator cap Add coolant if necessary. STEP ( → P. 655) Water can be used in an emer- gency if coolant is unavailable.
Page 791 5-2. Steps to take in an emergency If the fans are not operating: STEP Stop the hybrid system immediately and contact your Lexus dealer. If the fans are operating: Have the vehicle inspected at the nearest Lexus dealer. ■ If “HYBRID SYSTEM OVERHEAT” is shown on the multi-informa- tion display Stop the vehicle in a safe place.
Page 792 Start the hybrid system and check for the multi-information dis- STEP play. If the message does not disappear: Stop the hybrid system and contact your Lexus dealer. If the message is not displayed: Have the vehicle inspected at the nearest Lexus dealer. CAUTION To prevent an accident or injury when inspecting under the hood of your vehicle ■...
Page 793 5-2. Steps to take in an emergency NOTICE When adding engine/power control unit coolant ■ Wait until the hybrid system has cooled down before adding engine/power control unit coolant. When adding coolant, do so slowly. Adding cool coolant to a hot hybrid system too quickly can cause damage to the hybrid system.
Page 794: If The Vehicle Becomes Stuck
5-2. Steps to take in an emergency If the vehicle becomes stuck Carry out the following procedures if the tires spin or the vehicle becomes stuck in mud, dirt or snow: Stop the hybrid system. Set the parking brake and shift the shift STEP lever to P.
Page 795 5-2. Steps to take in an emergency CAUTION When attempting to free a stuck vehicle ■ If you choose to push the vehicle back and forth to free it, make sure the surround- ing area is clear to avoid striking other vehicles, objects or people. The vehicle may also lunge forward or lunge back suddenly as it becomes free.
Page 796: If Your Vehicle Has To Be Stopped In An Emergency
5-2. Steps to take in an emergency If your vehicle has to be stopped in an emergency Only in an emergency, such as if it becomes impossible to stop the vehicle in the normal way, stop the vehicle using the following procedure: Steadily step on the brake pedal with both feet and firmly STEP depress it.
Page 797 5-2. Steps to take in an emergency...
Page 798 Vehicle specifications 6-1. Specifications Maintenance data (fuel, oil level, etc.) ....798 Fuel information...... 810 Tire information....... 813 6-2. Customization Customizable features ..825 6-3. Initialization Items to initialize ....837...
Page 799: Specifications
6-1. Specifications Maintenance data (fuel, oil level, etc.) Dimensions and weight Overall length 187.8 in. (4770 mm) Overall width 74.2 in. (1885 mm) 66.3 in. (1685 mm) Overall height 66.7 in. (1695 mm) 67. 9 in. (1725 mm) Wheelbase 107. 9 in. (2740 mm) Front 64.2 in.
Page 800 Vehicle identification number The vehicle identification number (VIN) is the legal identifier for your vehicle. This is the primary identification number for your Lexus. It is used in registering the ownership of your vehicle. This number is stamped on the top left of the instrument panel. On some mod- els, this number is also stamped under the front passenger seat.
Page 801 6-1. Specifications ■ Engine number The engine number is stamped on the engine block as shown. Engine Model 2GR-FXE Type 6-cylinder V type, 4-cycle, gasoline 3.70 × 3.27 in. (94.0 × 83.0 mm) Bore and stroke Displacement 210. 9 cu.in. (3456 cm Drive belt tension Automatic adjustment Fuel...
Page 802 6-1. Specifications Electric motor (Traction motor) Front Type Permanent magnet synchronous motor Maximum output 123 kW Maximum torque 247 ft•lbf (335 N•m, 34.2 kgf•m) Rear (AWD models) Type Permanent magnet synchronous motor Maximum output 50 kW Maximum torque 103 ft•lbf (139 N•m, 14.2 kgf•m) Hybrid battery (Traction battery) Type Nickel-metal hydride battery...
Page 803 5 minutes, and check the oil level on the dipstick. ■ Engine oil selection “Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow- ing grade and viscosity.
Page 804 6-1. Specifications Recommended viscosity: SAE 0W-20 SAE 0W-20 is the best choice for good fuel economy and good starting in cold weather. If SAE 0W-20 is not available, SAE 5W-20 oil may be used. However, it must be replaced with Outside temperature SAE 0W-20 at the next oil change.
Page 805 6-1. Specifications Cooling system Capacity Gasoline engine 12.0 qt. (11.4 L, 10.0 Imp. qt.) 12.4 qt. (11.7 L, 10.3 Imp. qt.)* Power control unit 2.0 qt. (1. 9 L, 1.7 Imp. qt.) Use either of the following: • “Toyota Super Long Life Coolant” •...
Page 806 1. 9 qt. (1.8 L, 1.6 Imp. qt.) Fluid type Toyota Genuine ATF WS : The fluid capacity is a reference quantity. If replacement is necessary, contact your Lexus dealer. NOTICE Hybrid transmission fluid type ■ Using transmission fluid other than “Toyota Genuine ATF WS” may ultimately dam-...
Page 807 6-1. Specifications Brakes Pedal clearance 3. 9 in. (99 mm) Min. Pedal free play 0.04  0.08 in. (1  2 mm) Brake pad wear limit 0.04 in. (1.0 mm) Parking brake lining wear limit 0.04 in. (1.0 mm) Parking brake pedal travel 10 clicks ...
Page 808 6-1. Specifications Tires and wheels Type A Tire size P235/60R18 102V, T165/90D18 107M (spare) Tire inflation pressure Front: 33 psi (230 kPa, 2.3 kgf/cm or bar) (recommended cold tire Rear: 33 psi (230 kPa, 2.3 kgf/cm or bar) inflation pressure) Spare: 60 psi (420 kPa, 4.2 kgf/cm or bar) 18 ×...
Page 809 6-1. Specifications Type C Tire size P235/55R19 101V, T165/90D18 107M (spare) Driving under normal conditions Front: 33 psi (230 kPa, 2.3 kgf/cm or bar)* Rear: 33 psi (230 kPa, 2.3 kgf/cm or bar)* Tire inflation pressure Spare: 60 psi (420 kPa, 4.2 kgf/cm or bar) (recommended cold tire *: When driving at high speeds above 100 mph (160...
Page 810 6-1. Specifications Light bulbs Light bulbs Bulb No. Type Headlights High beam 9005  High beam  Low beam (halogen bulbs)  Low beam (discharge bulbs) Front turn signal lights 7444NA 28/8  Tail lights Exterior  Front fog lights ...
Page 811: Fuel Information
ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada. Fuel tank opening for unleaded gasoline ■ To help prevent incorrect fueling, your Lexus has a fuel tank opening that only accommodates the special nozzle on unleaded fuel pumps. If your engine knocks ■...
Page 812 15% ethanol). (85% ethanol) If you use gasohol in your Lexus, be sure that it has an octane rating no lower ● than 87. Lexus DOES NOT recommend the use of gasoline containing methanol.
Page 813 Some gasoline contains octane enhancing additive called MMT (Methylcyclopen- tadienyl Manganese Tricarbonyl). Lexus DOES NOT recommend the use of gasoline that contains MMT. If fuel con- taining MMT is used, your emission control system may be adversely affected. The malfunction indicator lamp on the instrument cluster may come on. If this hap- pens, contact your Lexus dealer for service.
Page 814: Tire Information
6-1. Specifications Tire information Typical tire symbols Standard tire Compact spare tire...
Page 815 6-1. Specifications Tire size (→P. 815) DOT and Tire Identification Number (TIN) (→P. 815) Location of treadwear indicators (→P. 670) Tire ply composition and materials Plies are layers of rubber-coated parallel cords. Cords are the strands which form the plies in a tire. Radial tires or bias-ply tires A radial tire has “RADIAL”...
Page 816 6-1. Specifications Typical DOT and tire identification number (TIN) DOT symbol Tire Identification Number (TIN) Tire manufacturer's identifica- tion mark Tire size code Manufacturer's optional tire type code (3 or 4 letters) Manufacturing week Manufacturing year : The DOT symbol certifies that the tire conforms to applicable Federal Motor Vehicle Safety Standards.
Page 817 6-1. Specifications ■ Tire dimensions Section width Tire height Wheel diameter Tire section names Bead Sidewall Shoulder Tread Belt Inner liner Reinforcing rubber Carcass Rim lines Bead wires Chafer...
Page 818 Department of Transportation. It provides the purchasers and/or prospective purchasers of Lexus vehi- cles with information on uniform tire quality grading. Your Lexus dealer will help answer any questions you may have as you read this information. ■ DOT quality grades All passenger vehicle tires must conform to Federal Safety Require- ments in addition to these grades.
Page 819 6-1. Specifications ■ Traction AA, A, B, C The traction grades, from highest to lowest, are AA, A, B and C, and they represent the tire's ability to stop on wet pavement as measured under controlled conditions on specified government test surfaces of asphalt and concrete.
Page 820 6-1. Specifications Glossary of tire terminology Tire related term Meaning Tire pressure when the vehicle has been parked for Cold tire inflation pres- three hours or more, or has not been driven more sure than 1 mile or 1.5 km under that condition Maximum inflation pres- The maximum cold inflated pressure to which a tire sure...
Page 821 6-1. Specifications Tire related term Meaning Distribution of occupants in a vehicle as specified in Occupant distribution the third column of Table 1 below The combined weight of installed regular production options weighing over 5 lb. (2.3 kg) in excess of the Production options standard items which they replace, not previously weight...
Page 822 6-1. Specifications Tire related term Meaning The part of the tire that is made of steel wires, Bead wrapped or reinforced by ply cords and that is shaped to fit the rim A breakdown of the bond between components in Bead separation the bead A pneumatic tire in which the ply cords that extend to...
Page 823 6-1. Specifications Tire related term Meaning (a) The sidewall that contains a whitewall, bears white lettering, or bears manufacturer, brand, and/or model name molding that is higher or Intended outboard side- deeper than the same molding on the other side- wall wall of the tire, or (b) The outward facing sidewall of an asymmetrical...
Page 824 6-1. Specifications Tire related term Meaning A parting of rubber compound between adjacent Ply separation plies A mechanical device made of rubber, chemicals, fab- ric and steel or other materials, that, when mounted Pneumatic tire on an automotive wheel, provides the traction and contains the gas or fluid that sustains the load A pneumatic tire in which the ply cords that extend to Radial ply tire...
Page 825 6-1. Specifications Tire related term Meaning That portion of a tire that comes into contact with the Tread road A tread section running circumferentially around a Tread rib tire Tread separation Pulling away of the tread from the tire carcass The projections within the principal grooves Treadwear indicators designed to give a visual indication of the degrees of...
Page 826: Customization Customizable Features
Display Audio system screen. Some function settings are changed simultaneously with other functions being customized. Contact your Lexus dealer for further details. Customizing vehicle features It is possible to customize certain vehicle features using the multi-infor- mation switches.
Page 827 Vehicles without a Display Audio system and navigation system: Set- tings that can be changed using the multi-information switches Settings that can be changed by your Lexus dealer Definition of symbols: O = Available, = Not available...
Page 828 6-2. Customization Door lock ( P. 72, 781) → Custom- Default Function ized setting setting Driver's door unlocked All doors Unlocking using a in one step, unlocked — — — — all doors in one step unlocked in two steps Speed-detecting automatic door lock —...
Page 829 6-2. Customization Smart access system with push-button start and wireless remote control P. 56, 69) → Custom- Default Function ized setting setting Operation buzzer Off to level Level 7 — — volume Operation signal — — (buzzer) Operation signal (emergency flash- —...
Page 830 6-2. Customization Power back door ( P. 75) → Custom- Default Function ized setting setting Power back door opening operation — — — — — using the back door opener button Wireless remote control ( P. 69) → Custom- Default Function ized setting...
Page 831 6-2. Customization Automatic light control system ( P. 217) → Custom- Default Function ized setting setting Time elapsed before 30 sec- 60 sec- the headlights turn — — onds onds 90 sec- onds Light sensor sensi- Standard -2 to 2 —...
Page 832 6-2. Customization Illumination( P. 582) → Custom- Default Function ized setting setting 7.5 sec- Time elapsed before onds the interior lights 15 seconds — — 30 sec- turn off onds 7.5 sec- Time elapsed before onds the exterior lights 15 seconds —...
Page 833 6-2. Customization Custom- Default Function ized setting setting Sensitivity of the ambient light sensor used for brighten- Standard -2 to 2 — — — ing the meter lights etc. Interior light control — — Exterior light control — — Shift lever lights —...
Page 834 6-2. Customization Driving position memory ( P. 93) → Custom- Default Function ized setting setting Driver’ s seat move- ment when exiting Full — — the vehicle (on some Partial models) Selecting whether the driver’ s door or Driver’ s All the all doors are linked —...
Page 835 6-2. Customization Power windows ( P. 112) → Custom- Default Function ized setting setting Mechanical key — — — — — linked operation Wireless remote control linked open- — — — — — Wireless remote control linked open- — — —...
Page 836 6-2. Customization Intuitive parking assist ( P. 248) → Custom- Default Function ized setting setting Buzzer volume 1 to 5 — — — Detection distance of the front center Near — — — sensors Detection distance of the rear center Near —...
Page 837 6-2. Customization CAUTION Cautions during customization ■ As the hybrid system needs to be operating during customization, ensure that the vehicle is parked in a place with adequate ventilation. In a closed area such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehicle.
Page 838: 6-3. Initialization
6-3. Initialization Items to initialize The following items must be initialized for normal system operation in cases such as after the 12-volt battery is reconnected, or maintenance is per- formed on the vehicle. Item When to initialize Reference • After reconnecting or changing the Power back door 12-volt battery P.
Page 839 6-3. Initialization...
Page 840: For Owners
For owners Reporting safety defects for U.S. owners..... 840 Seat belt instructions for Canadian owners (in French) ......841 SRS airbag instructions for Canadian owners (in French) ......843 Headlight aim instructions for Canadian owners (in French) ......852...
Page 841: Reporting Safety Defects For U.s. Owners
National Highway Traffic Safety Administration (NHTSA) in addition to notifying the Lexus Division of Toyota Motor Sales, U.S.A., Inc. (Toll- free: 1-800-25-LEXUS). If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
Page 842: Seat Belt Instructions For Canadian Owners (In French)
Seat belt instructions for Canadian owners (in French) The following is a French explanation of seat belt instructions extracted from the seat belt section in this manual. See the seat belt section for more detailed seat belt instructions in English. Utilisation correcte des ceintures de sécurité...
Page 843 Entretien et soin ■ Ceintures de sécurité Nettoyez avec un chiffon ou une éponge humectée d'eau savonneuse tiède. Profitez de l'occasion pour vérifier régulièrement que les ceintures ne sont pas effilochées, entaillées, ou ne paraissent pas exagérément usées. ATTENTION ■ Détérioration et usure des ceintures de sécurité...
Page 844: Srs Airbag Instructions For Canadian Owners (In French)
SRS airbag instructions for Canadian owners (in French) The following is a French explanation of SRS airbag instructions extracted from the SRS airbag section in this manual. See the SRS airbag section for more detailed SRS airbag instructions in English. Airbags SRS avant Airbag SRS conducteur /airbag passager avant Peuvent aider à...
Page 845 Airbags SRS latéraux et rideaux Airbags SRS latéraux avant Peuvent aider à protéger le torse des passagers avant Airbags SRS latéraux arrière Peuvent aider à protéger le torse des passagers dans les sièges arrière extérieurs Airbags SRS rideaux Peuvent aider à protéger en premier lieu la tête des occupants dans les sièges extérieurs...
Page 846 Composition du système d’airbags SRS Airbags de genoux Capteurs d'airbags latéraux et rideaux Airbag passager avant Contacteur de boucle de Airbags rideaux ceinture sécurité Airbags latéraux avant conducteur Système de classification des Capteur de position du siège occupants du siège passager conducteur avant (ECU et capteurs) Boîtier électronique d'airbags...
Page 847 Votre véhicule est équipé de SACS DE SÉCURITÉ GONFLABLES INTELLIGENTS (ADVANCED AIRBAGS) conçus selon les normes de sécurité américaines applicables aux véhicules à moteur (FMVSS208). Le boîtier électronique (ECU) des sacs de sécurité gonflables régule le déploiement de ces derniers sur la base des informations qu'il reçoit des capteurs, etc., indiqués ci-dessus dans le schéma illustrant les composants du système.
Page 848 ATTENTION ■ Précautions avec les airbags SRS Respectez les précautions suivantes concernant les airbags SRS. À défaut, des blessures graves, voire mortelles, pourraient s'ensuivre. ● Le conducteur et tous les passagers a bord du véhicule doivent porter leur ceinture de sécurité correctement. Les airbags SRS sont des dispositifs de protection complémentaires aux ceintures de sécurité.
Page 849 être grièvement blessés ou tués par le déploiement d'un airbag. Installez dans un siège de sécurité enfant les enfants trop jeunes et trop petits pour pouvoir utiliser la ceinture de sécurité. Lexus recommande vivement d'installer tous les nourrissons et enfants aux sièges arrière du véhicule et de prévoir pour eux des systèmes de retenue adaptés.
Page 850 ATTENTION ■ Précautions avec les airbags SRS ● Ne pas s'asseoir sur le bord du siège et ne pas s'appuyer contre la planche de bord. ● Ne laissez pas un enfant rester debout devant l'airbag SRS passager avant ou bien s'asseoir sur les genoux du passager avant.
Page 851 ATTENTION ■ Précautions avec les airbags SRS ● Ne fixez ni ne posez aucun objet sur le tableau de bord, la garniture centrale du moyeu de volant de direction ou la partie inférieure du tableau de bord. déploiement airbags conducteur, passager avant et genoux, tout objet risque de se transformer en projectile.
Page 852 ■ Modification et mise au rebut des éléments du système d'airbags SRS Consultez impérativement votre concessionnaire Lexus si vous avez besoin d'intervenir sur votre véhicule, de vous en séparer ou de procéder à l'une des modifications suivantes.
Page 853: Headlight Aim Instructions For Canadian Owners (In French)
Headlight aim instructions for Canadian owners (in French)* The following is a French explanation of headlight aim instructions from the headlight aim section in this manual. ■ Dépose des habillages du compartiment moteur Extérieur Avant *: Vehicles without LED headlights...
Page 854 ■ Vis de réglage dans l'axe vertical Véhicules équipés de projecteurs à halogène Vis de réglage A Vis de réglage B Véhicules équipés de projecteurs à décharge Vis de réglage A Vis de réglage B ■ Avant de vérifier le réglage du faisceau des phares Vérifiez que le réservoir de carburant du véhicule est plein et ÉTAPE que la carrosserie autour des projecteurs n'a pas subi de choc...
Page 855 1, avec tournevis cruciforme (empreinte Phillips). Si vous n'arrivez pas à régler le projecteur en procédant de la sorte, confiez votre véhicule à votre concessionnaire Lexus pour qu'il règle le faisceau des phares.
Page 856 étape 1 au moyen d'un tournevis cruciforme (empreinte Phillips). Si vous n'arrivez pas à régler le projecteur en procédant de la sorte, confiez votre véhicule à votre concessionnaire Lexus pour qu'il règle le faisceau des phares.
Page 858 Index Abbreviation list ....858 Alphabetical index....860 What to do if......874 For vehicles with a navigation system, refer to the “Naviga- tion System Owner's Manual” for information regarding the equipment listed below. • Navigation system • Air conditioning controls •...
Page 859 Abbreviation list Abbreviation/Acronym list ABBREVIATIONS MEANING 2 Wheel Drive 4 Wheel Drive Air Conditioning Anti-lock Brake System AI-SHIFT Artificial Intelligence Shift control Automatic Locking Retractor All Wheel Drive Blind Spot Monitor Child Restraint System DISP Display Economy/Ecology Electronic Control Unit Event Data Recorder Emergency Locking Retractor Electric Power Steering...
Page 860 Abbreviation list ABBREVIATIONS MEANING Pre-Collision System Power Radio Frequency Supplemental Restraint System Tire Identification Number TPMS Tire Pressure Warning System TRAC Traction Control Trailer Weight Rating VDIM Vehicle Dynamics Integrated Management Vehicle Identification Number Vehicle Stability Control...
Page 861: Alphabetical Index
Alphabetical index Alphabetical index A/C* Alarm............126 Air conditioning filter ...... 685 Antenna.........377, 482 Automatic air conditioning Anti-lock brake system......271 system*........342, 350 Armrest ............ 607 ABS...............271 Assist grips ..........609 ACCESSORY mode ......177 Audio input* .........408, 541 Air conditioning system* Audio system* Air conditioning filter ......
Page 862 Alphabetical index Audio system Back door (Lexus Display Audio system) Back door..........75 Antenna...........377 Wireless remote control ....69 Audio input...........408 Back-up lights AUX port ..........408 Replacing light bulbs....... 708 ® Bluetooth audio system ....410 Wattage..........809 CD player ..........380 Battery Hands-free system for mobile Checking ..........
Page 863 Alphabetical index Card key............51 Moon roof precautions......118 Power window lock switch....112 Care Exterior ...........634 Power window precautions.....114 Interior............. 637 Removed electronic key battery Seat belts..........638 precautions........688 Cargo capacity........301 Seat belt extender precautions..104 Cargo hooks..........612 Seat belt precautions......102 CD changer Seat heater precautions....605 CD ..........380, 485...
Page 864 Alphabetical index Daytime running light system....219 Driving position memory......93 Defogger* Rear window........358 Electric power steering......271 Side mirrors..........358 Electronic features control....206 Dimensions..........798 Electronic key Dinghy towing ........324 If the electronic key does not Display operate properly ......781 Energy flow ..........39 Emergency flashers Multi-information display....206 Switch............
Page 865 Alphabetical index Engine Floor mat........... 610 Accessory mode ......... 177 Fluid Compartment ........654 Brake............806 Hood............651 Washer........... 663 How to start the hybrid Fog lights system............ 177 Replacing light bulbs.......708 Identification number....... 799 Switch............221 If the hybrid system will Wattage..........809 not start ..........777 Footwell light ..........582 Ignition switch........
Page 866 Alphabetical index Fuel Heaters Capacity..........800 Seat heaters .........605 Fuel gauge ..........197 Side mirrors*........358 Information..........810 Steering wheel........604 Refueling............119 Hill-start assist control ......271 Type............810 Hood............651 Fuel consumption........45 Hooks Fuel door............. 119 Cargo ............612 Fuel filler door........... 119 Coat............608 Fuses............
Page 867 Items to initialize .........837 “POWER” switch.........177 Inside rear view mirror ......107 Wireless remote control key...69 Instrument panel light control buttons ............198 Lexus Display Audio controller..328 Interior lights Lexus Display Audio system....328 Interior lights.........582 Lexus Enform with Switch ............583 Safety Connect* Wattage..........
Page 868 Alphabetical index Shift lever light........582 Noise from under vehicle..... 22 Turn signal lever........193 Vanity lights..........596 Odometer..........198 Wattage ..........809 Load capacity ..........301 Engine oil..........656 Lock steering column......180 Opener Luggage compartment lights Back door..........75 Switch............77 Fuel filler door......... 119 Wattage ..........
Page 869 Alphabetical index Parking assist sensors*.......248 Radar cruise control......236 Parking brake.......... 195 Radiator............661 Parking lights Radio* ..........365, 477 Replacing light bulbs......708 Rear seat entertainment system* Switch ............217 Rear seats Folding down ......... 89 Function..........278 Seat adjustment........89 Pre-collision braking off Rear turn signal lights switch ...........
Page 870 Alphabetical index Safety Connect*........626 Seats Scuff lights ..........582 Adjustment ........86, 89 Seat belts Adjustment precautions ....88, 91 Adjusting the seat belt ..... 100 Child seats/child restraint Automatic locking retractor.... 101 system installation......153 Child restraint system Cleaning..........637 installation ..........153 Flatting seat backs ........87 Cleaning and maintaining Head restraint.........
Page 871 Alphabetical index Spare tire Switch Inflation pressure........807 Display contrast adjustment Storage location......... 764 switch............212 Spark plug..........804 Display position adjustment Specifications .........798 switch............212 Speedometer........... 197 Driving mode selector switch..188 Steering Emergency flasher switch....724 Column lock release ......180 ENTER switch ........206 Steering wheel Fog light switch ........221 Adjustment..........
Page 872 Alphabetical index Tachometer ..........197 Tools............764 Tail lights Total load capacity ........ 301 Replacing light bulbs .......708 Towing Switch............217 Dinghy towing ........324 Wattage ..........809 Emergency towing......726 Talk switch*........429, 553 Trailer towing........306 Telephone* ........429, 552 TRAC............271 Telephone switch*....429, 553 Traction control........271 Theft deterrent system Trailer towing ......
Page 873 Alphabetical index Under tray..........594 Warning buzzers USB port* ....391, 399, 501, 510 Brake system........733 Open door ...........736 Seat belt reminder ......736 Vanity lights Warning lights Vanity lights..........596 Anti-lock brake system ....734 Wattage..........809 Brake assist system ......734 Vanity mirrors ........596 Brake system........733 VDIM............271 Charging system........733...
Page 874 Alphabetical index Warning messages Washer Anti-lock brake system ....745 Checking ..........663 AWD system....744, 745, 748 Preparing and checking Brake lamp system......745 before winter ........302 Brake system........743 Switch............223 Dynamic radar cruise Washing and waxing......634 control system..... 745, 748 Weight Electric power steering....
Page 875: What To Do If
What to do if... What to do if... A tire punctures If you have a flat tire P. 764 If the hybrid system will not start P. 777 The hybrid system does not start Immobilizer system P. 124 If the vehicle 12-volt battery is discharged P.
Page 876 What to do if... A warning light or indicator If a warning light turns on or a warning P. 733 light comes on buzzer sounds... ■Warning lights Brake system warning light Malfunction indicator lamp P. 733 P. 734 Driver’s seat belt Brake system warning reminder light light...
Page 877 GAS STATION INFORMATION Auxiliary catch lever Fuel filler door Back door opener P. 651 P. 119 P. 75 Hood lock release lever Fuel filler door opener Tire inflation pressure P. 651 P. 119 P. 807 Fuel tank capacity 17.1 gal. (65 L, 14.2 Imp. gal.) (Reference) Fuel type P.
