- Page 1 40V CHAINSAW HYC40Li Instruction Manual...
- Page 2 USING THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. Failure to do this may result in personal injury or damage to the product.
-
Page 3: Table Of Contents
Contents Safety Information....4-12 Features........13 Machine Information....14 Assembly and Operation..15-21 Maintenance and Storage..22-23 Troubleshooting......24 Disposal........25 Declaration of Conformity...26 Notes........27-29 Useful Information......30 Contact Us........31... -
Page 4: Safety Information
Safety Information Intended Use This chain saw is only designed for cutting of brushes, trunks or timber beams up to a diameter according the guide bar length. It is only allowed to cut wood. Every other use of the machine is a not intended use. Furthermore a professional use for tree services is strictly forbidden. - Page 5 Safety Information (Continued) 2) Electrical safety Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
- Page 6 Safety Information (Continued) poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
- Page 7 Safety Information (Continued) Do not use any battery pack which is not designed for use with the equipment. Keep battery pack out of the reach of children. Retain the original product literature for future reference. Remove the battery from the equipment when not in use. Dispose of properly.
- Page 8 Safety Information (Continued) storing the chain saw always fit the guide bar cover. Proper handling of the chain saw will reduce the likelihood of accidental contact with the moving saw chain. 10. Follow instructions for lubricating, chain tensioning and changing accessories. Improperly tensioned or lubricated chain may either break or increase the chance for kickback.
- Page 9 Safety Information (Continued) 1. Felling a tree When bucking and felling operations are being performed by two or more persons at the same time, the felling operations should be separated from the bucking operation by a distance of at least twice the height of the tree being felled.
- Page 10 Safety Information (Continued) 4. Limbing a Tree Limbing is removing the branches from a fallen tree. When limbing, leave larger lower limbs to support the log off the ground. Remove the small limbs in one cut as illustrated in Figure 5. Branches under tension should be cut from the bottom up to avoid binding the chain saw.
- Page 11 Safety Information (Continued) 5. Bucking a Log Bucking is cutting a log into lengths. It is important to make sure your footing is firm and your weight is evenly distributed on both feet. When possible, the log should be raised and supported by the use of limbs, logs or chocks. Follow the simple directions for easy cutting.
- Page 12 Safety Information (Continued) Symbols On The Machine To reduce the risk of injury, user must read instruction manual Warning Wear dust mask Wear ear protection Do not expose to moisture Wear eye protection Do not burn the battery Do not expose to rain or water Hold the chain saw by two hands Danger of Kickback: never cut with the tip of the chainsaw This product has been marked with a symbol relating to removing electric and electronic waste.
-
Page 13: Features

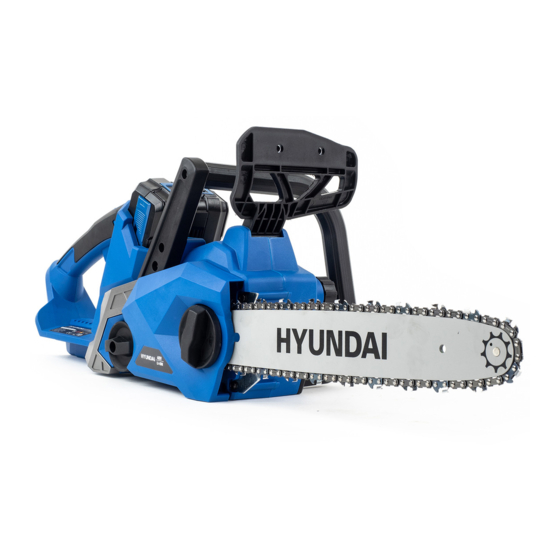

Features 1.Chain bar 8. Hand guard 2.Chain 9. Spiked bumper 3.Chain tensioning knob 10. Battery pack 4.Locking knob 11. Lock off button 5.Cover plate 12. On/off switch 6.Oil filler cap 13. Blade cover 7.Rear handle... -
Page 14: Machine Information
Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice. Specification Model HYC40Li Voltage 40V DC Battery pack... -
Page 15: Assembly And Operation
Assembly and Operation WARNING! Do not connect the chain saw to mains before it is completely assembled. Always use gloves when handling the chain. Assembly / Replacement of the Guide Bar and Chain The chain must be so fitted over the guide bar that the cutting edges of the cutters (a) face in the direction that the chain runs. - Page 16 Assembly and Operation Chain and chain bar assembly: Chain and Chain Bar Assembly - Unpack all parts carefully. - Place the chain saw on any suitable flat surface with the motor facing downwards. - Fit the chain onto the drive sprocket and guide the chain bar. So that the fastening bolt lit into the keyway of the chain bar.
- Page 17 Assembly and Operation (Continued) Starting 1. Push brake baffle (A) to Startup 2: You will heard sound of beep from the switch(B). The light will be green when everything is ok and flicker if with some problems. 3: Press the lock switch (C) and open the switch wrench. Lubrication LUBRICATION Important: the chain saw is not supplied filled with oil.
- Page 18 Assembly and Operation (Continued) Lubrication LUBRICATION Important: the chain saw is not supplied filled with oil. It is essential to fill with oil before use. Never operate the chain saw without chain oil or at an empty oil tank level, as this will result in extensive damage to the product.
- Page 19 Assembly and Operation (Continued) Starting 1.Switching on and off (See fig. A) Check the voltage and current supply: The voltage and current supply must comply with the ratings on the type plate. For switching on the machine, press the lock-off button(3), then fully press the on/off switch(2) and hold in this position.
- Page 20 Assembly and Operation (Continued) Checking Charge Status The unit has an LED state of charge indicator on the handlebar. 4 LED lights lit = 100% battery power 3 LED lights lit = 75% battery power 2 LED lights lit = 50% battery power 1 LED light lit = 25% battery power Charging The Battery 1.
- Page 21 Assembly and Operation (Continued) Kickback Safety Devices This saw has a low-kickback chain and reduced kickback chain bar. Both items reduce the chance of kickback. Kickback can still occur with this saw. The following steps will reduce the risk of kickback. •...
-
Page 22: Maintenance And Storage
Maintenance and Storage Saw Maintenance and Kickback Safety Follow maintenance instructions in this manual. Proper cleaning of saw and chain and guide bar maintenance can reduce chances of kickback. Inspect and maintain saw after each use. This will increase the service life of your saw. - Page 23 Maintenance and Storage (Continued) Normal Guide Bar Maintenance 1. Remove guide bar from chain saw. 2. Remove sawdust from guide bar groove periodically. Use putty knife or wire (See Fig. H). 3. Clean oil slots after each day of use. 4.
-
Page 24: Troubleshooting
Troubleshooting Symptom Possible Causes Possible Solution Chain saw fails to Out of battery Charge the battery pack operate Fuse faulty Replace fuse Loose connection Contact service agent Chain saw operates Internal wiring defective Contact service agent intermittently On/Off switch defective Contact service agent No oil in reservoir Refill oil... -
Page 25: Disposal
Disposal Recycling and Disposal We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and/or Batteries is passed onto you by us. So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site. -
Page 26: Declaration Of Conformity
Isaac Way, Pembroke Dock, SA72 4RW Country of Origin: China Description: 40V Chainsaw SKU Code: HYC40Li Date of Issue: 17/09/21 Regulations and Directives of Compliance • 2006/42/EC The Machinery Directive • 2014/30/EU Annex ll Electromagnetic Compatibility Directive • 2011/65/EU RoHS •... -
Page 27: Notes
Notes... - Page 28 Notes...
- Page 29 Notes...
-
Page 30: Useful Information
Go to www.hundaisupport.co.uk or search 'Hyundai Power Products' in YouTube. Warranty Proof of purchase will be required before you make a warranty claim. Full warranty terms and conditions can be found on the HYUNDAI POWER PRODUCTS website: www.hyundaipowerproducts.co.uk Manual Updates Our manuals are constantly being reviewed and updated. -
Page 31: Contact Us
Need Help? Talk To Our Experts Contact Us Our friendly aftersales team will be more than happy to help you! Phone Call our team on 01646 687880, open Monday-Friday 8.30am-5pm. Email aftersales@hyundaipowerproducts.co.uk Online Live Chat Go to www.hyundaipowerproducts.co.uk Live chat is open Monday-Friday from 8.30am-5pm. Post Genpower Limited, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW, UK. - Page 32 Isaac Way, London Road, Pembroke Dock, UNITED KINGDOM, SA72 4RW T: +44 (0) 1646 687 880 F: +44 (0) 1646 686 198 E: info@hyundaipowerproducts.co.uk www.hyundaipowerproducts.co.uk Imported/Distributed by Genpower Ltd for The United Kingdom & Ireland Licensed by Hyundai Corporation, Korea...
