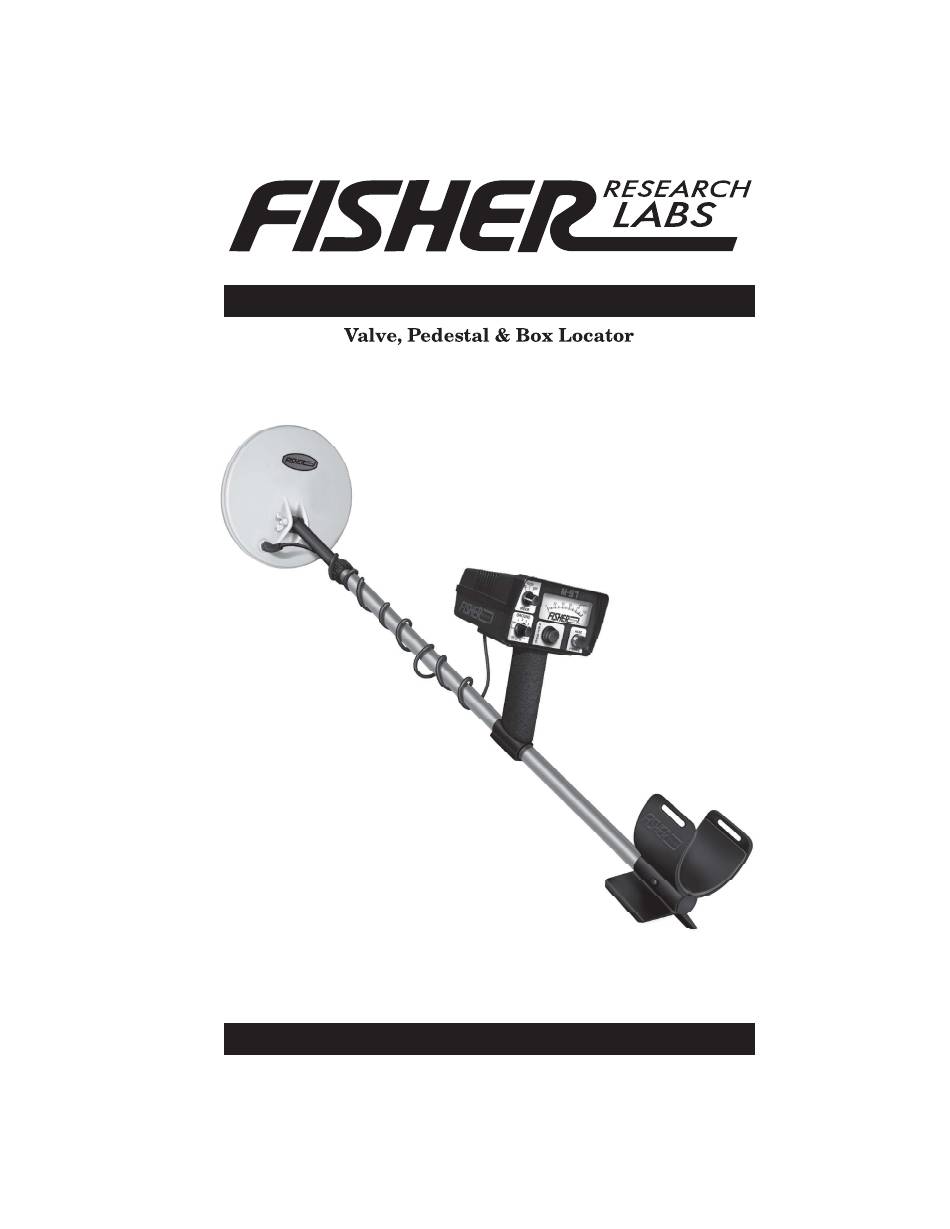

- Page 1 M-97 Operating Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 CONTENTS About Your M-97...............pg. 2 Features ..................pg. 3 Setting Up ..................pg. 3 Controls ..................pg. 4 Using Headphones ..............pg. 5 Tuning ..................pg. 5 Searching ..................pg. 6 Specifications ................pg. 7 Warranty ................ Back Cover ABOUT YOUR M-97 Using ideas that you, our valued customers, have passed on to us, the M-97 Valve and Box Locator stands as the new and improved addition to our line of highly successful M-95 and M-96 Locators.
- Page 3 FEATURES • Two knobs and a pushbutton for simple operation • Adjustable shaft with double locking stem • Ground Effect Rejection VLF eliminates annoying or false signals from wet ground foliage, pavement or mineralized ground • High sensitivity for maximum penetration through soil, asphalt or concrete •...
- Page 4 CONTROLS Meter The meter of the M-97 serves two purposes for the opera- tion of the instrument. When used in the battery test mode, the meter gives a visual indi- cation of the battery strength. A reading between 80 – 100 is desirable.
- Page 5 USING HEADPHONES Using headphones (not included) improves battery life, and prevents the sounds from bothering bystanders. It also allows you to hear subtle changes in the sound more clearly, particularly if searching in a noisy location. For safety reasons, do not use headphones near traffic or where other dangers are present.
- Page 6 SEARCHING It is a good idea to establish a methodic search pattern. Avoid swinging the M-97 like a golf club, swing the detector side to side keeping the search coil the same distance above the ground. Your sweep pattern should be a slow, half-circle motion. If you are searching for a small target, it is a good idea to overlap your sweeps.
- Page 7 SPECIFICATIONS Subject to improvement or modification without notice. Output Frequencies of search coil ... 4.5 kHz Sensitivity ....0.20 mv RMS for full scale Sensitivity Adjustment Range..... 12:1 Output Indication . Meter 1 milliamp, ..0-100 linear scale ......Speaker ...... 16-ohm impedance ......
- Page 8 Q U A L I T Y Fisher detectors are renowned for their quality. Each detector is hand crafted in the USA with pride P E R F O R M A N C E The worldwide underground utility industry relies on Fisher. Our instruments are durable, dependable and locate deeper.
