  • Page 1 DS-K5032 Series Visitor Terminal User Manual...
  • Page 2 WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,...
  • Page 3 During the use of device, personal data will be collected, stored and processed. To protect data, the development of Hikvision devices incorporates privacy by design principles. For example, for device with facial recognition features, biometrics data is stored in your device with encryption method;...
  • Page 4 DS-K5032 Series Visitor Terminal User Manual Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 5 DS-K5032 Series Visitor Terminal User Manual under the EMC Directive 2014/30/EU, RE Directive 2014/53/EU,the RoHS Directive 2011/65/EU 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
  • Page 6 DS-K5032 Series Visitor Terminal User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into Dangers and Cautions: Dangers: Neglecting any of the warnings may cause serious injury or death. Cautions: Neglecting any of the cautions may cause injury or equipment damage.
  • Page 7 DS-K5032 Series Visitor Terminal User Manual • Do not connect several devices to one power adapter as adapter overload may cause over-heat or fire hazard. • Please make sure that the power has been disconnected before you wire, install or dismantle the device.
  • Page 8 DS-K5032 Series Visitor Terminal User Manual Available Model Product Name Model Visitor Terminal DS-K5032...

  • Page 9: Table Of Contents

    DS-K5032 Series Visitor Terminal User Manual Contents Chapter 1 Overview ........................1 1.1 Overview ..........................1 1.2 Main Features ........................1 Chapter 2 Appearance ........................ 2 Chapter 3 Installation ......................... 4 3.1 Installation Environment ......................4 3.2 Installation ..........................4 Chapter 4 Wiring ........................

  • Page 10: Chapter 1 Overview

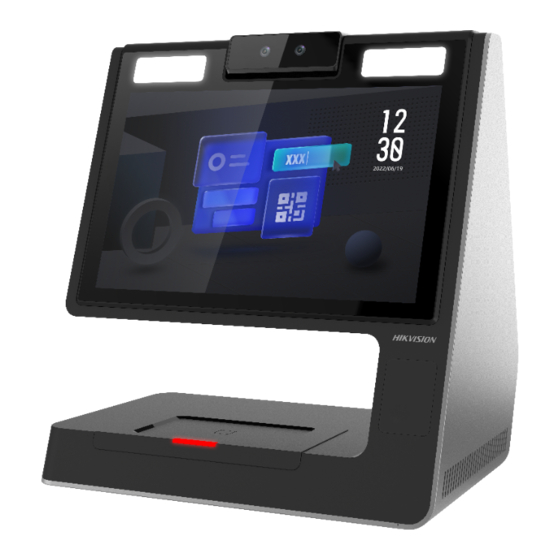

    DS-K5032 Series Visitor Terminal User Manual Chapter 1 Overview 1.1 Overview The visitor terminal is a kind of access control device for face recognition and visitor management, which is mainly applied in security access control systems, such as enterprises, stations, university campuses, factories, etc.

  • Page 11: Chapter 2 Appearance

    DS-K5032 Series Visitor Terminal User Manual Chapter 2 Appearance Refer to the following contents for detailed information of the visitor terminal: Figure 2-1 Visitor Terminal Diagram Table 2-1 Description of Face Recognition Terminal Description Power Switch Hold: Power On/Power Off/​ R eboot Press: Sleep/Wake Up Visitor Screen Note...
  • Page 12 DS-K5032 Series Visitor Terminal User Manual Description Note Both white light and IR light are supported. Operator Screen Bottom Camera Card Presenting Area Indicator for Card Presenting USB 2.0 (Sub Interface) Note Supports the USB import function. You can use the interface to upload the event to the client software, etc.

  • Page 13: Chapter 3 Installation

    DS-K5032 Series Visitor Terminal User Manual Chapter 3 Installation 3.1 Installation Environment • Avoid backlight, direct sunlight, and indirect sunlight. • For better recognition, there should be light source in or near the installation environment. Note For details about installation environment, see Tips for Installation Environment. 3.2 Installation Steps 1.

  • Page 14: Chapter 4 Wiring

    DS-K5032 Series Visitor Terminal User Manual Chapter 4 Wiring The suggested wiring diagram is as follows: Figure 4-1 Wiring Diagram...

  • Page 15: Chapter 5 Basic Operation

    DS-K5032 Series Visitor Terminal User Manual Chapter 5 Basic Operation 5.1 First Time Use For the first time use of the visitor terminal, you should create an administrator account. The password of the account is used for authorizing the skipping of person and ID comparison on a self- service visitor terminal;...

  • Page 16: Connect To Hikcentral Professional (Optional)

    DS-K5032 Series Visitor Terminal User Manual Note The password should contain 8 to 16 characters with the combination of at least two of the followings: digits, letters, and special characters Note We highly recommend you to create a strong password of your own choosing (using a minimum of 8 characters, including at least three kinds of following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 17 DS-K5032 Series Visitor Terminal User Manual Functionality Connected to HikCentral Professional Disconnected Access by Card On a staff-​ s ervice terminal, you can On a staff-​ s ervice terminal, issuing issue cards for visitors. After that, the cards for visitors is not available. visitor can access doors and floors using the card.

  • Page 18: Login

    DS-K5032 Series Visitor Terminal User Manual Figure 5-2 Platform Access Page You can also tap Later to enter the Home page directly. If you want to configure network later, you can tap on the upper-left corner of the Home page, and then select Network Settings → Platform Access to connect the visitor terminal to the HikCentral Professional system.

  • Page 19: Self-Service Visitor Terminal Vs Staff-Service Visitor Terminal

    DS-K5032 Series Visitor Terminal User Manual 5.3 Self-Service Visitor Terminal VS Staff-Service Visitor Terminal As the two names suggest, the self-service visitor terminal allows the visitor to complete nearly all registration and check-out related operations by herself/himself, thus reducing the work load of the reception personnel (or similar staff);...

  • Page 20: Staff-Service Visitor Terminal

    DS-K5032 Series Visitor Terminal User Manual 5.3.1 Staff-Service Visitor Terminal The staff-service visitor terminal requires the staff to provide visitor-related services such as registration service and check-out service for the visitors. While the visitor is not allowed to do any operations by themselves.
  • Page 21 DS-K5032 Series Visitor Terminal User Manual The maximum times a visitor can enter and exit a specified area via QR code authentication (QR code here refers to the QR code on visitor pass). For example, assume that you enter 5 as the valid times and define the door of the news release room as the door that the visitor can access, the visitor can enter/exit the door(s) by scanning the QR code on visitor pass for 5 times at most.
  • Page 22 DS-K5032 Series Visitor Terminal User Manual Figure 5-3 Visitor Registration 4. Tap Register to complete registration. If you have selected visitor pass as the allowed visitor credential, a visitor pass will be printed. The visitor can access the doors and floors in the specified area by scanning the QR code on the scanner at the access points (i.e., doors and floors).
  • Page 23 DS-K5032 Series Visitor Terminal User Manual View Visitor Details For a staff-service visitor terminal, once a visitor registration completes, a visitor record will be displayed on the visitor list. And the total number of visitors on the current day, the number of the checked-out visitors, and the number of visitors who haven't been checked out will be displayed.

  • Page 24: Self-Service Visitor Terminal

    DS-K5032 Series Visitor Terminal User Manual Steps 1. Tap in the upper-right corner of the home page. The Encrypted Exportation window pops up. 2. Create a password to encrypt the to-be-exported file, and then confirm it. 3. Tap Export, and then select directory to export the visitor information to the USB flash disk. 5.3.2 Self-Service Visitor Terminal On a self-service visitor terminal, the visitors can register their identities and check out by themselves.

  • Page 25: System Settings

    DS-K5032 Series Visitor Terminal User Manual The system will compare your currently-captured face picture with the face picture on your passport, and then display the comparison result. If the two pictures match, you enter the Visitor Information page. Note If person and ID comparison is disabled, the system will not do such a comparison. For details about enabling/disabling person and ID comparison, see System Settings .
  • Page 26 DS-K5032 Series Visitor Terminal User Manual in the upper-right corner of the visitor terminal's home page to enter the system settings page. Note For self-service visitor terminal, you are required to authenticate your identity as the administrator first. In this case, enter the administrator password to authenticate. Language Switch system language.
  • Page 27 DS-K5032 Series Visitor Terminal User Manual Set a value to define the threshold to determine if the captured face picture is qualified. If the face rating of the captured face picture is lower than the threshold, the visitor terminal system will regard the capture as failed, and the visitor will be required to capture a face picture again.
  • Page 28 DS-K5032 Series Visitor Terminal User Manual Note Only when the visitor terminal is connected to the HikCentral Professional system, will the card be available to be used as a type of credential by the visitor. See Connect to HikCentral Professional (Optional) for details about connecting the visitor terminal to the system. Visitor Pass The visitor pass with a QR code will be printed by the visitor terminal once the visitor completes registration.
  • Page 29 DS-K5032 Series Visitor Terminal User Manual After enabled, the captured face pictures of the visitors will be saved and displayed on visitor terminal. Visitor Records Retention Period Set the retention period for the registered visitor information. The visitor information will be deleted automatically when the retention period expires.

  • Page 30: Appendix A. Tips When Collecting/Comparing Face Picture

    DS-K5032 Series Visitor Terminal User Manual Appendix A. Tips When Collecting/Comparing Face Picture The position when collecting or comparing face picture is as below: Positions (Recommended Distance: 0.5 m) Expression • Keep your expression naturally when collecting or comparing face pictures, just like the expression in the picture below.
  • Page 31 DS-K5032 Series Visitor Terminal User Manual...

  • Page 32: Appendix B. Tips For Installation Environment

    DS-K5032 Series Visitor Terminal User Manual Appendix B. Tips for Installation Environment 1. Light Source Illumination Reference Value Candle: 10Lux Bulb: 100~850Lux Sunlight: More than 1200Lux 2. Install the device at least 2 meters away from the light, and at least 3 meters away from the window or door.

  • Page 33: Appendix C. Dimension

    DS-K5032 Series Visitor Terminal User Manual Appendix C. Dimension...

  • Page 34: Appendix D. Communication Matrix And Device Command

    Device Command Scan the following QR code to get the device common serial port commands. Note that the command list contains all commonly used serial ports commands for all Hikvision access control and video intercom devices. Figure D-2 Device Command...
  • Page 35 UD20585B...
