Summary of Contents for Bromic Heating FD4T0660C-NR

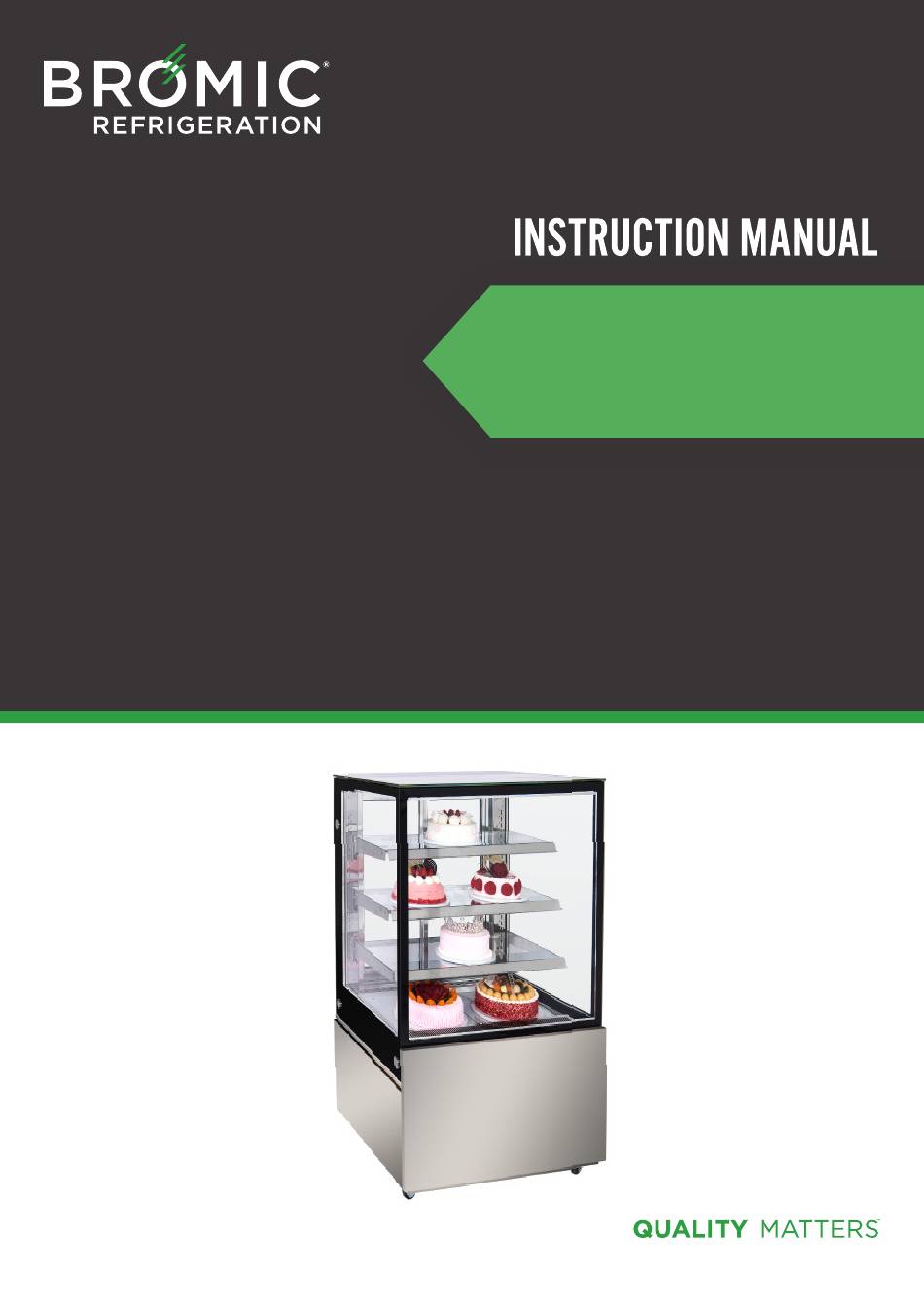

- Page 1 FOOD DISPLAY FRIDGE 3736308, 3736309, 3736310, 3736311, 3736313-NR 28/05/2021 - V2...
-
Page 2: Table Of Contents
CONTENTS 1. PREFIX 2. IMPORTANT NOTES & WARNINGS 3. PRODUCT OVERVIEW 4. INSTALLATION 5. OPERATION 6. PRODUCT LOADING AND STORAGE 7. MAINTENANCE 8. TROUBLESHOOTING 9. ENVIRONMENTAL & DISPOSAL NOTES 10. WARRANTY Note: Bromic Refrigeration reserves the right to make changes to specifications, parts, components and equipment without prior notification. This Installation, operation and service manual may not be reproduced in any form with prior written consent from Bromic Refrigeration. -
Page 3: Prefix
1. PREFIX This manual contains important information about the installation, operation, and maintenance of Bromic Food Display units. Please pay close attention to the important safety information shown throughout this instruction manual. Any safety information will be accompanied by the following safety alert symbols: DANGER, WARNING,... -
Page 4: Important Notes & Warnings
Installation/servicing of the appliance must be performed by a licenced technician with Gas Work Authorization if the appliance gas system is being opened or charged. • The refrigerant used in this appliance (model FD4T0660C-NR only) is flammable. www.bromic.com/refrigeration 1300 276 642... -
Page 5: Product Overview
3. PRODUCT OVERVIEW FD4T1500C FD4T1800C FD4T0660C FD4T0900C FD4T1200C Part Number 3736313-NR 3736308 3736309 3736310 3736311 Height, mm 1360 1360 1360 1360 1360 External Dimension Width, mm 1200 1500 1800 Depth, mm Capacity Litres Weight Air Circulation Type Forced Forced Forced Forced Forced Climate Class... -
Page 6: Installation
4. INSTALLATION Locating the Cabinet Ensure the following instructions are observed as this is vital for proper and trouble-free operation. • Do not install the cabinet outdoors. • Locate the appliance in a dry and well ventilated place. • The unit must be positioned on a level surface. •... - Page 7 Power Supply • The appliance must not be plugged into a multiple outlet power board. • The appliance is supplied with a flexible power cord fitted with a 3-pin plug. • The socket used must be properly earthed and fuse/RCD protected. •...
-
Page 8: Operation
5. OPERATION Start-up • Connect the appliance to the mains power supply and turn on the main switch (blue) by flipping it upward. • Switch on the Refrigeration, Antifog and Lighting switches, and check that the compressor, electronic controller, lighting and all fans are functioning correctly. •... -
Page 9: Product Loading And Storage
6. PRODUCT LOADING AND STORAGE IMPORTANT: Run the refrigerator for at least 2 hours before loading. WARNING: WARNING: Do not store explosive substances such as aerosol cans with a flammable propellant inside the appliance. Start-up • Clean the interior surface with a soft cloth and warm water before loading. •... -
Page 10: Troubleshooting
8. TROUBLESHOOTING IMPORTANT: Repairs on the unit must be carried out by an authorised and licenced person only. Contact the manufacturer or an approved service agent for any repairs needed. Symptom Possible Cause(s) Unit does not work A. No power supply A. -
Page 11: Environmental & Disposal Notes
Proper supervision must be maintained and children must be prevented from playing with discarded refrigerated cabinets. • The refrigerant used in this appliance (model FD4T0660C-NR only) is flammable. 10. WARRANTY Please visit our webpage for warranty details –... - Page 12 SYDNEY HEAD OFFICE & SHOWROOM 10 Phiney Place, Ingleburn NSW 2565 Australia T: AU 1300 276 642 F: (+61) 1300 735 115 E: refrigeration@bromic.com.au NSW VIC QLD TAS WA SA NT ACT BROMIC.COM...
