M-system 10DU Instruction Manual

INSTRUCTION MANUAL
CURRENT LOOP SUPPLY
BEFORE USE ....
Thank you for choosing M-System. Before use, check the
package you received as below.
If you have any problems or questions with the product,
please contact M-System's Sales Office or representatives.
PACKAGE INCLUDES:
Signal conditioner ................................................... (1)
MODEL NO.
Check that model No. described on specification label is
exactly what you ordered.
INSTRUCTION MANUAL
This manual describes necessary points of caution when you
use this product, installation, connection and basic mainte-
nance procedures.
POINTS OF CAUTION

POWER INPUT RATINGS

• Power input ratings are specified by the model number
suffix code. Check the power input voltage for the unit on the
specification label.
24V DC ±10%, approx. 100mA

GENERAL

• Before you remove the unit or mount it, turn off the power
supply and input signal for safety.

ENVIRONMENT

• Indoor use
• When heavy dust or metal particles are present in the air,
install the unit inside proper housing and ventilate it.
• Do not install the unit where it is subjected to continuous
vibration. Do not apply physical impact to the unit.
• Environmental temperature must be within -5 to +55°C (23
to 131°F) with relative humidity within 30 to 90% RH in order
to ensure adequate life span and operation.

WIRING

• Do not install cables (power supply, input and output) close
to noise sources (relay drive cable, high frequency line, etc.).
• Do not bind these cables together with those in which noises
are present. Do not install them in the same duct.
AND ....
• The unit is designed to function as soon as power is
supplied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data sheet.
(10 – 50mA loop)
MODEL

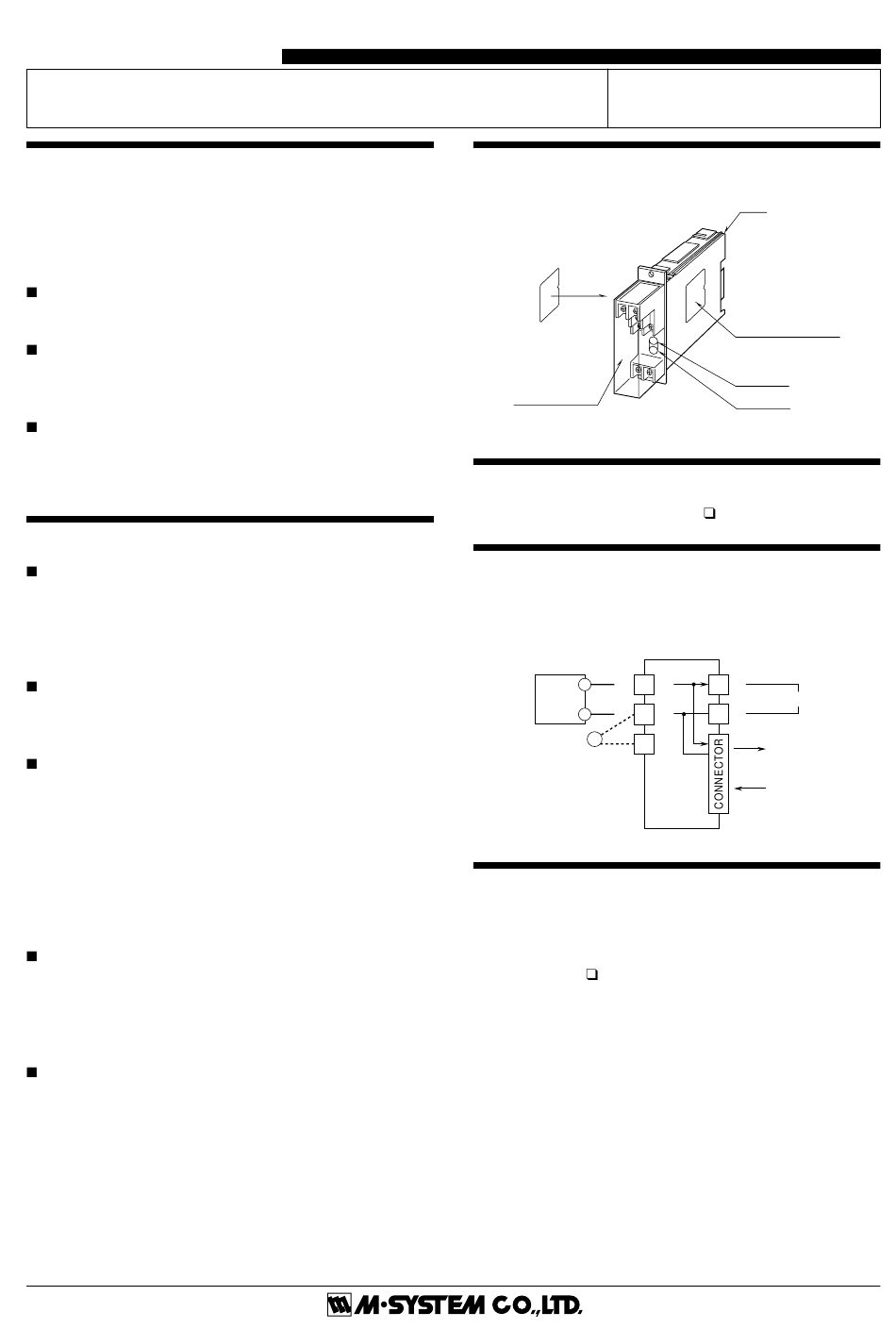

COMPONENT IDENTIFICATION

Connection Diagram
Label
(side)
Terminal Cover

INSTALLATION

Use Standard Rack (model: 10BX ).

TERMINAL CONNECTIONS

Connect the unit as in the diagram below or refer to the
connection diagram label on the unit side.
2-WIRE
TRANSMITTER
+ +
1
– –
2
+
MONITOR mA
3
–
(10 – 50mA DC)

CHECKING

1) Terminal wiring: Check that all cables are correctly
connected according to the connection diagram.
2) Power input voltage: Check voltage supplied to the rack
(model: 10BX ). For the DC power source, be sure that
the ripple level is within 10% p-p.
3) Input: Check that the input signal is within 0 – 100% of
the full-scale.
4) Output: Check that the load resistance meets the de-
scribed specifications.
10DU
10DU
Body
Specification Label
Zero Adj.
Span Adj.
–
8
OUTPUT
+
7
OUTPUT
POWER
P. 1 / 2 EM-0828 Rev.3
