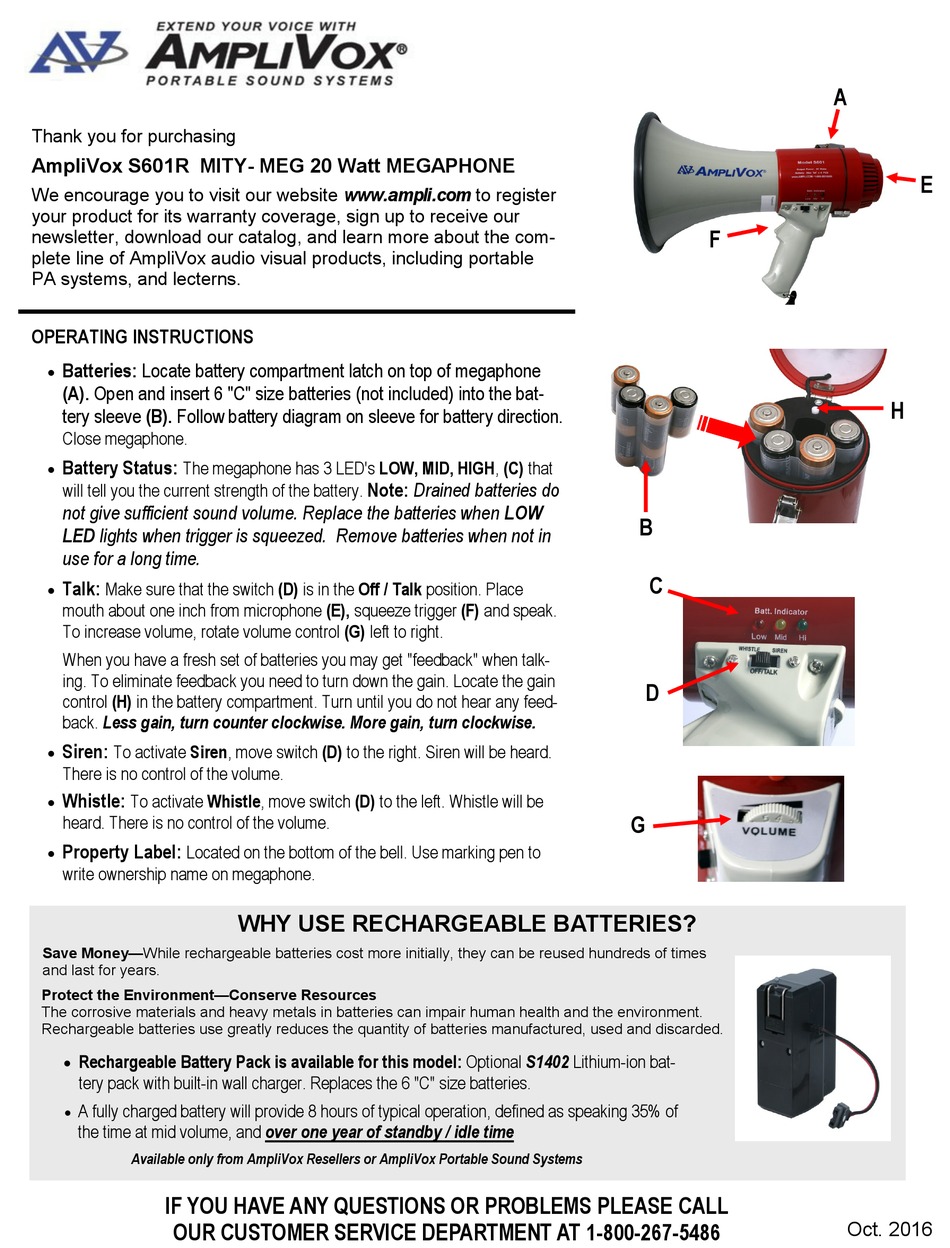

AmpliVox S601R Operating Instructions

Thank you for purchasing

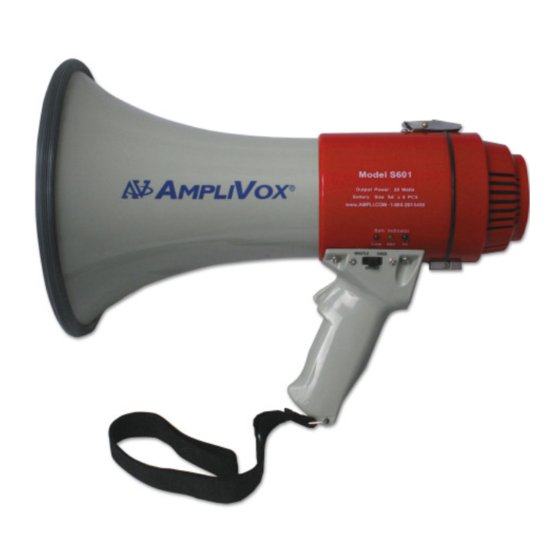

AmpliVox S601R MITY- MEG 20 Watt MEGAPHONE
We encourage you to visit our website www.ampli.com to register
your product for its warranty coverage, sign up to receive our
newsletter, download our catalog, and learn more about the com-
plete line of AmpliVox audio visual products, including portable
PA systems, and lecterns.
OPERATING INSTRUCTIONS
Batteries: Locate battery compartment latch on top of megaphone

(A). Open and insert 6 "C" size batteries (not included) into the bat-
tery sleeve (B). Follow battery diagram on sleeve for battery direction.
Close megaphone.

Battery Status:

The megaphone has 3 LED's LOW, MID, HIGH, (C) that

will tell you the current strength of the battery.
not give sufficient sound volume. Replace the batteries when LOW
LED lights when trigger is squeezed. Remove batteries when not in
use for a long time.

Talk:

 Make sure that the switch (D) is in the Off / Talk position. Place
mouth about one inch from microphone (E), squeeze trigger (F) and speak.
To increase volume, rotate volume control (G) left to right.
When you have a fresh set of batteries you may get "feedback" when talk-
ing. To eliminate feedback you need to turn down the gain. Locate the gain
control (H) in the battery compartment. Turn until you do not hear any feed-
back. Less gain, turn counter clockwise. More gain, turn clockwise.

Siren:

To activate Siren, move switch (D) to the right. Siren will be heard.

There is no control of the volume.

Whistle:

 To activate Whistle, move switch (D) to the left. Whistle will be
heard. There is no control of the volume.

Property Label:

 Located on the bottom of the bell. Use marking pen to
write ownership name on megaphone.
Save Money—While rechargeable batteries cost more initially, they can be reused hundreds of times
and last for years.
Protect the Environment—Conserve Resources
The corrosive materials and heavy metals in batteries can impair human health and the environment.
Rechargeable batteries use greatly reduces the quantity of batteries manufactured, used and discarded.
 Rechargeable Battery Pack is available for this model: Optional S1402 Lithium-ion bat-
tery pack with built-in wall charger. Replaces the 6 "C" size batteries.
A fully charged battery will provide 8 hours of typical operation, defined as speaking 35% of

the time at mid volume, and over one year of standby / idle time
Available only from AmpliVox Resellers or AmpliVox Portable Sound Systems
IF YOU HAVE ANY QUESTIONS OR PROBLEMS PLEASE CALL
OUR CUSTOMER SERVICE DEPARTMENT AT 1-800-267-5486
Note: Drained batteries do

WHY USE RECHARGEABLE BATTERIES?

F
B
C
D
G
A
E
H
Oct. 2016
