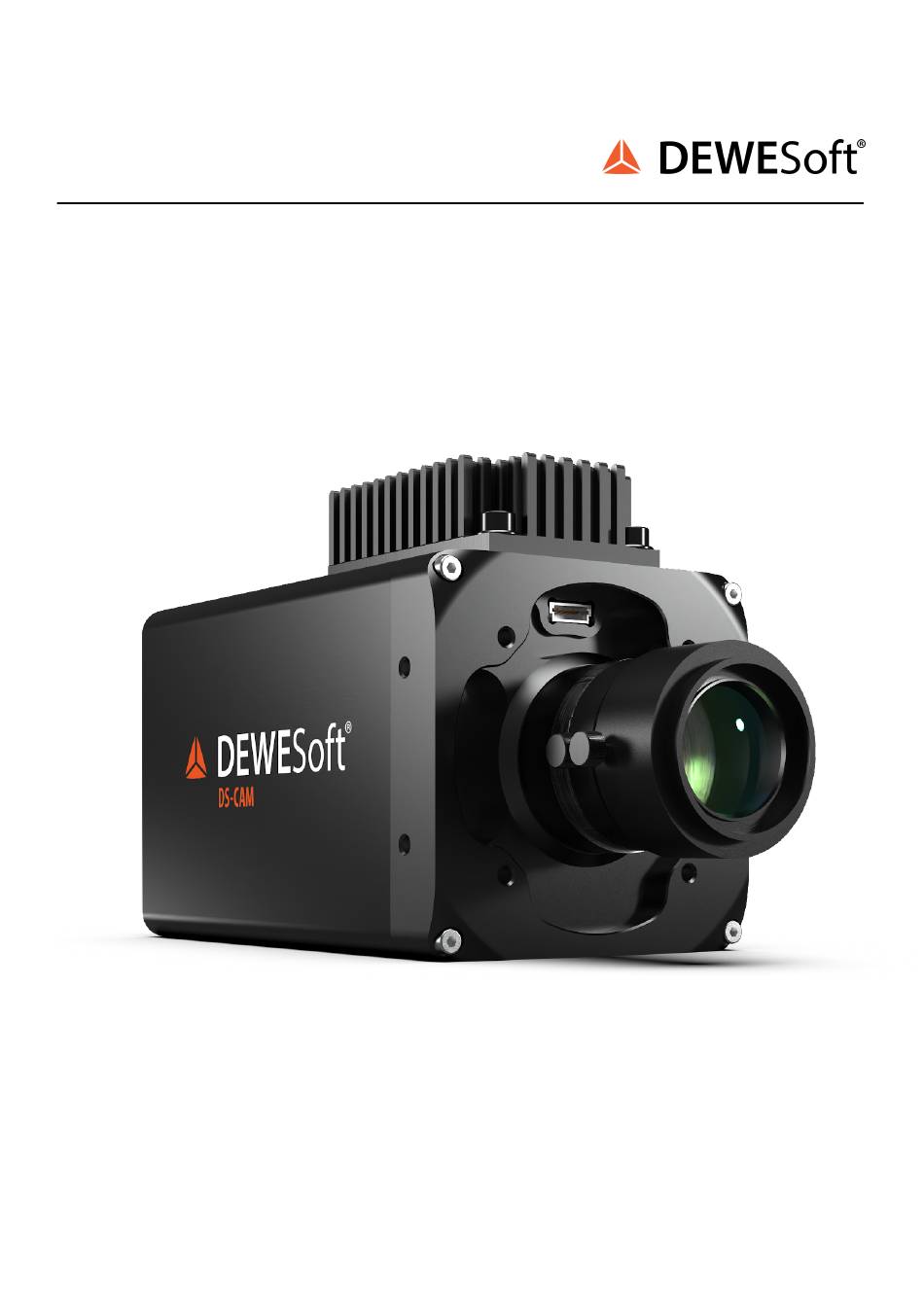

- Page 1 DS-CAM-640c & 1100m TECHNICAL REFERENCE MANUAL DS-CAM-640c & 1100m V22-1...
-
Page 2: Table Of Contents
3.1.2 Optimal configuration 4. Technical data 4.1. Specifications 4.2. DS-CAM-640c & DS-CAM-1100m Dimensions 4.3. Scope of supply 4.3.1. DS-CAM-640c & DS-CAM-1100m Scope of supply 4.3.2. DS-CAM-640c & DS-CAM-1100m Accessories 4.4. Camera pinouts 4.4.1. DATA CONNECTOR PINOUT 4.4.2. POWER CONNECTOR PINOUT 4.5. - Page 3 8.1. Safety symbols in the manual 8.2. General Safety Instructions 8.2.1. Environmental Considerations 8.2.2. Product End-of-Life Handling 8.2.3. System and Components Recycling 8.2.4. General safety and hazard warnings for all Dewesoft systems 9. Documentation Version 10. List of Images 11. NOTES DS-CAM-640c & 1100m V22-1...
-
Page 4: Table Of Contents
Important It gives you important information about the subject. Please read carefully! Hint It gives you a hint or provides additional information about a subject. Example It gives you an example of a specific subject. DS-CAM-640c & 1100m V22-1 1/34... -
Page 5: Key Features

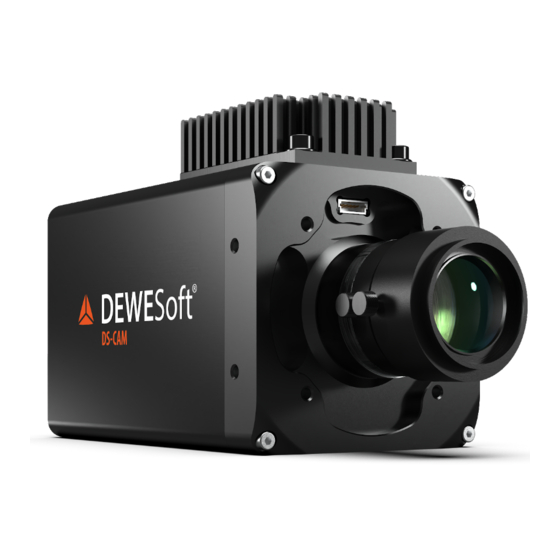

DS-CAM-640c & DS-CAM-1100m TECHNICAL REFERENCE MANUAL 3. Key features The DS-CAM-640c is a high-speed 10 Gigabit-Ethernet camera with the following key data: Up to 640 FPS @ VGA (640x480) & 8Bpp or 115 FPS @ 2048x1536 & 12Bpp ● Real-time data streaming with full resolution ●... -
Page 6: System Requirements
High-performance PC (Core i7 CPU, 16 GB RAM, and high-performance M.2 SSD storage disc) ● Latest DewesoftX® ● The latest OptoStream SDK provided with a fresh installation of DewesoftX® ● Dewesoft GigE driver (cdv) ● DS-CAM-640c & 1100m V22-1 3/34... -
Page 7: Technical Data
Baseline JPEG (ISO/IEC 10918-1) Power Power supply 19,2 … 28,8 V DC 19,2 … 28,8 V DC Power consumption approx. 10,0 W @ 24 VDC and 216 fps approx. 11.6 W @ 24 VDC and 411 fps Environmental DS-CAM-640c & 1100m V22-1 4/34... - Page 8 IP65/67 (with mounted tube and cable) Physical 119 x 60 x 60 mm 119 x 60 x 60 mm Dimensions 4.68 x 2.36 x 2.36 in 4.68 x 2.36 x 2.36 in Weight 485 g 485 g Rev: 1552392000 DS-CAM-640c & 1100m V22-1 5/34...
-
Page 9: Ds-Cam-640C & Ds-Cam-1100M Dimensions
DS-CAM-640c & DS-CAM-1100m TECHNICAL REFERENCE MANUAL 4.2. DS-CAM-640c & DS-CAM-1100m Dimensions Image 1. Technical drawing of DS-CAM-640c & DS-CAM-1100m DS-CAM-640c & 1100m V22-1 6/34... -
Page 10: Scope Of Supply
5m M1212 to L1B2m power cable compatible with SIRIUS, PS-120W-L1B2f-PHG power supply or Power transfer L1B2m-M1212-5m POWER-SPLITTER-1xL1B2m-5xL1B2f Packaging Carrying bag Carrying bag with foam insert for transportation and storing Image 2. Scope of supply for DS-CAM-640c & DS-CAM-1100m. DS-CAM-640c & 1100m V22-1 7/34... -
Page 11: Ds-Cam-640C & Ds-Cam-1100M Accessories
Maximum input current: 15 A 4.4. Camera pinouts On the backside of the camera, there are two connectors. One for the Power cable and the second one for the data transfer. Image 3. Connectors on DS-CAM-640c & DS-CAM-1100m DS-CAM-640c & 1100m V22-1 8/34... -
Page 12: Data Connector Pinout
5 IN2 (Line1) 6 OUT2 (Line5) 7 OUT3 (Line6) 8 RS232 TxD (Line2) 9 OUT4 (Line7) 10 RS232 RxD (Line3) 11 GND (IO) 12 Power (IO) Image 5. IO connector pin-out (M12/12-pin a-coded) Camera connector: SACC-CI-M12MS-12CON-L180 DS-CAM-640c & 1100m V22-1 9/34... -
Page 13: Connection Examples
TECHNICAL REFERENCE MANUAL 4.5. Connection examples Examples below will show typical configurations for DS-CAM-640c & DS-CAM-1100m. Keep in mind that the synchronization between other devices is done by SoftSync with a precision of 1,5 ms +- 1 frame. 4.5.1. Stand-alone DS-CAM The most basic of configurations is a single camera or multiple cameras connected to a PC. -
Page 14: Sirius With Ds-Cam
SIRIUS PWR Out, as then the camera is the last device in the daisy chain, or from SBOX PWR Out, if you supply the SIRIUS from a different source. Image 8. SBOX based system with SIRIUS and DS-CAM DS-CAM-640c & 1100m V22-1 11/34... -
Page 15: Krypton® Connection Example
The KRYPTON rugged configuration is not much different from a typical SIRIUS configuration, but in this case, we recommend also using DS-CAM-IP65-COVER for added protection. Image 9. KRYPTON-based system 4.5.5. Multi-camera solution Image 10. Configuration with multiple cameras over a switched network DS-CAM-640c & 1100m V22-1 12/34... -
Page 16: Resolutions / Framerates
Results (FPS) should be considered only as approximate MAX values. It depends on the system performance (CPU, JPEG compression, hard disk). We recommend testing cameras with your setup at about 0.8*max_FPS and higher to find where corrupted image, frame loss, or buffer overrun will occur. DS-CAM-640c & 1100m V22-1 13/34... -
Page 17: Installation And Start-Up
& Receive Buffer size might solve your issues. 5.1. DewesoftX® full installer If you run a fresh full installation of DewesoftX® all the drivers come preinstalled. In this situation, you can skip to chapter 5.4. Step-by-step procedure for a first start-up. DS-CAM-640c & 1100m V22-1 14/34... -
Page 18: Dewesoftx® Partial Installation
When the setup prompts to select features, enable the checkbox for the GigE camera and at this point also check the state of the OptoStream GEV Filter. Select it for installation if not previously installed. DS-CAM-640c & 1100m V22-1 15/34... - Page 19 DS-CAM-640c & DS-CAM-1100m TECHNICAL REFERENCE MANUAL Image 12. Installing GigE camera driver and OptoStream GEV Filter The last DewesoftX® full installer can be downloaded here: https://download.dewesoft.com/list/dewesoftx DS-CAM-640c & 1100m V22-1 16/34...
-
Page 20: Manual Installation
Available from https://download.dewesoft.com/list/dewesoftx ● Hint You need to be logged into the Dewesoft website to download the latest development versions of DewesoftX®. 5.3.2. Adding GigE Addon To enable the camera in DewesoftX® copy the file “GigECamera.cdv” into the Dewesoft Addons folder, usually located in “C:\DewesoftX\Bin64\Addons64\GigeCam”. -
Page 21: Step-By-Step Procedure For A First Start-Up
Image 15. Installed OptoStreamViewer GEV Filter Driver Important If you intend to use this Local Area Network card solely for video acquisition, we recommend also disabling all items except OptoStream GEV Filter Driver & Internet protocol IPv4 (TCP/IPv4) DS-CAM-640c & 1100m V22-1 18/34... -
Page 22: Connect And Power Up
Connect the camera to the PC via Ethernet cable and power it up. Important DS-CAM-640c & DS-CAM-1100m require a power supply with 24VDC ± 20% capable of providing at least 0,5A / 12W or more. 5.4.3. Assigning IP address to camera The DS-CAM-640c &... -
Page 23: Enable Video
TECHNICAL REFERENCE MANUAL Hint Although the DS-CAM-640c & DS-CAM-1100m come configured in DHCP mode, at the first startup we recommend defining a fixed IP for each camera separately before connecting them to a switch or a network. If you are having issues with camera recognition use the IP Config Tool on the below link for discovery and configuration. -
Page 24: Preview And Settings
AOI, area of interest, for instance. Hint If you change the frame rate, after typing the value, the input field gets a yellow color; confirm the value by pressing the Enter key. DS-CAM-640c & 1100m V22-1 21/34... -
Page 25: Troubleshooting Guide
(not found in DewesoftX®; yellow mark in OptoStreamViewer) Not able to use the cameras. Please wait a little bit (until IP is assigned). If that does not help, ensure the computer's network IP is set to automatic, as the camera supports DHCP. DS-CAM-640c & 1100m V22-1 22/34... -
Page 26: Change The Ip Address Of The Camera
If you manually change the IP address, please use the same subnet as the computer, for example, PC: 169.254.135.5, Subnet 255.255.255.0 Camera: 169.254.135.4, Subnet 255.255.255.0 The IP is ok, if the cameras are found with a red mark (see Illustration above), close OptoStreamViewer and start DewesoftX®. DS-CAM-640c & 1100m V22-1 23/34... -
Page 27: Gige Vision Client Does Not Start, Error Message When Starting
If you followed the step-by-step installation procedure, but still the camera is not working in DewesoftX®, you can try to copy the used DLLs manually: Example of Copying the 32-bit DLLs from C:\Program Files\OptoMotive\OptoStreamSDKbin\Win32 C:\Program Files\OptoMotive\OptoStreamSDK\GenICam_v2_4\bin\Win32_i86 Dewesoft’s Addons folder. Then restart DewesoftX®. DS-CAM-640c & 1100m V22-1 24/34... -
Page 28: Performance Improvements
Image 22. Jumbo packet settings Windows 11 Settings → Network & internet → Advanced network settings → “Used Ethernet card” → Properties → Configure → Advanced → Jumbo Packet → Set to highest value (e.g. 9kB MTU) DS-CAM-640c & 1100m V22-1 25/34... - Page 29 Try at first only with camera video instruments. Press <Ctrl>+<Shift>+<P> in DewesoftX® Measure mode. On the right side, the performance ● monitor will appear. Watch the Cam video buffer. It should stay stable at low values. Image 23. DewesoftX® Performance monitor DS-CAM-640c & 1100m V22-1 26/34...
-
Page 30: Warranty Information
7.2. Support Dewesoft has a team of people ready to assist you if you have any questions or any technical difficulties regarding the system. For any support please contact your local distributor first or Dewesoft directly. -
Page 31: Copyright
When used in text representing the company, product or technology name, the ® sign is not used. The Dewesoft triangle logo is a registered trademark but the ® sign is not used in the visual representation of the triangle logo. -
Page 32: Safety Instructions
Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture, and intended use of the product. Dewesoft d.o.o. assumes no liability for the customer’s failure to comply with these requirements. -
Page 33: General Safety And Hazard Warnings For All Dewesoft Systems
REMOVE POWER and do not use the product until the safe operation can be verified by service-trained personnel. If necessary, return the product to Dewesoft sales and service office for service and repair to ensure that safety features are maintained. - Page 34 EN 61326-3-1:2008 IEC 61326-1 applies to this part of IEC 61326 but is limited to systems and equipment for industrial applications intended to perform safety functions as defined in IEC 61508 with SIL 1-3. DS-CAM-640c & 1100m V22-1 31/34...
- Page 35 Devices and systems according to IEC 61508 or IEC 61511 which are considered as “operationally well-tried”, are excluded from the scope of IEC 61326-3-1. Fire-alarm and safety-alarm systems, intended for the protection of buildings, are excluded from the scope of IEC 61326-3-1. DS-CAM-640c & 1100m V22-1 32/34...
-
Page 36: Documentation Version
Initial release 10. List of Images ■ Image 1. Technical drawing of DS-CAM-640c & DS-CAM-1100m ■ Image 2. Scope of supply for DS-CAM-640c & DS-CAM-1100m. ■ Image 3. Connectors on DS-CAM-640c & DS-CAM-1100m ■ Image 4. IO connector pin-out (M12/12-pin a-coded) ■... -
Page 37: Notes
DS-CAM-640c & DS-CAM-1100m TECHNICAL REFERENCE MANUAL 11. NOTES A table for data entry when you are setting up larger systems. CAM Type Notes DS-CAM-640c & 1100m V22-1 34/34...
