Summary of Contents for Kambrook KPF445GUN

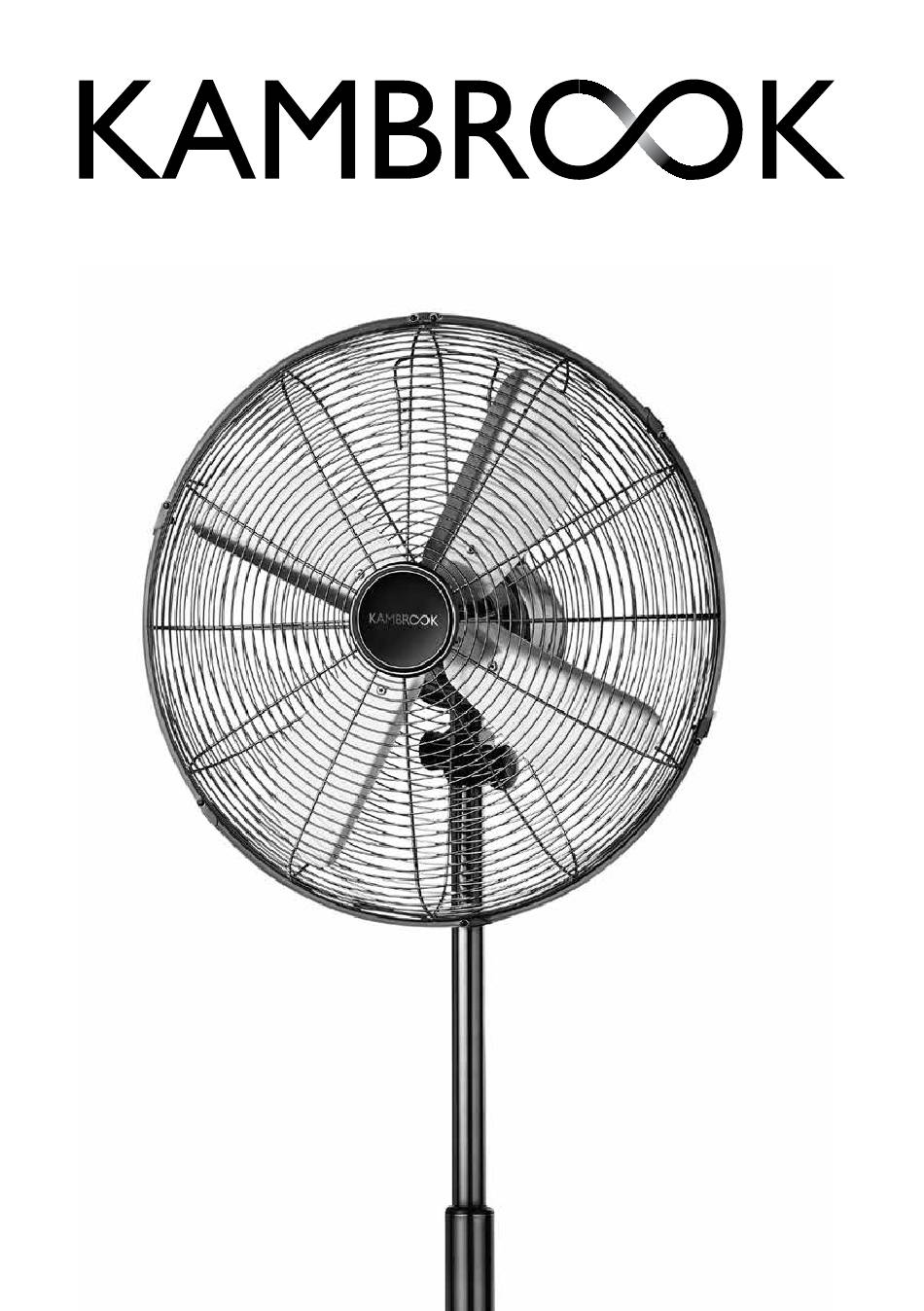

- Page 1 Suits all KPF445GUN INSTRUCTION BOOKLET models...
- Page 2 In the event that you need some assistance with your Kambrook appliance, please contact our Customer Service Department on 1300 139 798 (Australia) or 0800 2738 45 (New Zealand). Alternatively, visit us on our website at...
- Page 3 Contents Kambrook Recommends Safety First Your Kambrook Arctic Gunmetal Pedestal Fan Using Your Kambrook Fan Care, Cleaning and Storage...
- Page 4 IMPORTANT: Please retain your instruction book for future use. At Kambrook, we believe that safe performance is the first priority in any consumer product, so that you, our valued customer can confidently use and trust our products. We ask that any electrical appliance that you use be operated in a sensible fashion with due care and attention placed on the following important operating instructions.
-
Page 5: Important Safeguards For All Electrical Appliances
Return the entire appliance to the nearest authorized Kambrook service centre for examination and / or repair. • Any maintenance other than cleaning should be performed at an authorised Kambrook Service Centre. - Page 6 Your Kambrook Arctic Gunmetal Pedestal Fan Insert 1: Fan speed selection dial with choice of 3 speed settings Swing button turns the oscillation on and off to disperse the air throughout the room Convenient carry handle for easy portability Fan motor head...
- Page 7 • 1x small screw to secure the fan blades to the motor shaft. NOTE: When first unpacking the fan from the giftbox, some of the screws and nuts listed come screwed in other fan parts. Model KPF445GUN shown...
- Page 8 Using Your Kambrook Pedestal Fan Before First Use Insert the inner extension tube into the tilt adjustable head Remove any promotional material assembly, ensuring that the from fan. side of the tube with ONLY one large round opening is inserted (See Fig.
- Page 9 Align the large squared opening Insert and tighten the screw on the tilt adjustable head knob into the aperture above assembly with the large round the long screw head (See Fig. 5). opening on the extension tube (See Fig. 3). Fig.
- Page 10 Using Your Kambrook Pedestal Fan Continued... 10. Turn the extension tube and Secure the long screw with the nut knob and tighten (See Fig. 7). base assembly over and fit the base weight to the centre of the base (See Fig. 9).
- Page 11 12. Tip the whole assembly so that 15. Separate the blades, front the unit is standing on its base. and rear grilles by opening the securing clips all around the front 13. Loosen the height adjustment grille and undoing the twist tie knob on the extension tube away from the fan blades.
- Page 12 Using Your Kambrook Pedestal Fan Continued... 18. Slightly loosen the securing 20. Loosen the small screw and screw located on the back nut assembly at the bottom of of the fan blades so you can the front grille by hand. Locate...
- Page 13 Setting the Oscillation 23. Tighten the small screw and nut together (See Fig. 18). The oscillation works in all air flow settings. Press the 'SWING' button down to activate. The fan will begin to oscillate from side to side. Lift the 'SWING' button to stop the fan from oscillating.
-
Page 14: Care, Cleaning And Storage
Care, Cleaning and Storage Always switch the fan off, switch off at the power outlet and unplug prior to cleaning the housing, base, grilles and blades. To clean the outside of the fan, wipe the exterior with a soft, damp cloth. Never use an abrasive cleaner. - Page 15 Notes...
- Page 16 Kambrook - Australia Kambrook - New Zealand Ground Floor, Suite 2, 170-180 Bourke Rd Private Bag 94411 Alexandria NSW 2015, Australia Botany, Manukau Auckland 2163 Locked Bag 2000 New Zealand Botany NSW 1455 Customer Service Line/ Customer Service Line 1300 139 798...
