Summary of Contents for Fluke 5618B

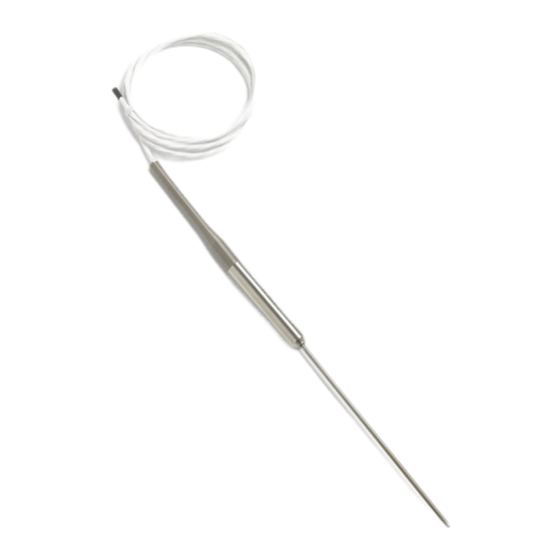

- Page 1 5618B Small Diameter Industrial RTD Users Guide 2004, Rev. 1, 4/11 © 2004 - 2011 Fluke Corporation. All rights reserved. Specifications subject to change without notice. All product names are trademarks of their respective companies.
- Page 2 The warranty period is one year and begins on the date of shipment. Parts, product repairs, and services are warranted for 90 days. This warranty extends only to the original buyer or end-user customer of a Fluke authorized reseller, and does not apply to fuses, disposable batteries, or to any product which, in Fluke’s opinion, has been misused, altered,...
-
Page 3: Table Of Contents
Introduction .........................1 General ..........................1 Recalibration ........................1 Before You Start ........................1 Symbols Used .........................1 Safety Information ......................2 How to Contact Fluke .....................2 Specifications ........................3 Installation ..........................4 Lead Wire Identification ....................4 PRT Care and Handling Guidelines ..................4 Operation ..........................5 Immersion Requirements ....................5 Thermal EMF ........................5... - Page 4 5618B Users Guide...
- Page 5 List of Tables Page Table Title Table 1. International Electrical Symbols ....................1 Table 2. Specifications ..........................3 Table 3. PRT Troubleshooting .......................6 List of Figures Figure Title Page Figure 1. PRT Schematic ........................4...
- Page 6 5618B Users Guide...
-
Page 7: Introduction
Recalibration Recalibration of the 5618B PRT should be scheduled according to the user’s company Quality Assurance requirements. Normally, a PRT is recalibrated annually. Unless the PRT is used only over a limited range, calibration over the full range of the PRT is recommended. For information on recalibrating your PRT, contact Fluke for assistance (see “How to Contact Fluke”). -
Page 8: Safety Information
Incorrect packaging of the PRT for shipment can cause irreparable damage. How to Contact Fluke To contact Fluke, call one of the following telephone numbers: • Technical Support USA: 1-800-44-FLUKE (1-800-443-5853) • Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853) • Canada: 1-800-36-FLUKE (1-800-363-5853) • Europe: +31 402-675-200... -
Page 9: Specifications
± 0.01 °C at 0 °C When Using –196 °C and 420 °C Hysteresis as the End Points. 5618B-6: 152 mm x 3.2 mm (6 in x 0.125 in) Sheath Dimensions (Length x Diameter) 5618B-9: 229 mm x 3.2 mm (9 in x 0.125 in) 5618B-12: 305 mm x 3.2 mm (12 x 0.125 in) -
Page 10: Installation
Installation Lead Wire Identification The 5618B PRT is equipped with a four-wire cable (see Figure 1). Four lead wires are used to cancel lead wire resistance. For best results, the readout device should be equipped to handle four-terminal resistors. The lead wires are two different colors. Lead wire pairs attached to each end of the sensor are identified by red and white insulation. -
Page 11: Operation
Small Diameter Industrial RTD Operation Operation For best results, be familiar with the operation of the heat source and the readout instrument. Be sure to follow the manufacturer’s instructions for the readout instrument and the heat source. Immersion Requirements Stem effect can cause measurement errors for any thermometer. This error is due to heat lost or gained by the sensing element through the thermometer stem. -
Page 12: Troubleshooting
If a problem arises, please read this section carefully and attempt to understand and solve the problem. If the probe seems faulty or the problem cannot otherwise be solved, contact Fluke for assistance (see “How to Contact Fluke”). Be sure to have the model number and serial number of your probe available.
