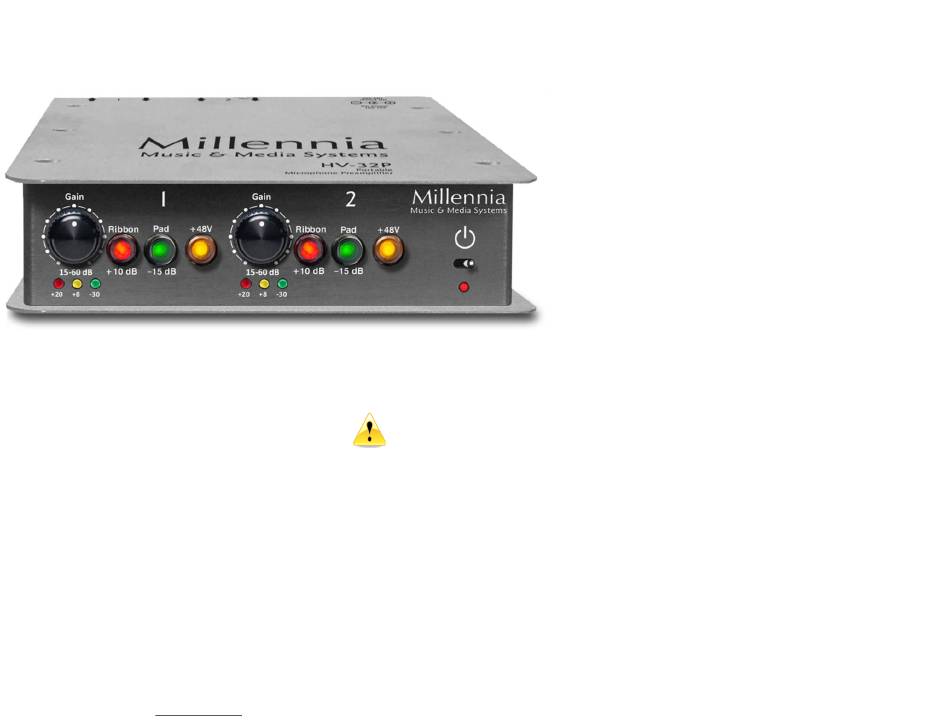

Millennia HV-32P User Manual

Millennia
Music & Media Systems
HV-32P User Guide
revised 020315
Gain is a continuously variable gain
control. It has a high gain jump near full
clockwise for low level signals.
Signal LEDs indicate signal level at
-30dBu (green), +8dBu (yellow) and
+20dBu (red).
Ribbon-Dyn Mic DC couples the mic to
the gain stage and also provides an
additional 10dB of gain. Use with any
Ribbon or Dynamic mic (like an SM-57).
A mic requiring phantom power will not
work in this mode.
Pad – Attenuates the input signal after
the gain stage by about 14dB.
Millennia Media, Inc.
http://www.mil-media.com
Phantom Power – turns the +48V
phantom power supply on.
Avoid connecting or disconnecting
mics with the +48V on (hot
patching). This can damage the
mic, preamp and make some very
loud pops that can damage your
monitoring system and ears.
External Power Supply – The HV-35P is
powered by a 12V DC, 5 amp, universal
voltage (100 to 240 VAC) line lump power
supply provided with the unit.
It can also be powered by Li-Ion battery
packs that produce 14.8V DC and
automatically cut off at 12V DC. If it
doesn't have a cut-off circuit, it may
damage the unit.
