Mobilogix ATD500S User Manual

User Guide
How to turn the BAT on
•
If the battery is not dead, the BAT device will always be on and transmitting according to current firmware
intervals.
Current firmware summary V2.0.0.B406
•
The current firmware takes a reading of all the sensors and then makes a cellular broadcast to the fusion
platform once every 12 hours which reports Sensor and location data.
•
If you choose to set the Vibration Detection alarm on the fusion platform. Then the device will switch to a 5-
minute reporting mode. every time the BAT is moved. It will stay in this mode if the device is not moved for
another 5 minutes and then switch back to the 12 -hour mode.
•
When the Mirco-B USB is plugged in will trigger than BG96 to wake up and flash LED indicators. While the
USB is plugged in the device will not report correctly. Plugging the USB should only be used to charge device
or for the user to debug or change BG96 settings Via AT commands. See page 8 for Quectel drivers.

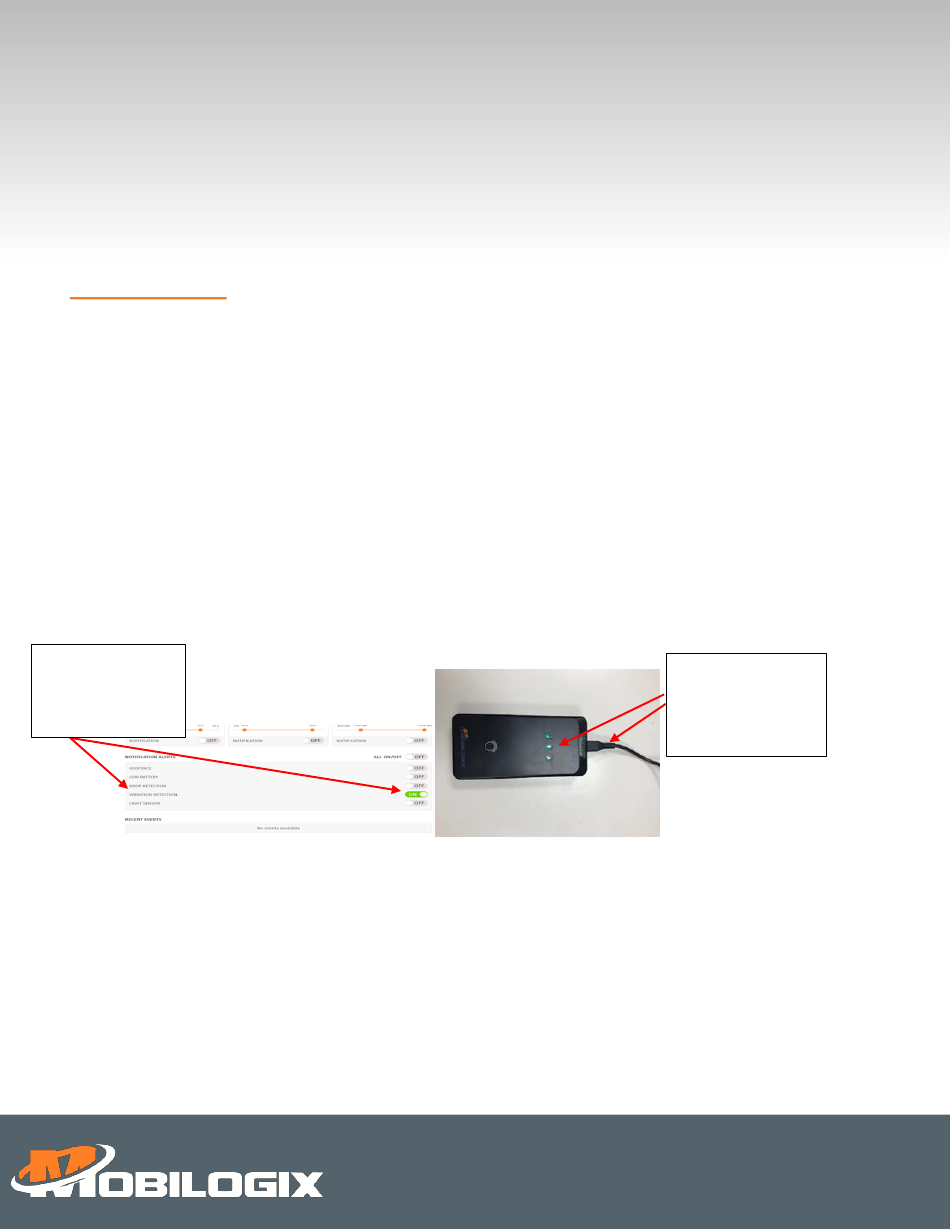

Vibration Detection
alarm turned ON
through the Fusion
Platform
Charging the BAT-
Note:
These numbers are based on a 500ma source
•
If the power LED is green when plugged in, then charge the device for 2 hours and 15 minutes.
•
If the power LED is yellow when plugged in, then charge the device for 3 hours.
•
If the power LED is red when plugged in, then charge the device for 3 hours and 45 minutes.
Mobilogix
ATD500S
To get a full charge look at the color of the power LED and charge accordingly
LEDs flashing and
BG96 on when a
powered USB is
plugged into the BAT
