er
s
et la
!
r
JETS
Tools You May Need
Outils requis
Adjustable wrench
Clé à molette
Groove joint plier
Pinces multiprises
Pipe tape
Ruban teflon
Allen key
Clé hexagonale
Attention:
To avoid damage to the product, once a week, open cold water for 1 minute,
and hot water for 1 minute at their minimum and maximum settings.
Attention:
pour maintenir le produit en bon état, une fois semaine, pendant 1 minute chaque,
vous devez faire couler l'eau froide et ensuite l'eau chaude au maximum.
For more information , visit our web site
Pour plus d'information, visitez notre site web

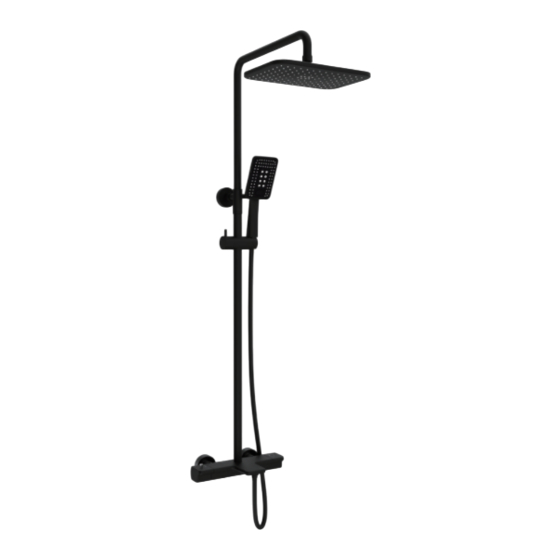

SH-CL-139BK
SHOWER COLUMN
Thermostatic valve
Solid brass construction with black finish
11-7/16" x 7-1/2" rain showerhead
Hand shower with 59" flexible
Cartridge covered by a 25-year limited warranty
Easy installation
COLONNE DE DOUCHE
Valve thermostatique
Construction en laiton solide au fini noir
Douche pluie 11-7/16" x 7-1/2"
Douchette avec flexible de 59"
Cartouche couverte par une garantie limitée de 25 ans
Installation facile
Diagramme de débit
4
3.5
3
2.5
2
1.5
1
0.5
0
Hand shower
Flow pressure in PSI / Volume de débit en PSI
1 GPM = 3.785 LPM
Hand shower/ Douchette
PSI
10
G/MIN
0.7
Shower head / Pomme de douche
PSI
10
G/MIN
0.8
Spout / Bec
PSI
10
G/MIN
1.6
water system or others,
water pressure may differ, and
cause the flow rate to
change a little bit.
En raison des différences entre
les systèmes d'eau de ville
ou autre, la pression d'eau
peut varier et provoquer un
léger changement dans le débit.
www.kebofaucet.com
www.kebofaucet.com
Flow rate chart
10
20
30
40
50
60
Shower Head
Spout
20
30
40
50
60
1.0
1.3
1.4
1.4
1.5
20
30
40
50
60
1.2
1.5
1.6
1.7
1.7
20
30
40
50
60
2.2
2.8
3.2
3.6
4.1
Rev 15,Aug.2019
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kebo SH-CL-139BK
Summary of Contents for Kebo SH-CL-139BK
- Page 1 SH-CL-139BK SHOWER COLUMN Thermostatic valve JETS Solid brass construction with black finish 11-7/16" x 7-1/2" rain showerhead Hand shower with 59" flexible Cartridge covered by a 25-year limited warranty Easy installation COLONNE DE DOUCHE Valve thermostatique Construction en laiton solide au fini noir Douche pluie 11-7/16"...
- Page 2 4. Screw washer and shower head(54) on the tube(53). Install the tube(53) into the faucet. Vissez la rondelle et la pomme de douche(54) sur le tube(53). Installez le tube(53) dans le robinet. Faucet Robinet 5. Put flange(33) onto the shank(35) to cover the lock nut(36). Connect faucet, rubber washer(34) and shank(35).
- Page 3 Wall 1. The distance between A and B is 31-1/8"(790mm). " Drill four holes on the wall based on base(50) 4 holes position. Fix base(50) by screw(51). Screw connector(47) to the base(50). And then cover the base(50) with flange(48). Drill two 7/8" holes at 5-7/8" centre apart. Place shank(35), lock nut(36) and rubber washer(37) through into the hole.
- Page 4 Replacement parts / Pièces de remplacement Faucet Spec Spécification du robinet 14-3/8"(365mm) 11-7/16"x7-1/2" (290x190mm) 6-7/8"(175mm) 11-3/8"(289mm) 2-1/8"(54mm) RP-DIV139 RP-900THERMO A and B symbols should be facing up at 12 O’clock. 100°F line Ligne 100°F Les symboles A et B Setting ring doivent être orientés La bague de réglage vers le haut à...
-
Page 5: Limited Warranty
To whom does this warranty apply? KEBO offers a 25-year limited warranty from the date of purchase, exclusive to the first buyer as long as he/she resides in the same property. The warranty applies to single-hole, 4", 8", bathtub, tub-shower, kitchen and shower faucets. The warranty is intended for residential and/or domestic use. -
Page 6: Garantie Limitée
À qui la garantie s’applique-t-elle? KEBO offre une garantie limitée de 25 ans à partir de la date d’achat, exclusive au premier acheteur et tant qu’il réside dans la propriété. Cette garantie s’applique aux robinets monotrou, 4’’, 8’’, aux robinets de bain, de bain-douche, de cuisine ainsi qu’à la robinetterie de douche. La garantie est destinée à...
Need help?
Do you have a question about the SH-CL-139BK and is the answer not in the manual?
Questions and answers
Hi I'm looking for a longueur tube. The tube included in the kit is way to short. I need at least 110 cm.
The length of the tube included in the Kebo SH-CL-139BK kit is 31-1/8 inches (790 mm).
This answer is automatically generated

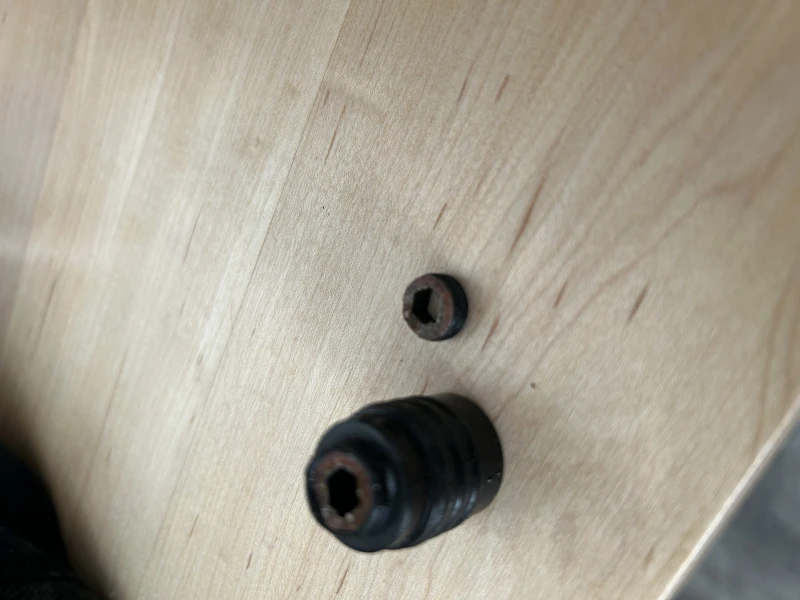

Hi, I need part number 39 where can I by it?
