User Guide
SW6200,6210,6220

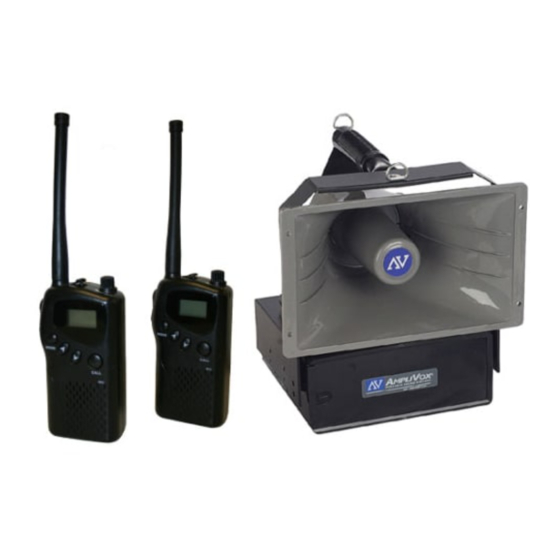

Radio Hailer Wireless PA System
Thank you for choosing the SW6200 / SW6210 / SW6220 Radio Hailer PA System from AmpliVox Porta-
ble Sound Systems.
We are excited in introducing this truly unique system. Our system combines flexibility with functionality.
Please refer to this user guide as you enjoy the unique capabilities of another quality product from Am-
pliVox Portable Sound Systems.
We encourage you to visit our website www.ampli.com to register your product for its warranty coverage,
sign up to receive our newsletter, download our catalog, and learn more about the complete line of Am-
pliVox audio visual products, including portable PA systems, and lecterns.
AmpliVox • 650 Anthony Trail Suite D, Northbrook, IL 60062 • Phone: (800)267-5486 • Fax: (800)267-5489 www.ampli.com
Advertisement
Table of Contents
Related Manuals for AmpliVox SW6200
Summary of Contents for AmpliVox SW6200

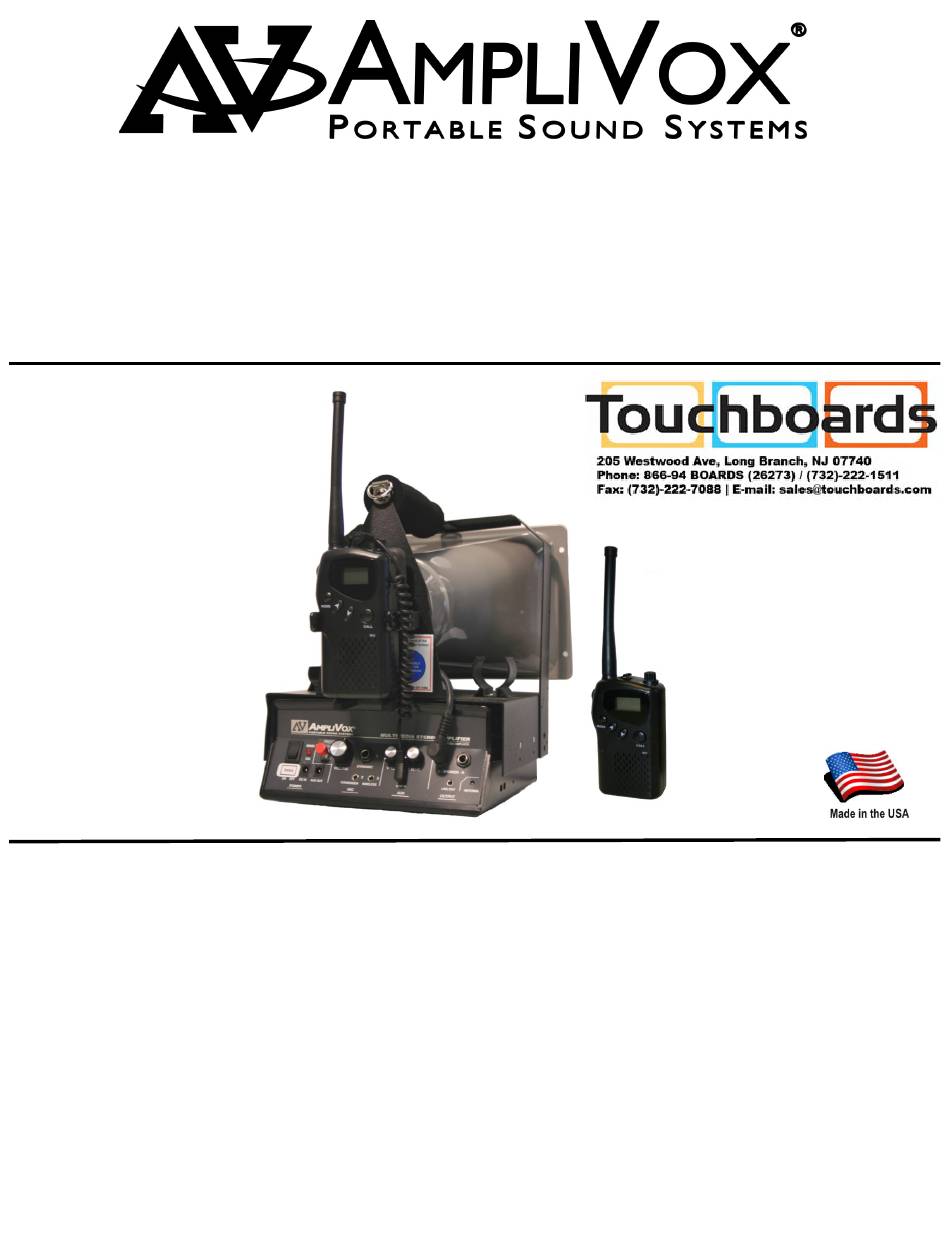

- Page 1 SW6200,6210,6220 Radio Hailer Wireless PA System Thank you for choosing the SW6200 / SW6210 / SW6220 Radio Hailer PA System from AmpliVox Porta- ble Sound Systems. We are excited in introducing this truly unique system. Our system combines flexibility with functionality.
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Before using this product, read the instruction manual for important safety information. Please retain this manual for future reference and warranty information. Troubleshooting & Servicing Do not attempt to service or repair the device yourself. Refer all servicing to qualified service personnel. Do not at- tempt to modify the device in anyway. -
Page 3: Package Contents
PACKAGE CONTENTS Model SW6200 Portable Wireless 16 CH UHF 50 Watt Hailer Tapered Weather Resistant Horn SPL 108 dB Radio Mounting Kit Wired Microphone with 5 foot cord, Wireless Headset microphone Model SW6210 Portable Wireless 16 CH UHF 50 Watt Hailer ... -
Page 4: Install Batteries
INSTALL BATTERIES Battery Power Fig 1 . The amp uses 10 " D " size Alkaline batteries (not included); or the optional rechargeable Am- pliVox NiCad Battery Pack (S-1465) and (S1460) AC adapter -purchase separately (Fig 3). 2. The removable battery door on the back of the amp is designed to stay closed until you need to change the batteries. - Page 5 In hardware bag locate radio mounting bracket and complete assembly following Fig 5 instructions in bag that best match your radio. If you are using the AmpliVox MURS radios, use the longest fingers as shown in (Fig 5) and only the bottom bracket.
-
Page 6: Amplifier Features
OPERATION: Models SW6200 / 6210 - Make sure that the speaker is plugged into the “LEFT SPEAKER” jack. Use “RIGHT SPEAKER” jack for Model SW6220 speaker. Wired Microphone: Plug into the “DYNAMIC” jack. Turn amplifier on. Turn microphone on and talk into microphone. Rotate “VOLUME”... -
Page 7: Problem Solving
HOWLBACK/FEEDBACK is the loud squeal or screech often heard in sound reinforcement systems. It is caused by sound from the loudspeaker returning to the microphone. AmpliVox systems utilize proven acoustical principles to minimize this; however, there is no way to completely eliminate feedback under conditions of high amplification. If feedback occurs, check the following: User’s hand covering the head of the microphone (Hold microphone under head slots);... -
Page 8: Limitation Of Warranty
To obtain Warranty Service, contact AmpliVox (800-267-5486) to be assigned a Return Authorization number (RA#). After re- ceiving a RA#, the defective unit is to be returned to AmpliVox in either its original packaging or packaging affording an equal de- gree of protection.
