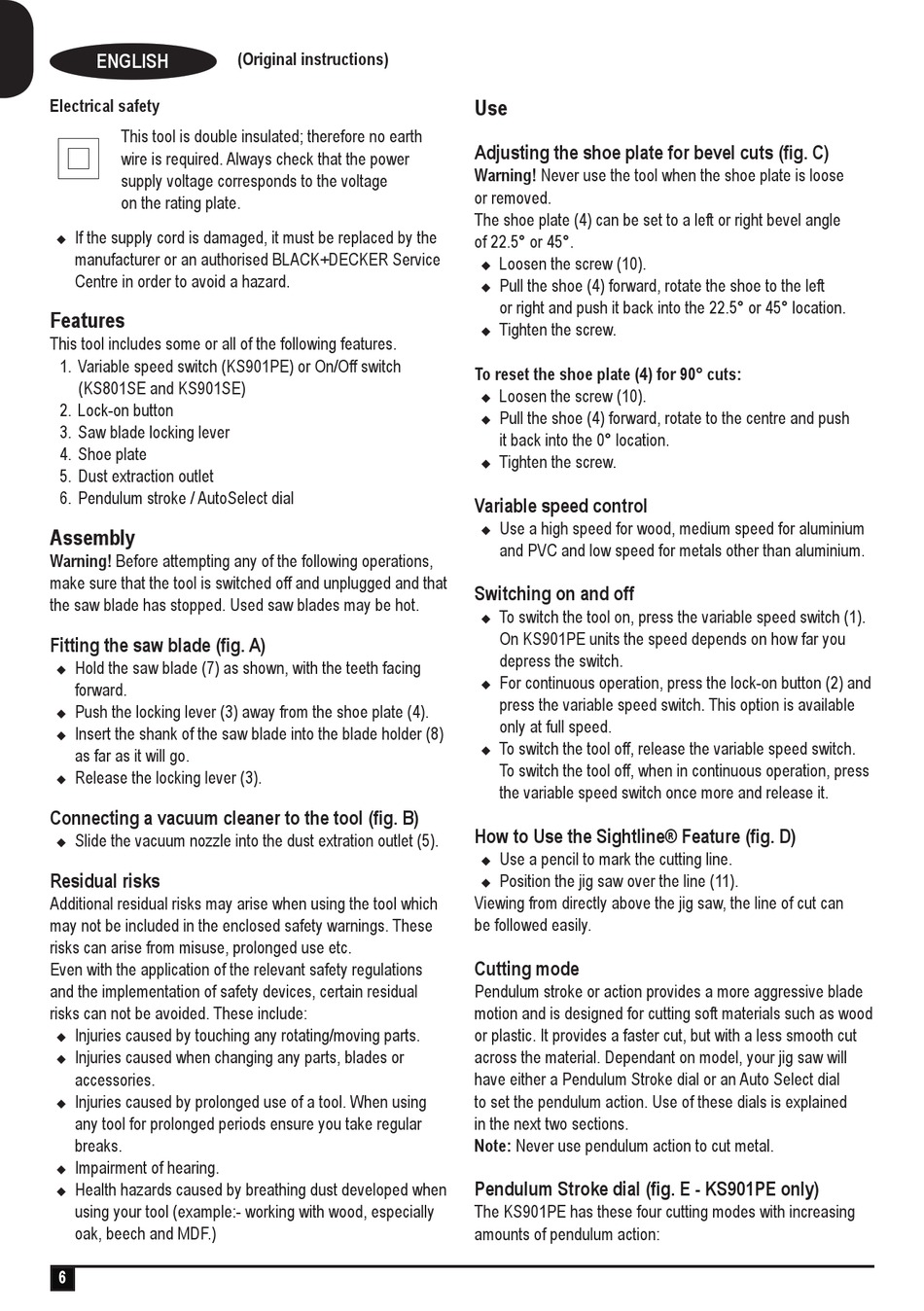

Electrical safety
This tool is double insulated; therefore no earth
wire is required. Always check that the power
supply voltage corresponds to the voltage
on the rating plate.
If the supply cord is damaged, it must be replaced by the
manufacturer or an authorised BLACK+DECKER Service
Centre in order to avoid a hazard.
This tool includes some or all of the following features.
1. Variable speed switch (KS901PE) or On/Off switch
(KS801SE and KS901SE)
2. Lock-on button
3. Saw blade locking lever
4. Shoe plate
5. Dust extraction outlet
6. Pendulum stroke / AutoSelect dial
Warning! Before attempting any of the following operations,
make sure that the tool is switched off and unplugged and that
the saw blade has stopped. Used saw blades may be hot.
Fitting the saw blade ( g. A)
Hold the saw blade (7) as shown, with the teeth facing
Push the locking lever (3) away from the shoe plate (4).
Insert the shank of the saw blade into the blade holder (8)
as far as it will go.
Release the locking lever (3).
Connecting a vacuum cleaner to the tool ( g. B)
Slide the vacuum nozzle into the dust extration outlet (5).

Residual risks

Additional residual risks may arise when using the tool which
may not be included in the enclosed safety warnings. These
risks can arise from misuse, prolonged use etc.
Even with the application of the relevant safety regulations
and the implementation of safety devices, certain residual
risks can not be avoided. These include:
Injuries caused by touching any rotating/moving parts.
Injuries caused when changing any parts, blades or
Injuries caused by prolonged use of a tool. When using
any tool for prolonged periods ensure you take regular
Impairment of hearing.
Health hazards caused by breathing dust developed when
using your tool (example:- working with wood, especially
oak, beech and MDF.)
(Original instructions)
(Original instructions)
Adjusting the shoe plate for bevel cuts ( g. C)
Warning! Never use the tool when the shoe plate is loose
or removed.
The shoe plate (4) can be set to a left or right bevel angle
of 22.5° or 45°.
Loosen the screw (10).
Pull the shoe (4) forward, rotate the shoe to the left
or right and push it back into the 22.5° or 45° location.
Tighten the screw.
To reset the shoe plate (4) for 90° cuts:
Loosen the screw (10).
Pull the shoe (4) forward, rotate to the centre and push
it back into the 0° location.
Tighten the screw.
Variable speed control
Use a high speed for wood, medium speed for aluminium
and PVC and low speed for metals other than aluminium.
Switching on and off
To switch the tool on, press the variable speed switch (1).
On KS901PE units the speed depends on how far you
depress the switch.
For continuous operation, press the lock-on button (2) and
press the variable speed switch. This option is available
only at full speed.
To switch the tool off, release the variable speed switch.
To switch the tool off, when in continuous operation, press
the variable speed switch once more and release it.
How to Use the Sightline® Feature ( g. D)
Use a pencil to mark the cutting line.
Position the jig saw over the line (11).
Viewing from directly above the jig saw, the line of cut can
be followed easily.

Cutting mode

Pendulum stroke or action provides a more aggressive blade
motion and is designed for cutting soft materials such as wood
or plastic. It provides a faster cut, but with a less smooth cut
across the material. Dependant on model, your jig saw will
have either a Pendulum Stroke dial or an Auto Select dial
to set the pendulum action. Use of these dials is explained
in the next two sections.
Note: Never use pendulum action to cut metal.
Pendulum Stroke dial ( g. E - KS901PE only)
The KS901PE has these four cutting modes with increasing
amounts of pendulum action:
