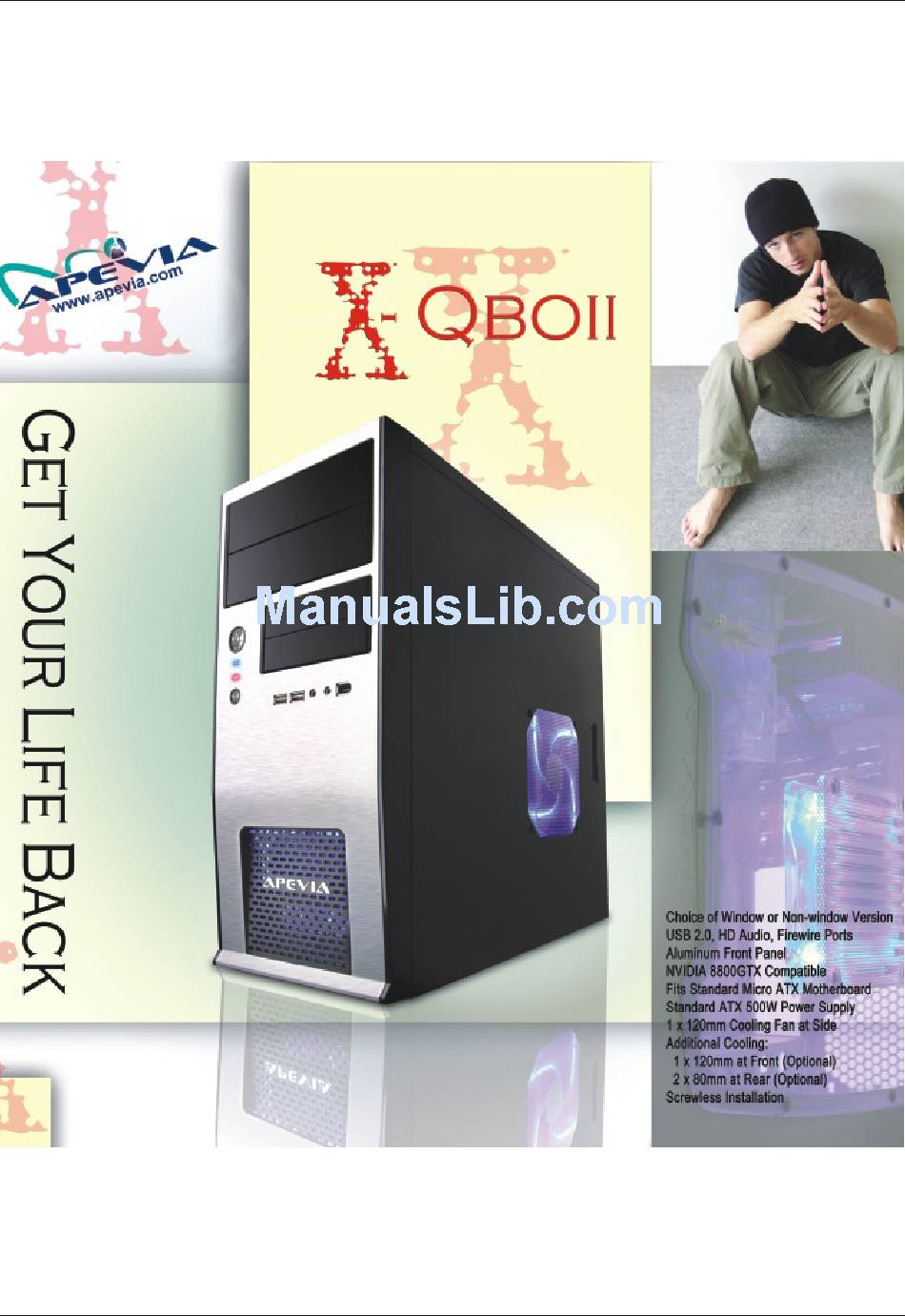

Summary of Contents for Apevia X-Qboii
-
Page 2: Table Of Contents
1. Motherboard installation... 2. Install 5¼” and 3½” 3. Install PCI components... 4. Connect case leads to motherboard... 5. Daisy-chaining case fans... 6. Complete the installation... 7. USB/1394/Audio cable pin assignments... *If you are new to PC building, we recommend reading through this manual before assembling your system. -
Page 3: Motherboard Installation
Please refer to each components’ documentation for instructions. 1. Motherboard installation: 1.1 Remove thumbscrews from the rear of the X-QBoii. X-QBoii Finished Appearance 1.2 Grab the notch on the left panel. Pull until the panel is released and remove. - Page 4 1.3 Likewise for the window version, grab the notch on the left panel and pull until the panel releases. Remove panel. NOTE: Touch an unpainted metal section of the case to discharge static before handling components (with power supply plugged in). An anti-static wrist-strap should also be worn to further minimize the possibility of damage.
-
Page 5: Install 5¼" And 3½" Drives
2. Install 5¼” and 3½” 2.1 To install an optical or floppy drive, first remove the metal shields that sit behind each drive bay cover. This must be done from the inside of the case. Next remove the drive bay covers by using a screwdriver, and knocking them out from behind. -
Page 6: Install Pci Components
2.5 Attach 1 mounting rail to each side 2.6 Insert drive into the drive cage of each hard-disk drive. until rails “click” into place. 3. Install PCI components: 3.1 First, remove the PCI slot covers. 3.2 Insert PCI card into assigned slot Gently push inward to remove. - Page 7 3.3 Lengthier PCI cards such as the 8800GTX can be installed if your motherboard’s PCI slot aligns with the first slot, as shown. 3.5 There is also a screw between the fan and bottom of the drive bays that must be removed. 3.4 If the PCI slot you need is in any of the other positions, the 3½”...
-
Page 8: Connect Case Leads To Motherboard
4. Connect case leads to motherboard: 4.1 Locate the front panel leads. 1 x USB 1 x 1394 1 x HD AUDIO 4.3 Locate the front panel leads. (You should find them twist-tied to the 3½” drive cage.) 1 x Power SW 1 x Reset SW 1 x H.D.D. -
Page 9: Daisy-Chaining Case Fans
4-pin connectors. 6. Complete the installation: 6.1 With all components properly installed, gently return side panels and hard-drive cage to their original positions and replace all screws. Congratulations! You have completed assembly of your X-QBoii chassis. -
Page 10: Usb/1394/Audio Cable Pin Assignments
7. USB/1394/Audio cable pin assignments:...
