IES7120-4GS Series
Industrial Ethernet Switch
User Manual
Shenzhen 3onedata Technology Co., Ltd.
Tel: +86-755-26702668 Fax: +86-755-26703485
www.3onedata.com
【Summarize】

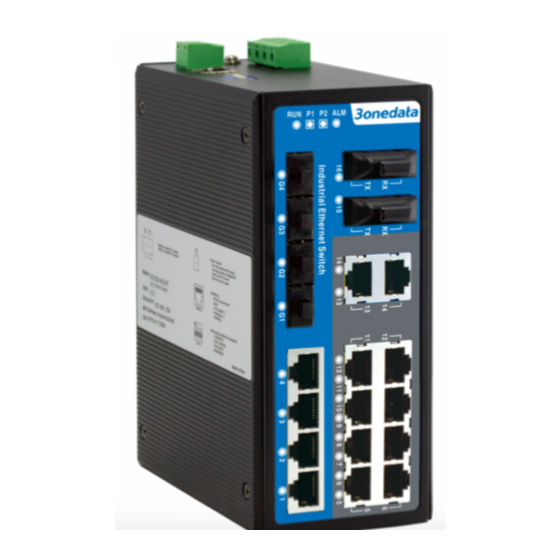

IES7120-4GS series is an industrial grade, managed and
redundancy Ethernet switch. The IES7120-4GS industrial
Ethernet switch consists of 16 Ethernet ports and 4 gigabit ports.
The IES7120-4GS-2F consists of 14 Ethernet ports, 2 Fiber ports
and 4 gigabit ports. The IES7120-4GS-4F consists of 12 Ethernet
ports, 4 Fiber ports and 4 gigabit ports that provide an economical
solution for your industrial Ethernet connection. It supports auto
flow
control,
full/half
duplex
mode
self-adaption. The switch support AC power input series and DC
power input series optional.
TM
SW-Ring
is designed as rapid redundancy network
arithmetic. It provided recover technology for fault of rapid
redundant network, the recovery time<20ms. Product accorded to
CE, FCC standard and Industry grade 4 design requirement,
support 1 channel AC power input or 2 channel DC power input
and 1 channel relay alarm output, and -40 ～ 75 ℃ working
temperature, can meet all kinds of Industrial environment
requirement.
It
can use in power,
transportation area etc.
【Packing list】
The industrial Ethernet switch is shipped with the following items.
If any of these items are missing or damaged, please contact your
customer service representative for assistance.
Industrial Ethernet switch ⅹ 1
Documentation and software CD ⅹ 1
User manual ⅹ 1
DIN-Rail mounting kit ⅹ 1
Warranty card ⅹ 1
【Feature】
High performance network exchange technology
Support IEEE802.3, IEEE802.3u, IEEE 802.3x, IEEE802.3z,
IEEE802.1Q, IEEE802.1p, IEEE802.1D, IEEE802.1W
SW-Ring ring network patent technology (Fault recovery
- 1 -
time<20ms）
Support RSTP, way exchange time<50ms
Support WEB configuration
Support Port based VLAN and IEEE 802.1Q VLAN
Support
IEEE802.1P, DSCP priority
Store and Forward switching process type
Support port status display, data update.
and
MDI/MDI-X
Support MAC address auto-learning, auto-aging
Support 8K MAC address
Support 12.8Gbps backboard bandwidth
DC power input series support redundancy power
supply(12～48VDC)
AC power input series support AC power supply(100～
240VAC/DC)
Support 1 channel relay alarm output
Reliable Industrial grade design
Industrial grade 4 design, -40-75℃work temperature
water
conservancy,
No fan deign
IP40 protection grade
DIN-Rail mount
【Panel layout】
Rear view
absolutely
and
opposite
priority,
support
Vertical view and bottom view
Advertisement
Table of Contents
Related Manuals for 3onedata IES7120-4GS Series
Summary of Contents for 3onedata IES7120-4GS Series
- Page 1 【Summarize】 time<20ms） IES7120-4GS series is an industrial grade, managed and Support RSTP, way exchange time<50ms redundancy Ethernet switch. The IES7120-4GS industrial Support WEB configuration Ethernet switch consists of 16 Ethernet ports and 4 gigabit ports. Support Port based VLAN and IEEE 802.1Q VLAN...
-
Page 2: Power Supply Input
【Dimension】 11. 10Base-T /100Base-TX Ethernet port Front panel view 12. Link/ACT LEDs The series of products are the same size, and the number of the 13. 100Base-FX fiber port Ethernet interface is different. Unit (mm) 【Power supply input】 DC Series Switch: The switch top panel provided 4 bit power supply input terminal block, support DC input. -
Page 3: Console Port
【Console port】 This series product provided 1pcs procedure test port based in serial port. It adopts RJ45 interface, located in top panel, can configure related command through RJ45 to DB9 female cable. 1000Base SFP fiber port(mini-GBIC) 1000Base-FX SFP fiber port adopts gigabit mini-GBIC transmission, can choice different SFP module according to 10/100Base-T(X) MDI-X (Cross over cable) different transfer distance. -
Page 4: Installation
terrible loss of link). Its banding should be moderate, not too When the alarm is enabled, power DIN Rail Installation or the port’s link is inactive. In order to use in industrial environments expediently, the product tight, and should be separated from other cables; Alarm adopt 35mm DIN-Rail installation, the installation steps as below: 9. - Page 5 Multi-mode: 1310nm, 2Km Industry Standard Single-mode: 1310nm, 20/40/60Km EMI: FCC Part 15, CISPR (EN55022) class A 1550nm, 80/100/120Km EMS: EN61000-4-2 (ESD), Level 4 EN61000-4-3 (RS), Level 3 LED indicator: EN61000-4-4 (EFT), Level 4 Run indicator: Run EN61000-4-5 (Surge), Level 2 Interface indicator: Link (1~16/G1~G4) EN61000-4-6 (CS), Level 3 Power supply indicator: PWR (P1, P2)
