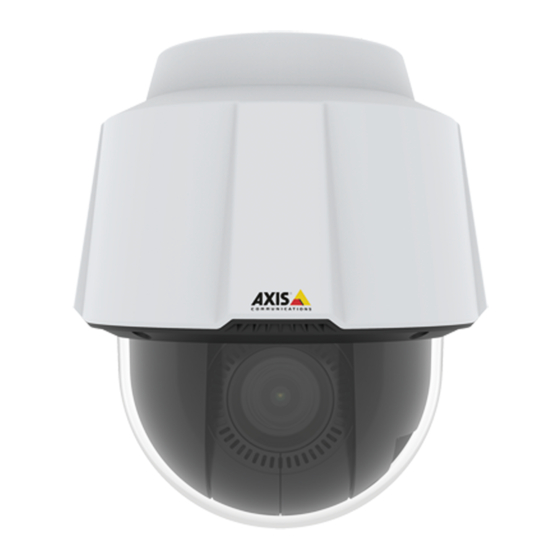

AXIS P5654-E Network Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P5654-E and is the answer not in the manual?

Questions and answers

Related Manuals for Axis P5654-E

Summary of Contents for Axis P5654-E

  • Page 1 AXIS P5654-E Network Camera User Manual...

  • Page 2: Table Of Contents

    AXIS P5654-E Network Camera Table of Contents Product overview ......... . .

  • Page 3: Product Overview

    AXIS P5654-E Network Camera Product overview Product overview Hook for safety wire Mounting screws (x3) Network connector (PoE+) Ground screw SD memory card slot Control button Status LED indicator Power button Dome...

  • Page 4: Find The Device On The Network

    Find the device on the network Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 5: Additional Settings

    AXIS P5654-E Network Camera Additional settings Additional settings Need more help? You can access the built-in help from the device’s webpage. The help provides more detailed information on the device’s features and their settings. Image quality Adjust the focus faster with focus recall areas To save the focus settings at a specific pan/tilt range, add a focus recall area.
  • Page 6 Note WDR may cause artifacts in the image. Find out more about WDR and how to use it at axis.com/web-articles/wdr. Hide parts of the image with privacy masks You can create one or several privacy masks to hide parts of the image.

  • Page 7: Streaming And Storage

    AXIS P5654-E Network Camera Additional settings Streaming and storage Bitrate control With bitrate control, you can manage the bandwidth consumption of your video stream. Variable bitrate (VBR) With variable bitrate, the bandwidth consumption varies based on the level of activity in the scene. The more activity in the scene, the more bandwidth you need.
  • Page 8 H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller.

  • Page 9: Overlays

    H.265 or MPEG-H Part 2/HEVC Note H.265 is licensed technology. The Axis product includes one H.265 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. Reduce bandwidth and storage Important If you reduce the bandwidth it can result in loss of details in the picture.

  • Page 10: Pan, Tilt, And Zoom (Ptz)

    This example explains how to set up the camera to go to a preset position when it detects motion in the image. Make sure that AXIS Video Motion Detection is running: 1. Go to Settings > Apps > AXIS Video Motion Detection. 2. Start the application if it is not already running.
  • Page 11 3. Create the zoomed-in preset position so that it covers the area in the image where you assume that the license plate will appear. Create a motion detection profile: 1. Go to Settings > Apps and open AXIS Video Motion Detection. 2. Create a profile that covers the entrance of the gate and then save the profile. Create a rule: 1.

  • Page 12: Applications

    Applications Applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications. To find the user manuals for Axis applications, go to axis.com.

  • Page 13: Troubleshooting

    AXIS P5654-E Network Camera Troubleshooting Troubleshooting If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support. Reset to factory default settings Important Reset to factory default should be used with caution. A reset to factory default resets all settings, including the IP address, to the factory default values.

  • Page 14: Technical Issues, Clues And Solutions

    Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the...

  • Page 15: Performance Considerations

    To access the device externally, we recommend using one of the following applications for Windows • AXIS Companion: free of charge, ideal for small systems with basic surveillance needs. • AXIS Camera Station: 30-day trial version free of charge, ideal for small to mid-size systems. For instructions and download, go to axis.com/vms.
  • Page 16 AXIS P5654-E Network Camera Troubleshooting • Viewing on poorly performing client computers lowers perceived performance and affects frame rate. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the frame rate and the general performance.

  • Page 17: Specifications

    AXIS P5654-E Network Camera Specifications Specifications To find the latest version of the product’s datasheet, go to the product page at axis.com and locate Support & Documentation. LED indicators Status LED Indication Unlit Connection and normal operation. Green Shows steady green for 10 seconds for normal operation after startup completed.
  • Page 18 User Manual Ver. M2.2 AXIS P5654-E Network Camera Date: March 2020 © Axis Communications AB, 2019 Part No. T10143864...
