Summary of Contents for Univex PM91-PK2

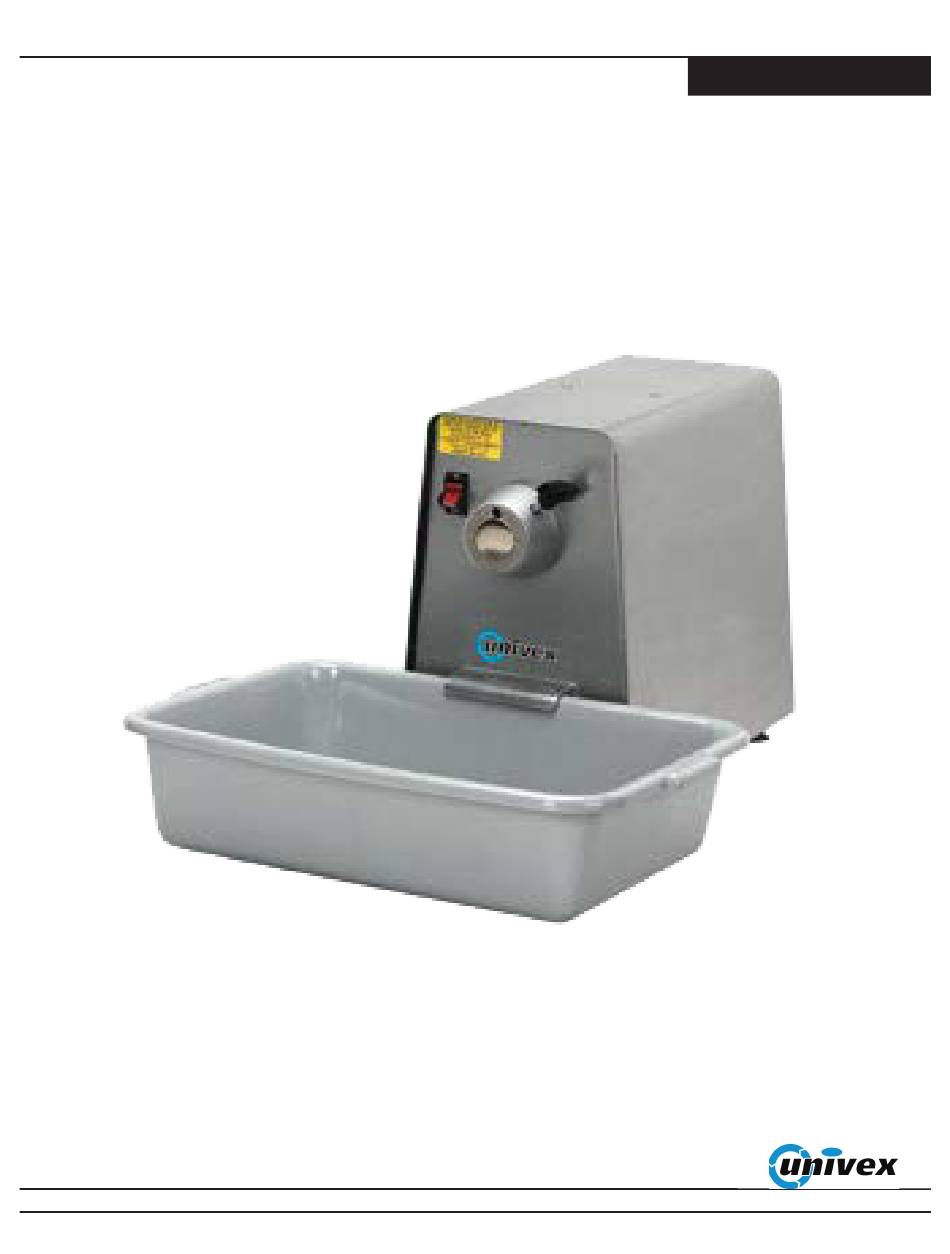

- Page 1 OPERATORS PM91 H/D PREP-MATE MANUAL PM91/0109 ED 1 0011091...
-
Page 2: Table Of Contents
TABLE OF CONTENTS DESCRIPTION PAGE TABLE OF CONTENTS ......................1 LIST OF ILLUSTRATIONS .....................1 INSPECTION ..........................2 SAFETY ............................3 OPERATING INSTRUCTIONS ....................5 VEGETABLE PREPARATION ATTACHMENT VS9 .............6 GRATING AND SHREDDING ATTACHMENT VS9H ............7 MEAT AND FOOD CHOPPER ....................8 WARRANTY .....................BACK COVER LIST OF ILLUSTRATIONS ILLUSTRATION PAGE FIGURE 1... -
Page 3: Inspection
Or visit us on-line at www.univexcorp.com under service agents. The UNIVEX Model PM91 Prep-Mate is a 1 HP portable electric unit consisting of a poly “V” belt assembly with a No. 12 drive hub operating at 250 rpm. It is designed to support and power the UNIVEX ALMFC 12 meat and food chopper, VS9 vegetable slicer, and the VS9H shredder and grater food processing attachments. -
Page 4: Safety
WIPE DOWN THE EXTERIOR OF THE DRIVE UNIT ONLY, NEVER HOSE DOWN OR IMMERSE THE DRIVE UNIT IN WATER. DO NOT ATTEMPT TO SERVICE THE DRIVE ASSEMBLY. PLEASE CONTACT UNIVEX CORPORATION FOR THE NUMBER OF THE NEAREST AUTHORIZED SERVICE AGENT IN YOUR AREA FOR ADJUSTMENTS OR REPAIR. -
Page 5: Figure 1
OVERALL VIEW OF THE PM91 FIGURE 1 POWER UNIT POWER TAKE-OFF (PTO) POWER CORD THUMB SCREW CIRCUIT BREAKER (ON BACK) PLASTIC TUB POWER SWITCH TUB COVER (NOT SHOWN) PAGE 4... -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS The Prep-Mate should be set on a level, stable surface and in an area that is convenient for the operator with sufficient clearance around the unit for safe operation. Before installing the PTO attachments, make sure the PTO adapter is properly installed on the drive shaft. -
Page 7: Vegetable Preparation Attachment Vs9
VEGETABLE PREPARATION ATTACHMENTS SLICING ADJUSTABLE “S” KNIFE ASSEMBLY VS9 SLICING ATTACHMENT FIGURE 3 FIGURE 4 STANDARD EQUIPMENT Standard finish anodized aluminum housing with. hinged feed chute door, latch and feed pusher. Adjustable “S” knife assembly with hardened stainless steel knife and #12 rear hub. THE VERSATILE VS9 IS USED FOR SLICING: LETTUCE COLE SLAW... -
Page 8: Grating And Shredding Attachment Vs9H
VS9H GRATING / SHREDDING FIGURE 5 Hub and Shaft 3/16 Shredder Plate Assembly (H and S) STANDARD EQUIPMENT Satin Finish anodized aluminum housing with hinged feed chute door, latch and feed pusher. Die cast aluminum hub with stainless steel shaft and #12 rear hub and stainless locking pins. OPTIONAL: SHREDDER AND GRATER PLATES AND TYPICAL USAGES 1/2”... -
Page 9: Meat And Food Chopper
GRINDER WITH PAN AND STOMPER FIGURE 6 ITEM No. PART No. DESCRIPTION Qty. 1000735 Stomper 8700011 Pan, Stainless Steel 4400351 Label 1000651 Housing Assembly 1000653 Worm Assembly 1000506 Knife 1000509 Plate 3/16 1000508 Plate 1/8 (optional) 1000510 Plate 1/4 (optional) 1000511 Plate 3/8 (optional) 1000512... -
Page 10: Warranty
8:00 am and 5:00 pm local time, Monday through Friday. Univex will not cover over- time charges of any kind. Please call the Univex Warranty Service Department at 800-258-6358 to report warranty claims before arranging repair or attempting to return the unit to Univex Corporation.
